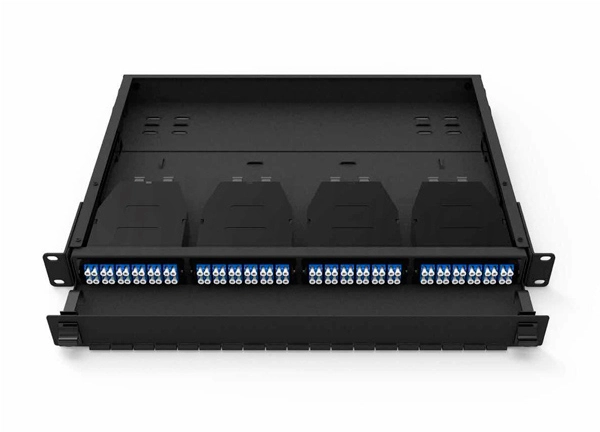

MPO/MTP Patch PanelHigh Density 1U 96 Core 19 Inch Sliding ODF Fiber Loaded MPO LC SC Cassettes

The 1U 19 inch rack mount MTP/MPO patch panel with 96 cores is a compact and efficient solution for managing MPO/MTP fiber cables in data centers or telecommunication networks. It offers high port density, accommodating 96 cores in a 1U form factor. The fiber patch panel is compatible with MTP/MPO connectors, enabling quick and reliable connections. It features easy optical cable management options, both front and rear connectivity, and a modular design for scalability. UnitekFiber manufactures MPO/MTP patch panels with clear labels for easy identification, simplifying installation, maintenance and troubleshooting. Overall, MPO/MTP patch panel cabling provides a reliable and space-saving solution for high-density fiber optic cable management.


Fiber Optic
Description
FAQ
Specification
Reviews
Video

MPO/MTP Patch PanelHigh Density 1U 96 Core 19 Inch Rack Mount ODF Fiber Loaded MPO LC SC Cassettes

Characteristics of the Rack Mount MTP/MPO Patch Panel

1. High density wiring application condition

2. Standard 19'

3. High-density, 1U 96 fibers

4. Sliding drawer, easily installed

5. Can be loaded ABS MPO module cassette or LC/SC/FC fiber adapters panel

6. Sprayed surface treatment process

7. Customizable color and LOGO

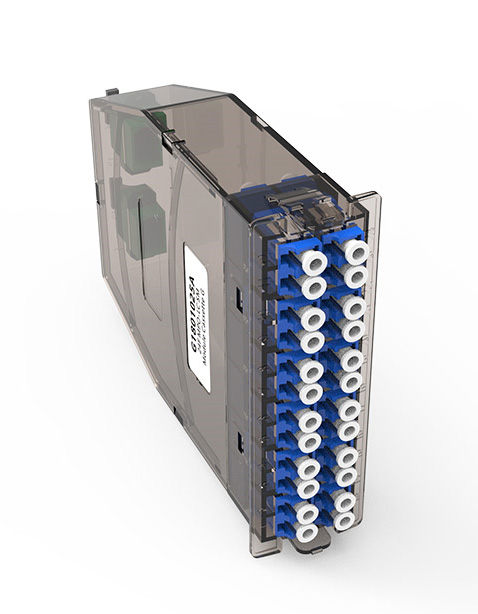

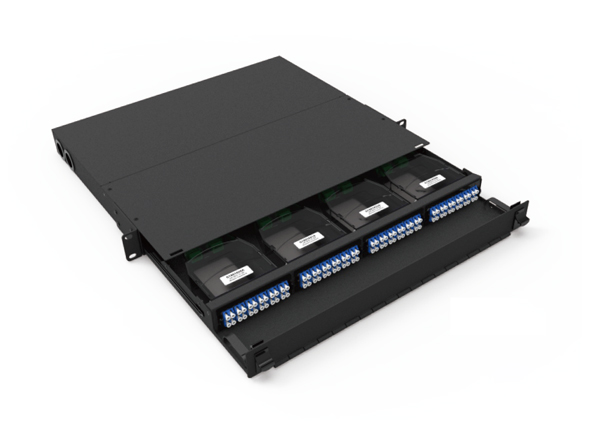

What is MTP/MPO module Cassette?

The MTP/MPO module cassette is an enclosed unit that usually include fiber optic connectors such as SC fiber optic connector and LC connector plugged into fiber optic adapters on the front side of the MTP/MPO module cassette and MPO/MTP connector plugged into the rear. Using MTP/MPO fiber cassette ensures adaptability for the ever-changing data center and network environment. When requirements for fiber optic connectors change in the future, all you have to do is simply swap out the MTP/MPO fiber cassette all while leaving the existing backbone infrastructure intact.

micro plc splitter

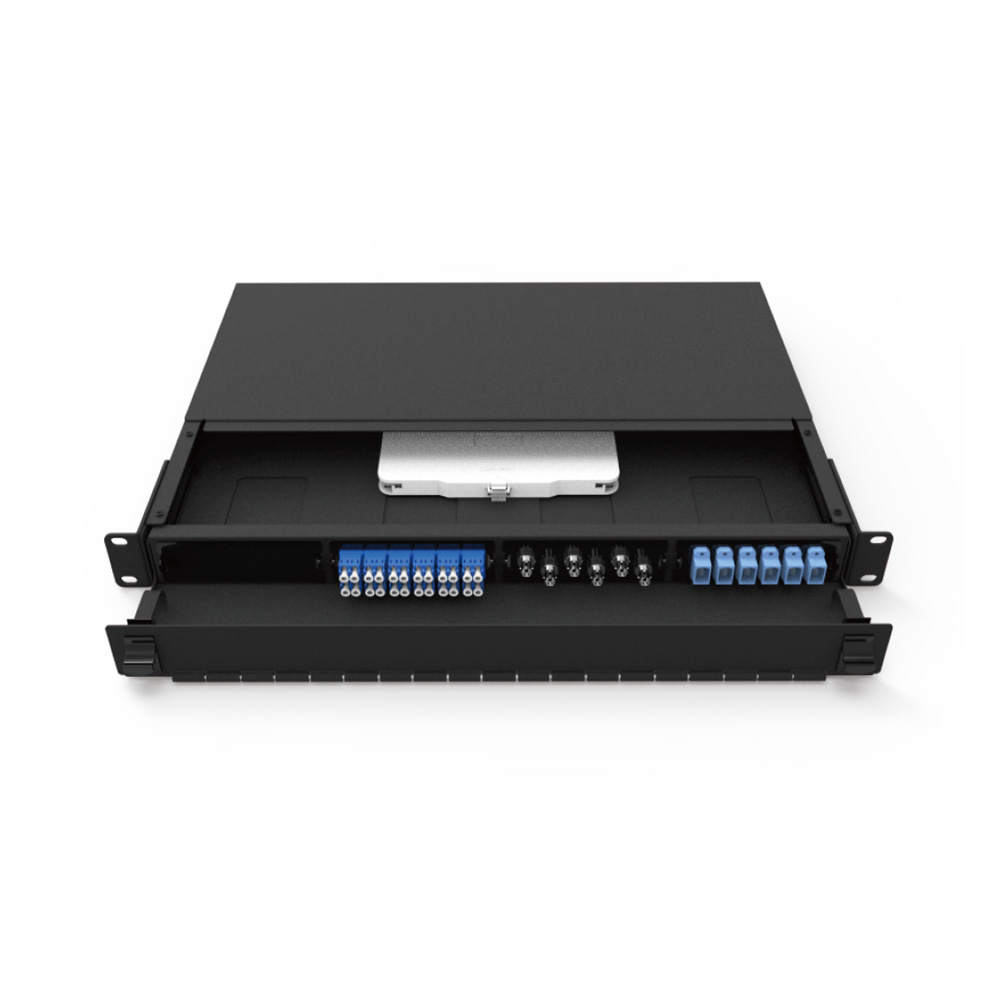

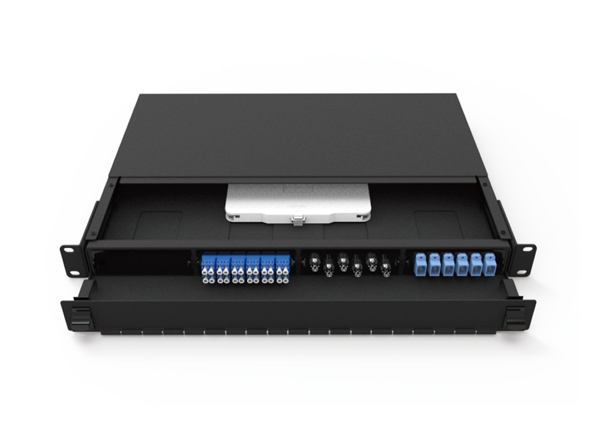

Adapter Panel and Splice Tray Functions

The sliding MPO/MTP patch panel is a type of ODF fiber that facilitates easy access and management of MPO/MTP fiber connectors. The MPO/MTP patch panel is designed not only to accommodate MPO/MTP module cassette, but also to splice fibers using LC/SC/FC fiber optic adapter panels and fiber splice trays. Duplex LC and SC fiber optic adapter panels provide the interface to connect fiber optic patch cords or fiber pigtails with corresponding fiber optic connectors. They allow for easy and reliable management between optical fibers, ensuring efficient data transmission. On the other hand, fiber splice trays are designed to provide a secure and organized environment for splicing optical fiber cable. They typically consist of fiber splice trays or compartments where individual optical fiber cable can be routed and spliced together using fusion splicing or mechanical splicing techniques.

osp fibre

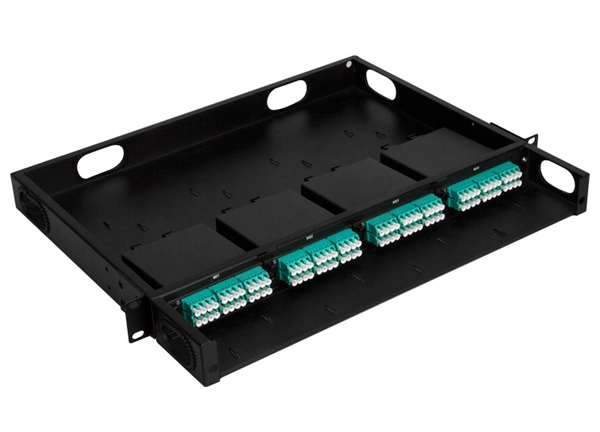

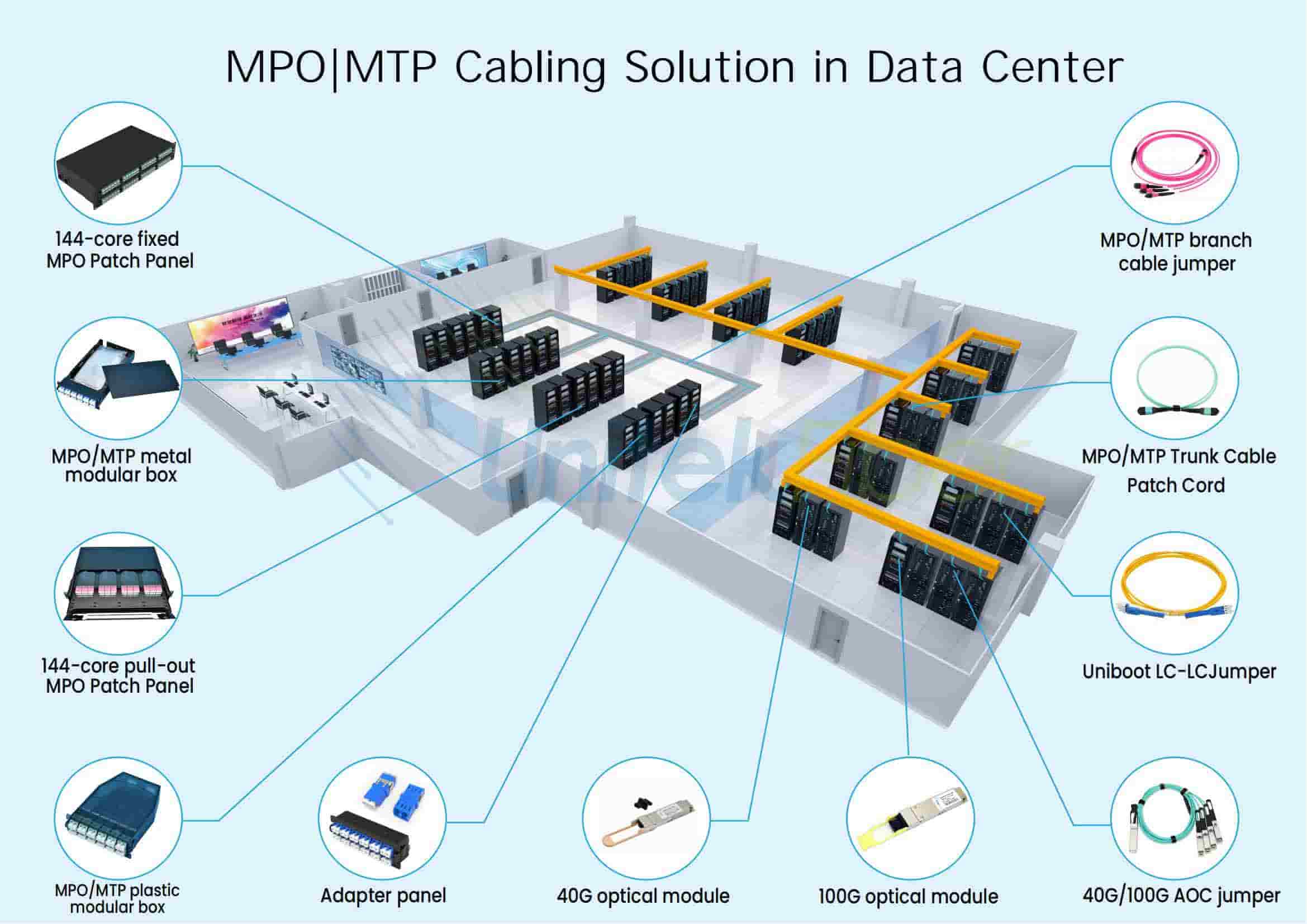

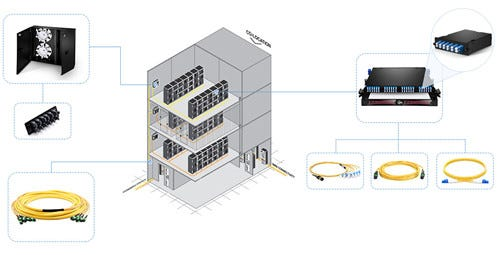

Boost Network Efficiency with High-Density MTP/MPO Patch Panels

High density MTP/MPO patch panel are a key component in improving network efficiency and performance. These advanced MTP/MPO patch panel provide an effective solution for managing large numbers of fiber optic patch cord in a compact and organized manner. The use of MTP/MPO patch panel enables quick and easy deployment of high-speed data transmission, supporting applications like data centers, cloud computing, and high-bandwidth networks. Overall, the MTP/MPO patch panel are instrumental in boosting network efficiency, providing scalability, and supporting the growing demands of modern fiber optic networks.

adss ofc cable

What is the purpose of a MTP/MPO patch panel?

The MTP/MPO patch panel acts as a centralized termination point for fiber patch cable and provides a secure and organized interface for connecting and managing high-density fiber optic management.


What is the capacity of this MTP/MPO patch panel?

This type of MTP/MPO patch panel has a capacity of 96 optical fibers.


Can I mix single mode and multimode optical fibers in a MTP/MPO patch panel?

Yes, you can mix different optical fiber types in the MTP/MPO patch panel.


How can I get a sample to check your quality?

If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.


How do I manage the cable routing in a MTP/MPO patch panel?

Optical cable management accessories such as optical cable ties, or fiber splicing trays are commonly used to organize and route the fiber patch cord within the rack.


The sliding mechanism allows for easy access and management of our MPO fiber connectors, saving us time and effort during installations and maintenance.


With its high density design, we have been able to maximize our rack space while maintaining a clean and organized setup. This MPO patch panel has truly exceeded our expectations.

The compatibility with both MPO module cassettes and fiber adapter panels has given us the flexibility to adapt to our changing network requirements.


The fiber module cassette design allows for easy upgrades and expansions. Highly recommended!


The high port density and excellent optical cable management options have made our installation process smooth and efficient.
