LAN 10G OM3 Dual Cores LC/PC - LC/PC Duplex Fiber Optic Adapter|Fiber Coupler

Fiber optic adapter is used to provide a cable to cable or cable to equipment fiber optic connection. UnitekFiber supplies a wide range of fiber mating sleeves, hybrid adapters, and special female to male hybrid optic adapter. All our fiber adapters are in Low insertional loss and good back reflection loss.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

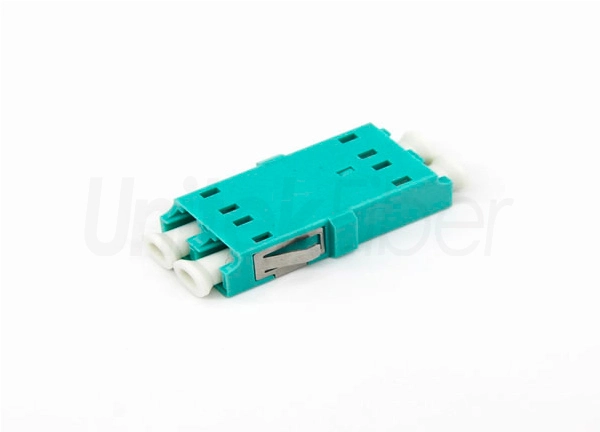

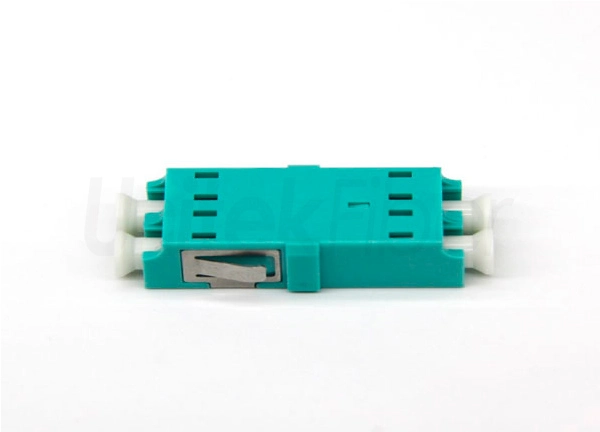

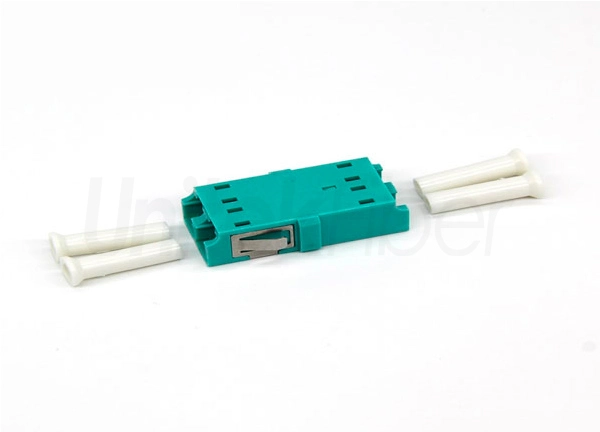

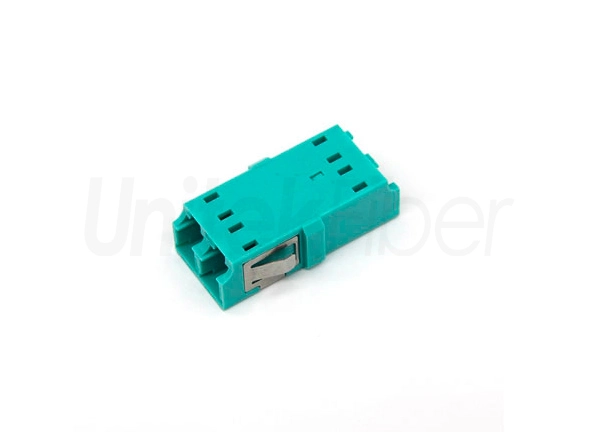

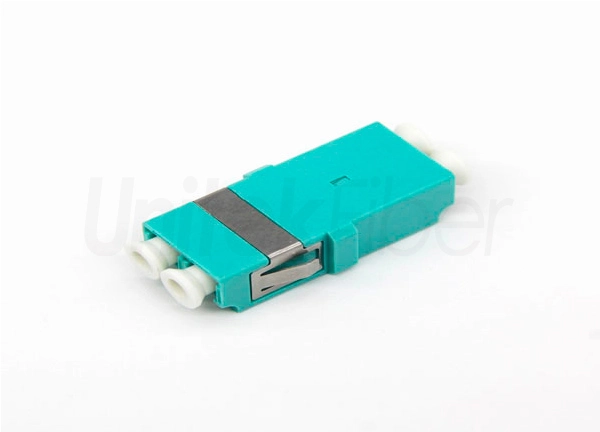

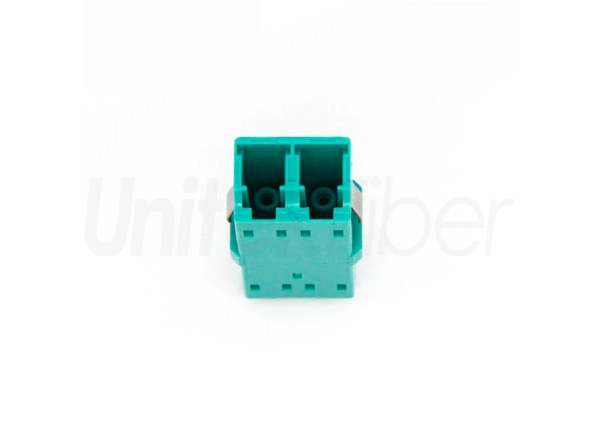

LAN 10G OM3 Dual Cores LC/PC - LC/PC Duplex Fiber Optic Adapter|Fiber Coupler

Features


lLow insertional loss and back reflection loss

lHigh prcision alignment

lTelcordia, ANSI, TIA/EIA, NTT and JIS compliance

lCompact design

lPlastic housing


Application


lCATV

lTelecommunication networks

lTest equipment

lMetro

lLocal Area Networks(LANs)

lData processing networks

lMultimedia

lGigabit Ethernet

lActive device/Transceiver


The Application of Fiber Optic Adapter in Fiber Network Cabling


Optical adapters were developed for connecting and mating two identical or two different (hybrid) connector plugs. The main function of the adapters are for connection between various fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, it offers the point-to-point connection in the fiber optic network.


Fiber Lc To St Adapter


Fiber adapters are widely used in optical communications, optical sensors, and other optical fiber applications such as long-distance trunk networks, metropolitan area networks, access networks, optical fiber CATV networks, optical fiber data networks, and DWDM systems.


Optical Connection Adapter


Packaging and Shipping:


Lc Adapter Duplex


Production


LAN 10G OM3 Dual Cores LC/PC - LC/PC Duplex Fiber Optic Adapter|Fiber Coupler

LAN 10G OM3 Dual Cores LC/PC - LC/PC Duplex Fiber Optic Adapter|Fiber Coupler

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
