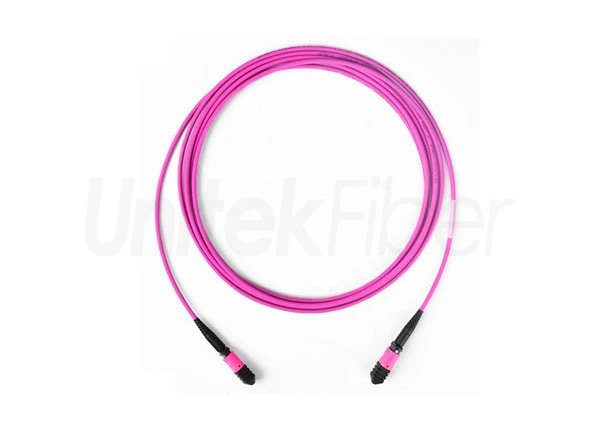

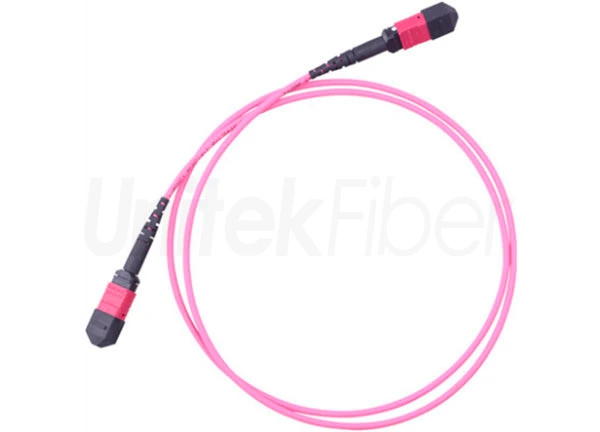

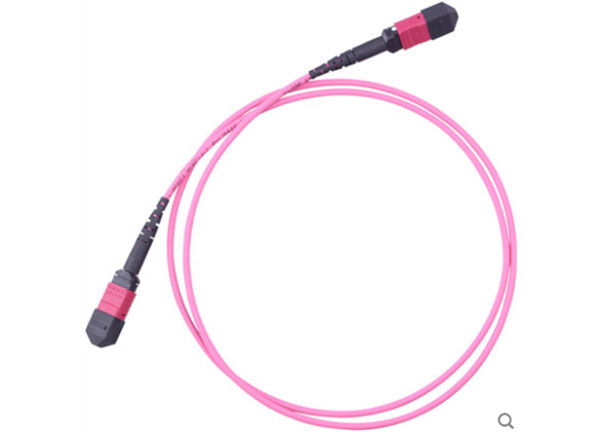

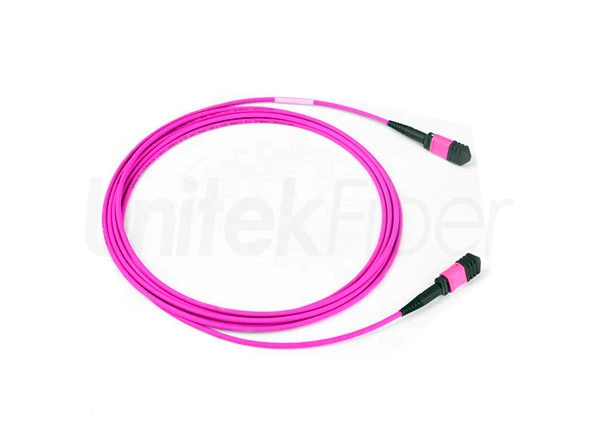

MTP MPO Fiber Cable| MPO MTP Connector 12cores 24cores Trunk Cable Patch Cord OM4 100G

Unitekfiber manufactures series of MPO/MTO fiber cables. MPO fiber patch cords have been a feature of multi-optical fiber intensive, which will play an important role in the construction of data centers and 5G mobile communication base stations.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Video

Description of MTP MPO Fiber Cable| MPO MTP Connector 12cores 24cores Trunk Cable Patch Cord OM4 100

MTP/MPO cable is specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications. Save time and money with MTP/MPO's increased ease of installation - simply pull one cable rather than twelve. Each MTP/MPO fiber assembly consists of twelve 9/125 single-mode fibers under one PVC (OFNR-rated) jacket.

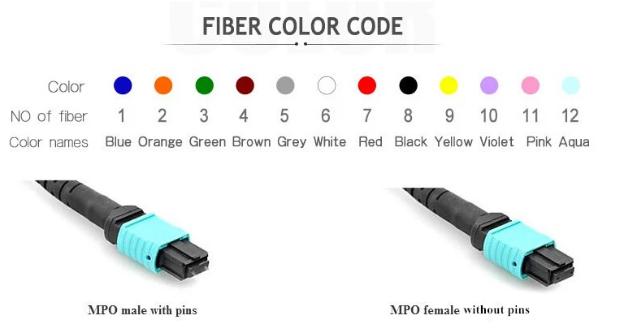

Fiber Color Code


Network Connectivity

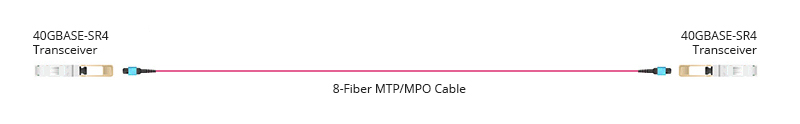

Base-8 MTP/MPO Cabling for 40G-40G Connection


MTP MPO Fiber Cable| MPO MTP Connector 12cores 24cores Trunk Cable Patch Cord OM4 100G



The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-LR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.


Product Highlights


Superior Workmanship Guarantees Stable Transmission


MTP MPO Fiber Cable| MPO MTP Connector 12cores 24cores Trunk Cable Patch Cord OM4 100G

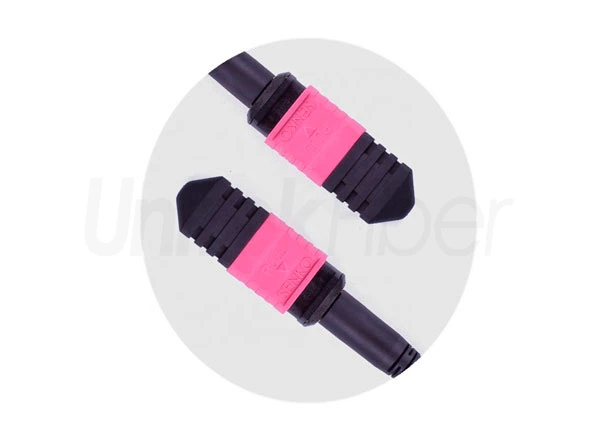

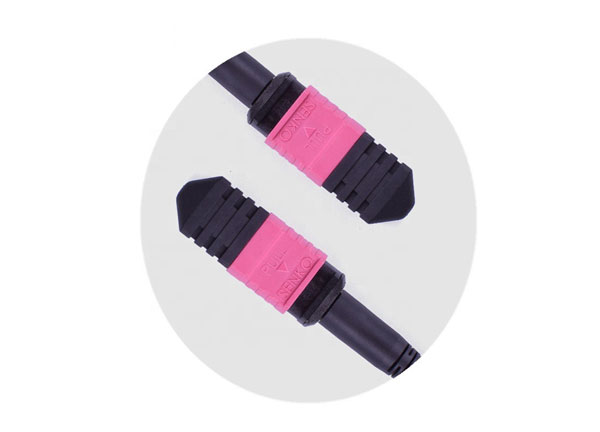

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.


Perfect High-performance Fiber

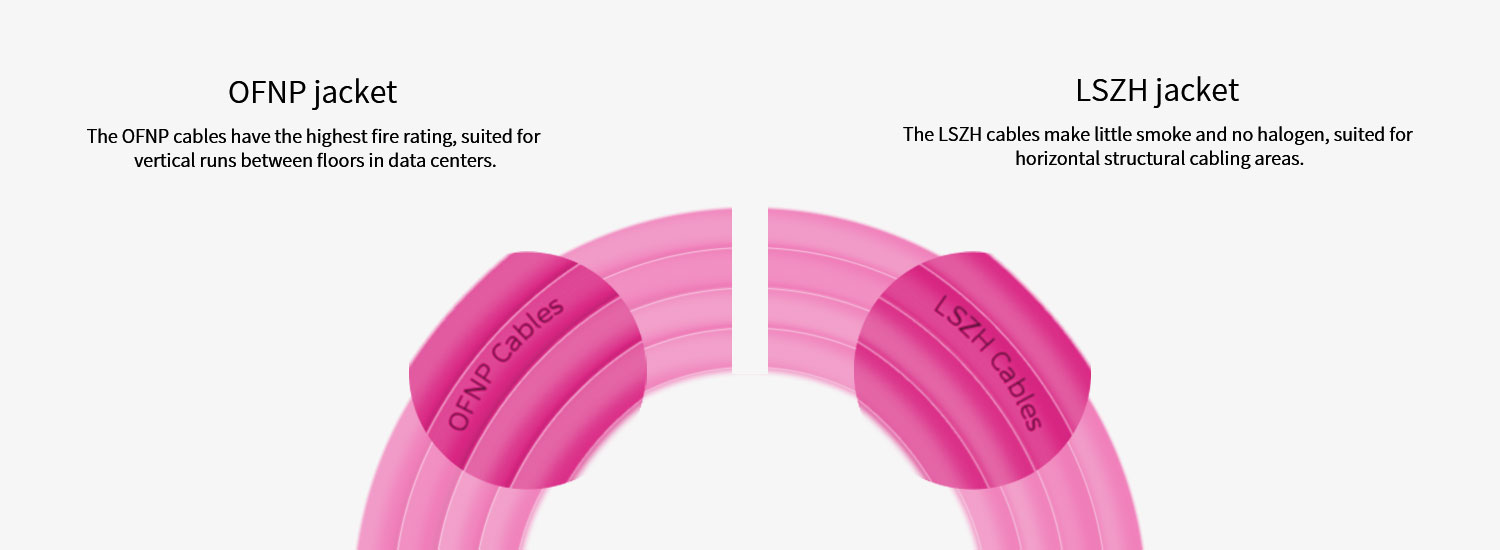

Excellent bending and compression resistance make it an ideal choice for high density cabling





MTP MPO Fiber Cable| MPO MTP Connector 12cores 24cores Trunk Cable Patch Cord OM4 100G

Parameter of MTP MPO Fiber Cable| MPO MTP Connector 12cores 24cores Trunk Cable Patch Cord OM4 100G

Model

SM

MM

Connector A: MPO/MTP

Connector Fiber Count

8, 12, 24, 48 Core

Polish

PC, APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability (500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B: LC, LC Uniboot, SC, FC, ST

Polish

PC, APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB, APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code

Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
