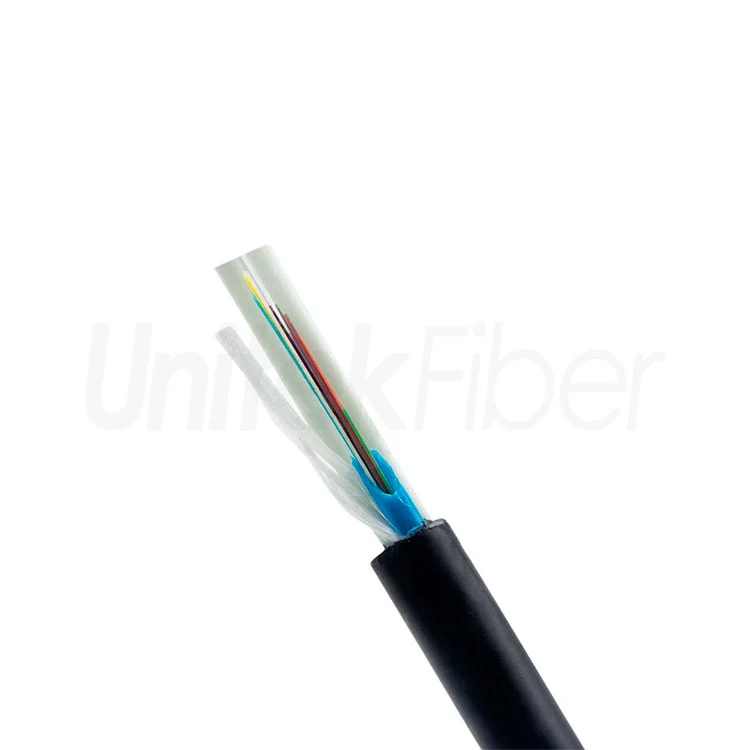

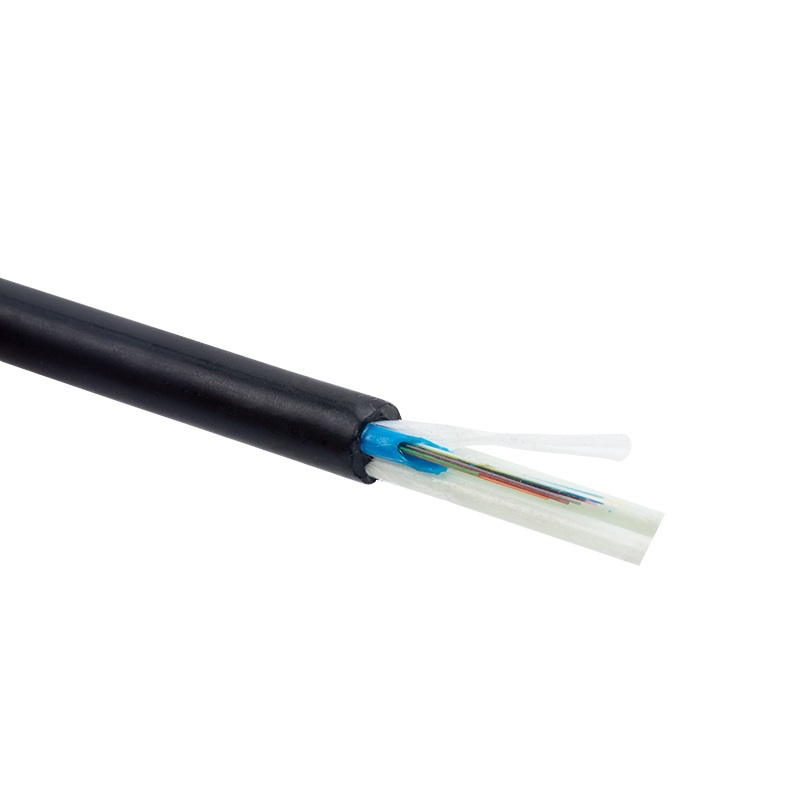

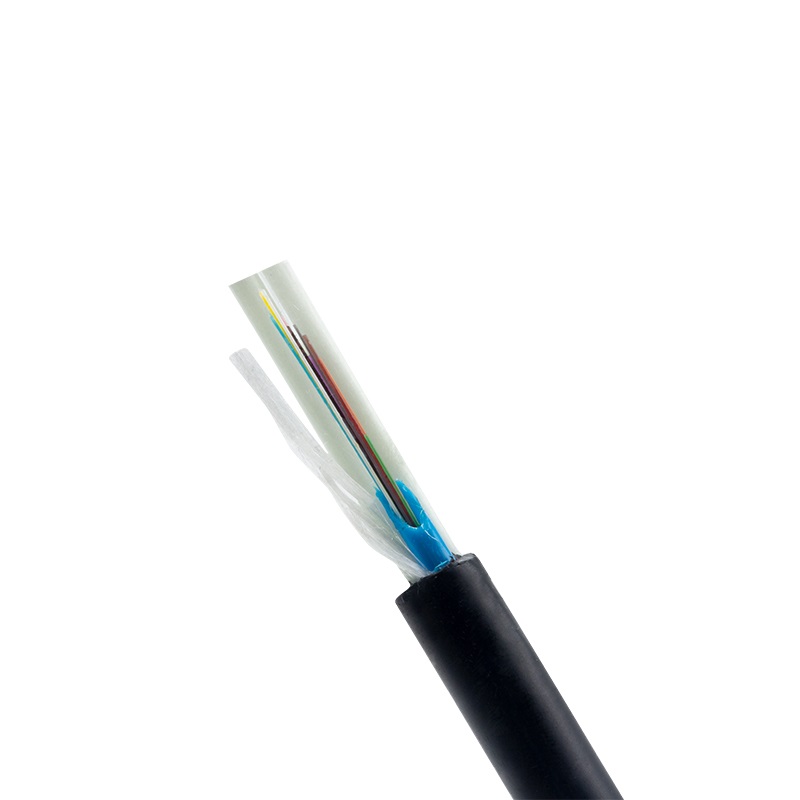

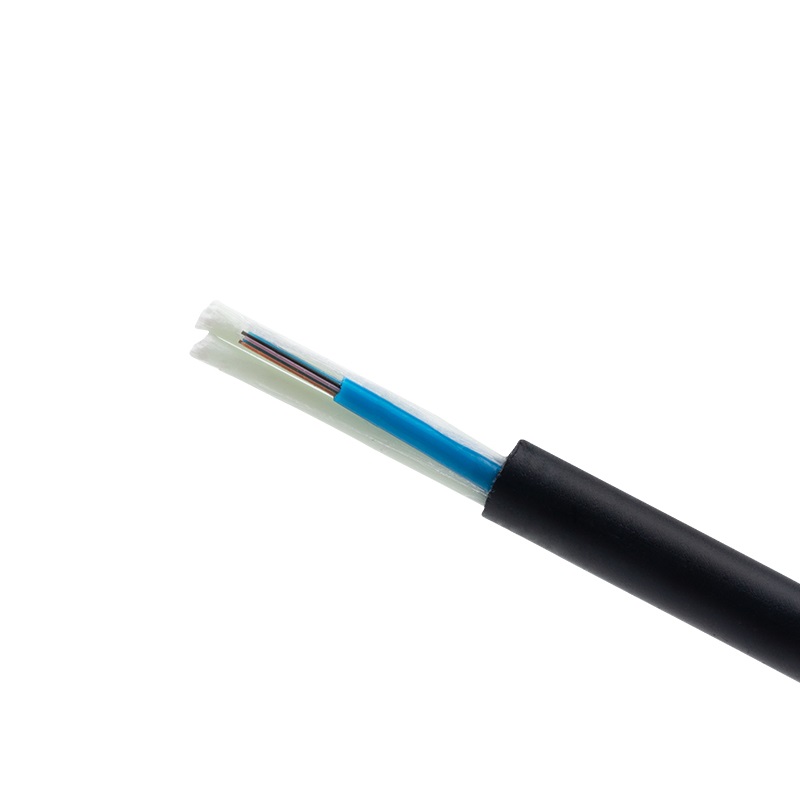

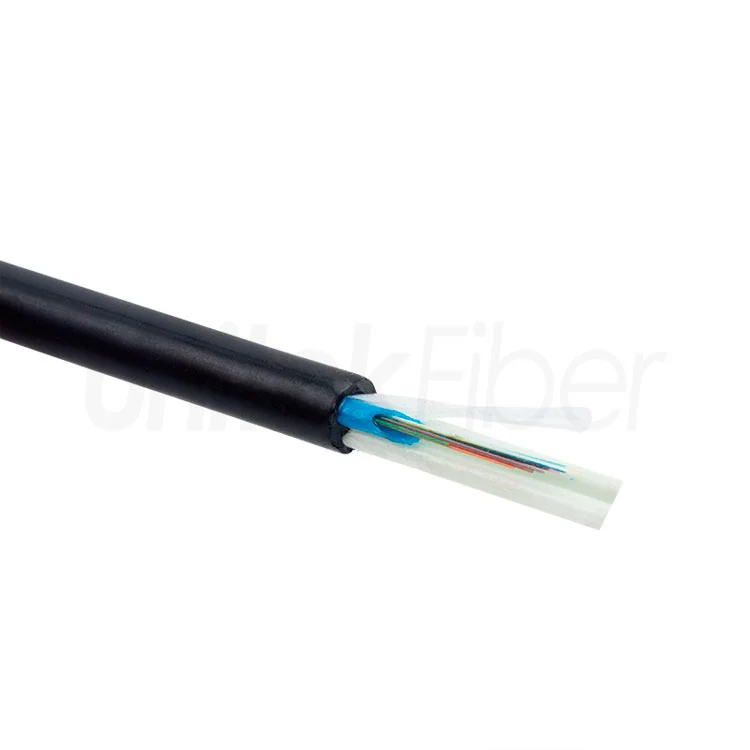

Best Design Aerial Mini ADSS Fiber Optic Cable All-dielectric Self-supporting ASU Fiber Optic Wire 12core 100m Span

The design of SU fiber optic wire fully considers the mechanical and application environment requirements of overhead fiber wire. Under tertiary meteorological conditions, ASU fiber optic wires can meet most application scenarios with spans below 250 meters. The two FRPs contained have sufficient tensile strength, and at the same time can resist the sheath retraction and the additional attenuation caused by temperature changes.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Best Design Aerial Mini ADSS Fiber Optic Cable All-dielectric Self-supporting ASU Fib

Optical Cable for Sale

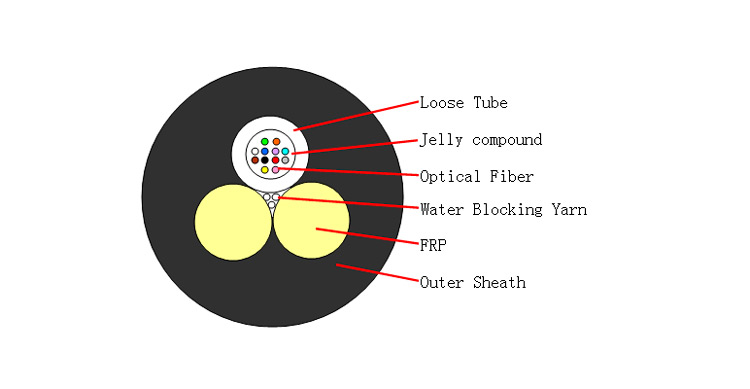

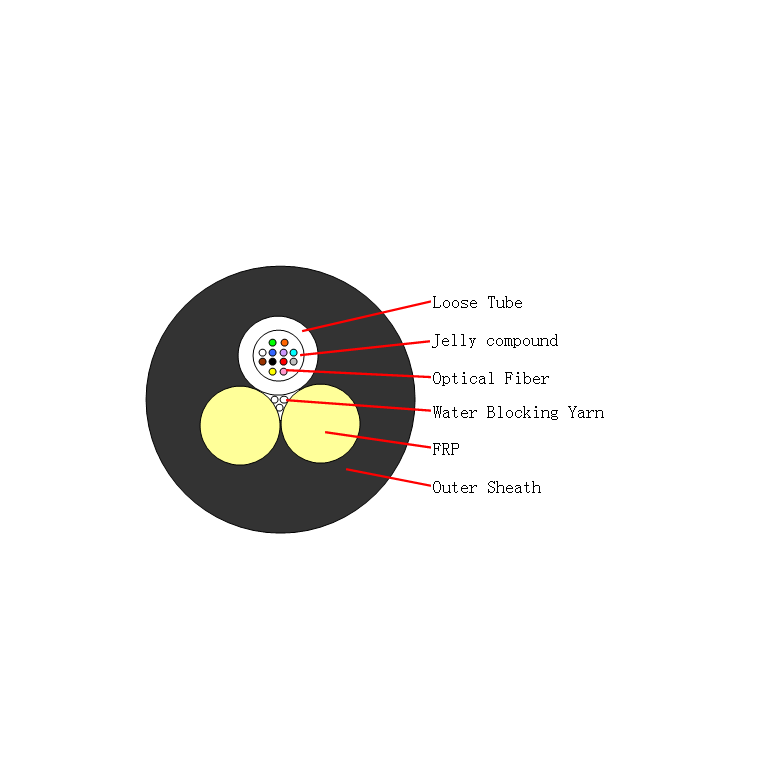

Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The ASU fiber optic cable is covered with a single PE outer sheath.


Optical Cable Price


The fiber cores of ASU Fiber Cable is from 2 cores to 24 cores. The main idea of the aerial fiber optic cable design is to use two rigid FRP and a single loose tube to mix and twist, and the three-in-one steady-state twisting unit includes both tensile elements and optical units. Due to the existence of a certain pitch when twisting, the bendability of the aerial cable is ensured.


Features of ASU Fiber optic Cable


Optical Cable Wire



ASU Fiber optic cable has 80 & 120 Meter spans, 1-12 fiber count available in 80M span, and up to 24 Fibers in 120M span. ASU fiber optic cable adopt proven all-dielectric loose tube construction. Dual integrated FRP strength elements. This fiber optic cable adopt round cable profiles minimize wind and ice loading. The ASU Fiber optic cable is stable and compact in structure, and also has excellent performance in other performances such as crushing, impact, and torsion, and conforms to the existing technical standards for outdoor overhead optical cables.


Applications of ASU Fiber optic Cable

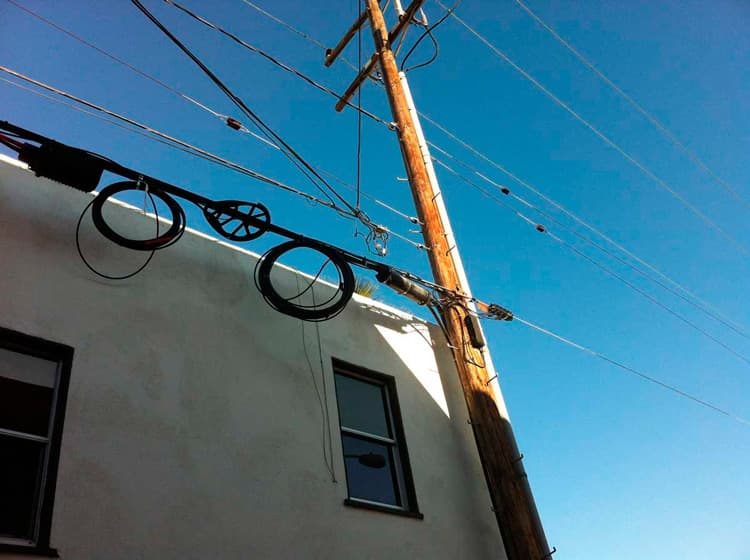

AUS aerial fiber optic cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for short-distance communication. The pole span no more than 120m. ASU aerial Cable with small span is an important part of the distribution line, among which the main force of self-supporting aerial optical cable is ADSS and ASU fiber optical cable.


Optical Fibre Price


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Best Design Aerial Mini ADSS Fiber Optic Cable All-dielectric Self-supporting ASU Fiber

No. of cable

1-12

Fiber Model

G.652D

Strength Member

Material

FRP


Diameter(±0.05)mm

1.8

Loose Tube

Material

PBT


Diameter(±0.06)mm

1.8


Thickness(±0.03)mm

0.35


The Max.Core NO./Tube

12

Outer Sheath

Material

PE

Cable Diameter(±0.2)mm

6.7

Cable Weight(±5)kg/km

38

Min. bending radius

Without Tension

10.0×Cable-φ


Under Maximum Tension

20.0×Cable-φ

Temperature range
(℃)

Installation

-20~+60


Transport&Storage

-40~+70


Operation

-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
