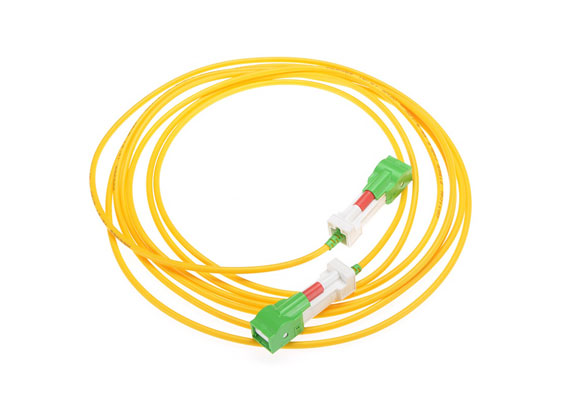

High Quality Fiber Optic Patchcord SC/APC-SC/APC Jumper Cables LSZH 2.0mm with Auto Shutter

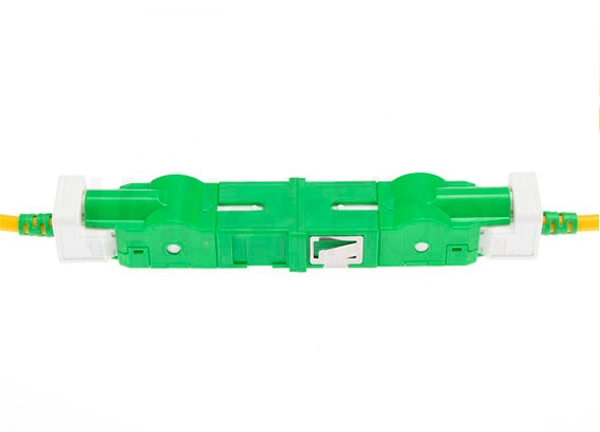

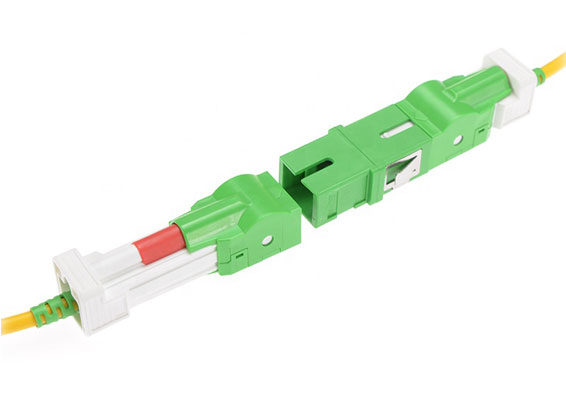

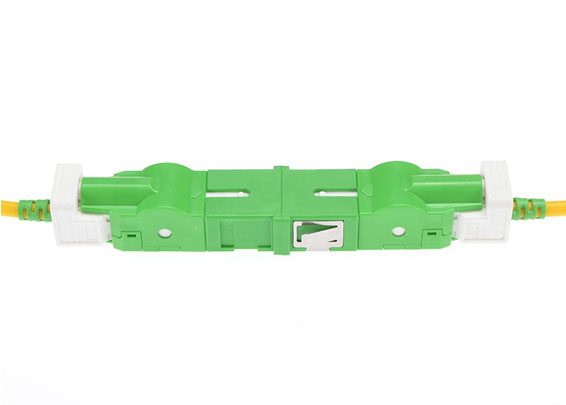

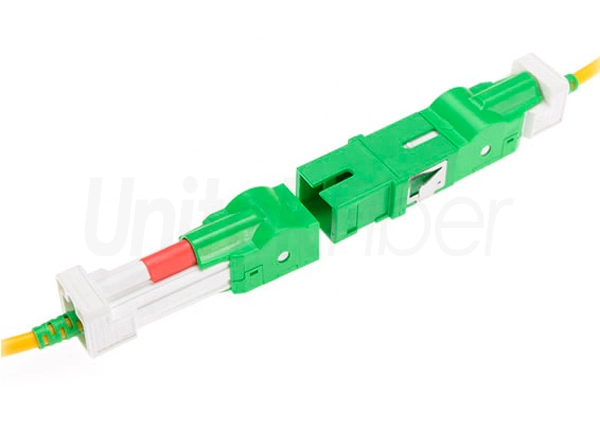

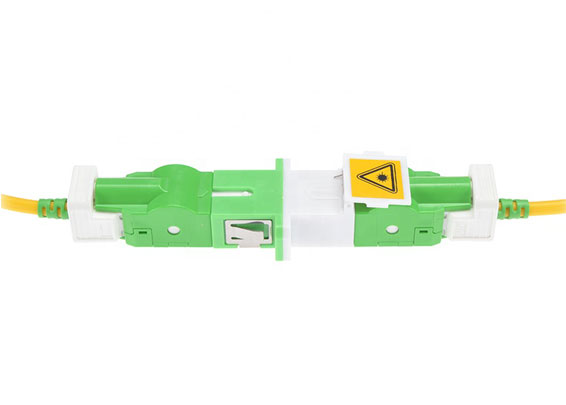

Auto Shutter SC/APC to SC/APC Fiber patchcord

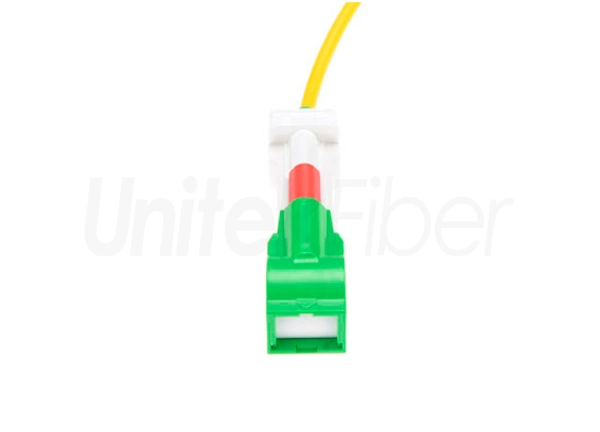

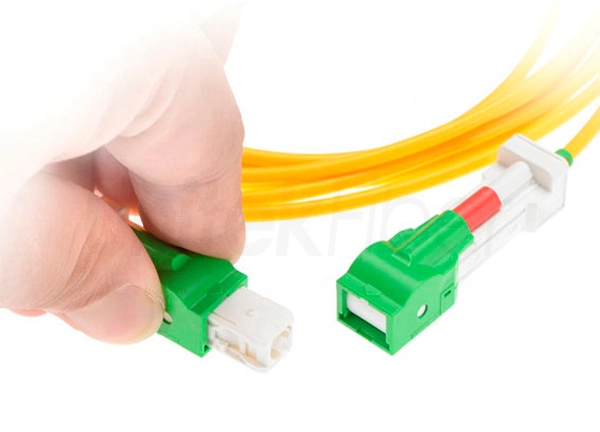

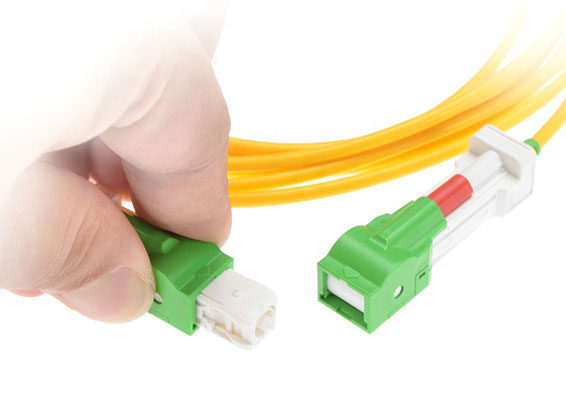

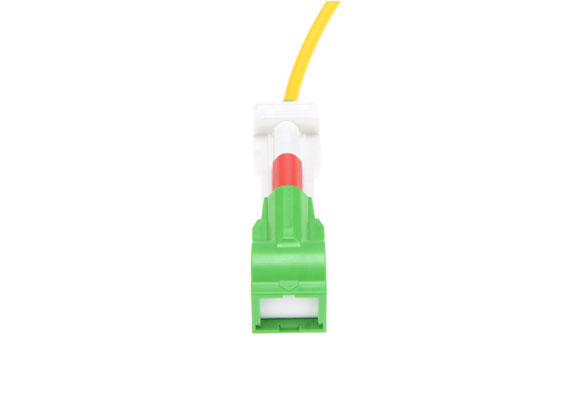

Shutter cap fiber patchcord is our special design. It will protect fiber core automatically. The shutter cap can be moved easily. For fiber patchcords, there are two main application areas: computer workstations to sockets and fiber patch panels or fiber cross-connect distribution centers. We provide various types of fiber jumpers, including single-mode, multi-mode, multi-core and armored versions. You can also find fiber pigtails and other special jumpers.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of High Quality Fiber Optic Patchcord SC/APC-SC/APC Jumper Cables LSZH 2.0mm with Auto S

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV


Packaging and Shipping


High Quality Fiber Optic Patchcord SC/APC-SC/APC Jumper Cables LSZH 2.0mm with Auto Shutter


Production


High Quality Fiber Optic Patchcord SC/APC-SC/APC Jumper Cables LSZH 2.0mm with Auto Shutter


Parameter of High Quality Fiber Optic Patchcord SC/APC-SC/APC Jumper Cables LSZH 2.0mm with Auto Shu

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bartley
Jul 25, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.

Verified Purchase
Helpful 1
