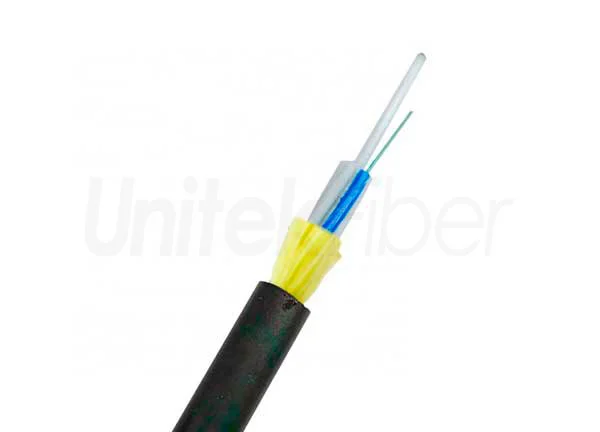

Outdoor Aerial ADSS Fiber Optic Cable Single Mode G652D 100M to 300M Span 12~288 Cores Single Jacket PE

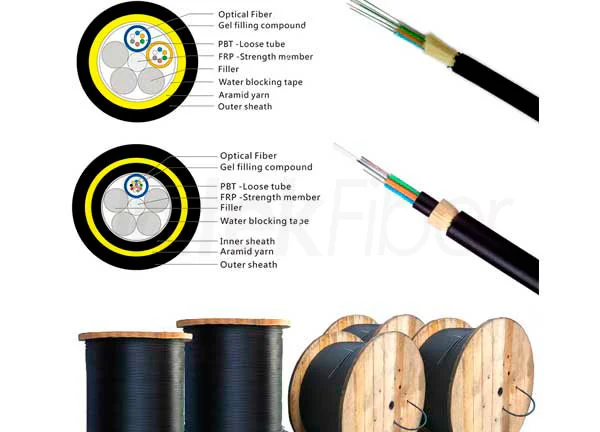

The structure of the ADSS fiber optic cable is divided into two categories: central loose tube and layer twisted loose tube. In addition to some power lines with better conditions in all aspects, it is generally appropriate to use the layer twisted loose tube structure of the ADSS fiber optical cable.


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Outdoor Aerial ADSS Fiber Optic Cable Single Mode G652D 100M to 300M Span 12~288 core

Optical Cable for Sale

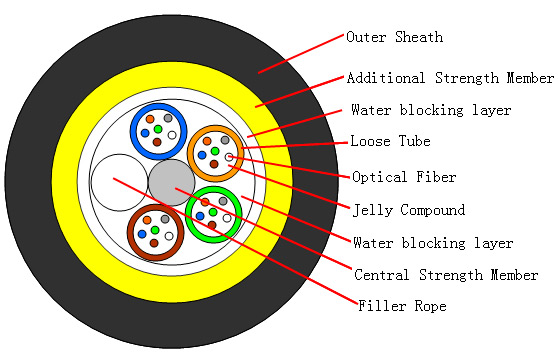

The structure of ADSS fiber cable can be in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP). Although the diameter and weight are relatively big, ADSS cables with this structure are better to be deployed for large span applications. The rest parts are basically similar to the central tube structure. This type is able to obtain longer fiber lengths.


Optical Cable Price

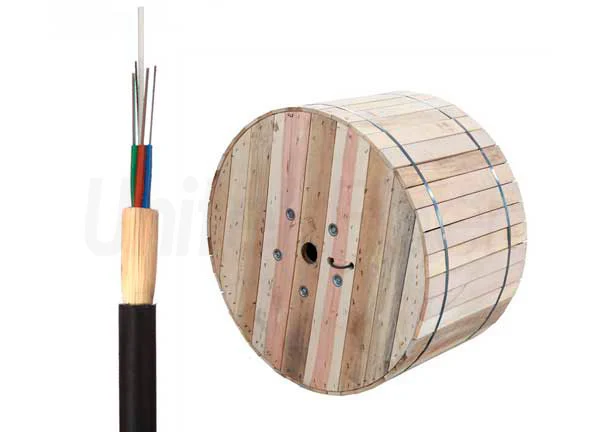

The Fiber Cores of ADSS Fiber Cable is 2-288Cores

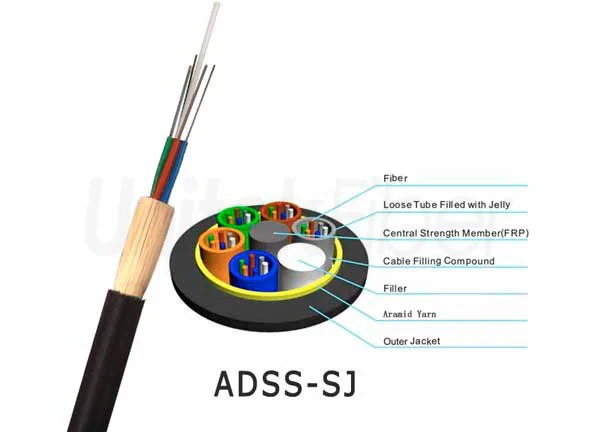

Features of ADSS Fiber optic Cable


Optical Cable Wire



All-dielectric self-supporting optical cable is a kind of non-metallic optical cable that is composed entirely of dielectric materials contains necessary support systems and can be directly suspended on power towers. ADSS Fiber optic cable is All-dielectric self supporting wire, without any metal for avoid lightning strike. It is very convenient line installation and maintenance. The ADSS fiber cable have a wide temperature range(-40℃ ~+80℃) and small cable diameter, it is more convenient to reduces ice and wind loads and maintains stable transmission. The inner structure use a water-blocking layer for better waterproofing. Aramid Yarn is a important part for fiber optical cable for tensile resistance.


Applications of ADSS Fiber optic Cable


Optical Fibre Price


As a kind of self-supporting aerial fiber optic cable, ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. It is mainly used for communication lines of overhead high-voltage transmission systems, and can also be used for communication lines in overhead laying environments such as lightning-prone areas and large spans.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price

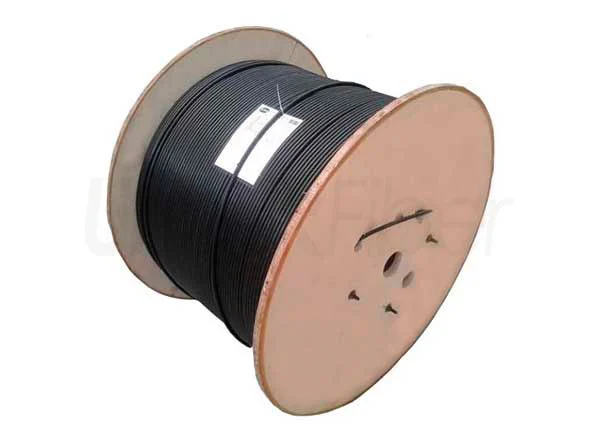

Packaging & Shipping

Air Blown Fiber Optic Cable


Production

Blown Fibre

Parameter of Outdoor Aerial ADSS Fiber Optic Cable Single Mode G652D 100M to 300M Span 12~288 cores

No. of cable24
Fiber ModelG.652D
Design(StrengthMember+Tube&Filler)1+5
Central Strength MemberMaterialFRP
Diameter(±0.05)mm1.5
Loose TubeMaterialPBT
Diameter(±0.06)mm1.8
Thickness(±0.03)mm0.30
The Max.Core NO./Tube6
Water Blocking layer(Material)Water Blocking Yarn&Water Blocking Tape
Strength MemberMaterialAramid yarn
Type3300D
Outer SheathMaterialMDPE
Thickness(±0.1)mm1.7
Cable Diameter(±0.2)mm9.6
Cable Weight(±5)kg/km75
Span200m
Min. bending radiusWithout Tension10.0×Cable-φ
Under Maximum Tension20.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors

What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
