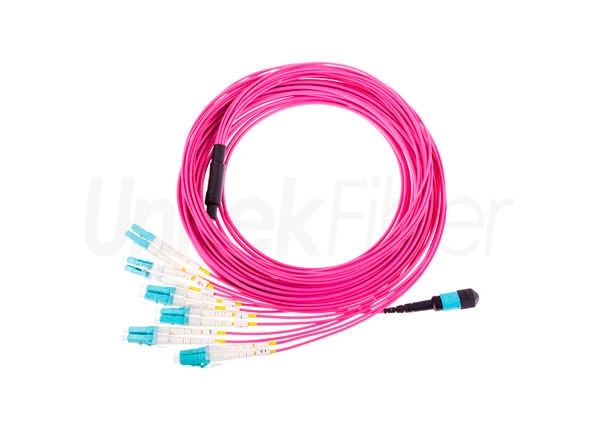

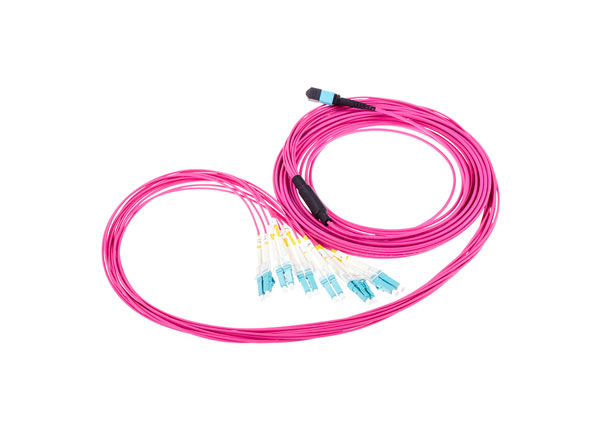

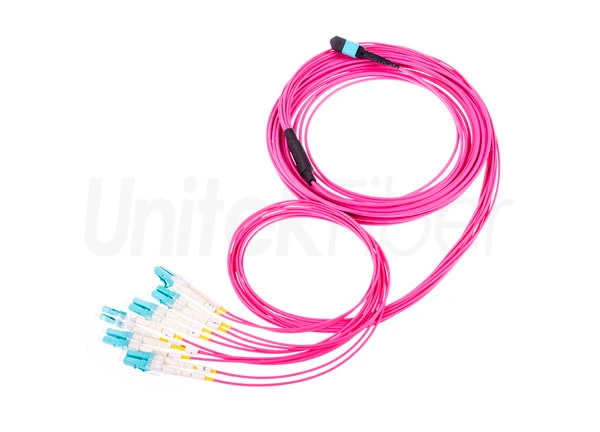

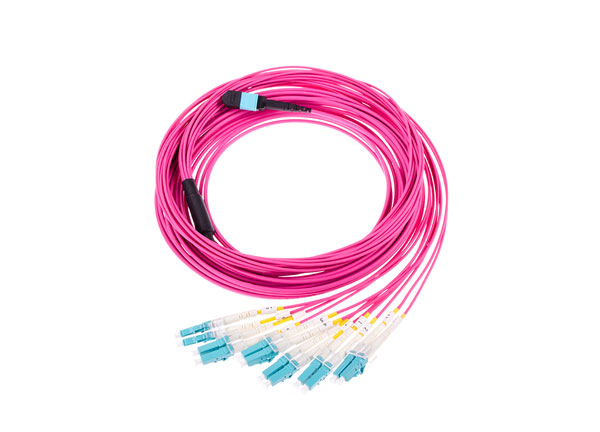

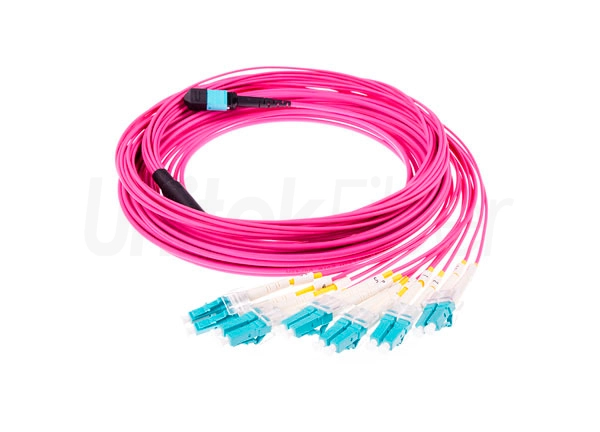

MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP

Supplying MTP-LC fanout patch cord 8 to 144cores. Fanout patch cord is a MTP connector terminated at the one end of the cable and 12 LC pigtails is on the other. Fanout patch cords provide a transition between multiple fiber patch cords to a single fiber patch cord or duplex connector.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

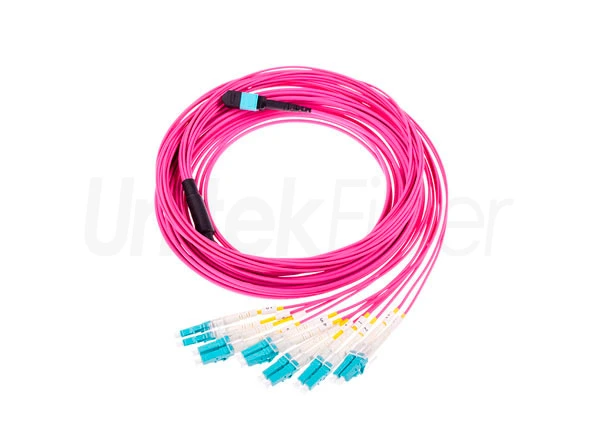

Details of MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP

MPO/MTP Breakout fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

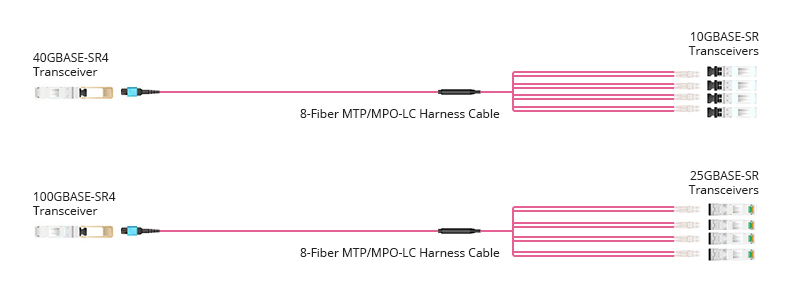

Network Connectivity


MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP


Product Highlights

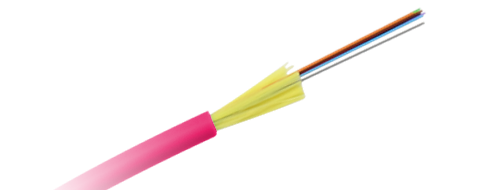

Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling


MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP



MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP


MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP

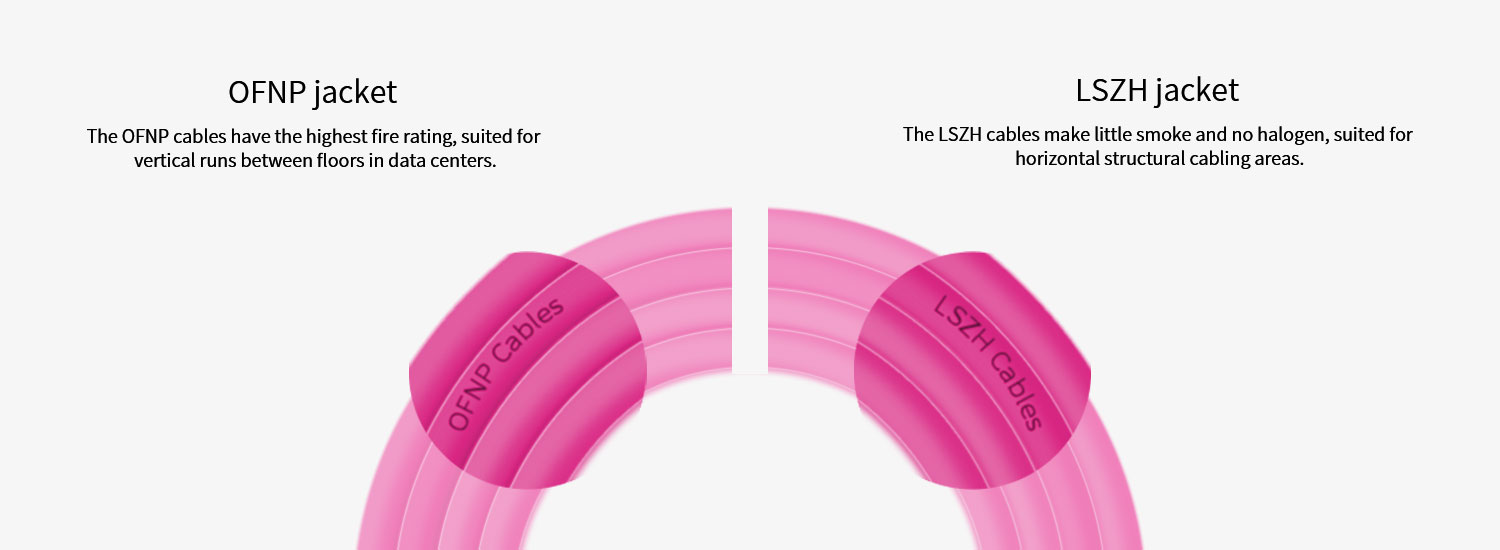

2  Custom Cable Jacket


MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP

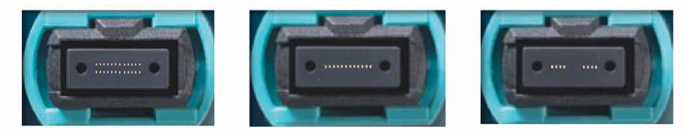

3 Custom MPO Connectors


MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP


MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 Cores Multimode OM4 Erica Violet OFNP


Parameter of MTP - LC Fiber Optic Fanout Patch Cord 8 to 144 cores Multimode OM4 Erica Violet OFNP

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bradley
Jul 25, 2022

Great fiber. Keep me regular. Worked as intended.

Verified Purchase
Helpful 0

Video
Contact UnitekFiber
Contact UnitekFiber

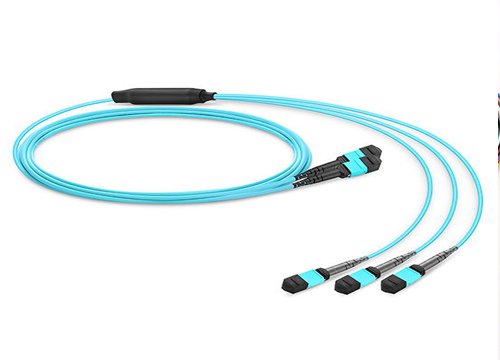

Other MTP/MPO Fiber Cable Products
