Outside Plant Fiber Cable|GYTA33 Optic Cable 12 Cores G652D SM Underwater Stranded Armoured Steel Wire

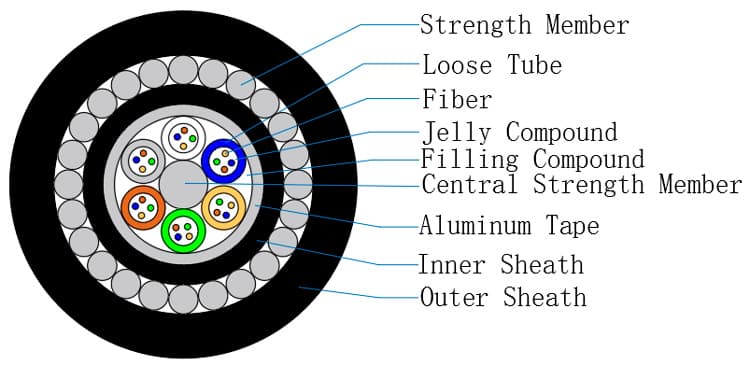

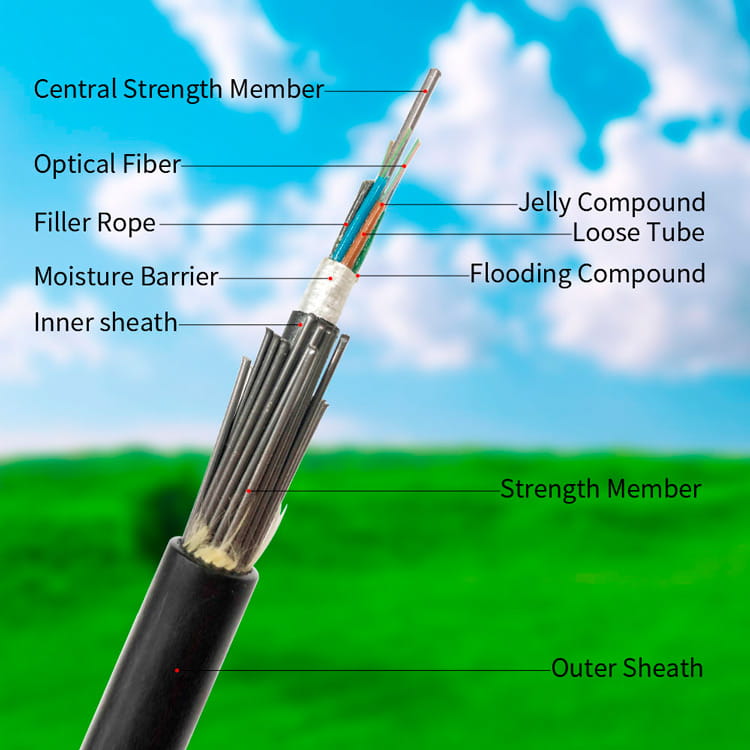

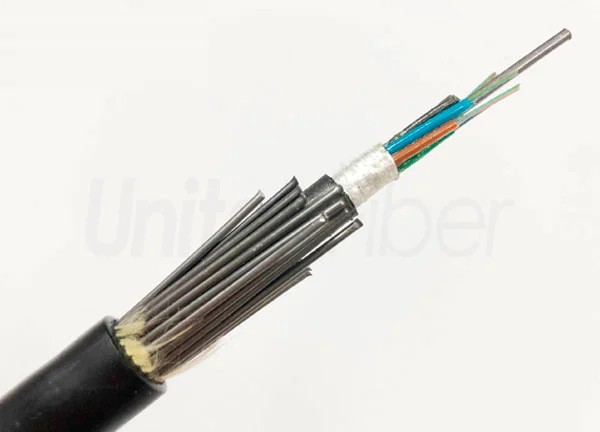

The structure of the GYTA33 optic cable by fibre cable suppliers is to sleeve the optical fiber into the PBT loose tube and fill with the thixotropic compound. The central reinforcement of the cable core is a steel wire (a large core number structure optical cable needs to be extruded with a layer of PE cushion), and the loose tube is twisted around the central reinforcement by SZ stranding. The gaps in the cable core are filled with water-blocking compounds. The outer sheath is armored with a single thin round steel wire and extruded with a layer of polyethene outer sheath.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Outside Plant Fiber Cable|GYTA33 Optic Cable 12 Cores G652D SM Underwater Stranded Armoured Steel Wi

Optical Cable for Sale

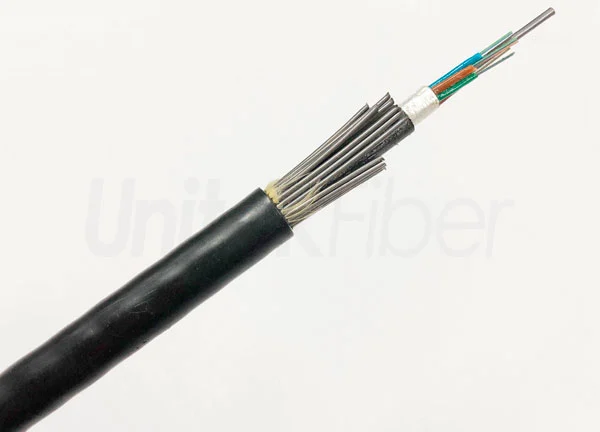

GYTA33 fiber optic cable is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environment, GYTA33 armored optical fiber cable can also be direct buried underground.GYTA33 is with loose tube technology which makes the fibers good secondary excess length and allows the fibers free movement in the tube. These features keep the fiber stress free while the cable is subjected for longitudinal stress. Optimum mechanical protection such as high tensile, crush and impact resistant performances are achieved by the steel wire armor and the double jacket structure.


Optical Cable Price


The Fiber Cores of GYTA33 Fiber Cable is from 2 cores to 288 cores


Features of GYTA33 Fiber-optic Cable


Fiber Optic Wire Cable



GYTA33 optical fiber cable is full cross-section water-blocking structure to ensure good water blocking and moisture resistance. Loose tube is filled with special ointment for a key protection of fiber. The phosphate wire center stiffening member is of high modulus and corrosion resistance. Double-sided vertically-clad laminated corrugated aluminum tape with thin round steel wire armor ensures the mechanical resistance to compression, tensile, and ballistic performance, and meets the application requirements of climbing direct burial and underwater laying.


Applications of GYTA33 Fiber-optic Cable


Fiber Optic Wire for Sale


GYTA33 is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environment, GYTA33 can also be direct buried underground, and this underground fiber cable is available from 2cores to 288cores.


Professional Assistant For GYTA33 Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Outside Plant Fiber Cable|GYTA33 Optic Cable 12 Cores G652D SM Underwater Stranded Armoured Steel Wi

No. of cable

48

Fiber Model

G652B

Design

(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.5

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.1

Thickness(±0.03)mm

0.35

The Max.Core NO./Tube

12

Filler rope

Material

LDPE

Diameter(±0.06)mm

2.1

NO.

1

Water Blocking layer(Material)

Flooding Compound

Moisture Barrier

Material

Polymer Coated Aluminum Tape

Thickness(±0.03)mm

0.20

Inner

Sheath

Material

MDPE

Thickness(±0.2)mm

1.5

Strength Member

Material

Steel wire

Diameter(±0.05)mm

1.5

NO.

21

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

2.0

Cable Diameter(±0.2)mm

16.0

Cable Wetght(±20)kg/km

480

Min. bending radius

Without Tension

15×Cable-φ

Under Maximum Tension

30×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70



Fibre & Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



What is an OSP fiber optic cable?

It's outside plant (OSP) fiber optic cables.

What type of fiber cable is mostly used in OSP installations?

Such as GYTA53 fiber optic cable, GYFTY53 fiber optic cable, GYTS fiber optic cable, GYTA33 fiber optic cables, GYFTY fiber optic cables, etc.

Where OSP fiber optic cable should be used?

Conduit in Concrete Slab or grade below concrete slab, and Exterior Camera Installation.

How long about the product quality guarantee period?

25 years guarantee for fiber optic cable.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.

What's your payment terms?

Visa, MasterCard, T/T, PAYPAL,Western Union, etc. 30% Payment in advance and 70% balance before shipment.

Reviews

Allen
Jul 15, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 1
