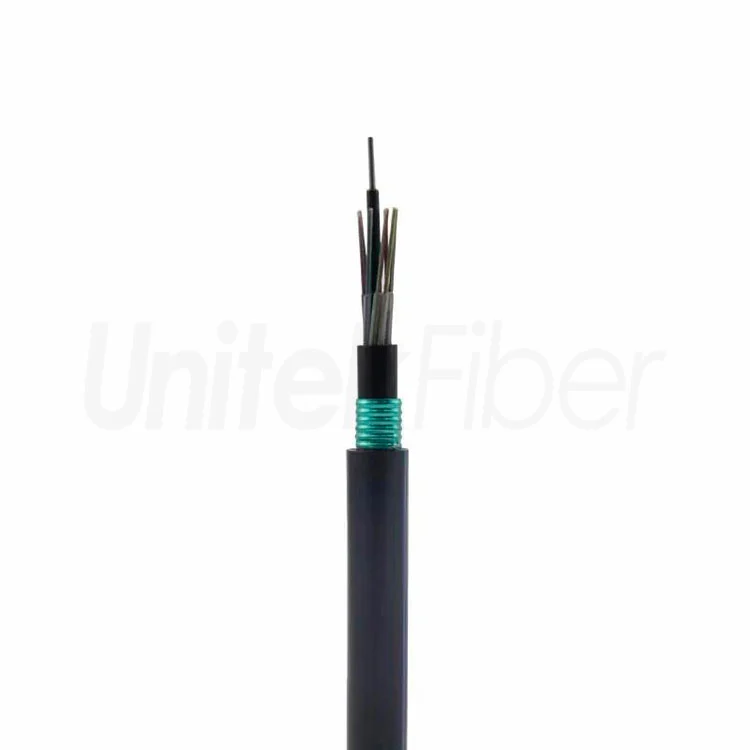

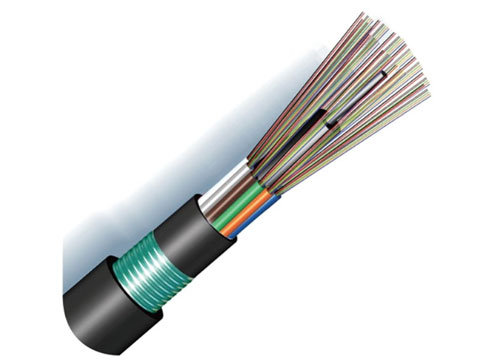

GYXTW53 Anti-rodent Fiber Optic Cable 8 Cores G652D SM Double Armored Central Loose Tube PE

GYXTW53 cable is a central loose tube fiber cable with double steel tape and double PE jacket. This cable structure is anti-rodent and suitable to laying in the dust and direct buried under ground. The maximum fiber cable cores is 24cores.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of GYXTW53 Anti-rodent Fiber Optic Cable 8 cores G652D SM Double Armored Central Loose T

Optical Cable for Sale

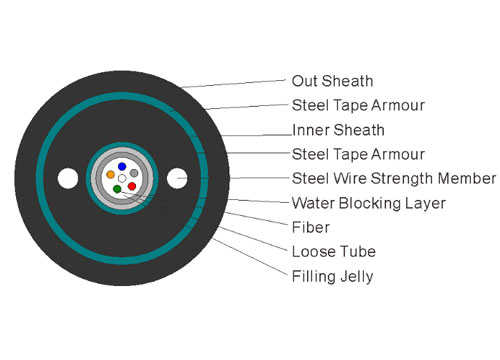

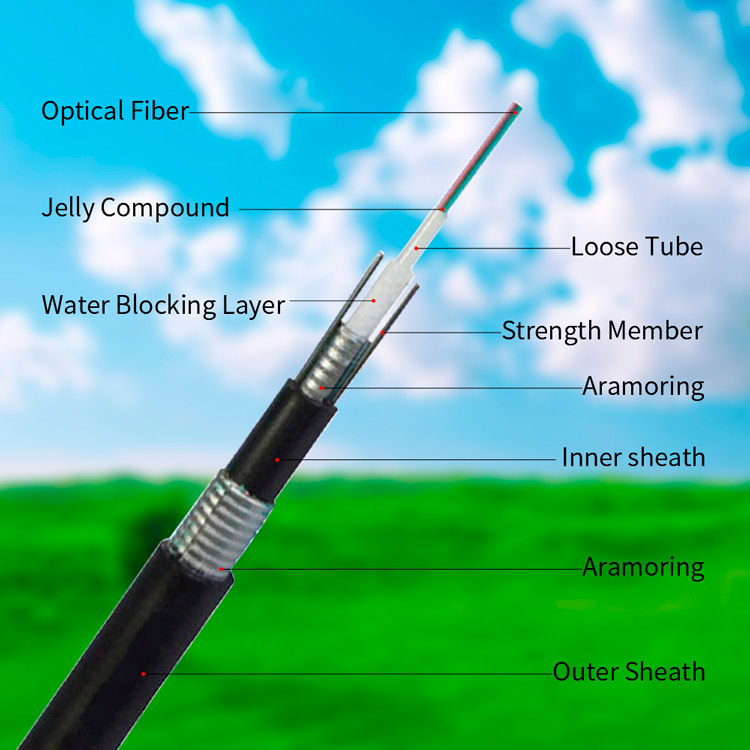

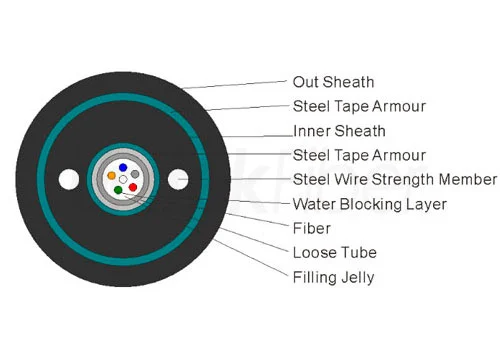

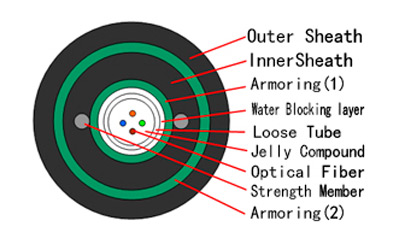

GYXTW53 armored fiber optical cable use 250μm fiber are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An PSP is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


Optical Cable Price


The Fiber Cores of GYXTW53 Fiber Cable is 2-24Cores

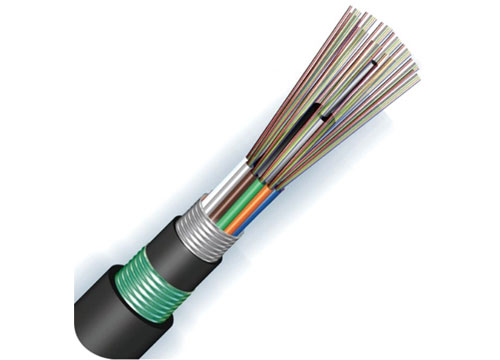

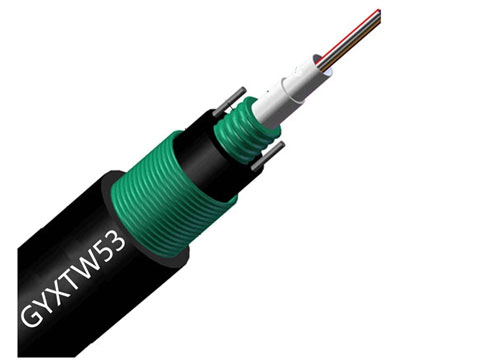

Features of GYXTW53 Fiber-optic Cable


Fiber Optic Wire Cable



GYXTW53 fiber optic cable is a central loose tube type double armored cable with good mechanical properties and temperature performance. The fiber optic cable adopts hydrolysis-resistant high-strength loose tube, which is filled with compound to ensure full protection of the fiber which be better compression resistance and flexibility of the optical cable. The double jackets&armored fiber optic cable is good moisture resistance, water blocking, and flexibility. The two parallel steel wires ensure tensile strength. GYXTW53 fiber optic cable has the advantages of small diameter, lightweight, and easy installation.


Applications of GYXTW53 Fiber-optic Cable


Fiber Optic Wire for Sale


GYXTW53 fiber optic cable is a type of fiber optic cable that is widely used in aerial application or duct or buried directly environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected. This fiber optic cable type has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, This fiber optic cable plays an important role in the telecommunication industry and it is highly recommended by many technician.


Professional Assistant For GYXTW53 Fiber Optic Cabling System.


Fo Cable Type

UnitekFiber provides fiber optic cables, MPO patch cords and patch panels with you better support for your fiber optic system.

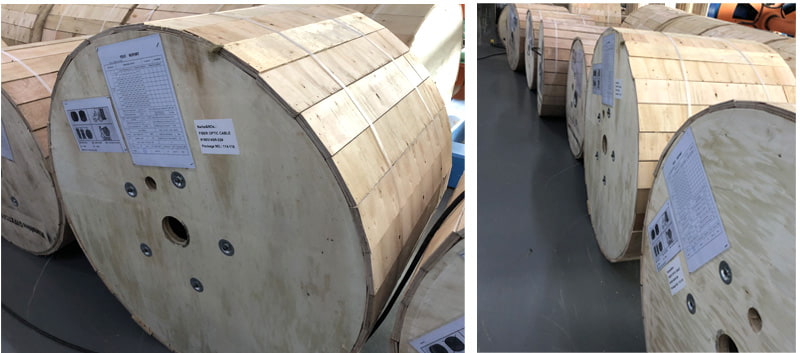

Packaging & Shipping


Air Blown Fiber Optic Cable

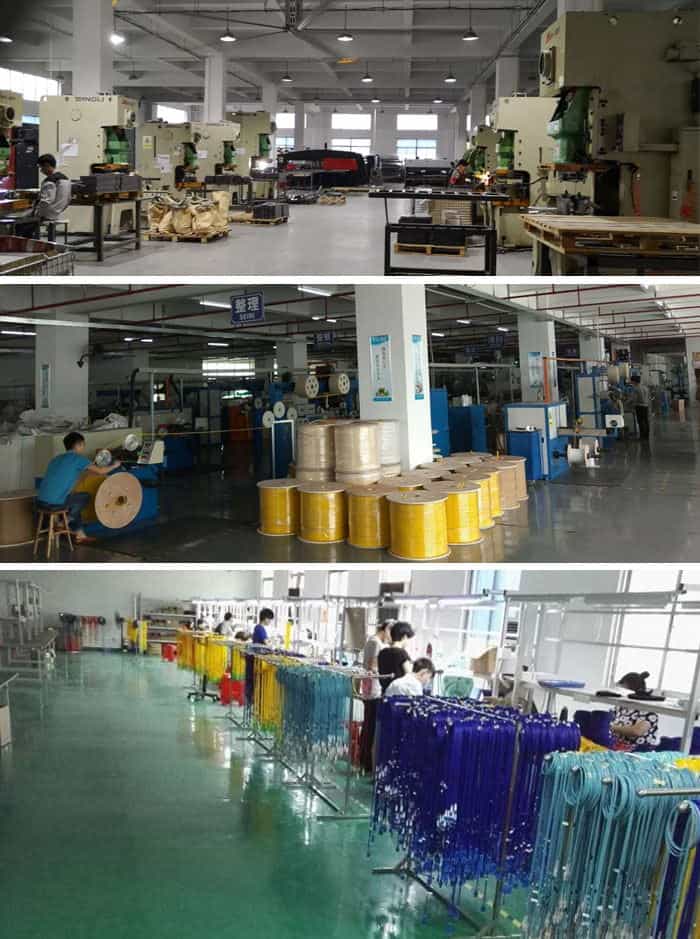

Production


Blown Fibre

Parameter of GYXTW53 Anti-rodent Fiber Optic Cable 8 cores G652D SM Double Armored Central Loose Tub

No. of cable

4

Fiber Model

G.652D

Strength Member

Material

Steel Wire

Diameter(±0.05)mm

0.9

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

4

Colour

White

Water Blocking layer(Material)

Water Blocking Tape

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Inner

Sheath

Material

MDPE

Thickness(±0.2)mm

0.9

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter(±0.2)mm

13.0

Cable Wetght(±5)kg/km

165

Min. bending radius

Without Tension

12.5×Cable-φ

Under Maximum Tension

25×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

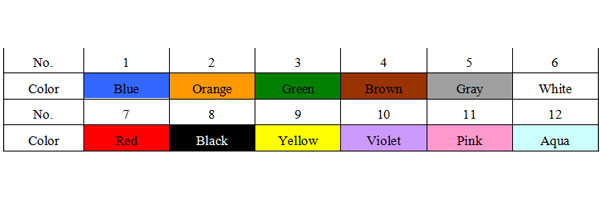

Fibre & Loose Tube Colors

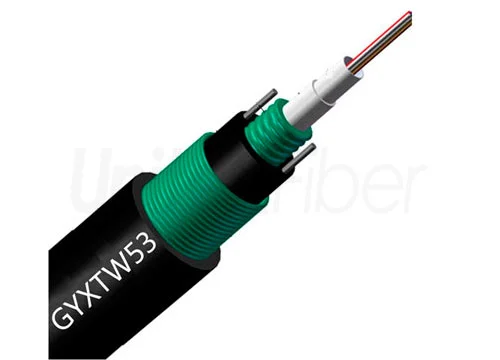

GYXTW53 Anti-rodent Double Armored Central Loose Tube Fiber Optical Cable


What is the principle of anti-rodent armored fiber optical cable?

The anti-rodent armored fiber optical cable is made of stainless steel as a protective structure, which protects the optical fiber very well.

Why choose anti-rodent fiber optical cable?

Because mice have the habit of grinding their teeth, it is very destructive, and the broken optical cable causes the network to be paralyzed.

What are the conventional anti-rat bite programs?

Add chemical components to the sheath, use multi-layer sheath armored.

Can the anti-rodent fiber optic cable be installed in overhead?

Yes, can be overhead and pipeline application.

What's the MOQ for anti-rodent fiber optic cable?

The MOQ of anti-rodent fiber optic cable is 2km.
