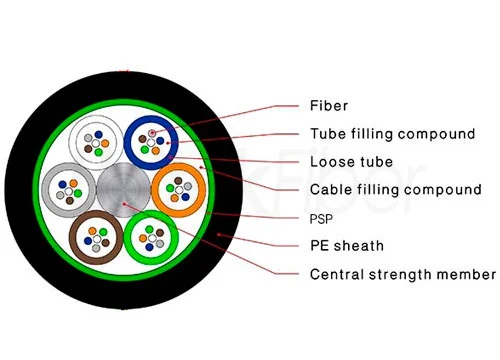

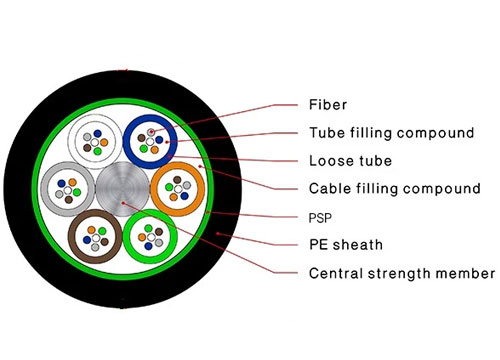

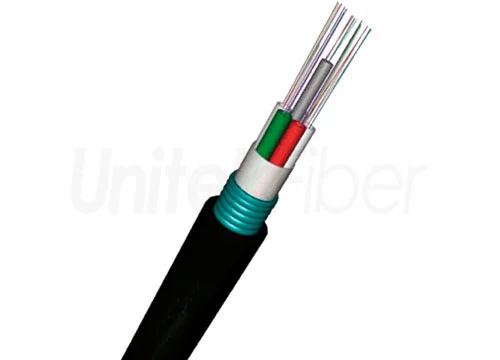

GYTS fiber cable is steel tape layered Loose tube cable. The structure of GYTS cable is with metal reinforcement member, loose-layer twisted type, steel-polyethylene bonded sheath communication outdoor optical cable. GYTS cable is with better side-pressure resistance, suitable for the scenes of high side-pressure requirements, such as overhead placement as the main paragraph, can also be used for duct laying.
Steel-wire strength
Filler protect tube fiber
Steel tape armored
Good ultra violet radiation resistant property
Good moisture-resistance
Adopt SZ twisted structure, easy to branch and ensure the optical fiber is not stressed under harsh environment
Polyethylene sheath makes the cable have good UV resistance
Product life more than 30 years
Adopted to Outdoor distribution
Suitable for aerial, duct laying method.
Long distance and local area network communication.
Can be installed conveniently and operated simply.
Working temperature: -40℃~+60℃
Bend radius: Static 10 times the cable diameter
Dynamic 20 times optical cable diameter
No. of cable | 2~30 | 32~60 | 62~72 | 74~96 | |||||
Fiber Model | G.652D | ||||||||
Design(StrengthMember+Tube&Filler) | 1+5 | 1+5 | 1+6 | 1+8 | |||||
Central Strength Member | Material | Steel Wire | |||||||
Diameter（±0.05）mm | 1.5 | 1.5 | 2.1 | 2.1 | |||||
Loose Tube | Material | PBT | |||||||
Diameter（±0.06）mm | 1.8 | 2.1 | 2.1 | 2.1 | |||||
Thickness（±0.03）mm | 0.32 | 0.35 | 0.35 | 0.35 | |||||
The Max.Core NO./Tube | 6 | 12 | 12 | 12 | |||||
Filler Rope | Material | LDPE | |||||||
Colour | White | ||||||||
Diameter（±0.06）mm | 1.8 | 2.1 | 2.1 | 2.1 | |||||
Water Blocking layer（Material） | Flooding Compound | ||||||||
Armoring | Material | Steel Strip | |||||||
Thickness（±0.03）mm | 0.25 | ||||||||
Outer Sheath | Material | MDPE | |||||||
Thickness（±0.2）mm | 1.8 | ||||||||
Cable Diameter | 9.6 | 10.5 | 11.1 | 12.7 | |||||
Cable Wetght | 92 | 108 | 132 | 170 | |||||
Min. bending radius | Without Tension | 10.0×Cable-φ | |||||||
Under Maximum Tension | 20.0×Cable-φ | ||||||||
Temperature range （℃） | Installation | -20~+60 | |||||||
Transport&Storage | -40~+70 | ||||||||
Operation | -40~+70 | ||||||||

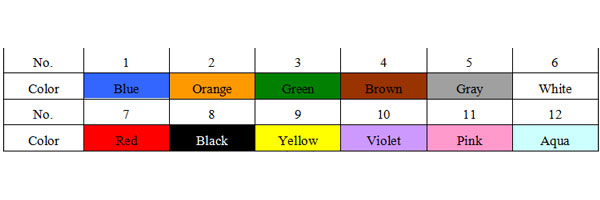

Fibre & Loose Tube Colors
Yes, with qualified ISO9001, ROHS, UL raw material suppliers.
This duct fiber optical cable is usually in Stranded loose tube structure.
2-288cores.
The MOQ of duct fiber optic cable is 2km.
Yes, we supply OEM&ODM service, please feel free to contact us.
Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.
