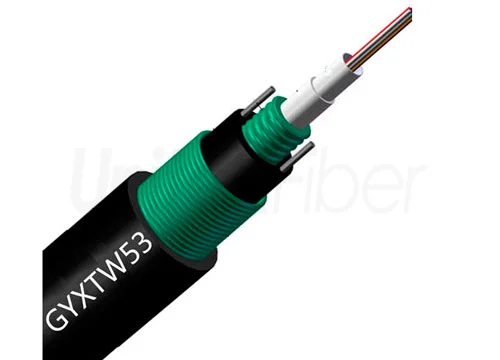

GYXTW53 Underground Fiber Optic Cable 12 core Double Armored and Double Sheathed Central Loose Tube PE

GYXTW53 is Double Armored and Double Sheathed central tube optical cable with a loose tube in the center of the cable, and two reinforcing members are located beside the loose tube. The number of GYXTW53 optical fiber cable cores is small, usually less than 12 cores,currently can reach 24 cores.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of GYXTW53 Underground Fiber Optic Cable 12 core Double Armored and Double Sheathed Cent

Optical Cable for Sale

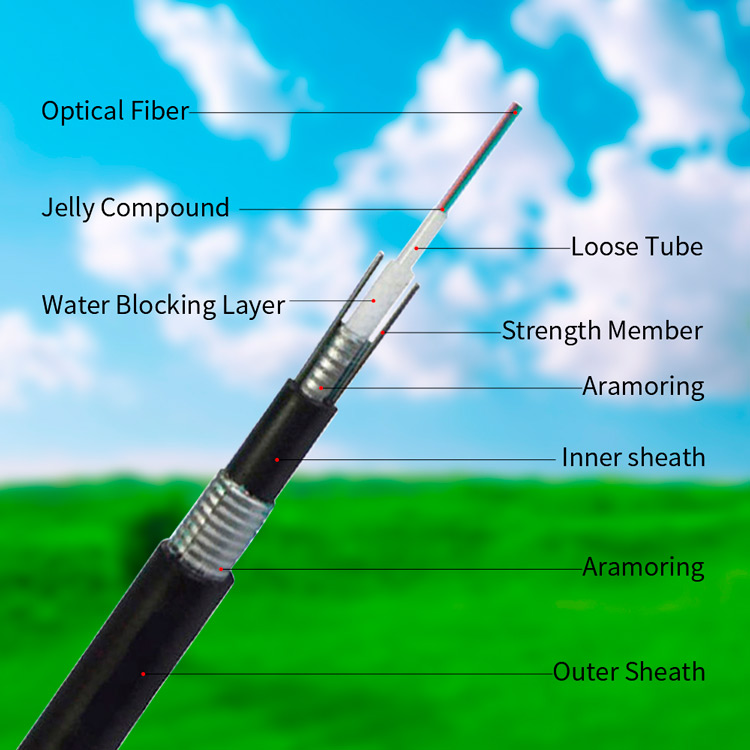

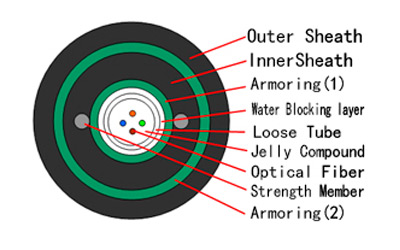

GYXTW53 armored fiber optical cable use 250μm fiber are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An PSP is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


Optical Cable Price


The Fiber Cores of GYXTW53 Fiber Cable is 2-24Cores


Features of GYXTW53 Fiber optic Cable


Fiber Optic Wire Cable



GYXTW53 fiber optic cable is a central loose tube type double armored cable with good mechanical properties and temperature performance. The fiber optic cable adopts hydrolysis-resistant high-strength loose tube, which is filled with compound to ensure full protection of the fiber which be better compression resistance and flexibility of the optical cable. The double jackets&armored fiber optic cable is good moisture resistance, water blocking, and flexibility. The two parallel steel wires ensure tensile strength. GYXTW53 fiber optic cable has the advantages of small diameter, lightweight, and easy installation.


Applications of GYXTW53 Fiber optic Cable


Fiber Optic Wire for Sale


GYXTW53 fiber optic cable is a type of fiber optic cable that is widely used in aerial application or duct or buried directly environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected. This fiber optic cable type has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, This fiber optic cable plays an important role in the telecommunication industry and it is highly recommended by many technician.


Professional Assistant For GYXTW53 Fiber Optic Cabling System.


Fo Cable Type


UnitekFiber provides fiber optic cables, MPO patch cords and patch panels with you better support for your fiber optic system.


Packaging & Shipping


Air Blown Fiber Optic Cable


Production

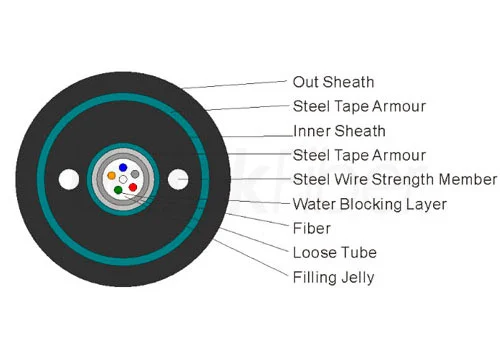

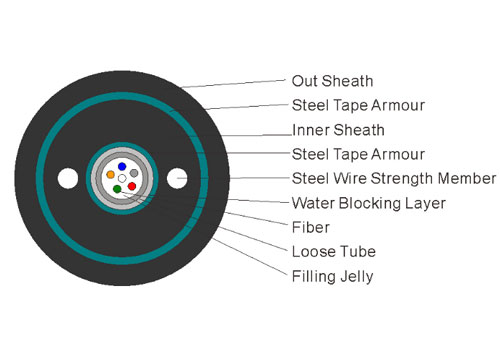

Double Armored and Double Sheathed Central Loose Tube Fiber Cable(GYXTW53)

Parameter of GYXTW53 Underground Fiber Optic Cable 12 core Double Armored and Double Sheathed Centra

No. of cable

4

Fiber Model

G.652D

Strength Member

Material

Steel Wire

Diameter(±0.05)mm

0.9

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

4

Colour

White

Water Blocking layer(Material)

Water Blocking Tape

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Inner

Sheath

Material

MDPE

Thickness(±0.2)mm

0.9

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter(±0.2)mm

13.0

Cable Wetght(±5)kg/km

165

Min. bending radius

Without Tension

12.5×Cable-φ

Under Maximum Tension

25×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

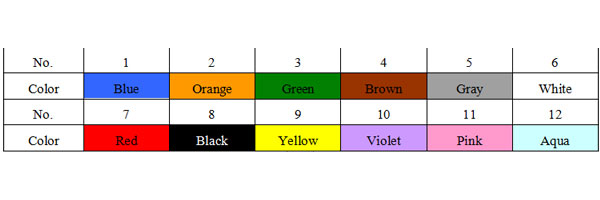

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
