Burry Fiber Cable|GYTA33 Fiber Optical Cable Underwater Steel Wire Armored Stranded Loose Tube Jacket PE

UnitekFiber supply GYTA33 fiber cable. The structure o GYTA33 cable is a metal reinforcing member in the central of the cable and loose tube stranded with waterproof filling compound.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Burry Fiber Cable|GYTA33 Fiber Optical Cable Underwater Steel Wire Armored Stranded Loose Tube Jacke

Optical Cable for Sale

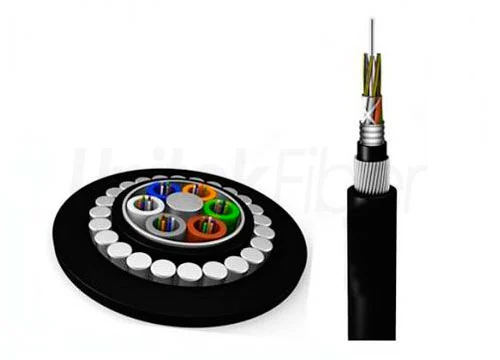

GYTA33 fiber optic cable is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environment, GYTA33 armored optical fiber cable can also be direct buried underground.GYTA33 is with loose tube technology which makes the fibers good secondary excess length and allows the fibers free movement in the tube. These features keep the fiber stress free while the cable is subjected for longitudinal stress. Optimum mechanical protection such as high tensile, crush and impact resistant performances are achieved by the steel wire armor and the double jacket structure.


Optical Cable Price


The Fiber Cores of GYTA33 Fiber Cable is from 2 cores to 288 cores


Features of GYTA33 Fiber optic Cable


Fiber Optic Wire Cable

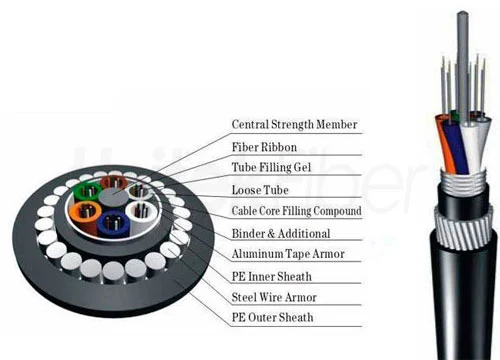

GYTA33 optical fiber cable is full cross-section water-blocking structure to ensure good water blocking and moisture resistance. Loose tube is filled with special ointment for a key protection of fiber. The phosphate wire center stiffening member is of high modulus and corrosion resistance. Double-sided vertically-clad laminated corrugated aluminum tape with thin round steel wire armor ensures the mechanical resistance to compression, tensile, and ballistic performance, and meets the application requirements of climbing direct burial and underwater laying.


Applications of GYTA33 Fiber-optic Cable


Fiber Optic Wire for Sale


GYTA33 is an underwater use fiber optic cable, it is steel wires armored to be suitable for installation in harsh environment, GYTA33 can also be direct buried underground, and this underground fiber cable is available from 2cores to 288cores.


Professional Assistant For GYTA33 Fiber Optic Cabling System


Fo Cable Type

Burry Fiber Cable|GYTA33 Fiber Optical Cable Underwater Steel Wire Armored Stranded Loose Tube Jacke


No. of Cable48
Fiber ModelG652B

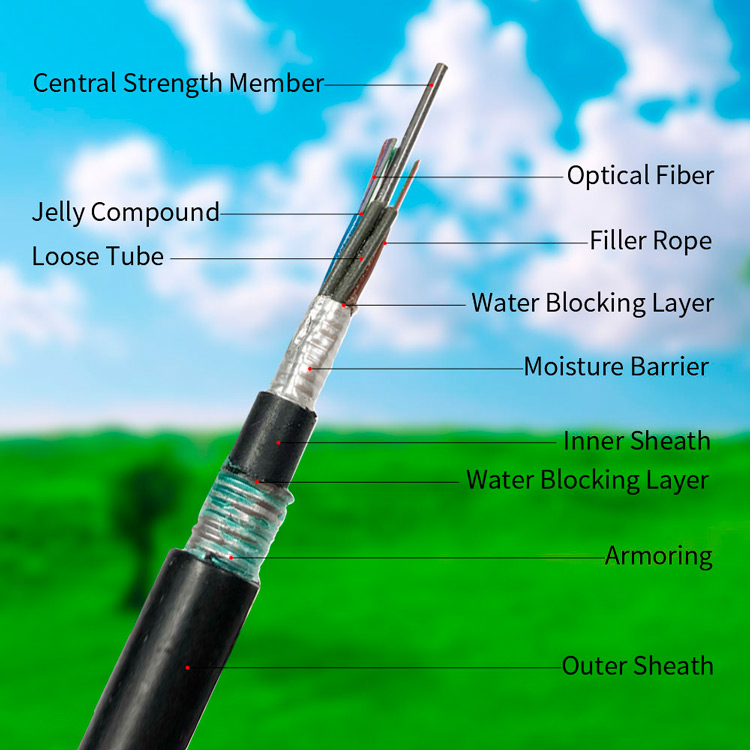

Design


(StrengthMember+Tube&Filler)

1+5
Central Strength MemberMaterialSteel Wire
Diameter(±0.05)mm1.5
Loose TubeMaterialPBT
Diameter(±0.06)mm2.1
Thickness(±0.03)mm0.35
The Max.Core NO./Tube12
Filler ropeMaterialLDPE
Diameter(±0.06)mm2.1
NO.1
Water Blocking layer(Material)Flooding Compound
Moisture BarrierMaterialPolymer Coated Aluminum Tape
Thickness(±0.03)mm0.20
Inner


Sheath

MaterialMDPE
Thickness(±0.2)mm1.5
Strength MemberMaterialSteel wire
Diameter(±0.05)mm1.5
NO.21
Outer SheathMaterialMDPE
Thickness(±0.2)mm2.0
Cable Diameter(±0.2)mm16.0
Cable Wetght(±20)kg/km480
Min. bending radiusWithout Tension15×Cable-φ
Under Maximum Tension30×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70



Fibre & Loose Tube Colors

Fibre & Loose Tube Colors

What is Fiber Optic Direct-Burial Cable?

Fiber optic direct-burial cable is a cable that has passed insulation water absorption and crush-resistance tests.

Are these definitely for direct burial? Is this an armored cable?

Armored, you can directly bury just keep the ends clean.

Why can the direct buried optical cable be directly buried in the ground for installation?

Because direct bury fiber optic cable has steel tape or steel wire armored on the outside to protect the fiber optic cable.

Can I get this in 96core direct bury fiber optic cable?

Yes, you can. Please contact us with your request.

What is your delivery time?

Lead time is 15-20days, according to order quantities.

How will you deliver my goods to me?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Catherin
Jul 15, 2022

Pulling this through ceilings and in conduit - this is fantastic cable. Flexible doesn't hold shape. Very nice to crimp as well.

Verified Purchase
Helpful 1
