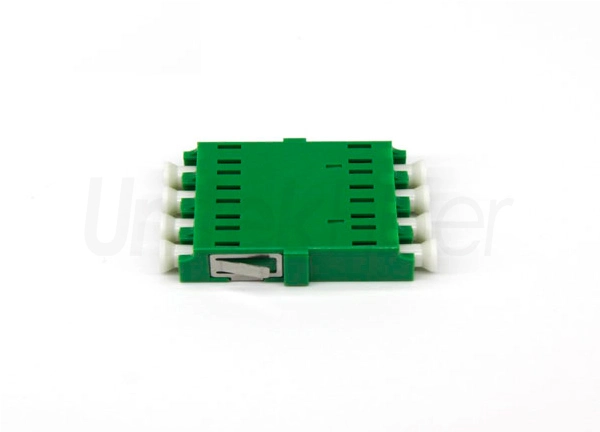

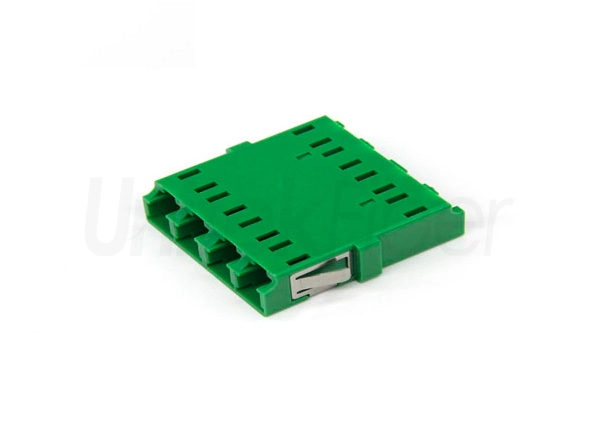

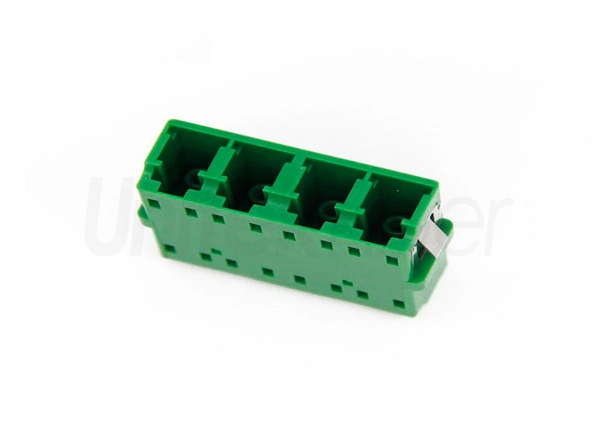

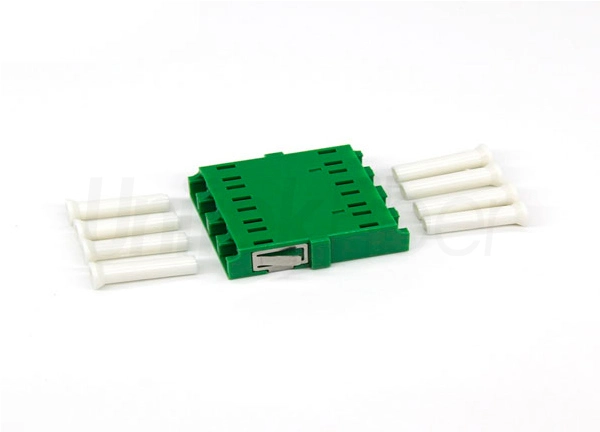

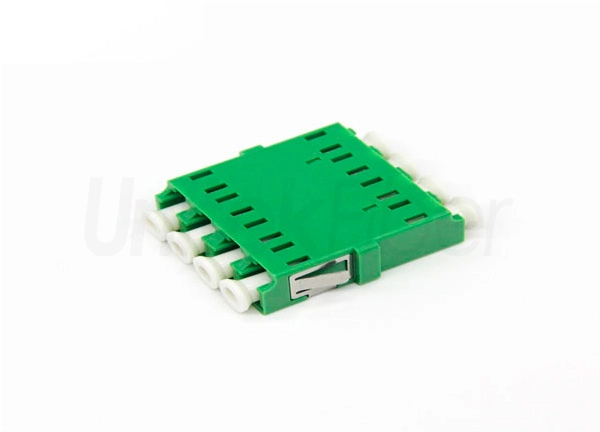

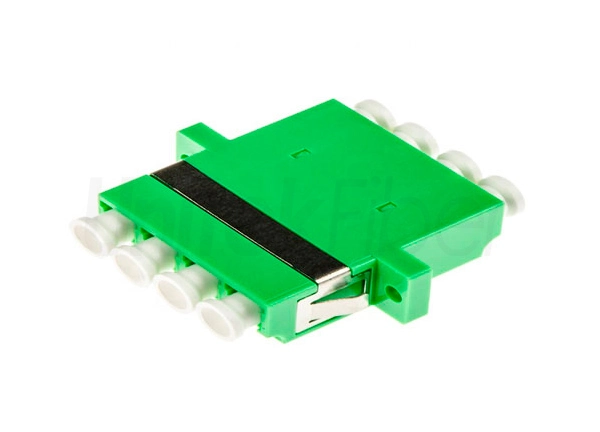

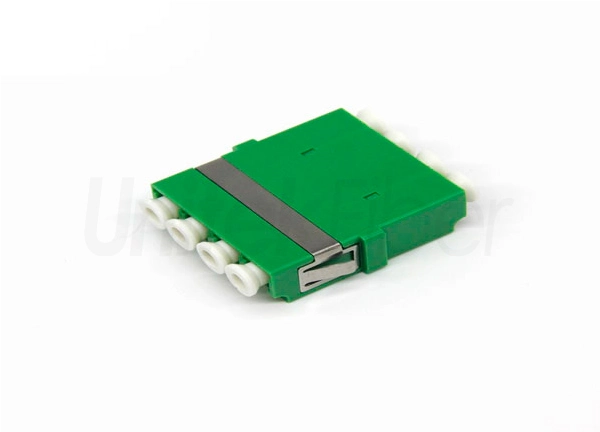

High Quality FTTH SM Quad LC APC to LC/APC Fiber Optic Adapter with Zirconia Ceramic Ferrule

LC/APC to LC/APC fiber adapter / coupler quad SM 0.2dB

Fiber optic adapters are also called fiber couplers or fiber optic connectors. Its main function is to connect two fiber optic connectors in fiber optic cabling systems. The normal fiber optic adapters are divided into two types with and without flanges. Among them, fiber adapters without flanges can be directly clamped on fiber patch panels or trays, and fiber optic adapters with flanges need to be fixed with screws.

Fiber Optic
Details
Parameter

Details of High Quality FTTH SM Quad LC APC to LC/APC Fiber Optic Adapter with Zirconia Ceramic Ferr

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver

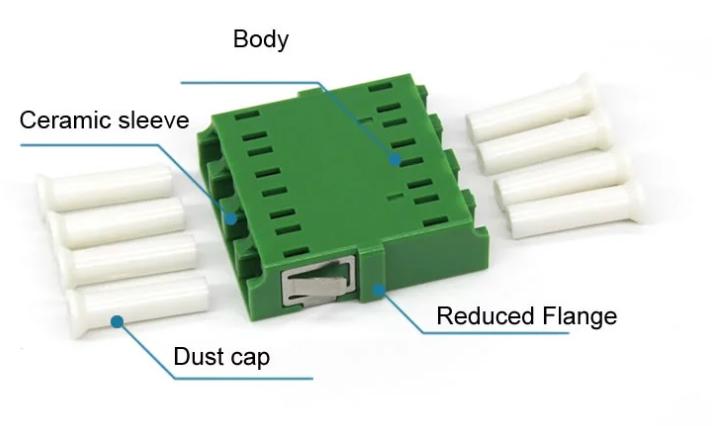

Components of Fiber Optic Adapter


High Quality FTTH SM Quad LC APC to LC/APC Fiber Optic Adapter with Zirconia Ceramic Ferrule


The Application of Fiber Optic Adapter in Fiber Network Cabling


Optical adapters were developed for connecting and mating two identical or two different (hybrid) connector plugs. The main function of the adapters are for connection between various fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, it offers the point-to-point connection in the fiber optic network.

The Application of Fiber Optic Adapter in Fiber Network Cabling


Fiber adapters are widely used in optical communications, optical sensors, and other optical fiber applications such as long-distance trunk networks, metropolitan area networks, access networks, optical fiber CATV networks, optical fiber data networks, and DWDM systems.

The Application of Fiber Optic Adapter in Fiber Network Cabling


Packaging and Shipping:


High Quality FTTH SM Quad LC APC to LC/APC Fiber Optic Adapter with Zirconia Ceramic Ferrule


Production


High Quality FTTH SM Quad LC APC to LC/APC Fiber Optic Adapter with Zirconia Ceramic Ferrule


Parameter of High Quality FTTH SM Quad LC APC to LC/APC Fiber Optic Adapter with Zirconia Ceramic Fe

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
