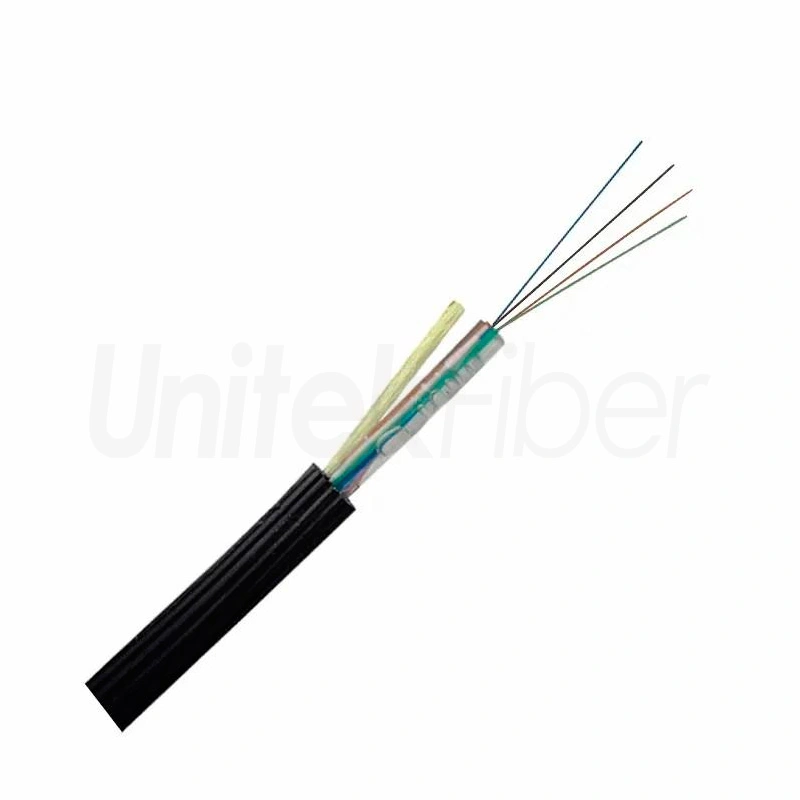

Air Blowing Micro Fiber Optic Cable Central Loose Tube Aramid Yarn SM G652D Optical cable 4 8 Core HDPE

The GCYFXTY Air Blown micro fiber optic cable is a lightweight and flexible cable designed for air-blown fiber optic systems. It supports high-speed data transmission and can be easily installed using compressed air. The cable is durable, compatible with standard connectors, and suitable for various applications, offering reliable and efficient fiber optic connectivity.


Products
Description
FAQ
Specification
Reviews
Video

Air Blowing Micro Fiber Optic Cable Central Loose Tube Aramid Yarn SM G652D Optical cable 4 8 Core H

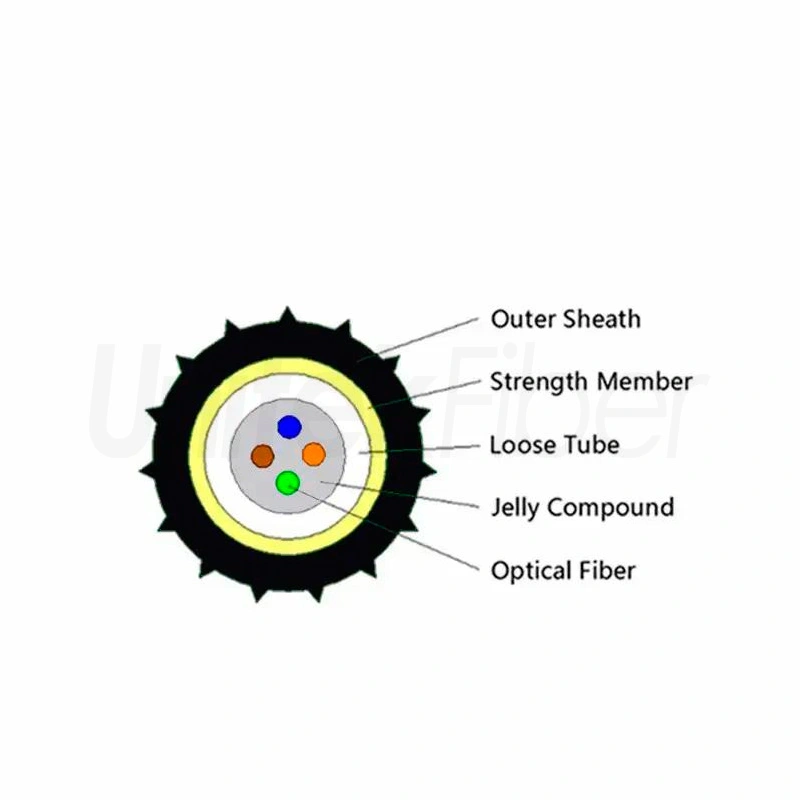

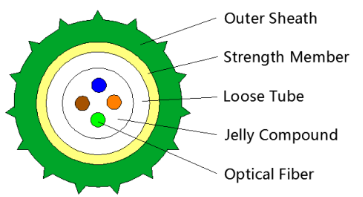

Basic structure of GCYFXTY fiber optical cable


The basic structure of air-blown micro fiber optic cable GCYFXTY includes the following parts:

1. Optical Fiber Capacity: The individual optical fibers within the central tube are made of glass or plastic and are used to transmit digital information in the form of pulses of light.

2. Central Tube: The optical cable contains a central tube, made of high-density polyethylene (HDPE), which houses multiple optical fibers. The number of optical fibers can range from 2 to 288 depending upon the requirements of the installation.

3. Aramid yarn: Aramid yarn offers excellent strength-to-weight ratio, high tensile strength, and resistance to abrasion and heat, making it an ideal choice for this application.

4. Polyethylene Outer Jacket: A rugged outer jacket made of HDPE or MDPE is used to protect the central tube and the fibers from damage. The outer jacket also provides mechanical strength to the optical cable.



Air Blowing Micro Fiber Optic Cable Central Loose Tube Aramid Yarn SM G652D Optical cable 4 8 Core HDPE



Advantages of GCYFXTY fiber optical cable


1. Compact design: GCYFXTY fiber optic cable has a compact design, which makes it an ideal choice for installations in tight spaces or areas with limited access.

2. Lightweight: The cable is lightweight, making it easy to handle and install. The low weight reduces the load on structures supporting the cable.

3. Air-blown installation: GCYFXTY fiber optic cable uses an air-blown installation method, which eliminates the need for expensive installation equipment and reduces installation time and costs.

4. Durable: The cable outer jacket is made of rugged HDPE material, providing excellent mechanical strength and protection against crushing, impact, and abrasion.

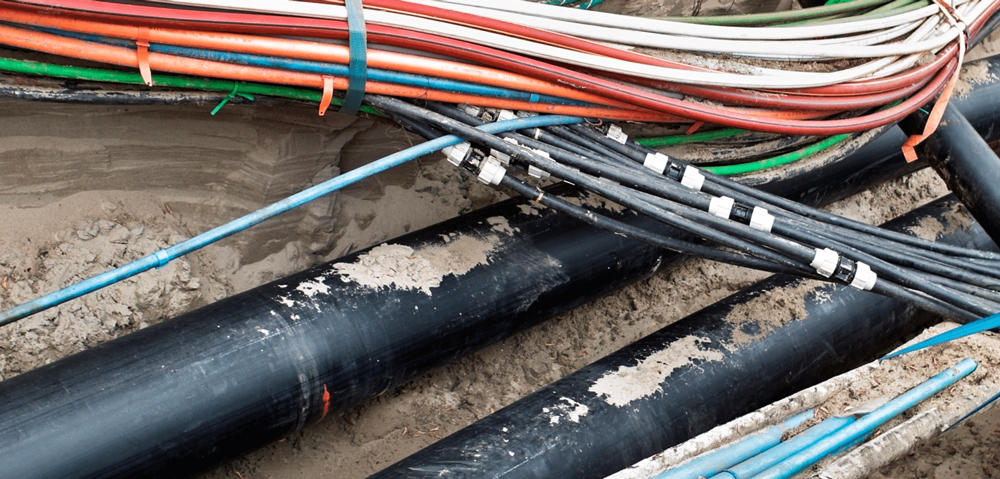

Application range of GCYFXTY fiber optical cable


GCYFXTY air blown fiber optical cable has a wide range of applications due to its unique characteristics and advantages. Some key application areas include: CATV, broadband internet services, data centers, security, surveillance and sransportation, etc. Overall, GCYFXTY air blown fiber optic cable is a versatile and reliable solution for a variety of industries and applications requiring high-speed data transmission, durability, and secure connections.


Air Blowing Micro Fiber Optic Cable Central Loose Tube Aramid Yarn SM G652D Optical cable 4 8 Core HDPE


Enabling Scalability for Future-Proof Networks


The GCYFXTY air blown fiber optical cable is specifically designed for small duct spaces, offering scalability and future-proofing capabilities. Its micro size allows for easy installation in tight spaces, while its air-blown installation method simplifies the process. The optical cable supports future technologies and ensures reliable performance, providing cost efficiency and enabling networks to thrive in space-constrained installations.

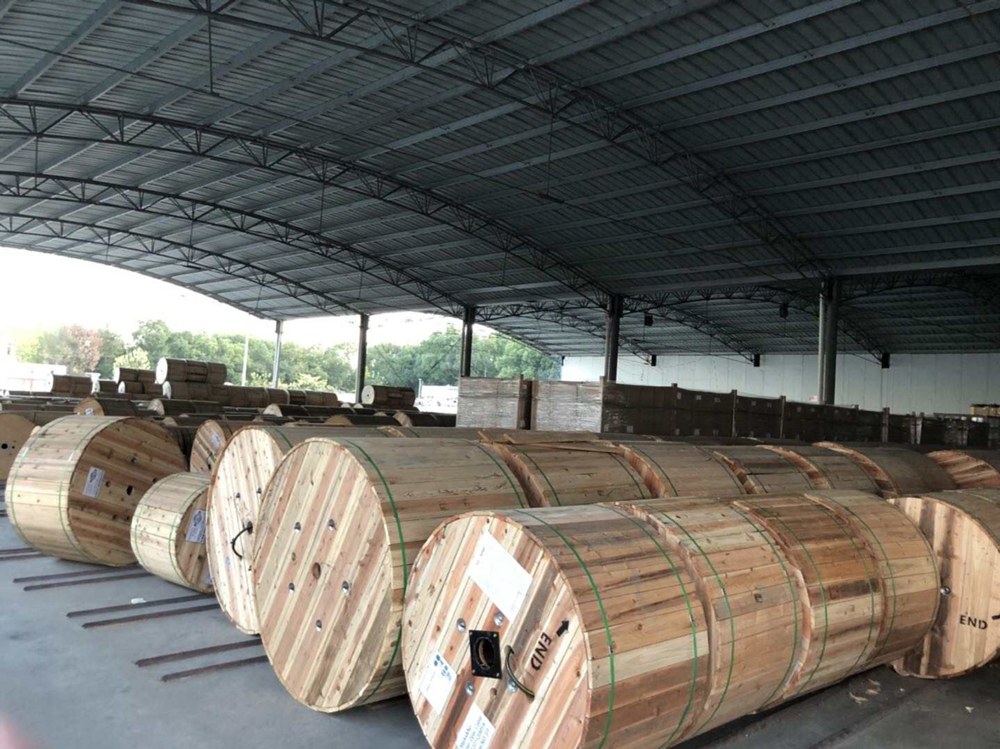

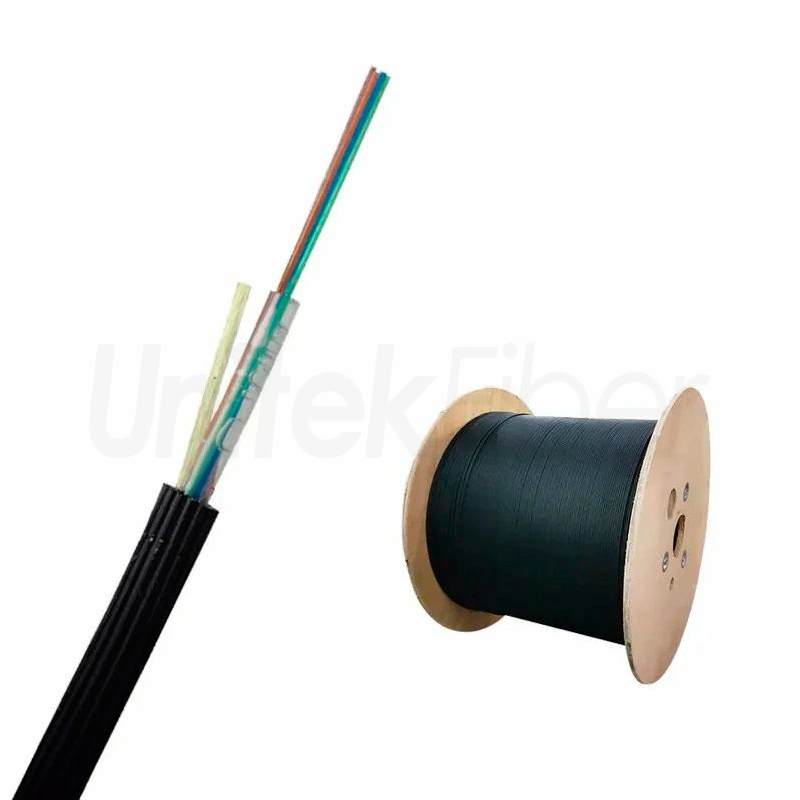

Packing & Delivery of GCYFXTY fiber optical cable


During the transportation of fiber optic cables, the packaging and transportation conditions need to be strictly controlled to ensure the integrity and safety of the pipeline. During transportation, packaging materials need to be resistant to vibration and impact. Fillers are added to the inside of the optical cable so that the optical cable will not be displaced or damaged after packaging.


Air Blowing Micro Fiber Optic Cable Central Loose Tube Aramid Yarn SM G652D Optical cable 4 8 Core HDPE

What are the 2 main types of fiber optic cables?

In General, single mode fiber is used for long distances or higher bandwidth needs. Multimode fiber is used for short distances or less bandwidth intensive applications.


Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.


Where is the fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.


How can I get a sample to check your quality?

If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.


Can you supply customized products and logo?

Yes. We supply OEM service. You can send us your drawing.
