Miro-tube Air Blowing Duct Cables|GCYFXTY Fiber Optic Bable 6 Cores Single Mode G652D HDPE

Air-blowing Fiber Optic cable GCYFXTY technology is a new way to make significant improvements in traditional fiber optic systems, facilitating the rapid adoption of fiber optic networks.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Miro-tube Air blowing Duct Cables|GCYFXTY Fiber Optic cable 6 Cores Single Mode G652D

And providing users with a flexible, secure, cost-effective cabling system.The blowing system consists of micro-tubes (single micro-tubes and micro-tubes), micro-cables, fittings and air blowing equipment.The blowing system consists of micro-tubes (single micro-tubes and micro-tubes), micro-cables, fittings and air blowing equipment.


Features:


  • Compared with other cable laying methods, the tension of the Air-blowing fiber cable during the laying process is relatively uniform and much smaller.

  • The Air-blowing cable laying process is simplified and fast.

  • The laying distance of Air blowing fiber cable is long, so that the cable with a long length can be used to reduce the number of joints and reduce the attenuation.

  • The Air blown cable can greatly reduce the number of manholes and hand holes on the pipeline.

  • There is less manpower used in Air blowing cable laying operations.

  • It is convenient to replace the new type of optical fiber in the future, keep leading in technology and constantly adapt to market needs.


Application:


  • FTTx

  • LAN communication FTTx

  • Suitable for air-blowing installation


Packing & Shipping

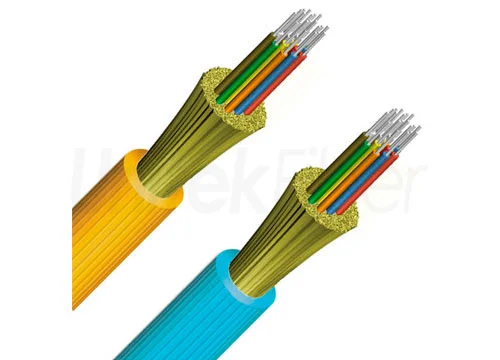

Air Blown Fiber Optic Cable


Production

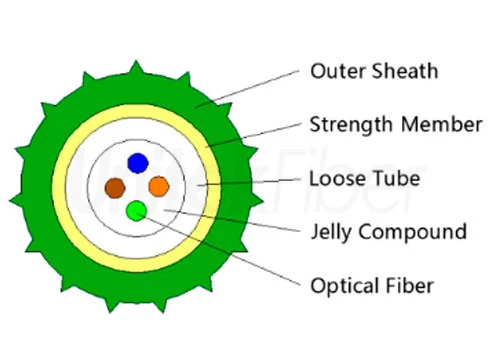

Blown Fibre


Parameter of Miro-tube Air blowing Duct Cables|GCYFXTY Fiber Optic cable 6 Cores Single Mode G652D H

No. of cable

/

2~12

12~24

Fiber type

/

G.657

Loose Tube

Material


mm

PBT

Diameter

(±0.05mm)


1.6

2.4

Thickness

(±0.03mm)


0.3

0.4

MAX.NO./per


2-12

14-24

Non metallic strength

Material

/

Aramid yarn

Outer Sheath

Material

mm

HDPE

Thickness

0.5(nominal)0.40(min.)

Colour

Black.

Cable Diameter(±0.2mm)

mm

2.5

3.5

Cable Wetght(±10.0kg/km)

kg/km

3.5

4.5

Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

MAX. Tensile Strength

N

120

150

MAX.Crush Resistance

N/

100mm

1000

Min. bending radius

Without Tension

mm

10.0×Cable-φ


Under Maximum Tension

20.0×Cable-φ


Temperature range

(℃)

Installation

-10℃+40℃

Transport&Storage

-40℃+60℃

Operation

-30℃+50℃

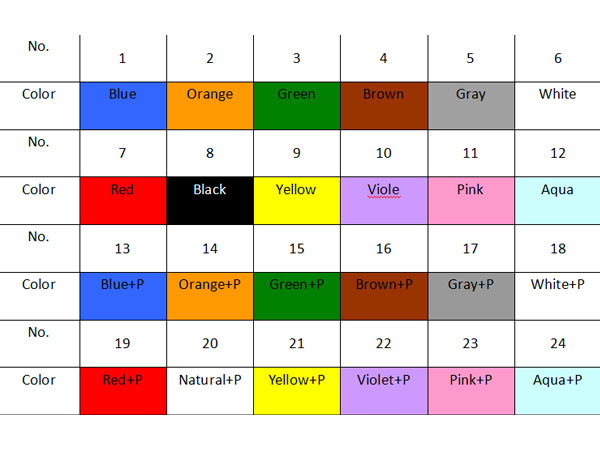

Fibre Colors

Fibre Colors
* "P" means Point mark


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.

Download

Reviews

Allen
Jul 14, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 0

Video
