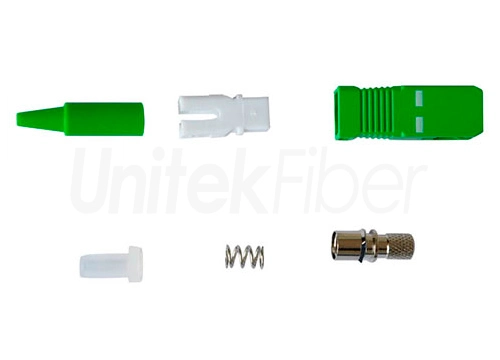

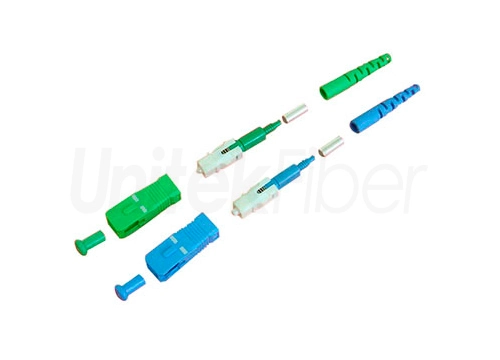

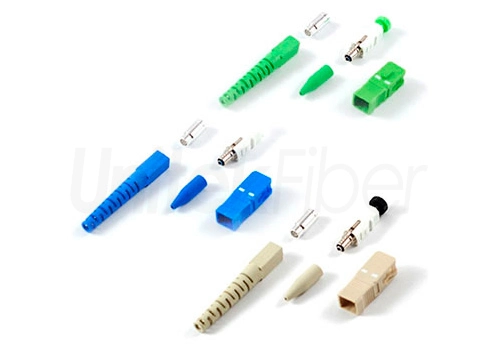

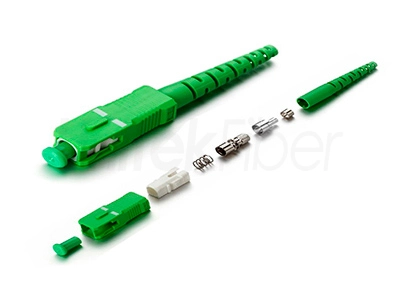

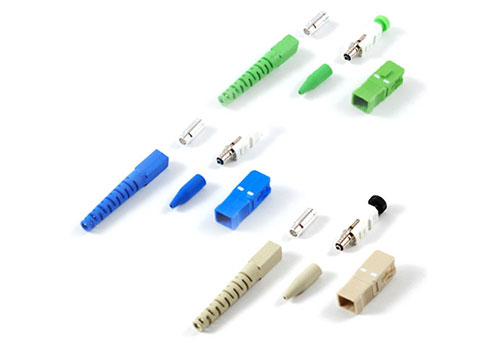

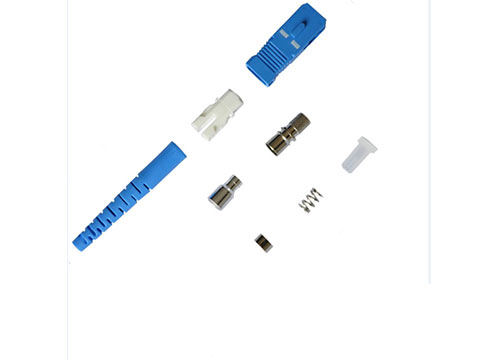

SC Type Fiber Optical Connector UPC APC 0.9mm 2.0mm 3mm

UnitekFiber supplies SC type fiber optic connector. The housing of the connector is rectangular in shape, and the pin and coupling sleeve are identical in size to the FC type. The end faces of the pins are mostly PC or APC type grinding methods.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

SC Type Fiber Optical Connector UPC APC 0.9mm 2.0mm 3mm

The fastening method is plug-and-pull type, which does not need to be rotated. Such connectors are inexpensive, easy to insert and remove, have small fluctuations in insertion loss, high compressive strength, and high installation density.


Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping


SC Type Fiber Optical Connector UPC APC 0.9mm 2.0mm 3mm

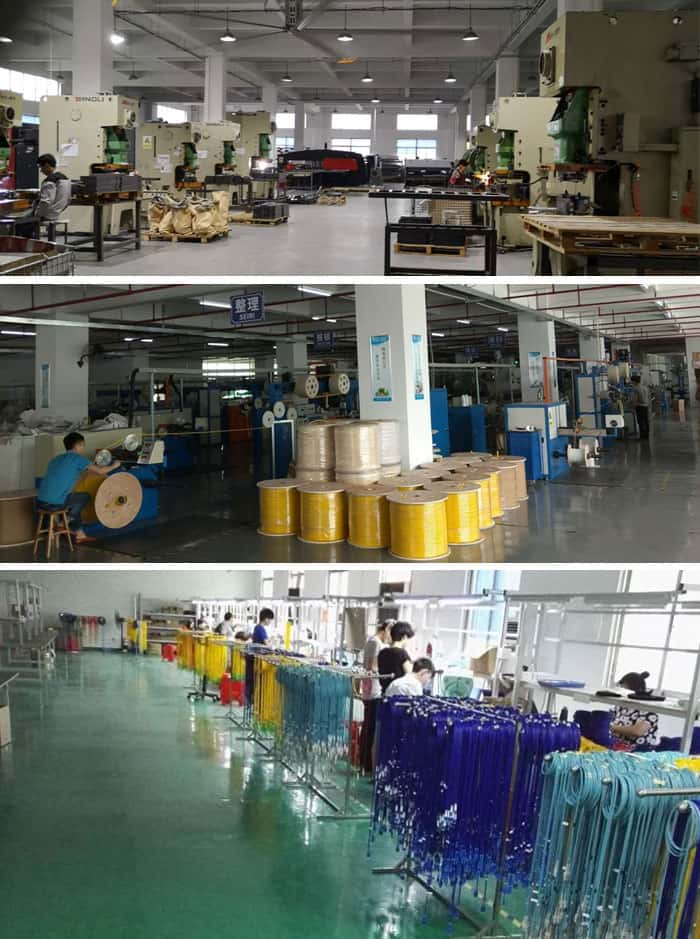

Production


SC Fiber Optical Connector UPC APC 0.9mm, 2.0mm, 3mm


SC Type Fiber Optical Connector UPC APC 0.9mm 2.0mm 3mm


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85


Contact UnitekFiber
Contact UnitekFiber

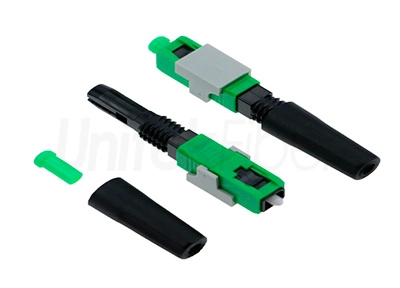

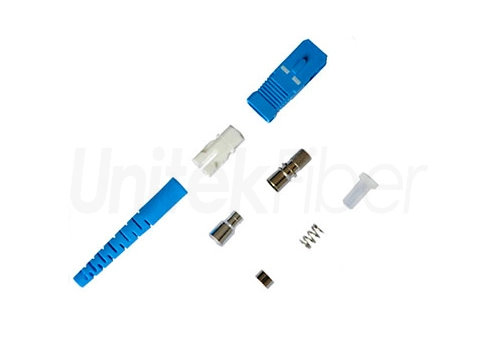

Other Fiber Optical Connector Products
