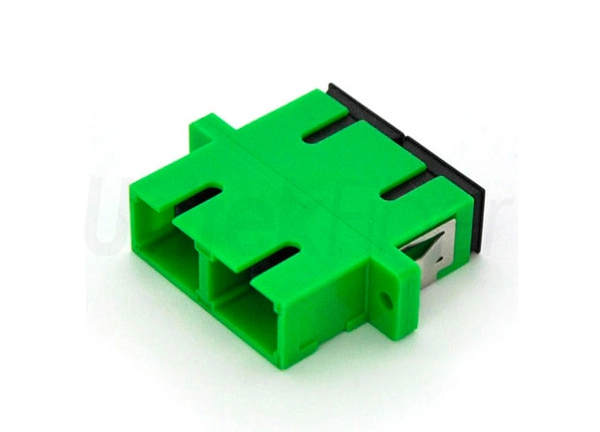

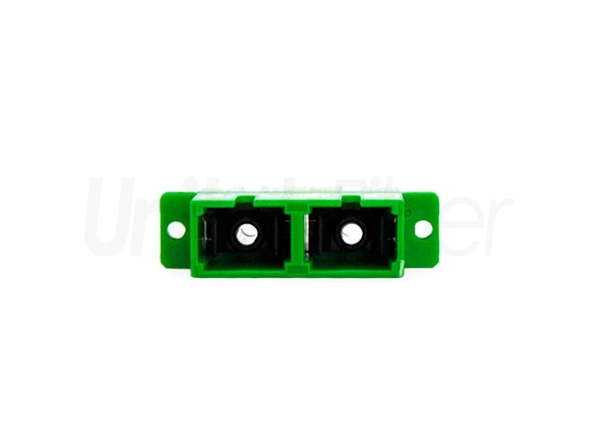

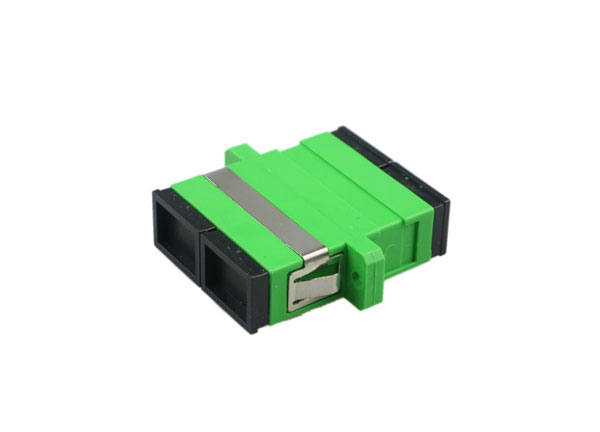

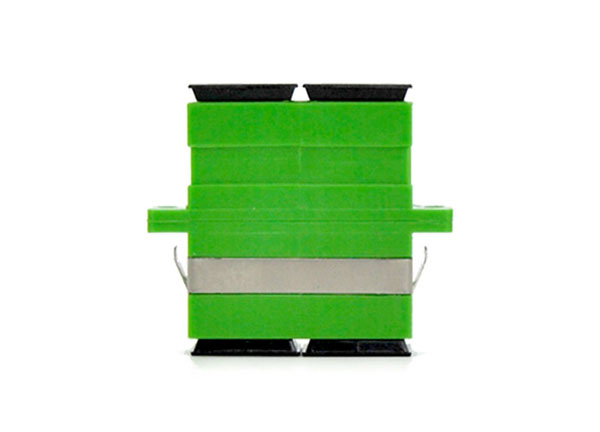

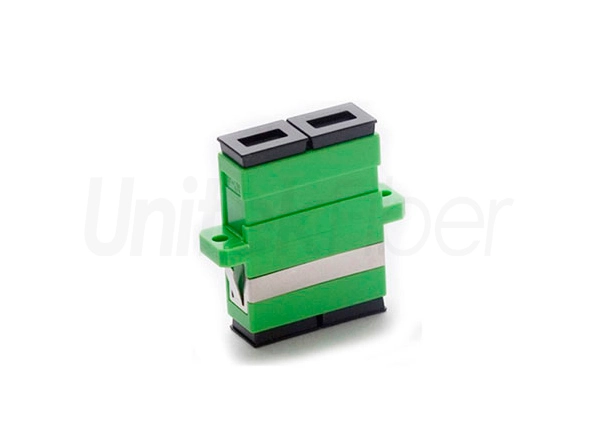

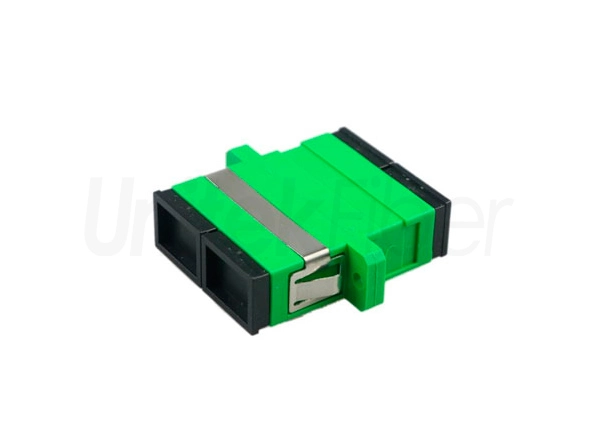

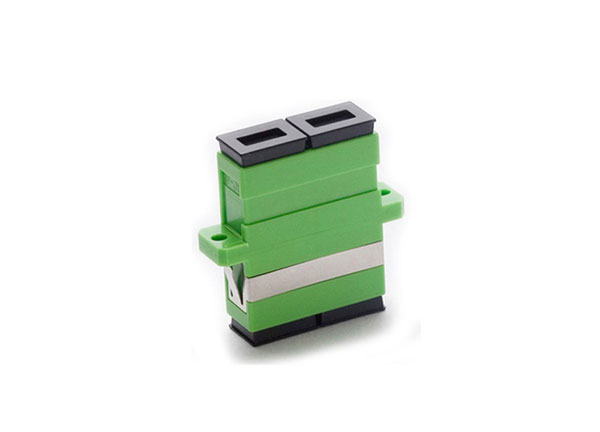

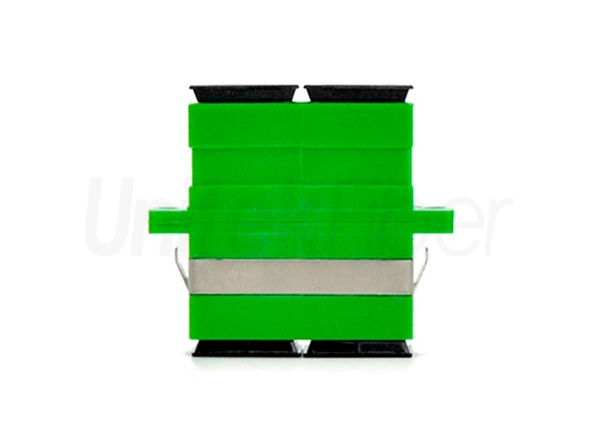

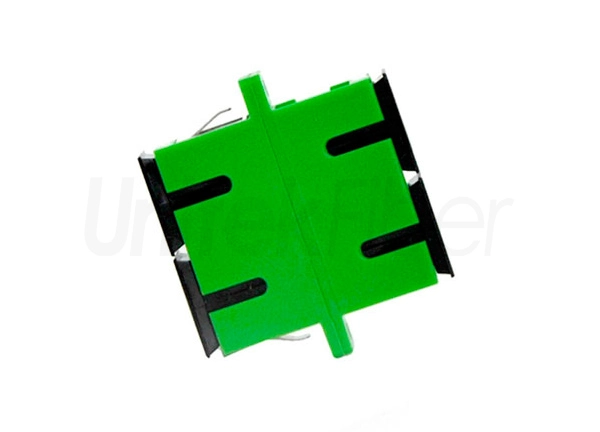

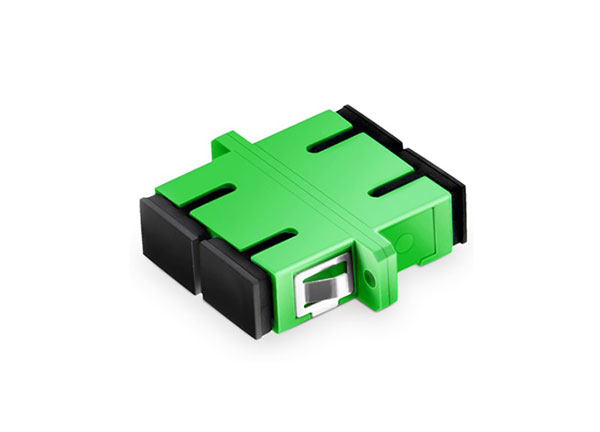

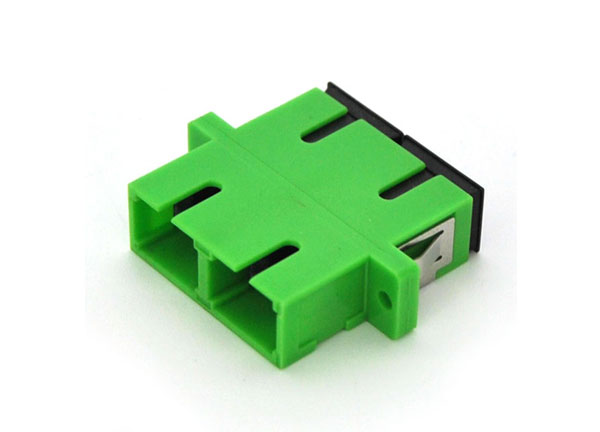

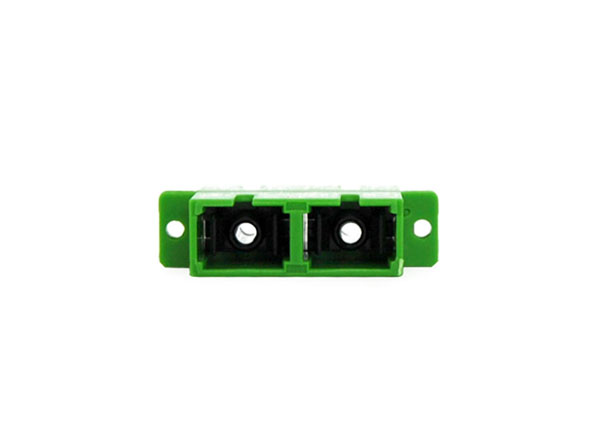

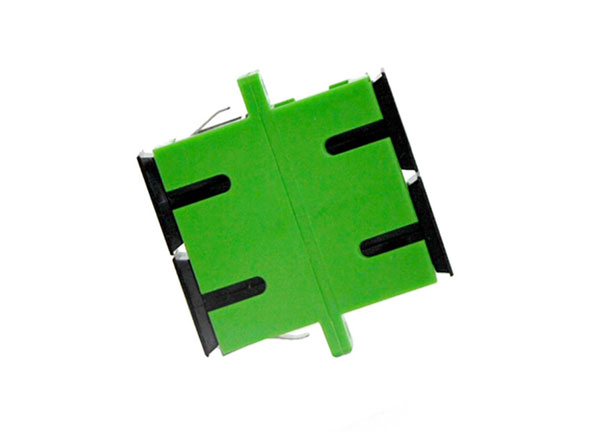

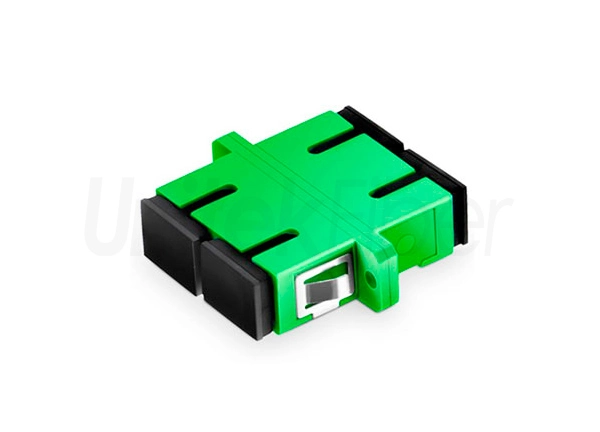

Flange optical fiber adapter SC/APC to SC/APC DX
Depending on the application scope and requirements of the fiber optic adapter. In order to fix it on various panels, the fiber optic adapter has also designed a variety of fine fixing flanges. The conversion adapter can connect different types of fiber jumper interfaces and provide different end faces.
Low insertional loss and back reflection loss
High prcision alignment
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Compact design
Plastic housing
CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks
Multimedia
Gigabit Ethernet
Active device/Transceiver
Both ends of the fiber adapter can be inserted into fiber connectors of different interface types to achieve conversion between different interfaces such as FC, SC, ST, LC, MTRJ, MPO, and E2000. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., excellent performance, stable and reliable. Some fiber adapters are also called fiber connectors on the market, in fact these are two different products.
The SC/APC simplex fiber adpaters is installed in the rack mounted 4U 288fibers ODF box for high density fiber optical network soloutions.
Specification | ||
Data | Unit | |
Adapter Type | SC/LC/FC/ST | |
Insertion Lose | ≤0.2 | dB |
Interchangeability | ≤0.2 | dB |
Repeatability | ≤0.1 | dB |
Temperature | -40～+85 | ℃ |
