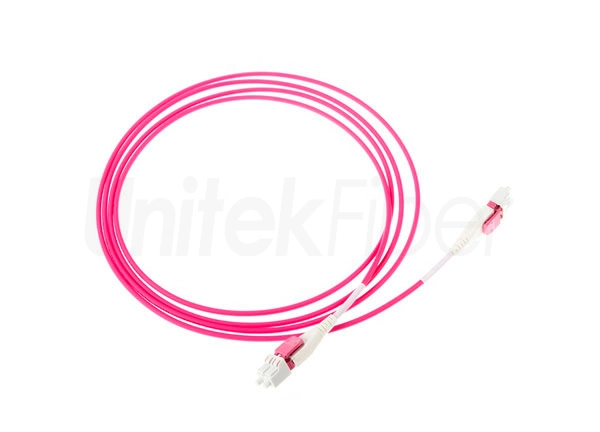

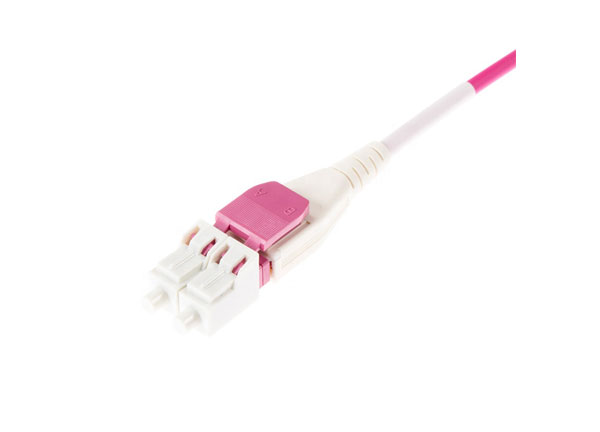

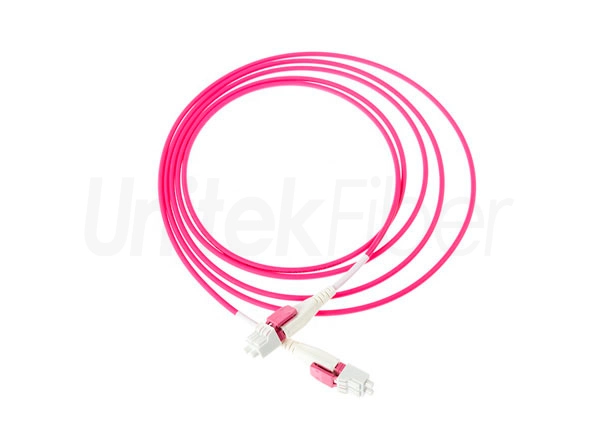

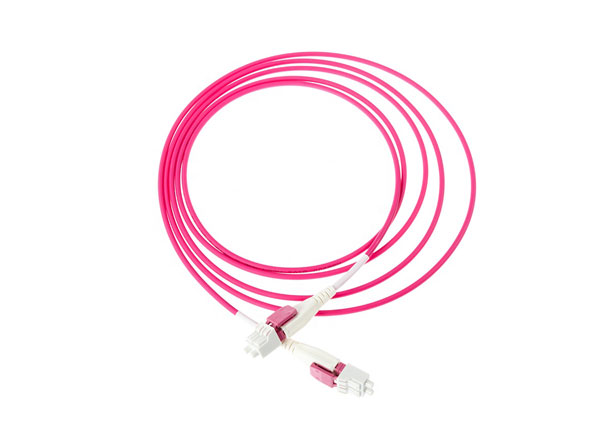

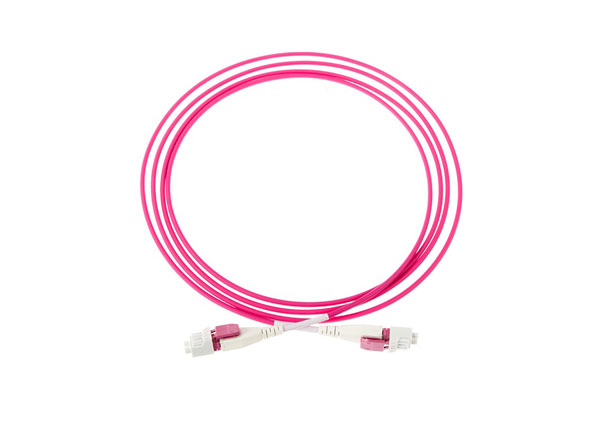

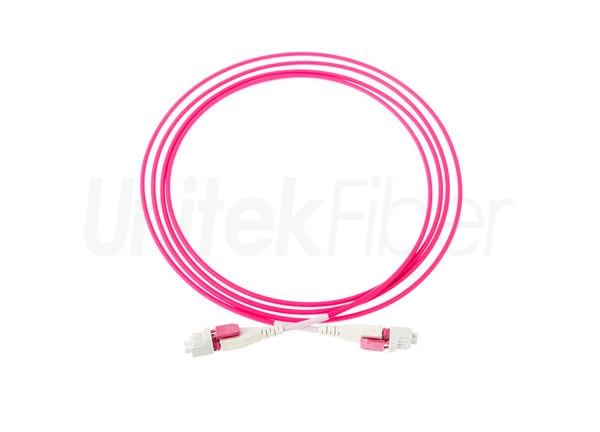

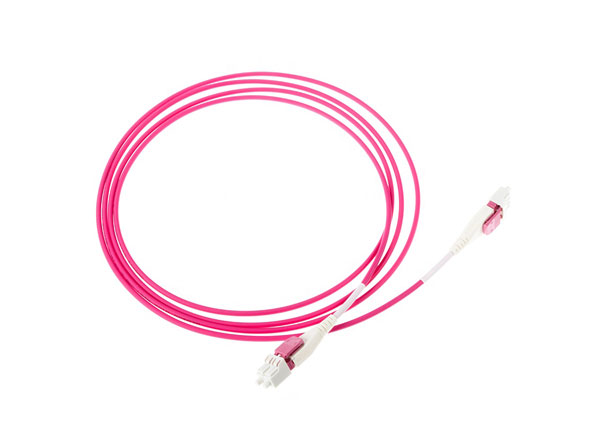

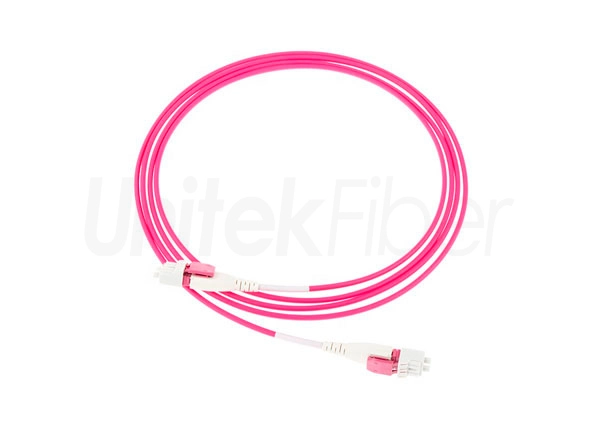

Uni-boot LC/UPC duplex fiber patchcord with switchable polar is better than the traditional Uni-boot LC/UPC dual-core fiber patchcord. The two plugs of the optical fiber connector are innovatively designed to be interchangeable, avoiding the tedious problems of conventional LC fiber patchcords when performing polarity conversion.In addition, the insertion loss of this Uni-boot dual-core switchable polarized LC fiber patchcord does not exceed 0.2 dB, which is much more optimized than the insertion loss of 0.3 dB for standard LC fiber patchcord.
lHigh reliability ;
lCE & RoHS compliant ;
l100% connectors tested ;
lRepeatability: >1000 times ;
lDeliery 100% passed products ;
lInsertion Loss(SM): Typical<0.2dB, Max<0.3dB ;
lReturn Loss: UPC>50dB, APC>60dB ;
lTelecommunications
lLocal Area Network (LAN)
lFiber to the home (FTTH)
lOptical patch panels
lTesting Instruments
lCATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
