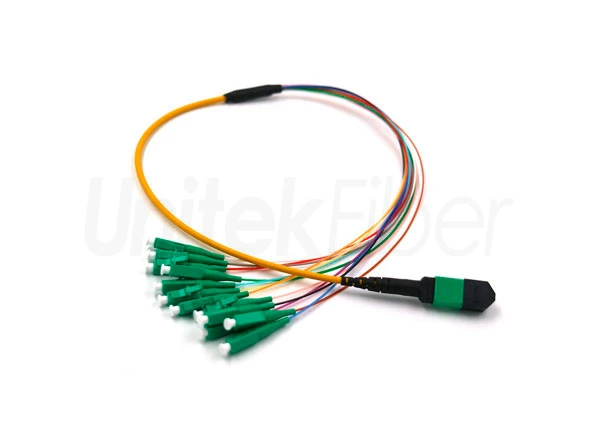

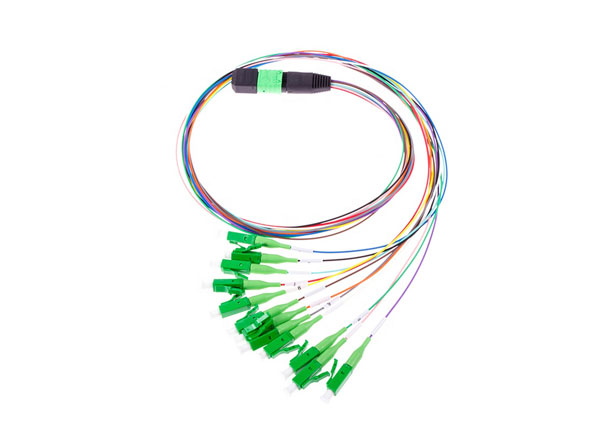

High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH

The MPO/MTP optical cable is with a special structure of circular and small outer diameter to realize a smaller bending radius of the trunk cable, which makes storage and laying convenient and fast.The dustproof, anti-pressure and tensile protection sleeves at both ends can effectively protect the MPO/MTP optical cable and the optical fiber connector from damage during transportation and installation.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

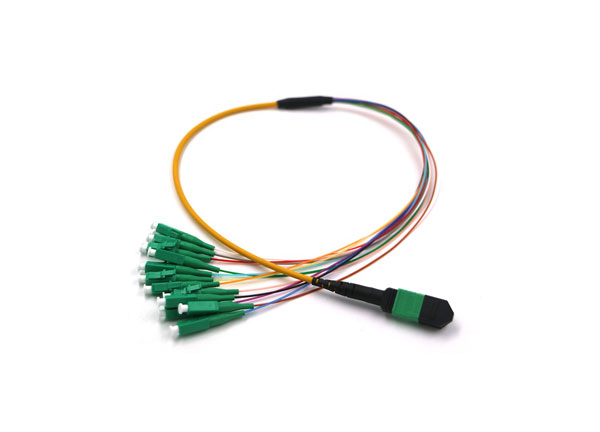

Details of High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH

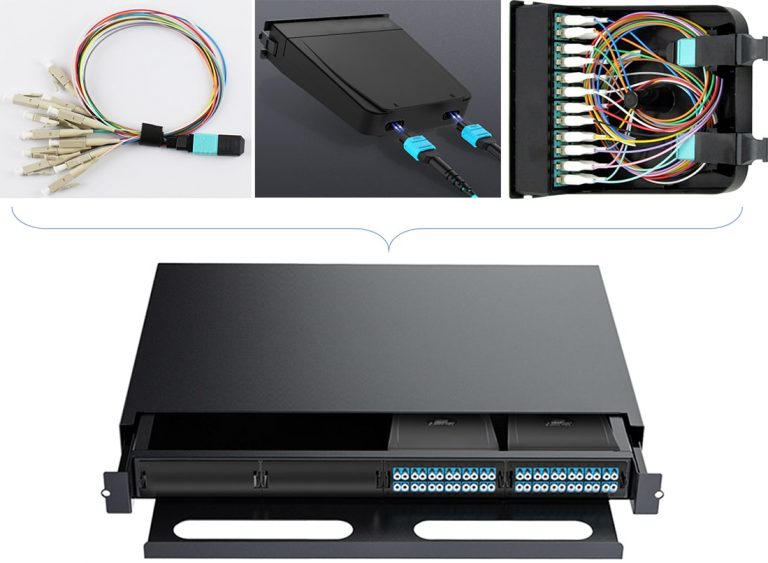

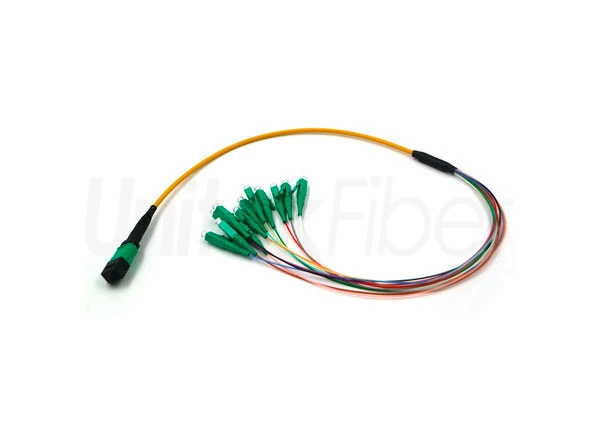

MPO/MTP cables are used in Plug-and-Play cassettes for multi-fiber to single-fiber splitting out interconnects. MTP/MPO fiber cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.



Network Connectivity

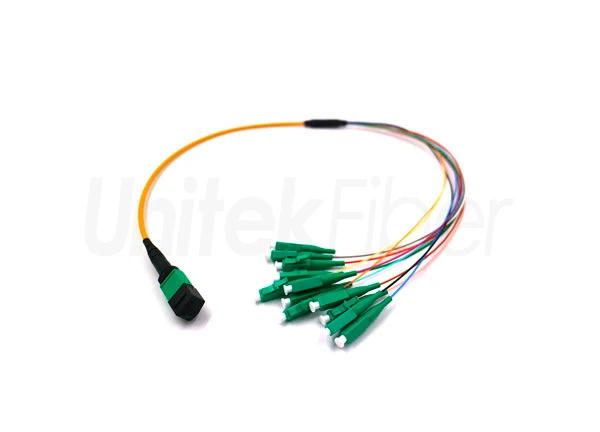

High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH

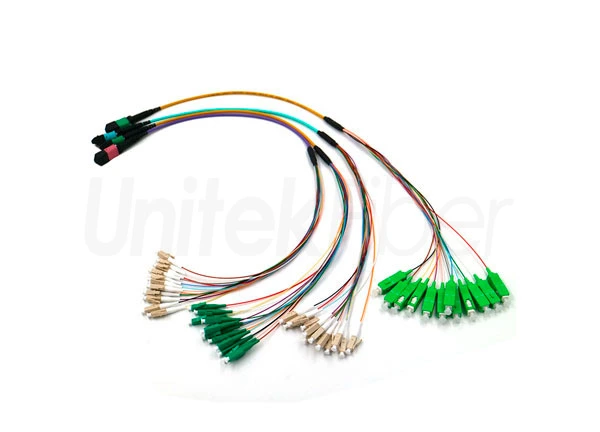

MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.


High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH


Product Highlights



Superior Workmanship Guarantees Stable Transmission

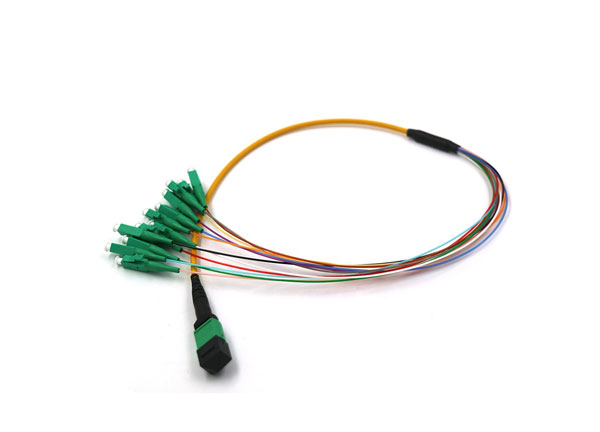

High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH


MPO connectors are the proven and trusted MPO style format, MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.


Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling.

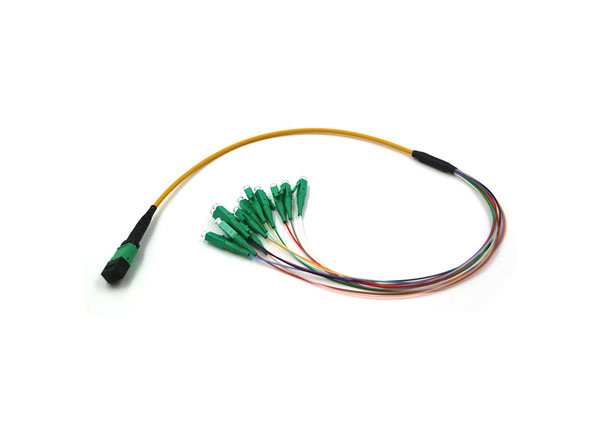

High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH


High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH


High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH


UnitekFiber MTP MPO cables deliver the higher bandwidth needed for high-def conferencing and HDTV configurations. We offer a variety of MTP cables in several types and lengths. MPO stands for "multi-fiber push on." MPO cables have a higher port density, meaning you pull one cable with 12 fibers! MTP is a brand name for an MPO connector, but the two acronyms are often used interchangeably.

Parameter of High Quality Bending Radius MPO/MTP to LC APC SM FTTH Fiber Optic Pigtails LSZH

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
