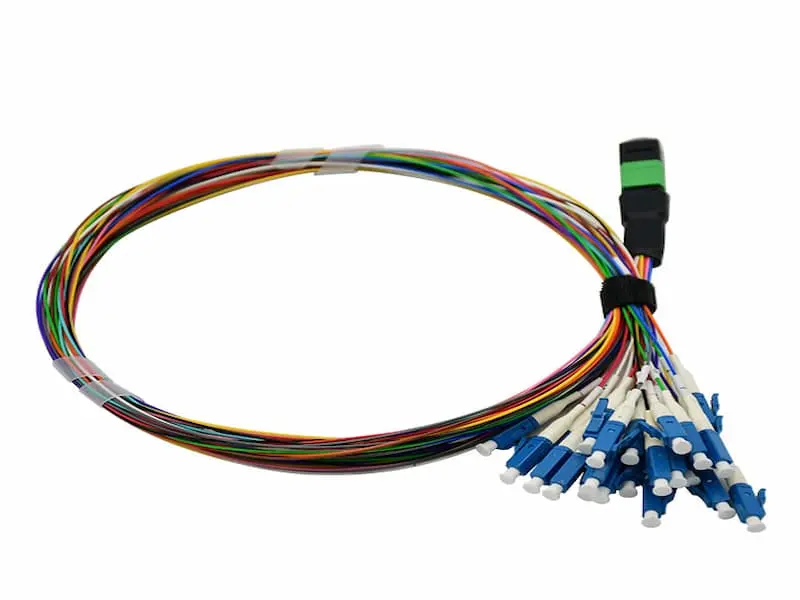

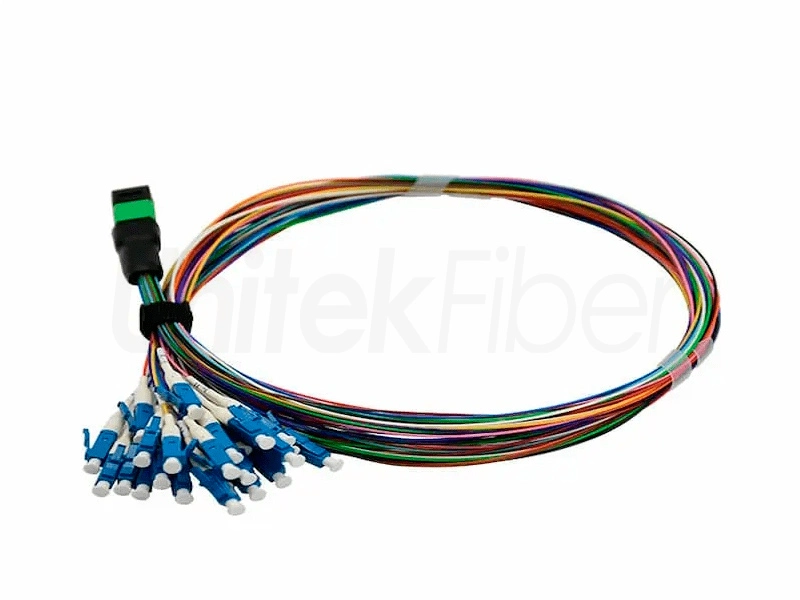

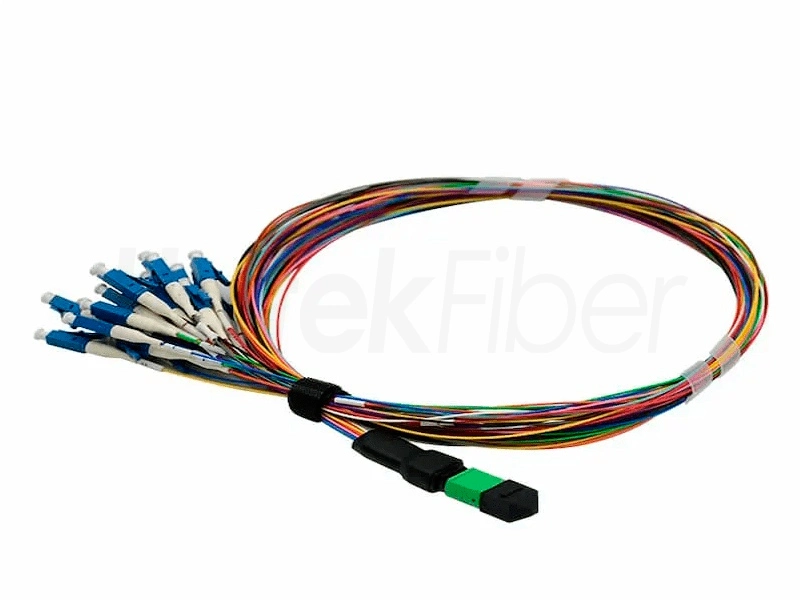

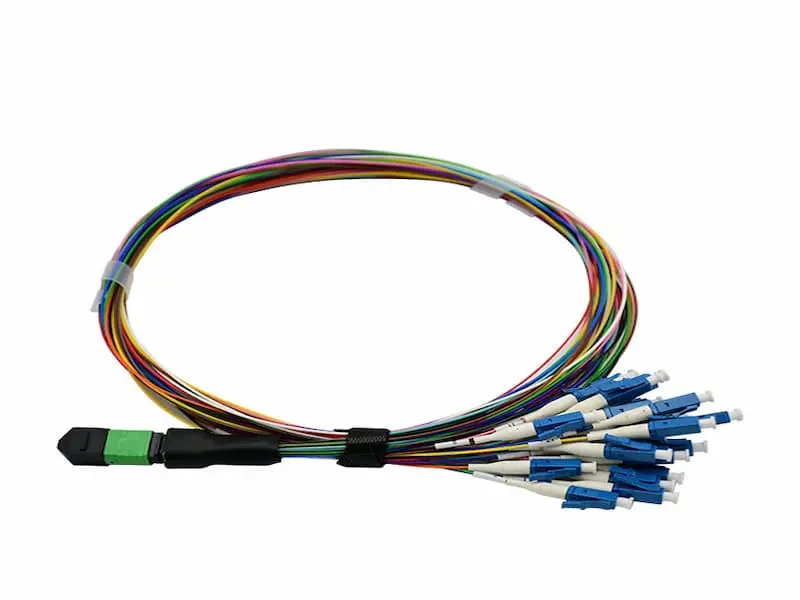

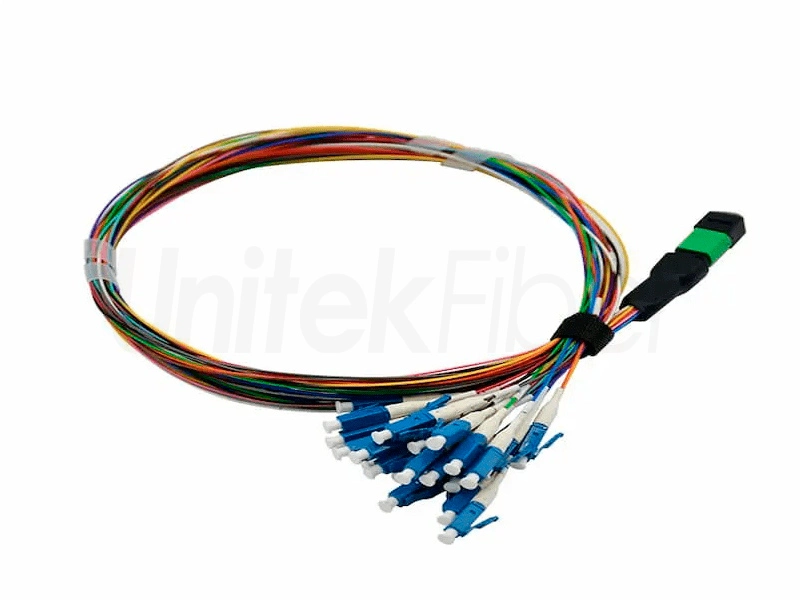

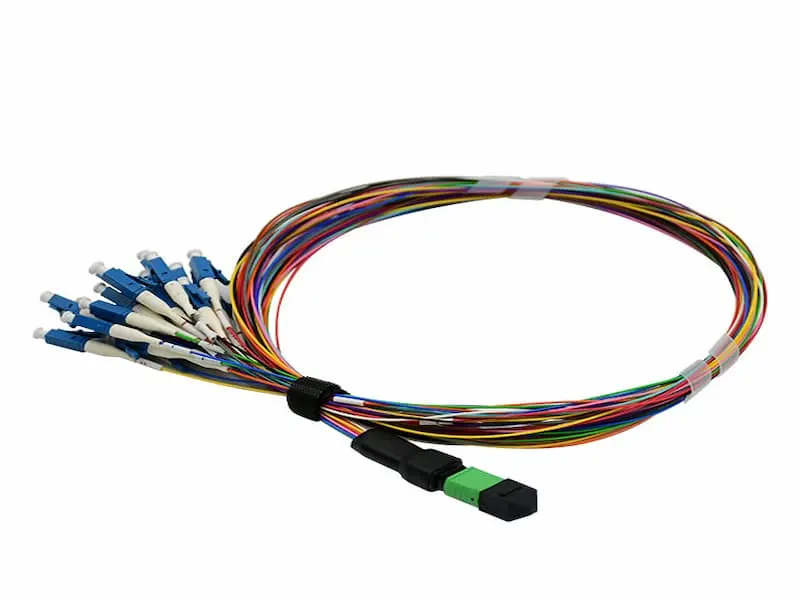

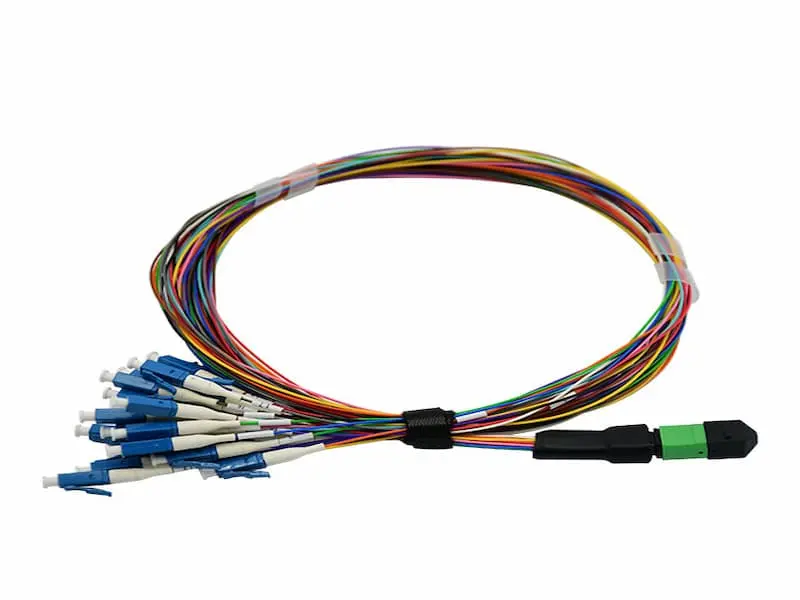

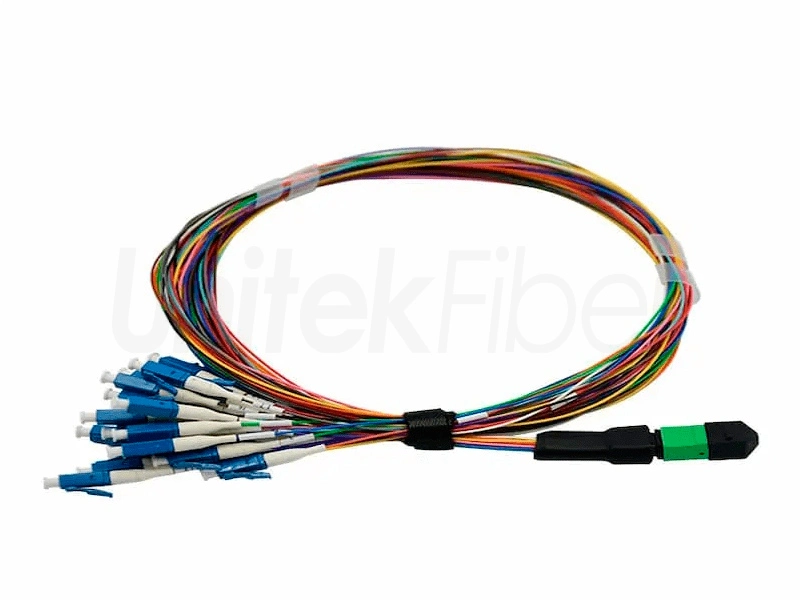

MTP MPO Fiber Cable|Colorful Bulk Fiber Optic Patchcord MTP MPO-LC 24 Cores SM 0.9mm LSZH

MPO|MTP fiber patchcord refers to the processing of MPO|MTP connector and optical fiber cable. One end is MPO|MTP connector, and the other end can be matched with various connectors such as LC|SC|FC|ST connectors. Through the cross-type pre-terminated MPO|MTP cable technology, one end is connected to 40G|100G, and the other end is connected to 10G. The 40G|100G is splitted into several 10G, so as to realize the high-speed MTP|MPO fiber cabling solution.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

MTP MPO Fiber CableColorful Bulk Fiber Optic Patchcord MTP MPO-LC 24 Cores SM 0.9mm LSZH

The MTP|MPO cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP|MPO cables is a more cost-effective and lower-loss option.


MTP MPO Fiber CableColorful Bulk Fiber Optic Patchcord MTP MPO-LC 24 Cores SM 0.9mm LSZH

MTP MPO Fiber Patch Cord Cabling Solution

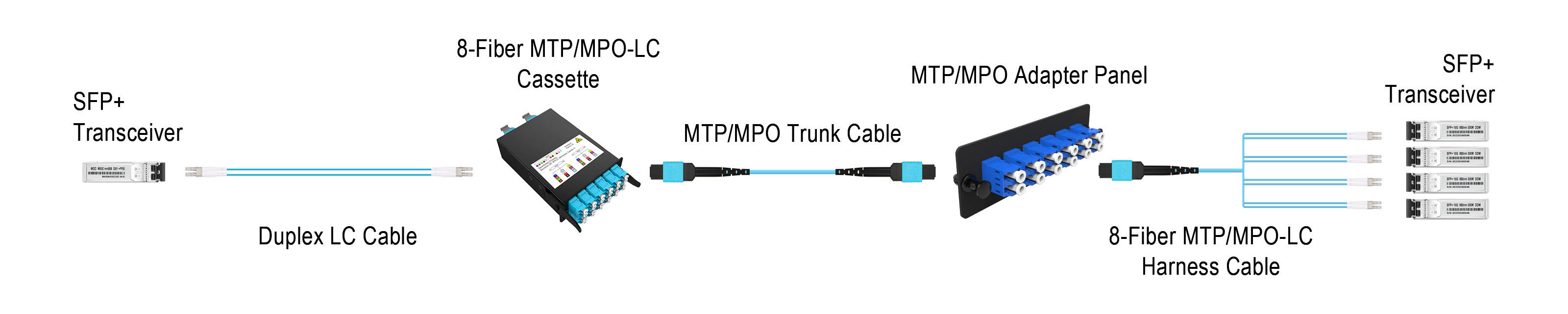

The most direct solution for network upgrades from 10G to 40G and 25G to 100G is to use 2 core to 8 core optical fiber connection solutions. For example, use 8 core MTP|MPO-LC fiber patchcord to connect 40G QSFP+ optical transceiver and 4pcs 10G SFP+ optical transceiver. And use 8 core MTP|MPO-LC fiber jumper to connect 100G QSFP28 optical transceiver and 4pcs 25G SFP28 optical transceiver.


MTP MPO Fiber CableColorful Bulk Fiber Optic Patchcord MTP MPO-LC 24 Cores SM 0.9mm LSZH

MPO|MTP Optic Fiber Patch Cord Ensure High Performance

mtp-mpo-fiber-cablecolorful-bulk-fiber-optic-patchcord-mtp-mpo-lc-24-cores-sm-0.9mm-lszh-2.jpg

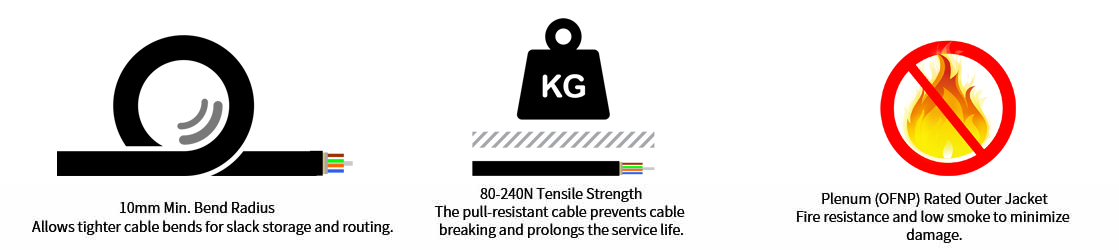

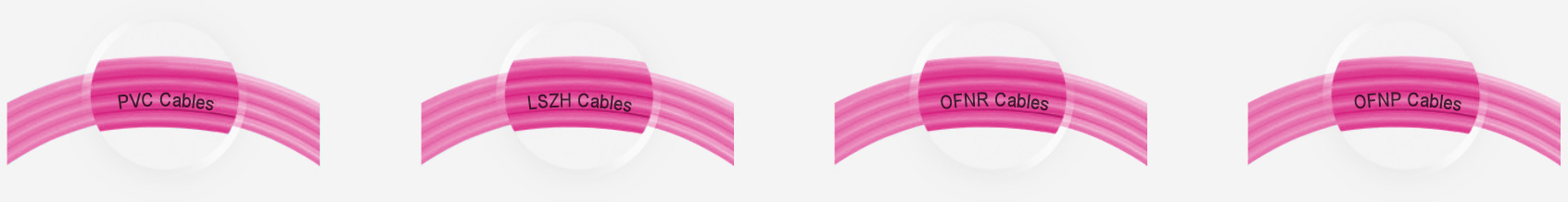

OFNR Riser Rated fiber cable and OFNP Plenum fiber cable can be choose for your network cabling.


mtp-mpo-fiber-cablecolorful-bulk-fiber-optic-patchcord-mtp-mpo-lc-24-cores-sm-0.9mm-lszh-3.jpg

High-quality MTP MPO Fiber Optic Patch Cord Meet Your Larger Network Solution

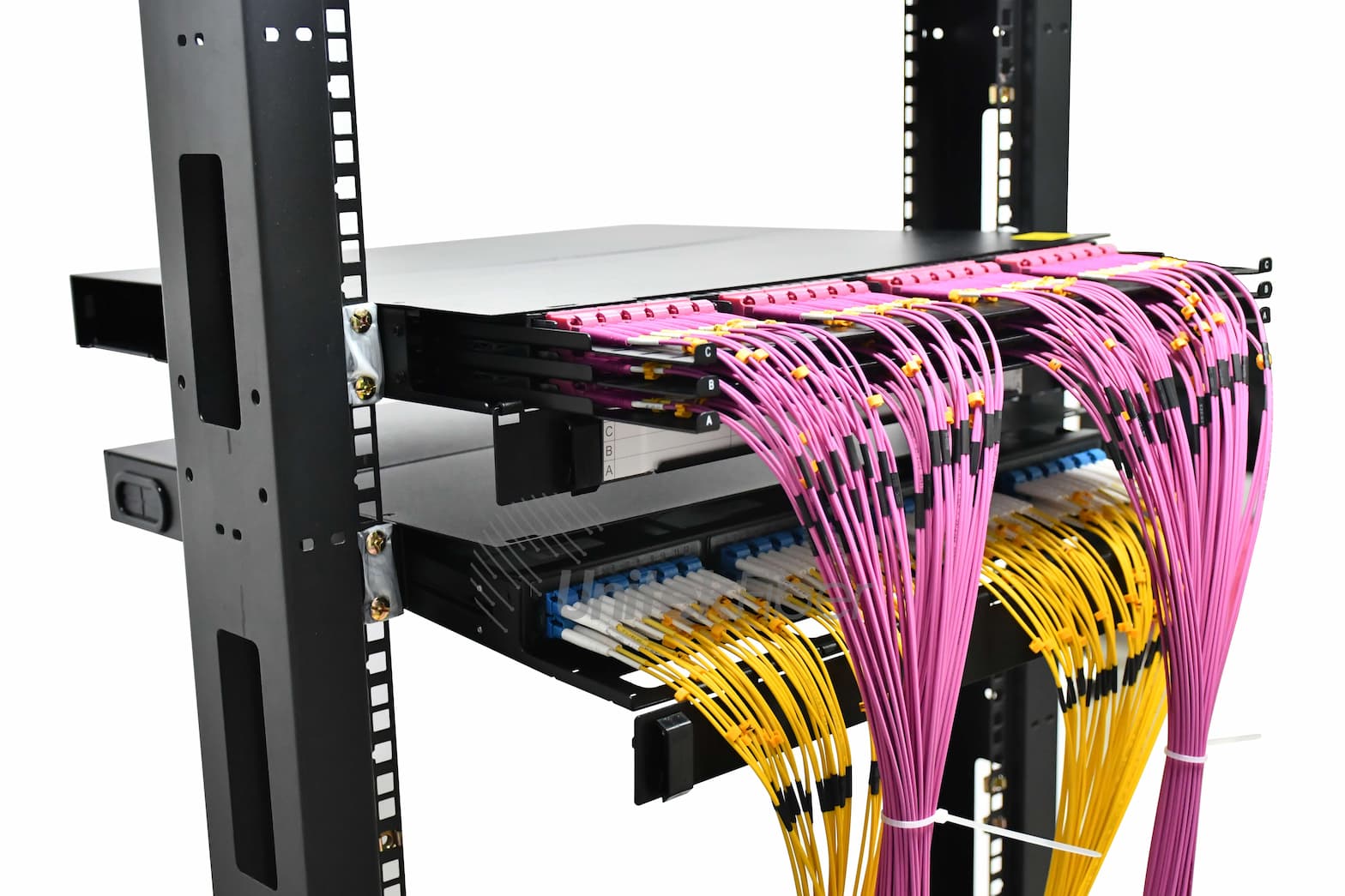

MTP|MPO fiber patchcord structured cabling provides a layered structure for the network, and will provide multiple connection solutions through the aggregation layer, which can reduce the problem of cable clutter. When the data center needs to expand in the future, a long-term solution can be built by installing a structured MTP|MPO fiber patchcord cabling system to meet your needs.

MTP MPO Fiber CableColorful Bulk Fiber Optic Patchcord MTP MPO-LC 24 Cores SM 0.9mm LSZH

Our Fiber Optic Cables Supporting You Excellent Indoor Fiber Cable Installation

MTP MPO Fiber CableColorful Bulk Fiber Optic Patchcord MTP MPO-LC 24 Cores SM 0.9mm LSZH

Model

SM

MM

Connector A:

MTP/MPO/APC

MTP/MPO/PC

Radius Long:

≥2000mm or ≤-10000mm

≥2000mm or ≤-10000mm

Radius Short:

≥50mm

≥50mm

Angle Long:

0°±0.2°

0°±0.2°

Angle Short:

8°±0.2°

0°±0.2°

Fiber Height:

1100nm~2500nm

1100nm~2500nm

Differential Height:

≤500nm

≤500nm

Different Adjacent Fiber Height:

≤300nm

≤300nm

IL:

Standard Loss:0.7dB

Standard Loss:0.7dB

Low Loss: ≤0.35dB

Low Loss: ≤0.35dB

RL:

≥60dB

≥30dB

IR Test wavelength:

1310nm&1550nm

850nm&1300nm

Connector B:

SC/LC/ST/FC/UPC

SC/LC/ST/FC/APC

SC/LC/ST/FC/PC

Radius of curvature(mm):

7 ~ 25

7 ~ 25

7 ~ 25

Fiber Height:

-50 ~ +50

-50 ~ +50

-50 ~ +50

Axis offset(um):

0 ~ 50

0 ~ 50

0 ~ 50

IL:

Standard Loss:0.3dB

Standard Loss:0.3dB

Standard Loss:0.3dB

RL:

≥50dB

≥60dB

≥35dB

IR Test wavelength:

1310nm&1550nm

1310nm&1550nm

850nm&1300nm


How many fiber cores for your MPO|MTP patch cords?

It can be 8 12 24 cores.


What is the polarity types for MPO|MTP patch cords?

Type A,type B and type C.


What's the difference between MTP and MPO connector?

MTP connector is a kind of high performance and MPO connector with multiple innovative design.

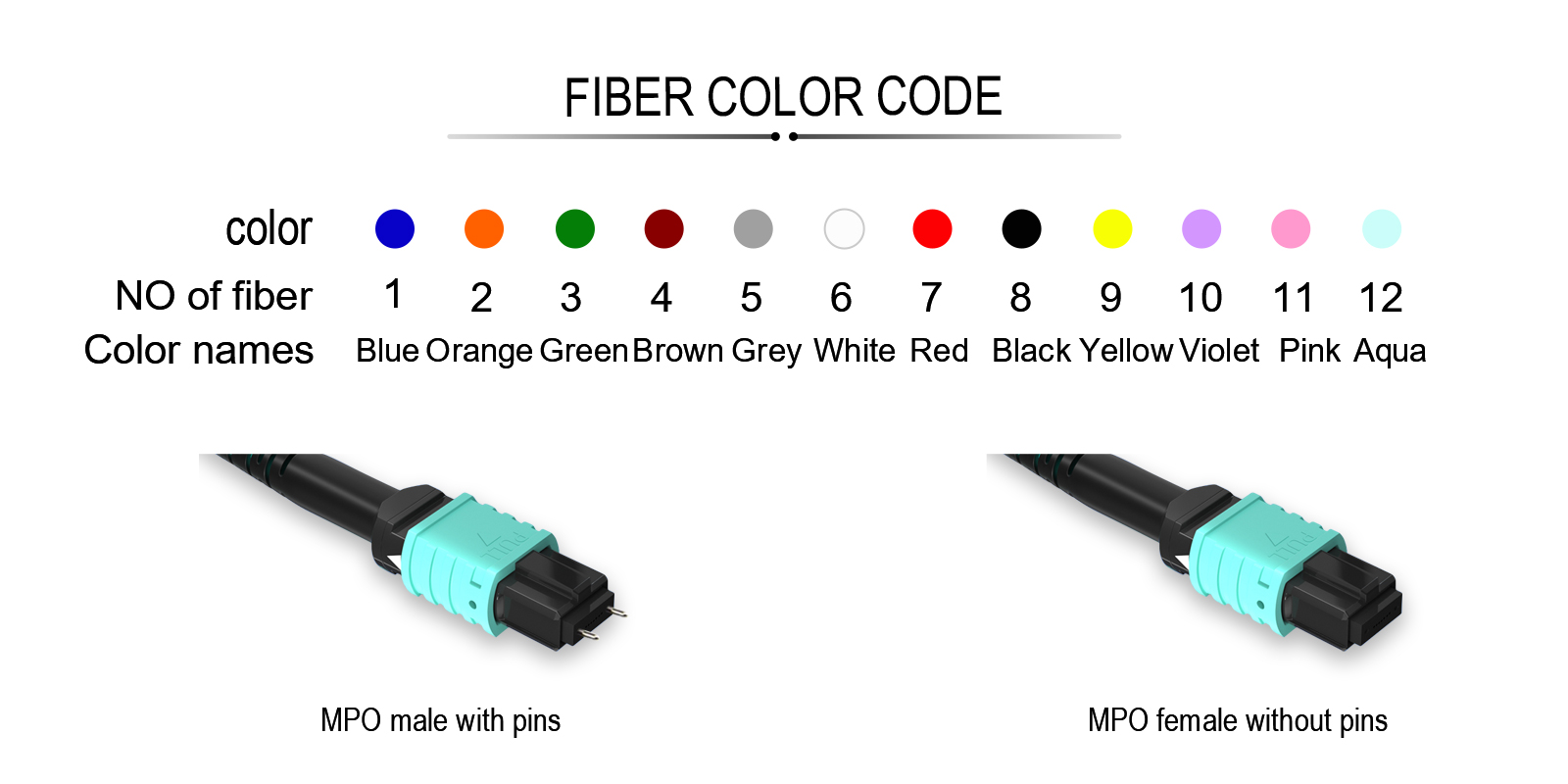

Is the MPO|MTP fiber cable male or female?

MPO|MTP fiber cable can be either male or female.


Will the numbering be on the LC connector part of MPO-LC patchcord?

Yes, each LC connector has a number label, which displays"1,2,3...".
