Part number: UNFOSC-VM144-01

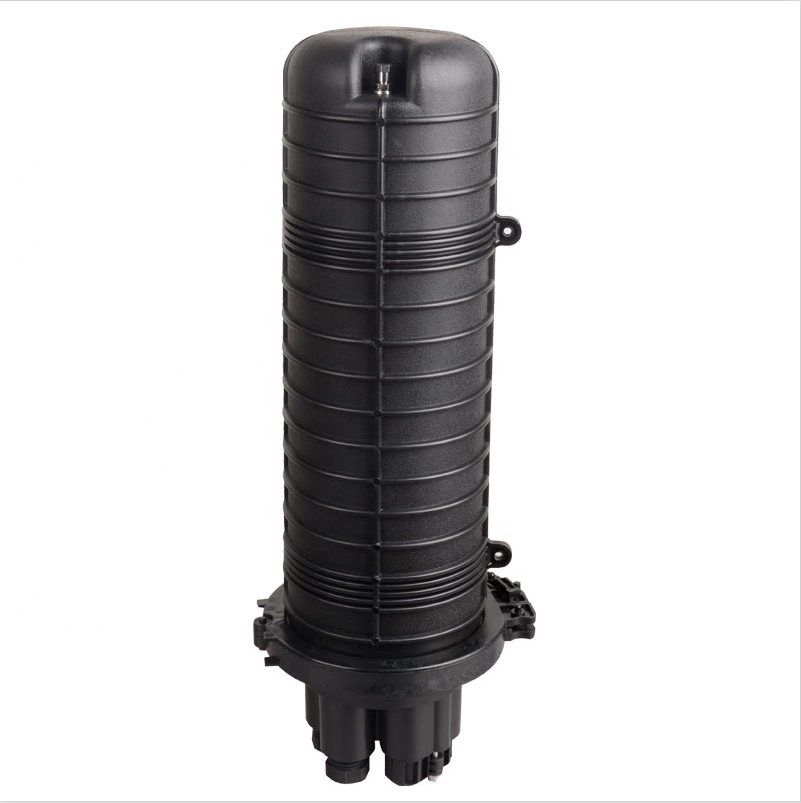

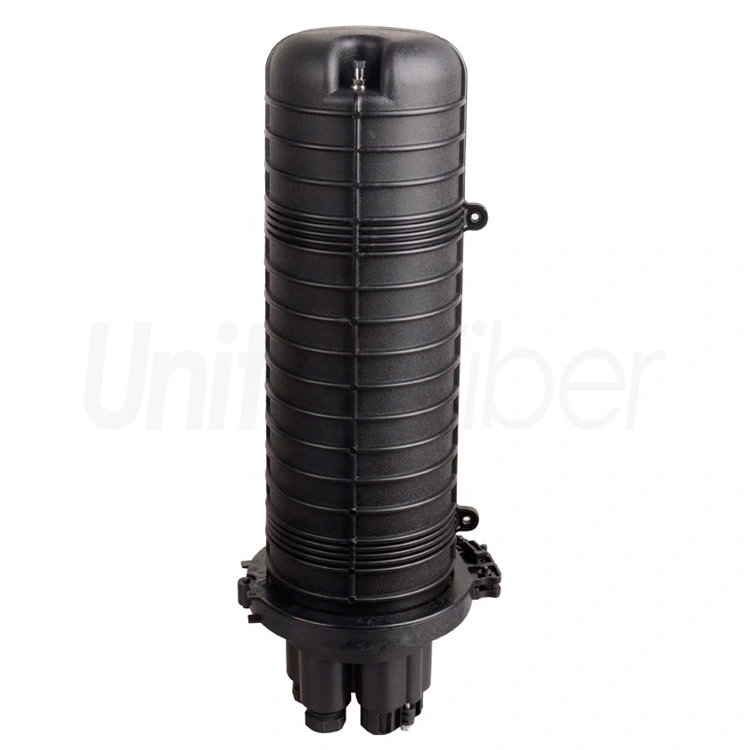

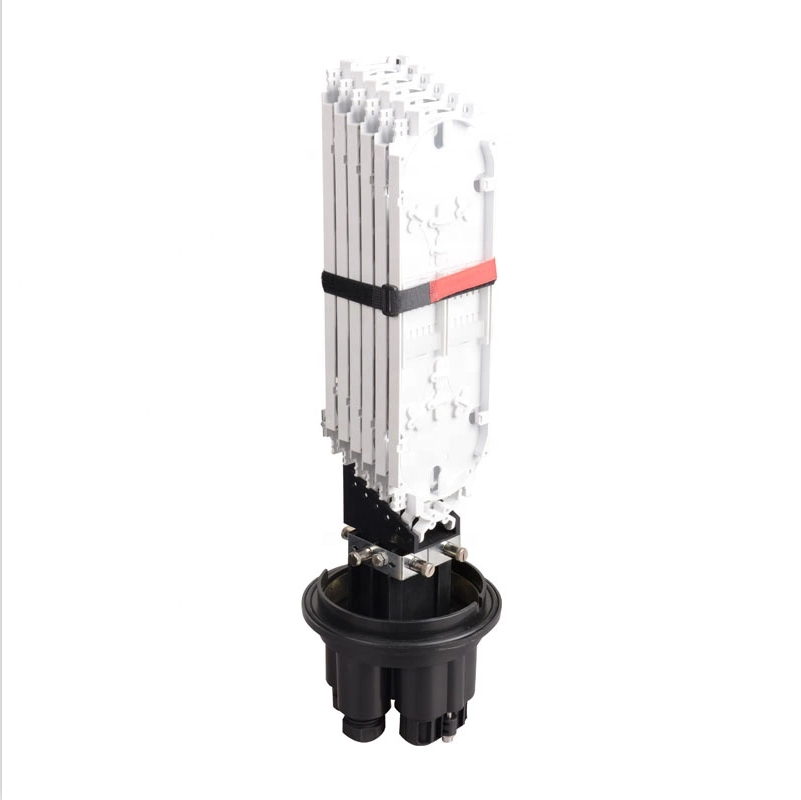

The dome type fiber optic splice closure with the maximum 144 cores has 2 inlets and 4 outlets. This fiber optic splice closure can be installed 6 splice trays, and each splice tray can accommodate 24 fibers. The box body is made of reinforced plastic, which has high strength, corrosion resistance, mature structure, reliable sealing and convenient construction.
Fiber optic splice closure plays a role in protecting the optical cable connetion, which can meet the requirements of overhead, pipeline installatin methods. It is one of the main equipment for user access points. It mainly completes the indoor/outdoor connection of the distribution optical cable and the household line optical cable. It is widely used in communications, Network system, CATV cable TV, optical cable network system, etc.
The fiber optic splice closure can be used for fusion splicing of part of the main optical cable and branch optical cable, part of the main optical cable and pigtail .

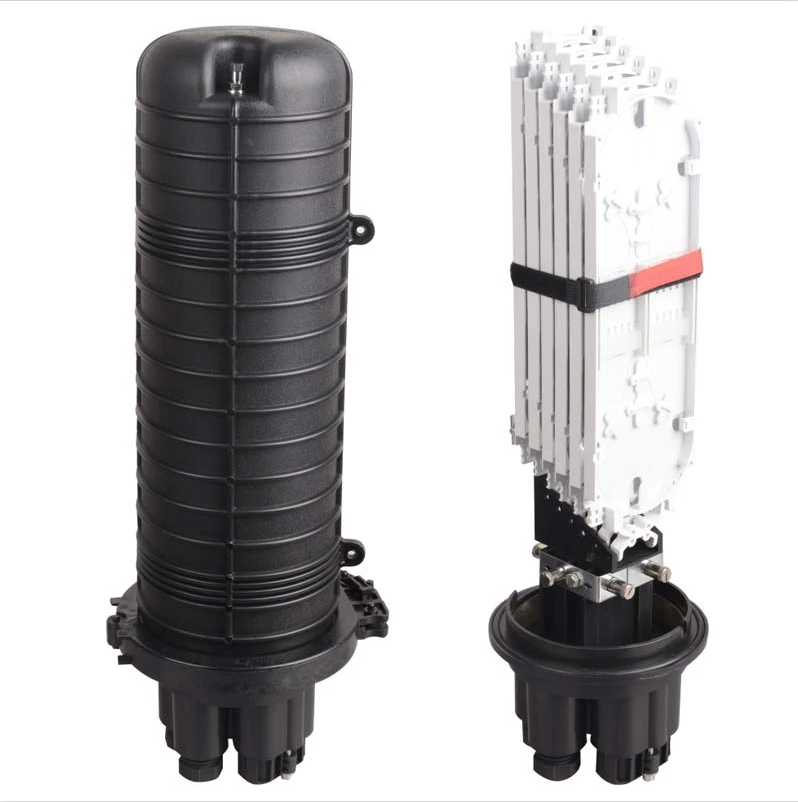

The increase or decrease of the fiber splice tray is quick and time-saving. The turning angle of the splice tray can reach above 90℃, which provides convenience for expansion and maintenance in the future.
The splice closure has the characteristic of innovative structural design, convenient and reliable installation. The whole set of plastic parts adopts scientifically formulated high-strength PP, PC engineering plastics. The injection molding can be used in a natural environment of 40℃～+65℃ for a long time.
The elastomer sealing member can be repeatedly opened and still maintain good sealing performance.
The fiber optic joint box can be mounted on the wall, pole, pipe, overhead. For the construction of optical fiber network, FTTH access reduces costs and improves communication quality
Vertical Mechanical seal
Max splice tray(pcs)
2 inlet 4 outlet

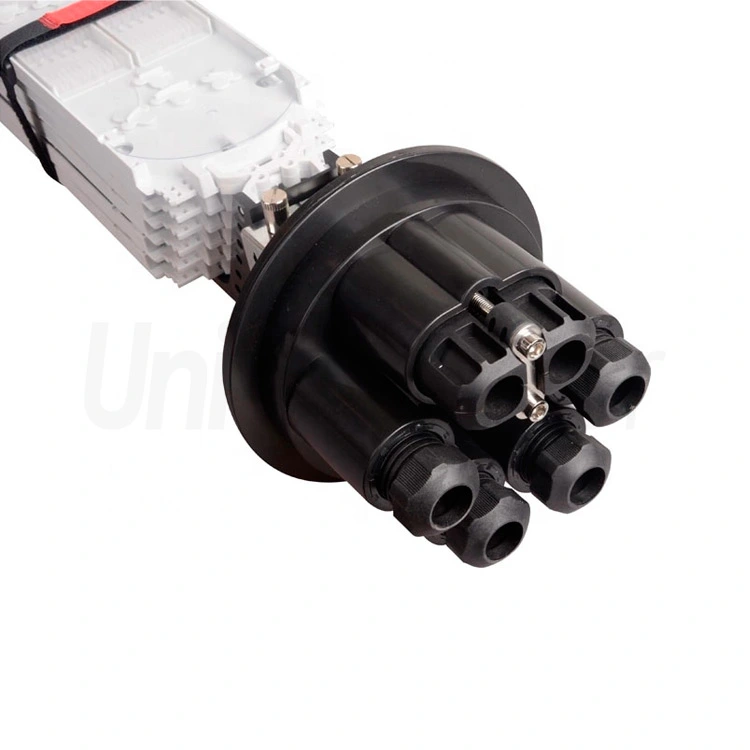

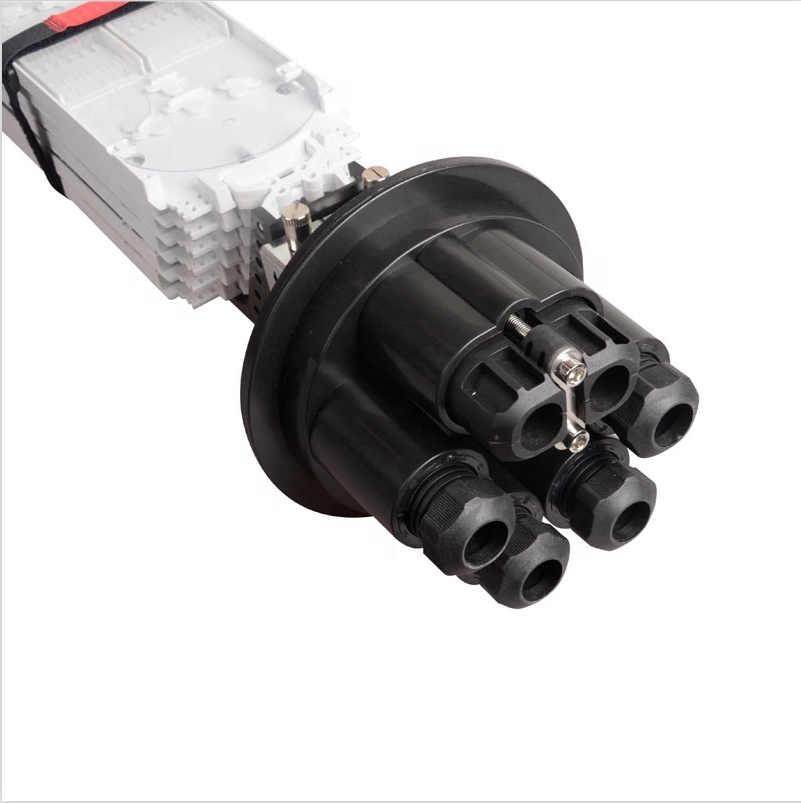

The joint box have 2 inlets and 4 outlets.
The shell material of the splice closure can be made of PP/PC+ABS.
The protection level of the splice closure is IP68.
You can choose 12,24,48,72,96 cores,the maximum number of cores is 144.
The splice enclosure can be used for both outdoors and indoors.

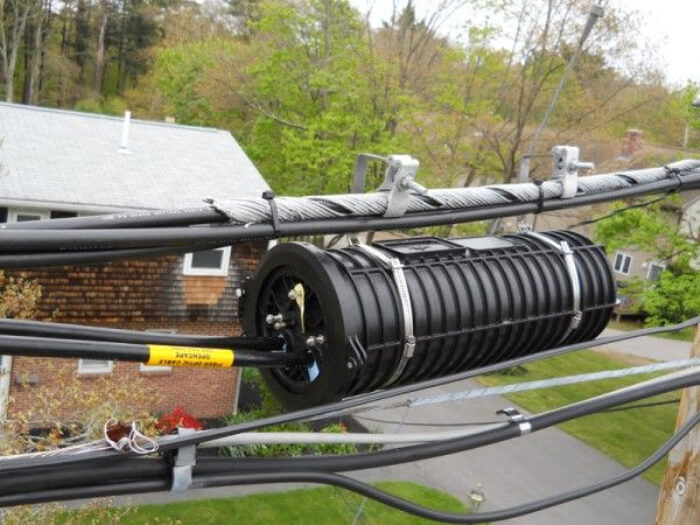

The optic joint closure can be laid overhead, pipes, poles and direct buried.
This splice closure adopts mechanical sealing.
