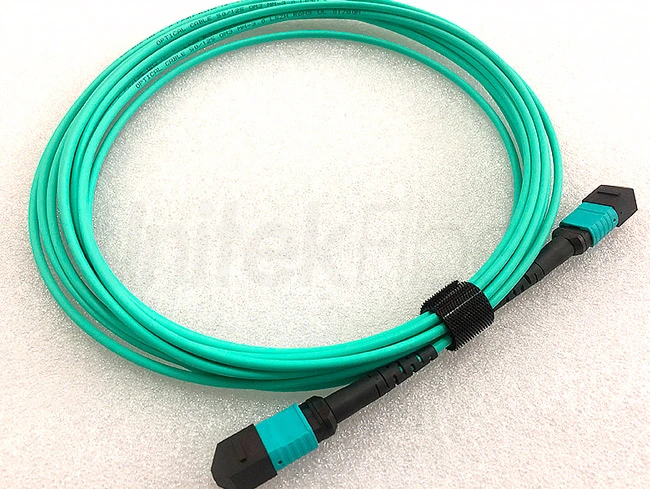

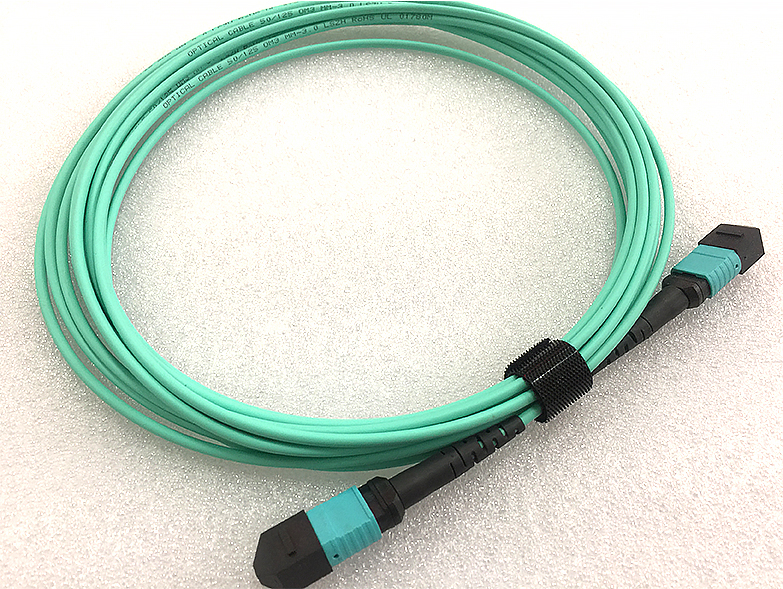

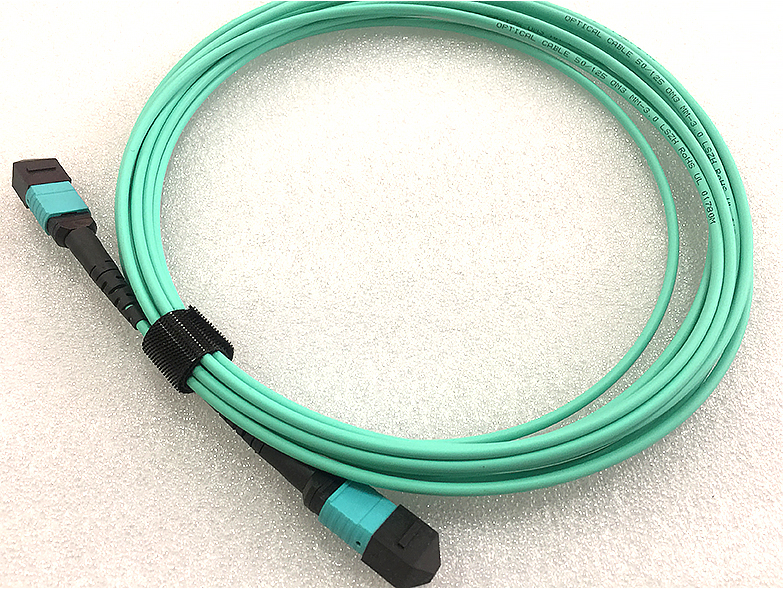

Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m

12 cores MPO-MPO fiber patch cord is basically constructed with LSZH sheath anti fire 3mm diameter cable. The fiber cable can be OM1, OM2, OM3, OM4 and OM5. And 2 MPO connectors are on both side. MPO connector is a high-density multi-fiber connector, which can be PIN type or Non-pin type. The fiber cores with cable length can be customized as per customer request.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

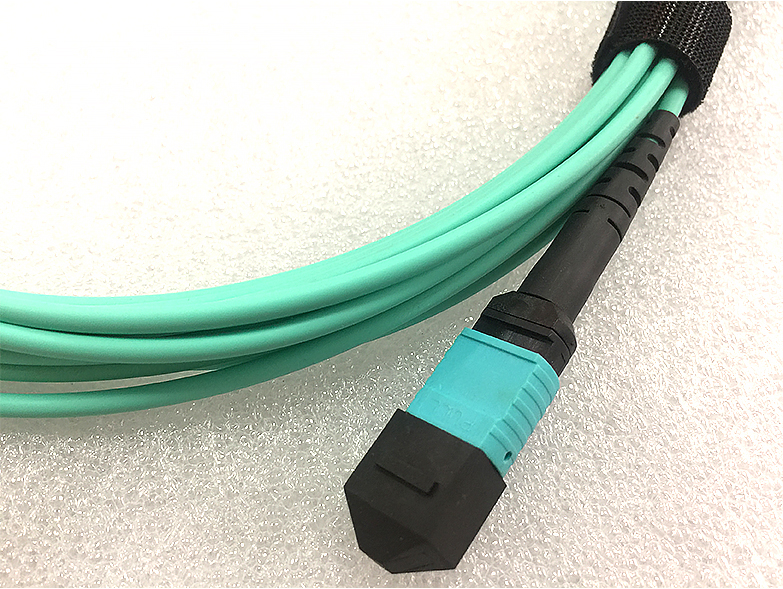

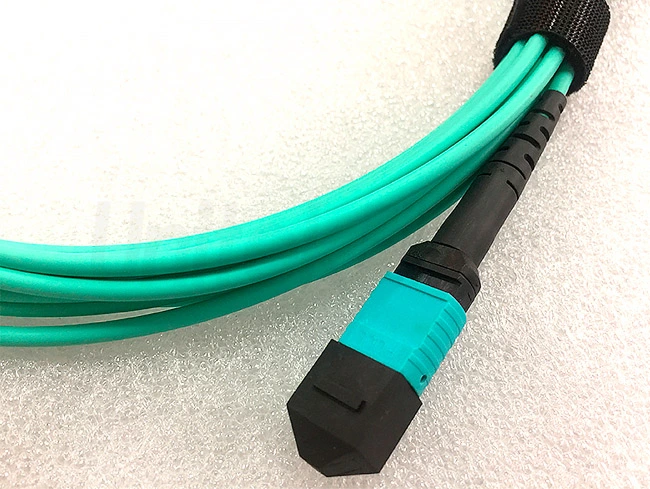

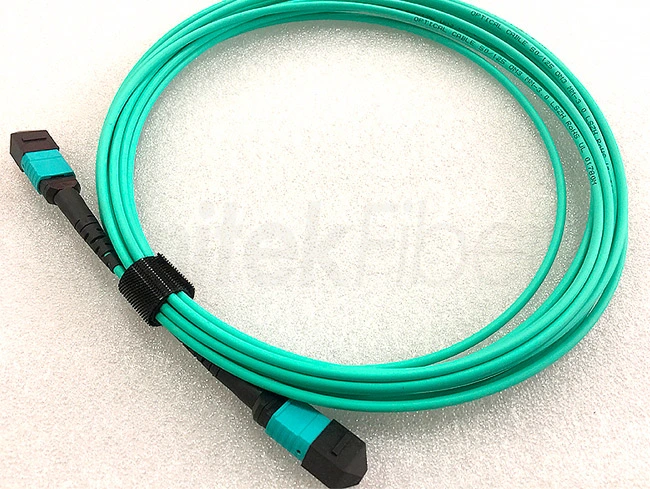

Details of Excellent MPO-MPO Fiber Patch Cord 12 core for Data Center Installation OM3 OM4 LSZH 2m

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MPO connectors and Corning fiber, Multi Mode MPO/MTP cable is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.

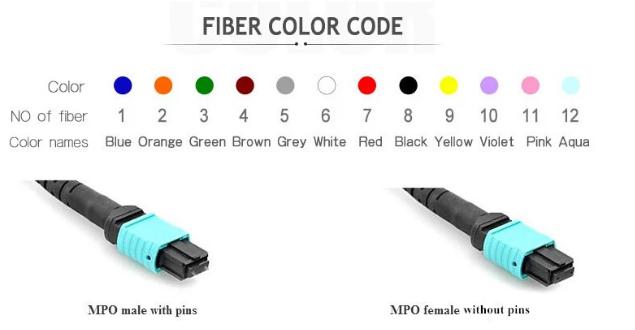

Fiber Color Code


Network Connectivity


Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m

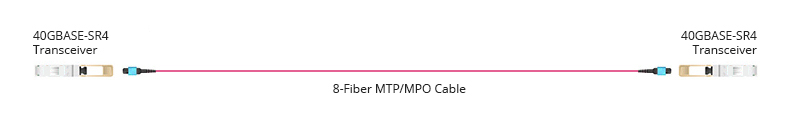

The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-SR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.

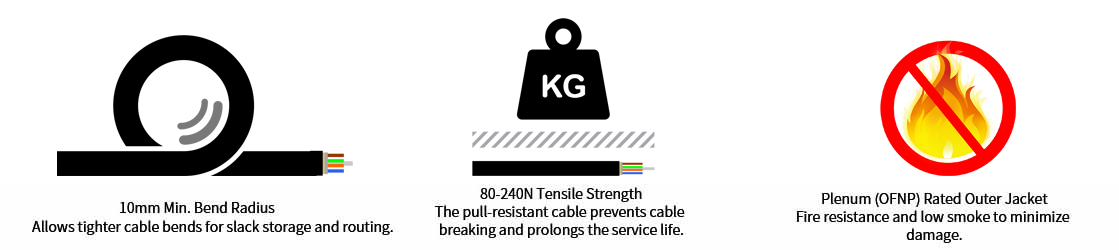

Product Highlights

Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling


Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m


Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m


Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m

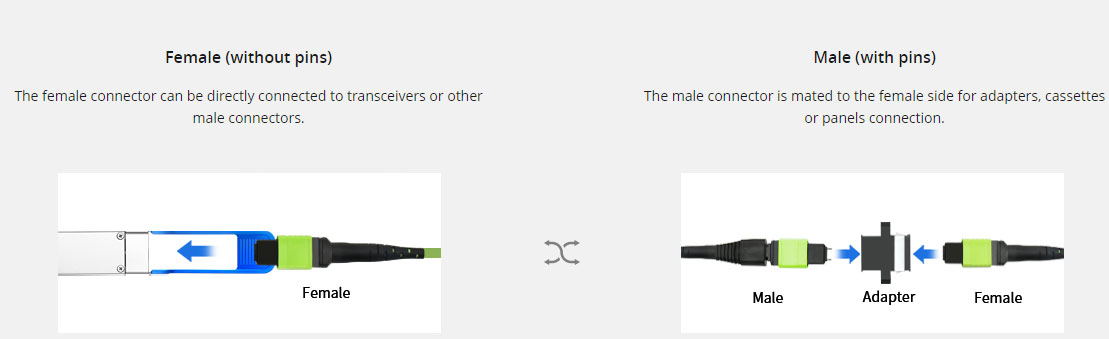

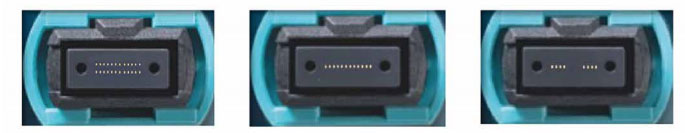

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.


Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m


Excellent MPO-MPO Fiber Patch Cord 12 Core for Data Center Installation OM3 OM4 LSZH 2m

Parameter of Excellent MPO-MPO Fiber Patch Cord 12 core for Data Center Installation OM3 OM4 LSZH 2m

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
