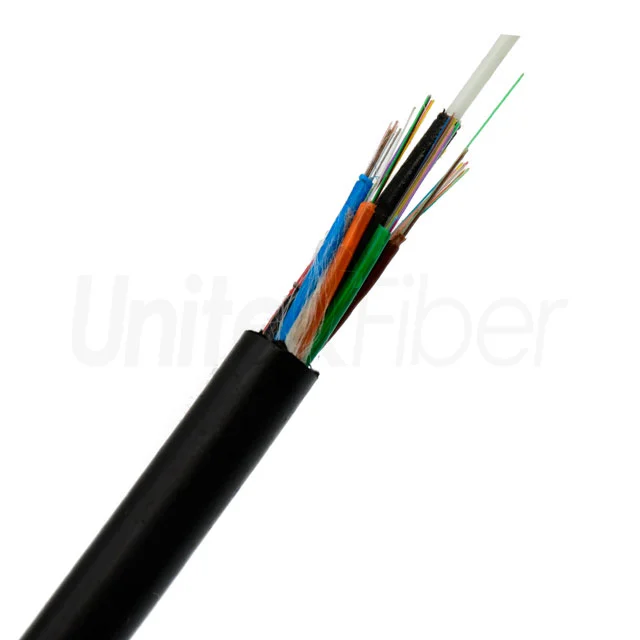

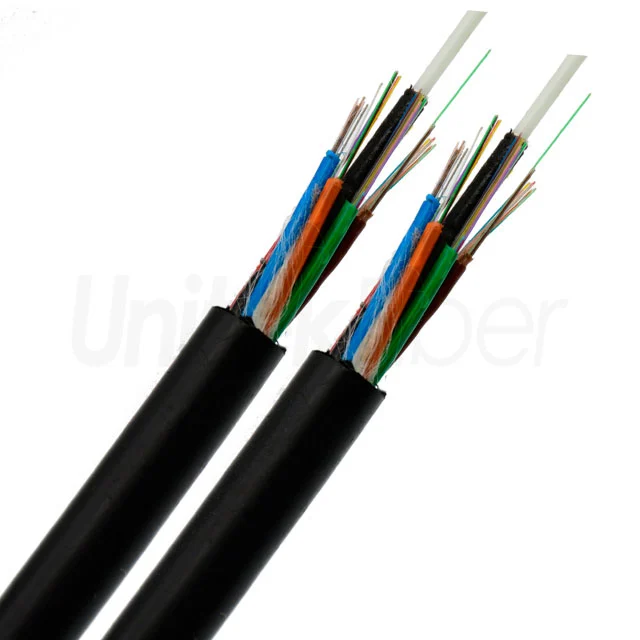

Duct Outdoor Fiber Optic Cable GYFTY 24 Cores Single Mode G652D Non-metal Jacket PE Black

GYFTY Fiber Optic Cable is used for duct and aerial installation.The Optical fiber can be single mode and high silica material (based on ITU-T recommendation G652.D). This type of fiber optic cable is 12F,24F, 48F,96F,144F and 288F.







Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duct Outdoor Fiber Optic Cable GYFTY 24 cores Single Mode G652D Non-metal Jacket PE B

Optical Cable for Sale

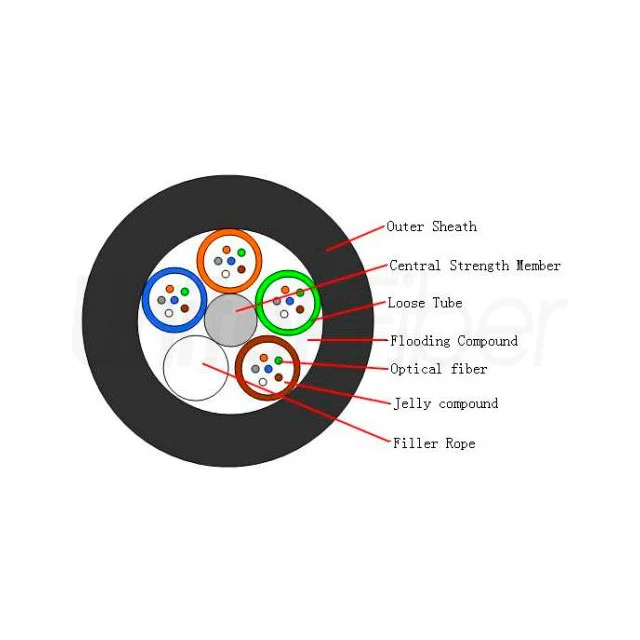

GYFTY fiber optic cable is a stranded non-metallic structure. Optical fibers are protected in loose tubes filled with Gel jelly.FRP locates in the center of cores as a non-metallic strength member. These loose tubes are stranded around a central strength member. The optical fiber cable core is water proof with water blocking material, GYFTY fiber optic cable is completed with a PE sheath for mechanical protection.


Optical Cable Price


The Fiber Cores of GYFTY Fiber Cable is from 2 cores to 288 cores


Features of GYFTY Fiber-optic Cable


Fiber Optic Wire Cable


GYFTY fiber optic cable is used precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the cable optic fiber. GYFTY fiber optical cable has excellent flexibility and bending resistance. Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance. Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation.PE sheath has good resistance to solar radiation.


Applications of GYFTY Fiber-optic Cable


Fiber Optic Wire for Sale


GYFTY Fiber Optic Cable Aerial and Duct is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct installation applications.


Professional Assistant For GYFTY Fiber Optic Cabling System


Fo Cable Type


Packing & Shipping


Air Blown Fiber Optic Cable


Production


Supply Air blowing Mini Fiber cable HDPE (GCYFXTY)

Parameter of Duct Outdoor Fiber Optic Cable GYFTY 24 cores Single Mode G652D Non-metal Jacket PE Bla

Temperature ranges

Transportation and storage temperature

-40°C to +70°C

Installation temperature

-10°C to +60°C

Operating temperature

-20°C to +60°C


Technical data

No. of cable

24

96

144

Fiber Model

G.652B

Design(StrengthMember+Tube&Filler)

1+5

1+8

1+12

Central Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.5

2.1

2.1

Additional Sheath

Material

MDPE

Thickness(±0.03)mm

0.7

2.1

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

2.1

2.1

Thickness(±0.03)mm

0.32

0.35

0.35

The Max.Core NO./Tube

6

12

12

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

——

Water Blocking layer(Material)

Flooding Compound

Moisture Barrier

Material

Aluminum Tape

Thickness(±0.03)mm

0.20

Outer Sheath

Material

LSZH

Thickness(±0.2)mm

1.8

Cable Diameter(±0.2)mm

9.6

12.2

15.3

Cable Weight(±10)kg/km

107

189

265

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre Colors


* "P" means Point mark


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
