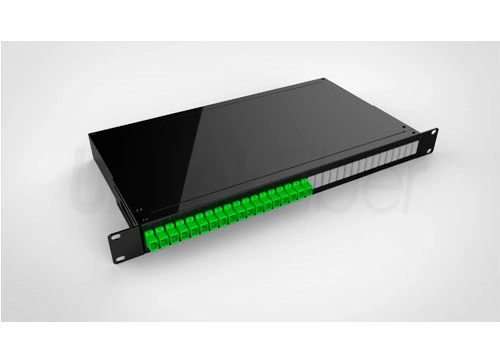

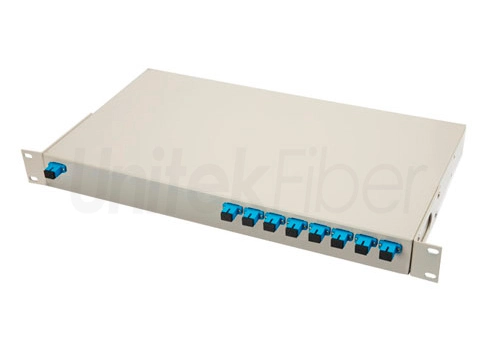

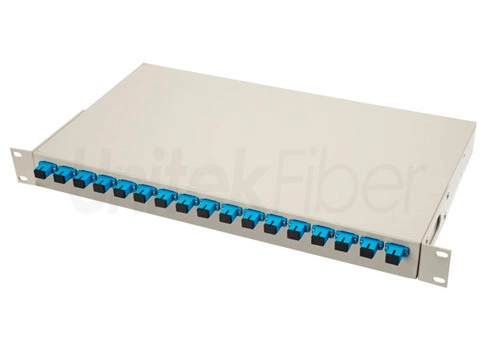

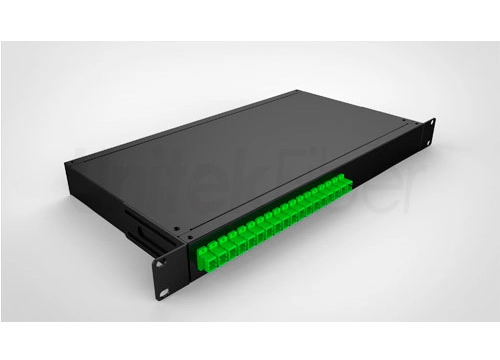

19 inch Fixed Terminal Box UF-FJ-CL-1U Fiber Optic Patch Panel 12 cores 24 cores

UnitekFiber supplies 1U Fixed terminal fiber Patch panel. The patch panel is made of metal in 19" standard structure. It can be 12ports, 24port in SC termination.

Fiber Optic
Details
Parameter

Details of 19 inch Fixed Terminal Box UF-FJ-CL-1U Fiber Optic Patch Panel 12 cores 24 cores

The fiber splice tray is in the middle of the patch panel and maximum capacity for splice cassette is 24pcs/pcs.It can be applied in branch connection of optical cable termination. Sliding design makes fiber splicing and storage easily. Rack mounted fiber panels is suitable for FC,SC,ST,LC adapters.


Features:


  • Used to the branch connection of optical cable termination

  • Rack mounting 19'' Standard Structure

  • Available for the installation of SC, LC, ST, FC adapters

  • Drawer Structure, Easy for operation.

  • Compact design for space saving

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizable color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging and Shipping


UF-FJ-CL-1U Fixed Terminal Fiber Patch Panel 12 cores 24cores packing and shipping

Production


UF-FJ-CL-1U Fixed Terminal Fiber Patch Panel 12 cores 24cores packing and shipping


Parameter of 19 inch Fixed Terminal Box UF-FJ-CL-1U Fiber Optic Patch Panel 12 cores 24 cores

Packing Information

Type

Size(cm)

Max capacity

Outer carton diameter(cm)

Outer carton weight(kg)

UF-FJ-CL-1U

48.2*25*1U

24

48.5*42*35/5pcs

14.2

UF-FJ-CL-2U

48.2*25*2U

48

49.5*34*54.5/4pcs

21

UF-FJ-CL-3U

48.2*25*3U

96

50*35*54/3pcs

16.8

UF-FJ-CL-4U

48.2*25*4U

144

50*35*54/2pcs

14
