Best Aerial Fiber Cables|Outdoor GYTC8S Fiber Optic Cable 24 Cores G652D Self-supporting Figure 8 Jacket PE

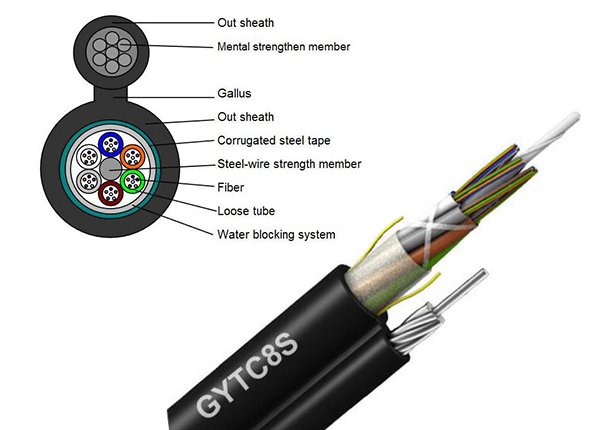

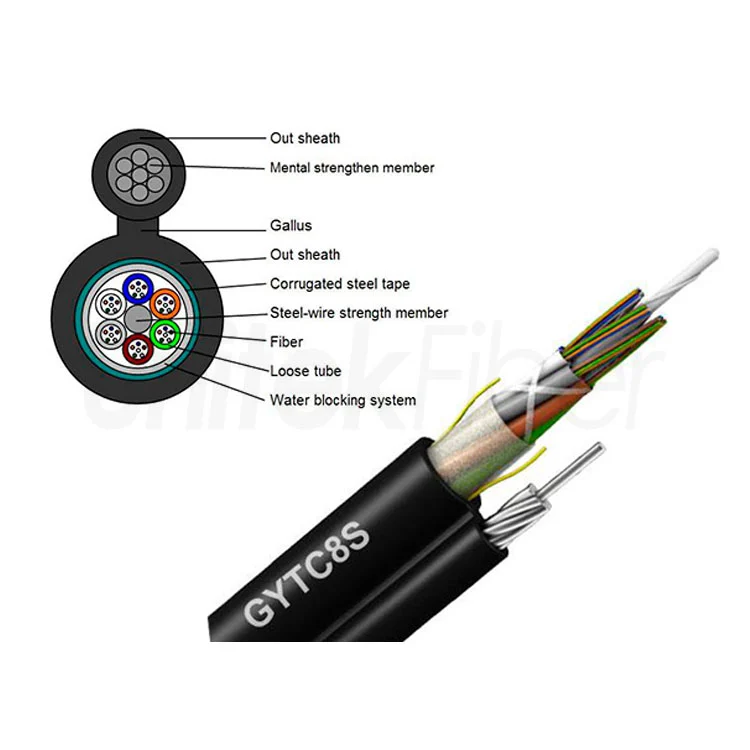

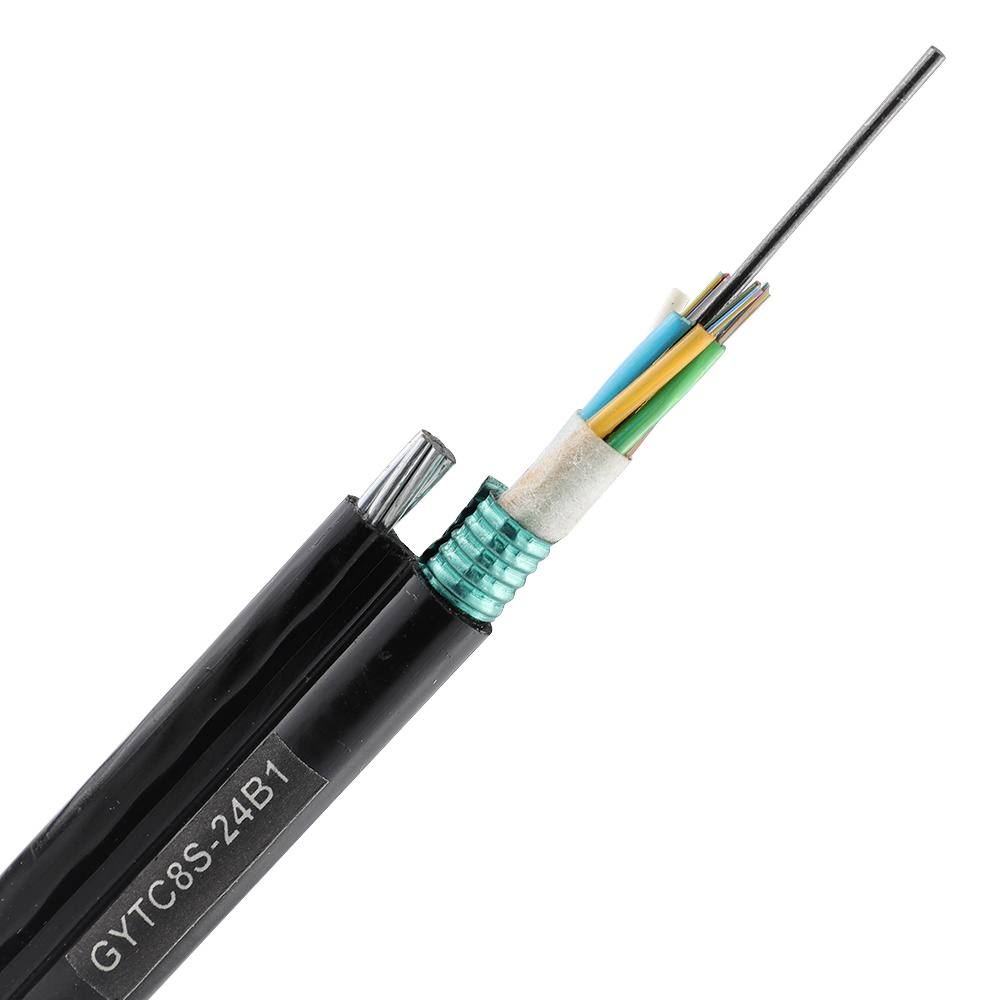

Aerial Self-supporting figure 8 fiber optic cable is a stranded multi loose tube fiber cable. The fiber core is up to 288cores. The center of the GYTC8S self-supporting figure-eight fiber optic cable core is a metal reinforcing core. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The cable core is coated with a layer of plastic-coated steel tape. (PSP) After being longitudinally wrapped, it is integrated with the steel wire strands into a figure 8 polyethylene sheath.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Best Aerial Fiber Cables|Outdoor GYTC8S Fiber Optic Cable 24 cores G652D Self-support

Features


  • Full section water blocking structure, double-coated aluminum tape longitudinal package, ensuring good water and moisture resistance

  • Loose sleeve filled with special ointment for critical fiber protection

  • Phosphating steel wire center strengthening member high modulus, corrosion resistance

  • 8-shaped self-supporting structure with high tensile strength, easy to lay overhead, low installation cost

  • Adopt SZ twisted structure, easy to branch and ensure the optical fiber is not stressed under harsh environment

  • Polyethylene sheath makes the cable have good UV resistance

  • Product life more than 30 years


Application:


  • Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable ♦Laying method: overhead

  • Working temperature: -40℃~+60℃

  • Bend radius: Static 10 times the cable diameter

  • Dynamic 20 times optical cable diameter


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre


Parameter of Best Aerial Fiber Cables|Outdoor GYTC8S Fiber Optic Cable 24 cores G652D Self-supportin

No. of cable

12

24

Design(Fiber/Tube)

6 X 2

6 X 4

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

6

Strength Member(Material)

Galvanized Steel/φ0.9×3

Armor layer(Material)

Steel Strip

Filler Rope    (Material/Diameter)  mm

 LDPE/1.8

Outer Sheath(1)

Material

MDPE

Thickness(±0.1)mm

1.8

Outer Sheath(2)

Material

MDPE

Thickness(±0.1)mm

1.5

Web

Material

MDPE

Size(±0.1)mm

2.5*3.0

Cable Diameter mm

9.5×17.8 steel wire

Cable Weight  KG/KM

160


Fibre & Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
