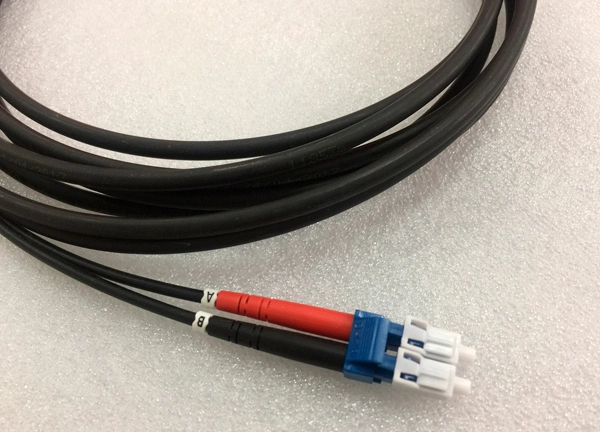

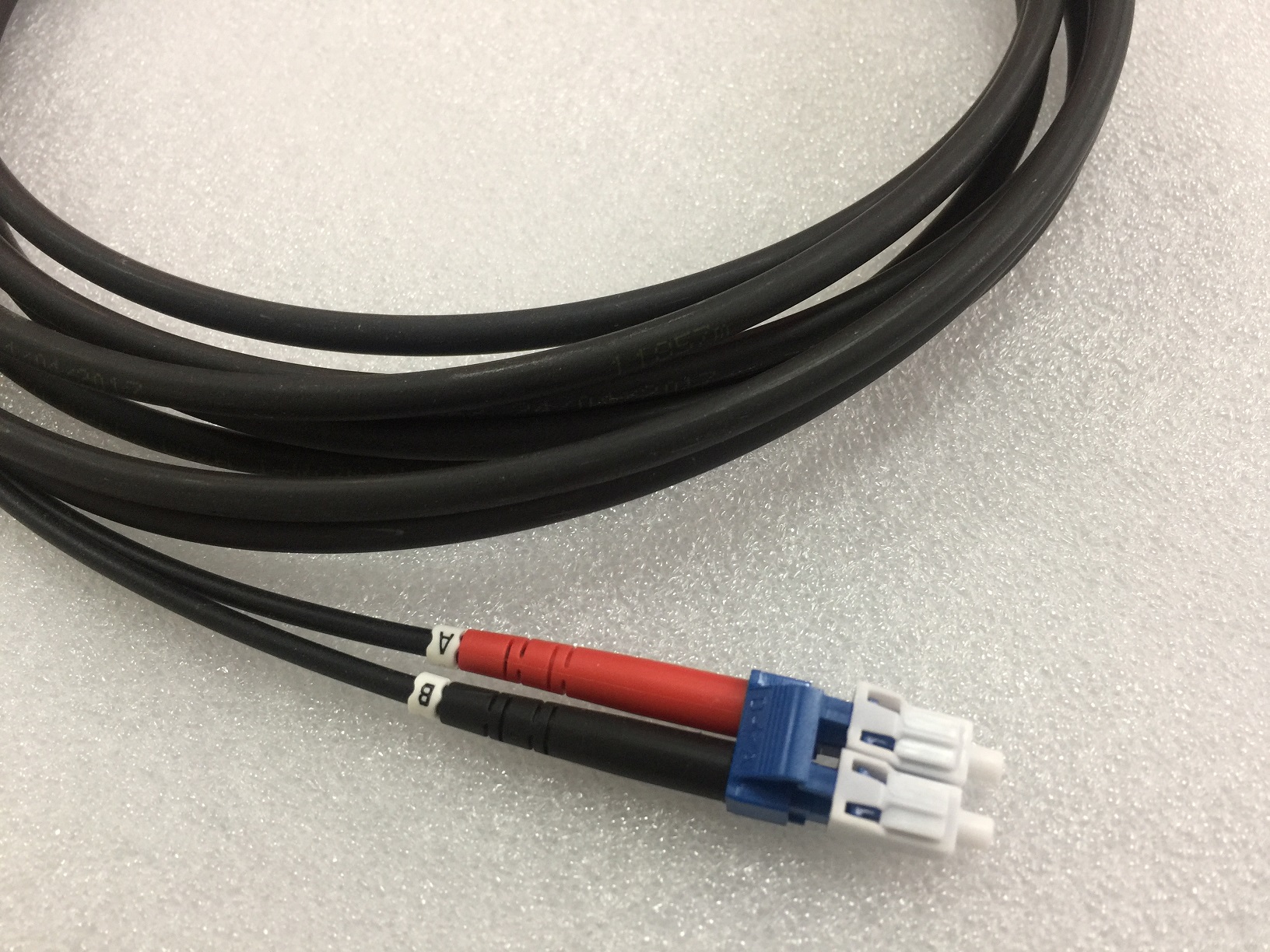

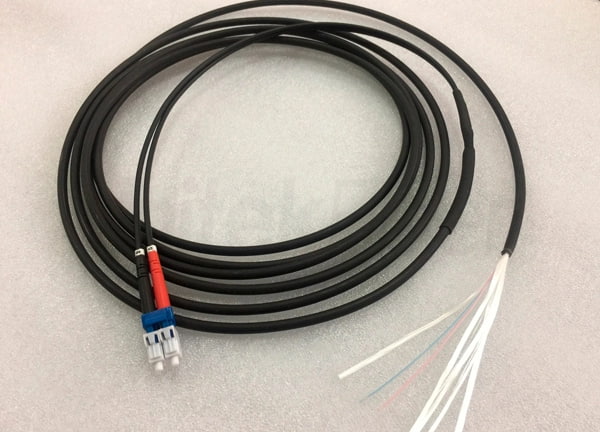

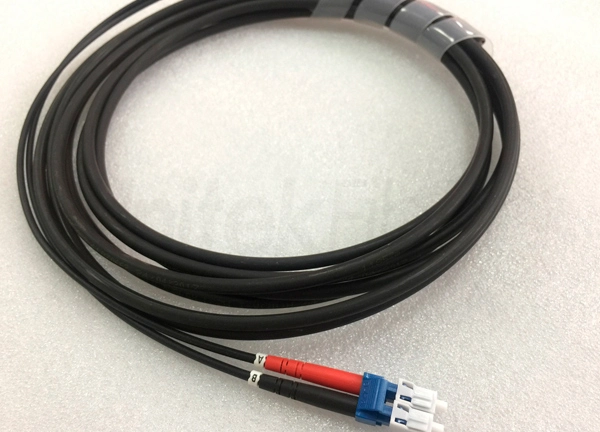

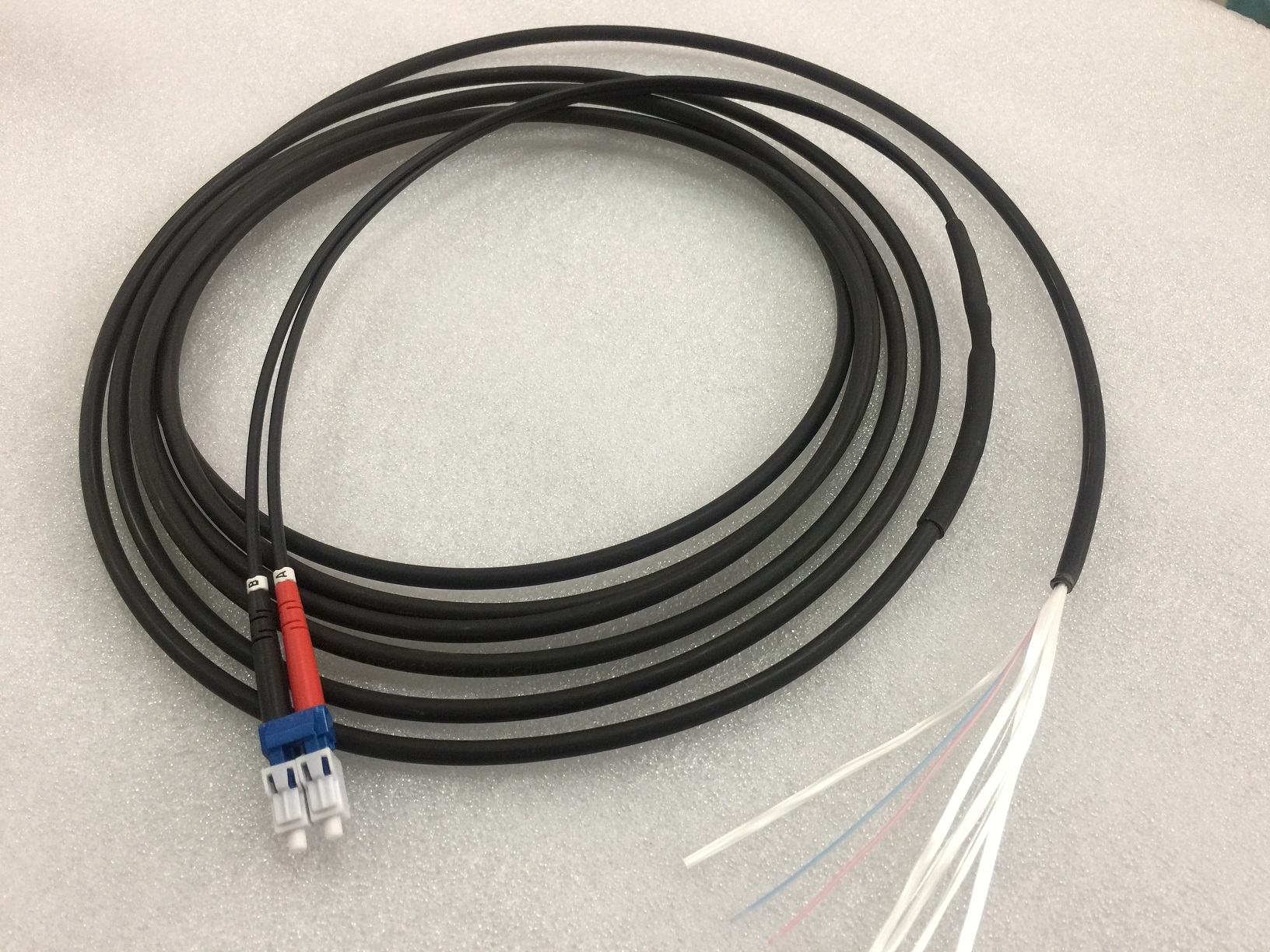

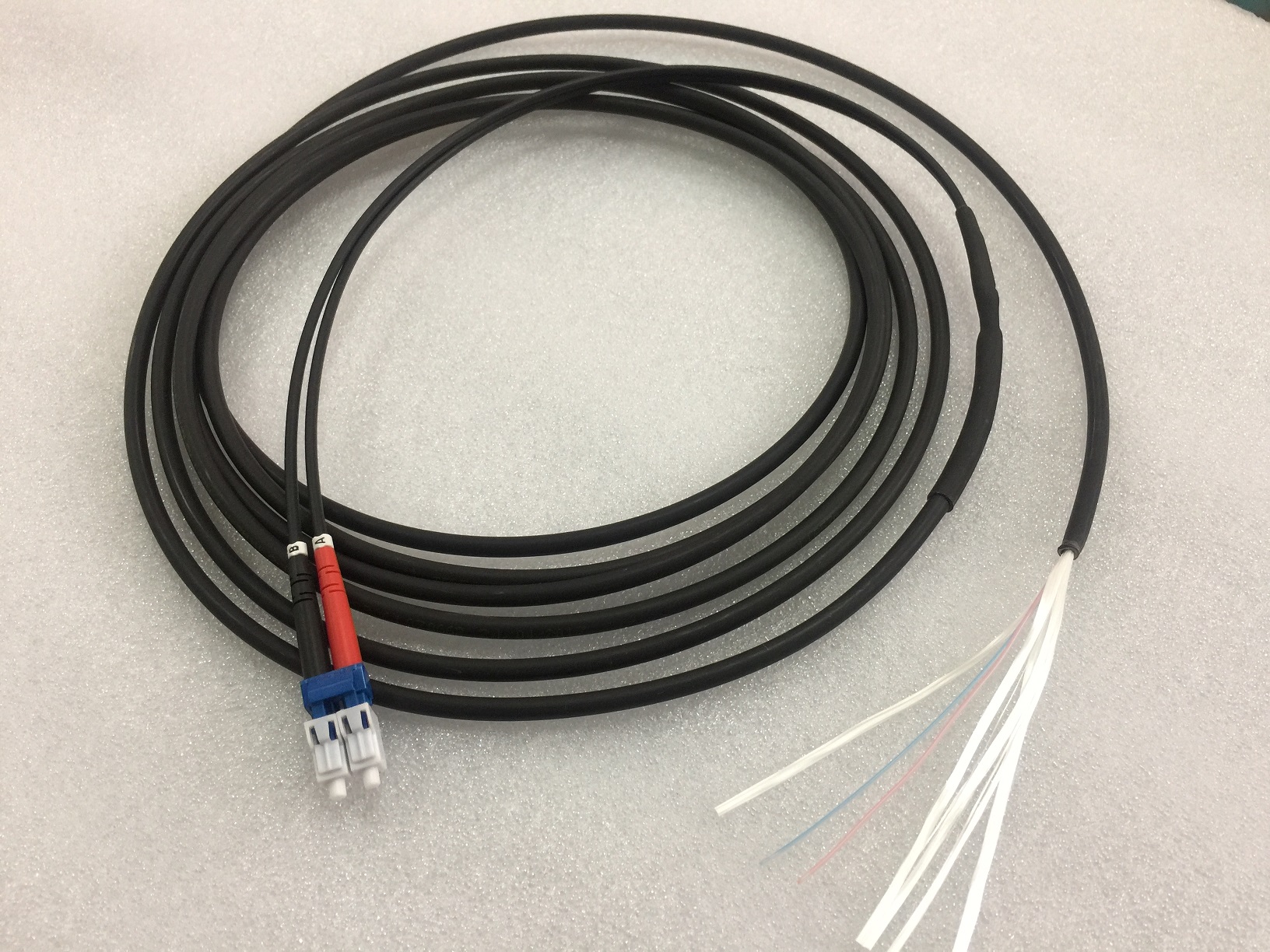

Indoor/Outdoor 4.8mm Single Jacket Fiber Optic Pigtail LC Duplex G657A1 3M LSZH Anti-UV Black

Unitekfiber supplies indoor/outdoor fiber optic pigtail. The termination of this fiber optic pigtail is usually LC or SC connectors. We can produce different design of fiber cables with diameter of 3.5mm, 4.8mm,7.0mm. The optical fiber is adopted bending sensitive G657A, G657B type. And the fiber cable sheath features of anti-UV and flame-retardant. This fiber optic pigtail can be used indoors and outdoors fiber access network


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor/Outdoor 4.8mm Single Jacket Fiber Optic Pigtail LC Duplex G657A1 3M LSZH Anti-

Characteristic:


• Adopted bending sensitive G657A, G657B fiber;

• Semi-tight buffered fibres 900 μm;

• Aramid yarns as strength reinforced elements

• Aramid yarns as strength reinforced elements

• LSZH, Flame retardant, UV resistant sheath.


Application:


This fiber optic pigtail can be deployed on poles and preconnectorized on both sides, connecting the Fibre Distribution Box (FDB) on the pole and the fibre termination box (FTB) outside the customer premises.




Parameter of Indoor/Outdoor 4.8mm Single Jacket Fiber Optic Pigtail LC Duplex G657A1 3M LSZH Anti-UV

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
