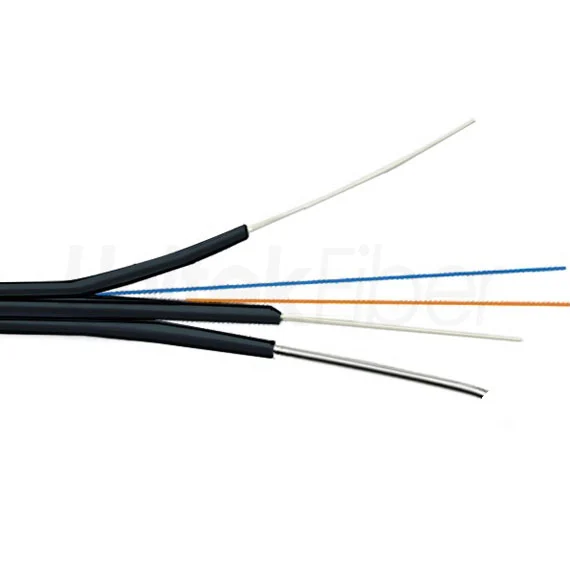

FTTH Bow Type Drop Optic Cable 1 2 4 6 Cores SM G657A1 G657A2 LSZH Steel Strength Member Black

The bow-type drop optic cable, is used for outdoor or indoor installation, includes central optical fibre(s) with 2 parallel FRPs as the strength members placed on both sides. It is easily strip and splice, simplified installation and maintenance. The non-metallic strength members to realize the tensile load. The optical fiber can be single mode and high silica material (based on ITU-T recommendation G652D, G657A1 and G657A2).


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
Download
FAQ
Video
Reviews

Description of FTTH Bow type drop optic cable 1 2 4 6 cores SM G657A1 G657A2 LSZH Steel Strength Mem

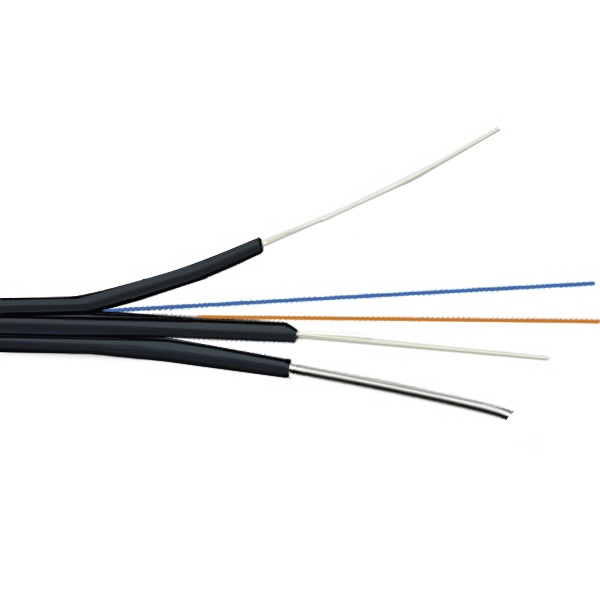

FTTH Cable Price

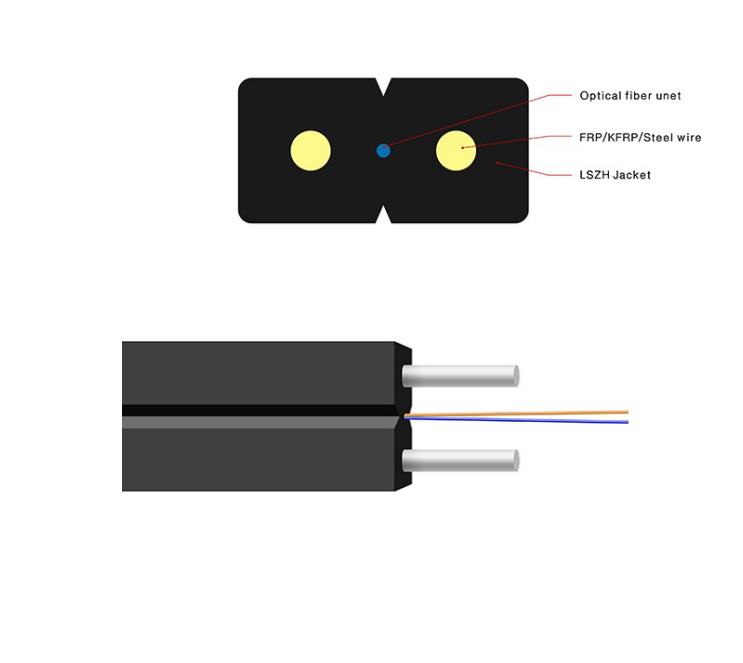

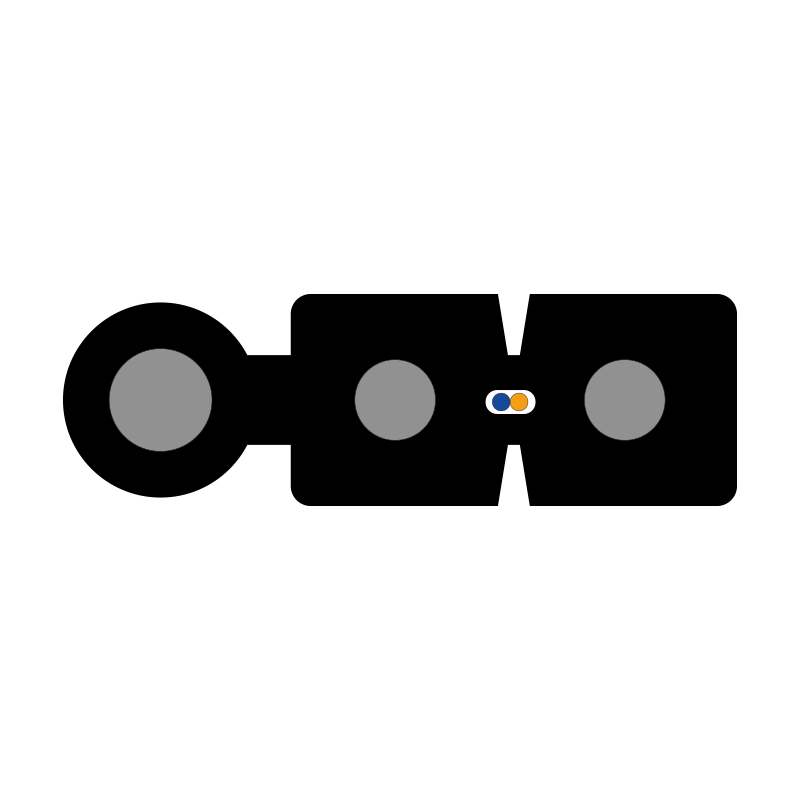

FTTH (Fiber to the home) drop cable, the outer skin is generally black and white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape. The fiber inside the cable is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm.

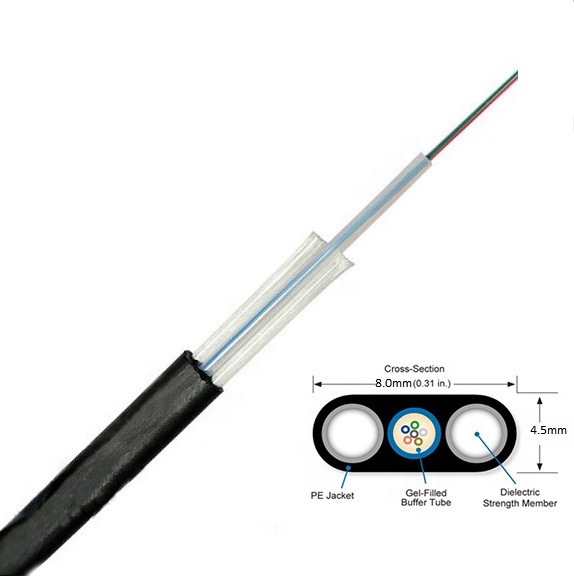

FTTH Drop Cable Price

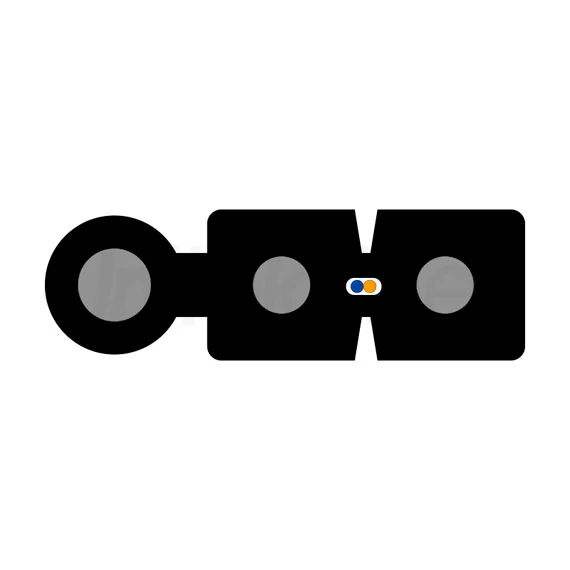

The Fiber Cores of FTTH drop cable is from 2 cores to 6 cores


Features of FTTH drop cable

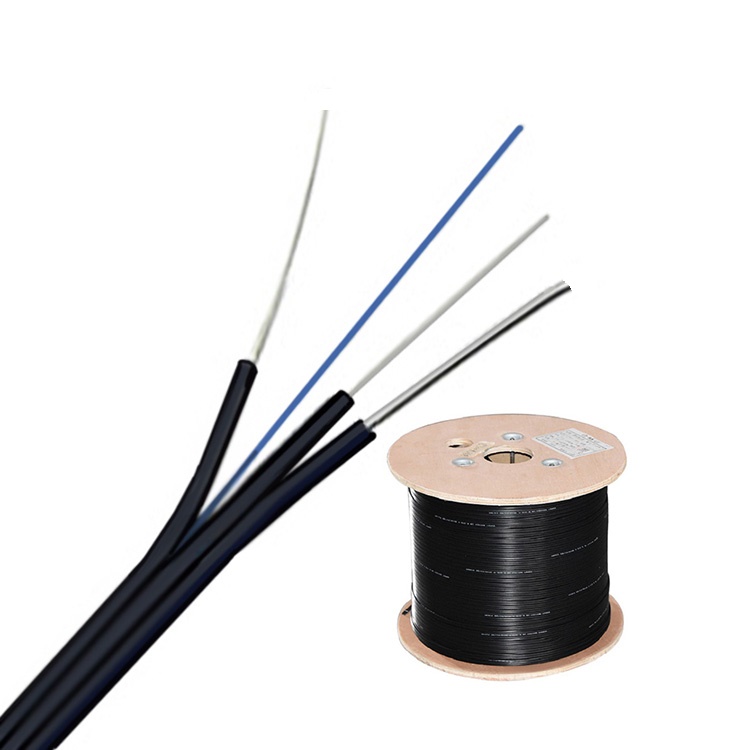

Fiber FTTH



FTTH drop cable is use special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. Simple structure, light weight and high practicability. Novel flute design, easily strip and splice, simplify the installation and maintenance. Low smoke, zero halogen and flame retardant sheath.


Applications of FTTH drop cable

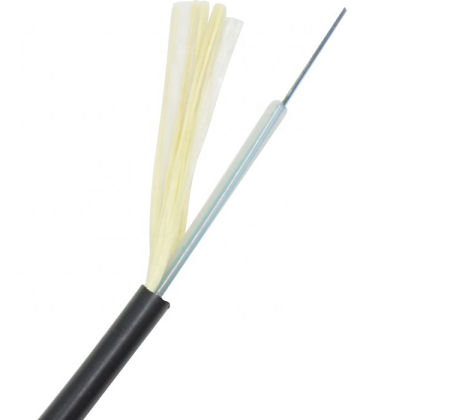

FTTH Fiber Optic


FTTH outdoor drop cable is a new type of fiber-optic cable. It is a butterfly-shaped cable. Because it is small in size and light in weight, it is suitable for the application of Fiber to the Home. It can be cut according to the distance of the site, increased the efficiency of construction. The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.


Professional Assistant For FTTH Outdoor Drop Cabling System

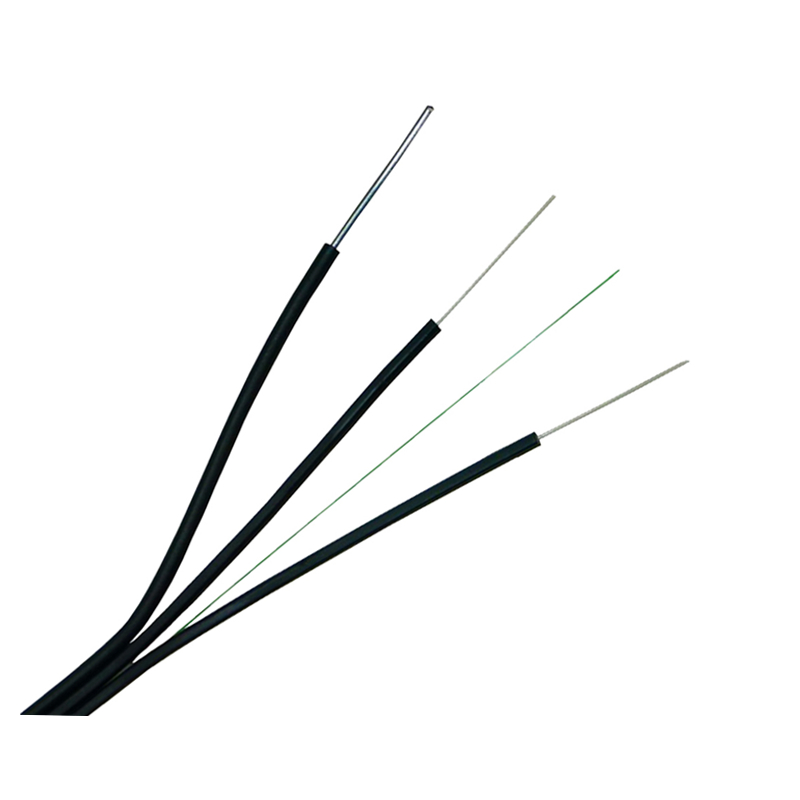

FTTH Fiber to the Home


Packaging & Shipping


12-24 Fibers Outdoor FTTH Drop Cable Steel Wire&FRP Packaging & Shipping


12-24 Fibers Outdoor FTTH Drop Cable Steel Wire&FRP Packaging & Shipping

Parameter of FTTH Bow type drop optic cable 1 2 4 6 cores SM G657A1 G657A2 LSZH Steel Strength Membe

No. of cable

2/4

Fiber Model

G.657A1

K FRP

Diameter(±0.03)mm

0.5

NO.

2

Outer Sheath

Material

LSZH

Colour

white

Cable Diameter(±0.2)mm

2.0×3.0

Cable Wetght(±2)kg/km

10.0

Attenuation

1310nm

dB/km

0.50

1550nm

0.40

Allowable Tensile Strength

Short Term

N

80

Long Term

40

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

15.0×Cable-φ

Under Maximum Tension

30.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fiber Colors

Fiber Colors

Download

FAQ

How to terminate the FTTH Drop cable?

This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.

Does FTTH Drop Cable work with singlemode upc 9/125 micro fiber?

Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.

Do any LC fast connectors work with FTTH drop cable?

Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

What is the main application for FTTH drop cable?

The main application for FTTH drop cable is Fiber to The Home project.

Is FTTH drop cable suitable for outdoor runs?

Yes, it is suitable for outdoor application with 70meters pole span.

What is the strength members for FTTH drop cable?

The strength member for FTTH drop cable can be FRP or steel wire.

What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.

Video

Reviews

Annie
Jul 13, 2022

I am extremely impressed with your products, fiber optic cable. My father would have loved buying these products from your company.

Verified Purchase
Helpful 0
