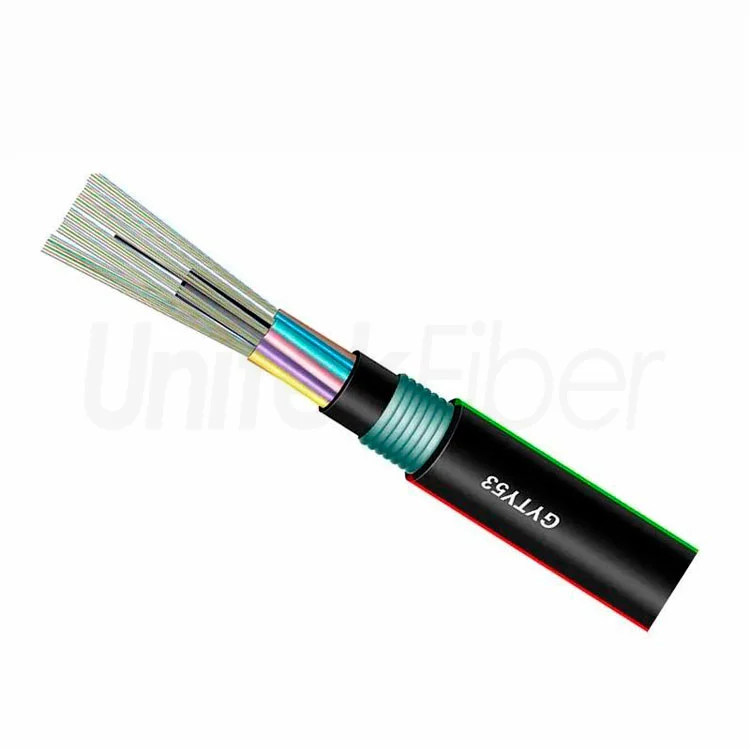

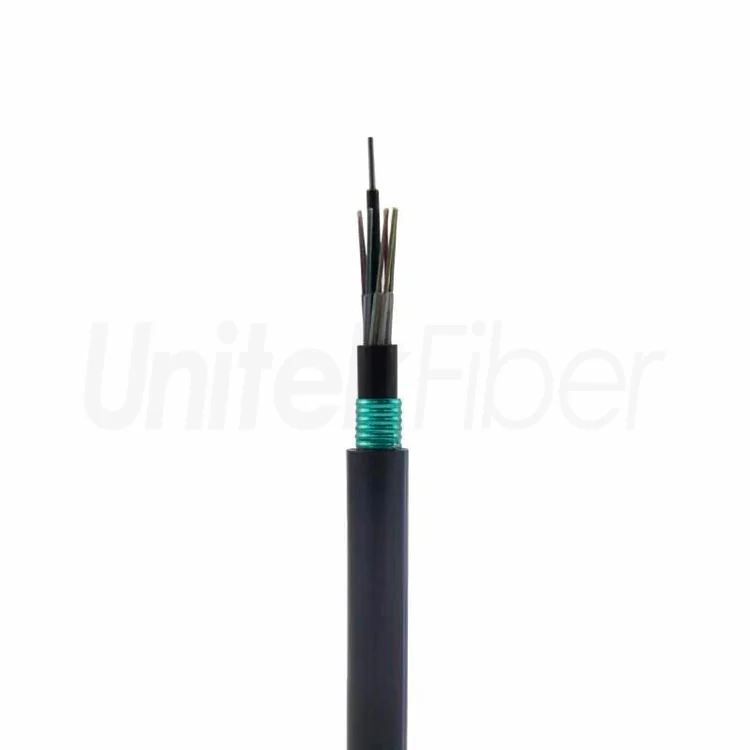

Outdoor Fiber Optical Cable Duct GYFTY53 Stranded Loose Tube Armored SM G652 96 144 288 Core PE

The GYFTY53 fiber optic cable is designed for outdoor use and has a double polyethylene sheath, which provides protection against harsh weather conditions and UV radiation. It comes in different fiber counts and can be used in various applications such as long-distance backbone networks, local area networks, and FTTH systems.

Products
Description
FAQ
Specification
Reviews
Video

Outdoor Fiber Optical Cable Duct GYFTY53 Stranded Loose Tube Armored SM G652 96 144 288 Core PE

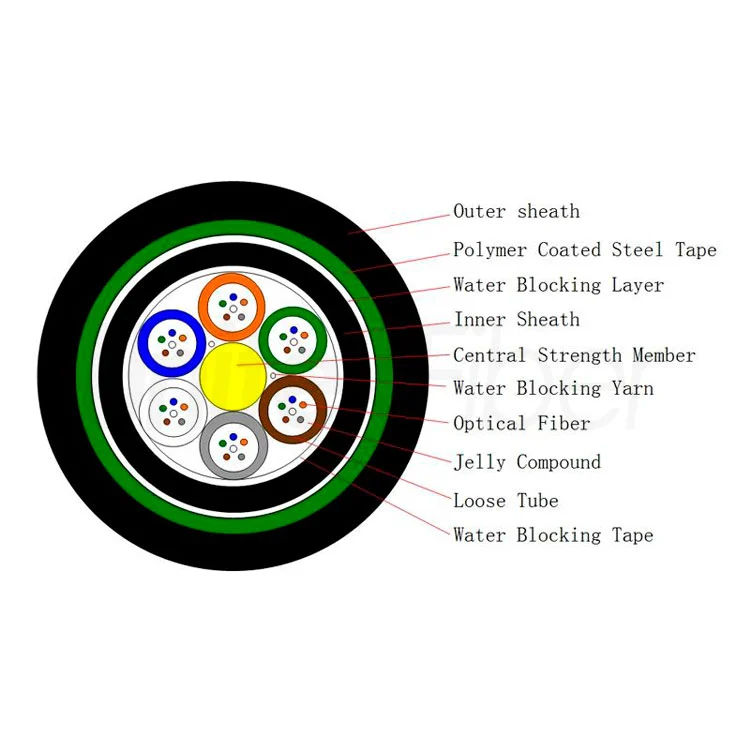

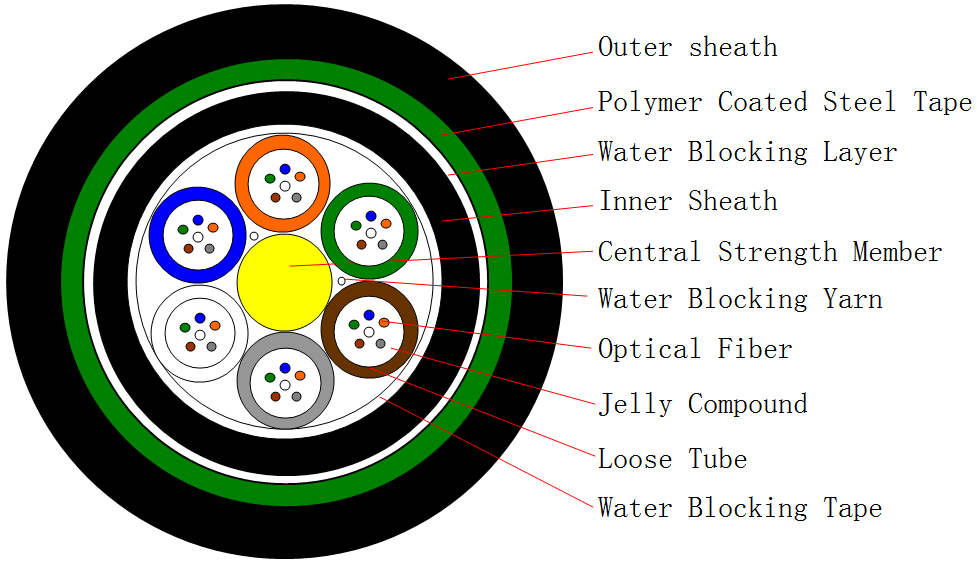

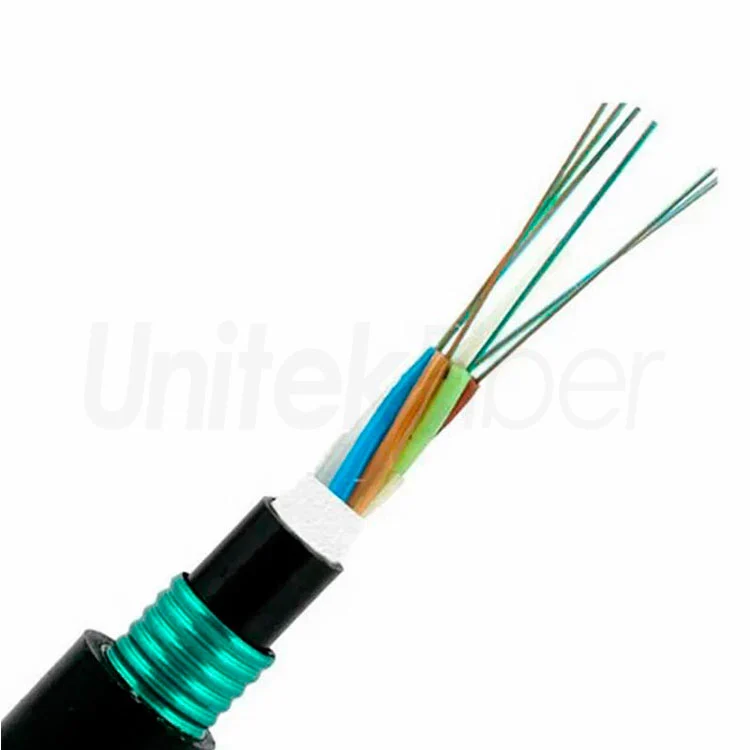

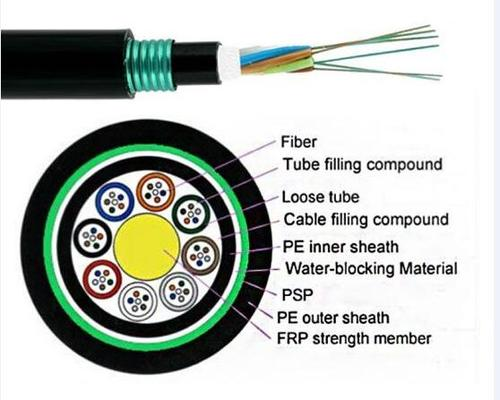

Basic structure of GYFTY53 fiber optical cable


1. Central strength member: A FRP is used as the central strength member to provide mechanical strength and protect the fiber optic cable from external forces.

2. Gel-filled loose tubes: Optical fiber are housed in the loose tubes that are filled with jelly compound to protect them from moisture, physical damage, and other environmental factors.

3. Stranding: The loose tubes are stranded around the central strength member in a compact and circular configuration, which ensures optimal fiber protection and efficient use of space.

4. Water-blocking material: A layer of water-blocking yarn is applied over the inner sheath to provide additional protection against water ingress.

5. Armor: A single layer of corrugated steel tape armor may be added over the outer sheath for extra protection against rodents, crushing, and other external forces.



Outdoor Fiber Optical Cable Duct GYFTY53 Stranded Loose Tube Armored SM G652 96 144 288 Core PE


Advantages of GYFTY53 fiber optical cable


1. Excellent mechanical and environmental performance: The fiber optical cable has a central strength member and is protected rodent, temperature changes, UV radiation, and other environmental factors due to the multiple layers of sheathing.

2. High fiber capacity: GYFTY53 fiber optical cable can support a large number of fibers, ranging from 2 to 288 fibers.

3. Ease of installation: The fiber optical cable is flexible, easy to handle, and can be installed using standard installation methods.

4. Low signal attenuation and crosstalk: The high-quality optical fiber used in the fiber optical cable have low signal attenuation and crosstalk, which ensures reliable and high-speed data transmission over long distances.

5. Cost-effective: GYFTY53 fiber optical cable are cost-effective compared to others, making them an ideal choice for budget-sensitive projects.


Application range of GYFTY53 fiber optical cable


The GYFTY53 fiber optical cable finds extensive use in long-distance backbone networks due to its high fiber capacity and low signal attenuation. In addition, it is also suitable for local area networks, where it can connect a large number of users. Furthermore, GYFTY53 fiber optical cable is commonly used in industrial environments such as manufacturing plants, where it can withstand harsh conditions and physical damage. Finally, it is also suitable for security systems such as CATV systems, where high-quality video signals need to be transmitted over long distances. Its versatility makes it a reliable and efficient solution for many applications.


Outdoor Fiber Optical Cable Duct GYFTY53 Stranded Loose Tube Armored SM G652 96 144 288 Core PE

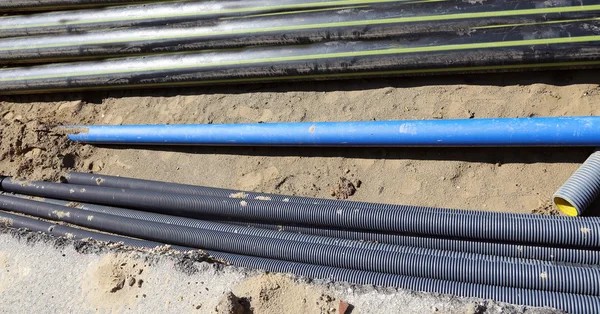

Installation and maintenance of GYFTY53 fiber optical cable

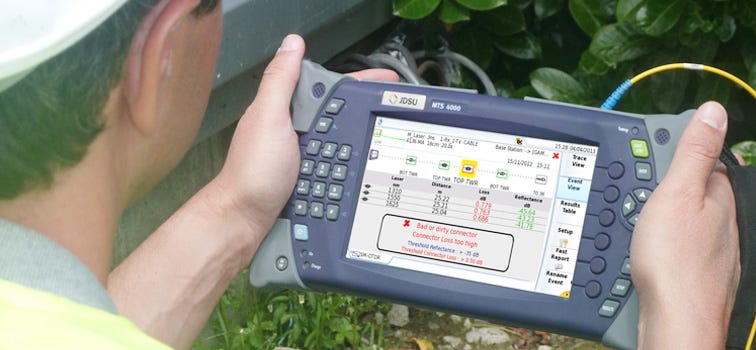

The installation and maintenance of GYFTY53 fiber optic cable is a critical process that requires careful handling. Before installation, it is essential to plan the cable route carefully to avoid damaging the cable. The fibers should then be spliced together using fusion splicing, and the cable tested using an OTDR to ensure proper signal strength and attenuation. Once installed, the fiber optic cable should be protected from environmental factors that could cause damage, such as moisture, temperature changes, and physical abuse. Regular inspections should be performed to identify any signs of damage, and cleaning should be done regularly to remove dirt and debris from the cable ends and connectors. Record-keeping of all maintenance activities is crucial to ensure optimal performance and reliability of the GYFTY53 fiber optic cable.


Outdoor Fiber Optical Cable Duct GYFTY53 Stranded Loose Tube Armored SM G652 96 144 288 Core PE


What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.

What is the maximum data transfer rate fiber optic cable?

It can support high-speed data transfer rates of up to 10 Gbps or higher.

Does it comes with the couplers/connectors?

No, it does not. Just the raw fiber.


How can I get a sample to check your quality?

If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.

Is this tight buffered?

Correct, it is tight buffered.

Vivian
Jun 25, 2023

Good quality fiber optic cable. Has worked with no issues since purchased.


Verified Purchase
Helpful 0
Randy
Jun 25, 2023

Just what I needed, in stock and reasonably priced.


Verified Purchase
Helpful 0
Bella
Jun 25, 2023

Quality cable for the money. Fast delivery.

Verified Purchase
Helpful 0
Alice
Jun 25, 2023

Great quality cables, yet nice and cheap and delivered quickly.

Verified Purchase
Helpful 0
Lydia
Jun 25, 2023

Order was shipped promptly and correct.

Verified Purchase
Helpful 0
Video
Contact UnitekFiber
Contact UnitekFiber

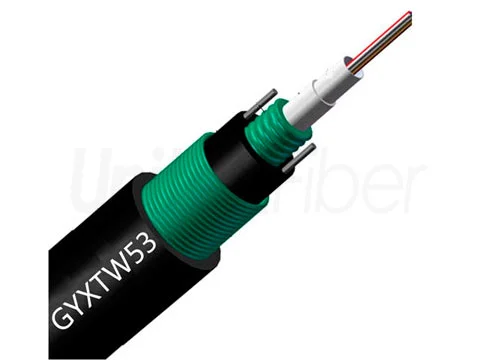

Other Anti-rodent Fiber Optic Cable Products
