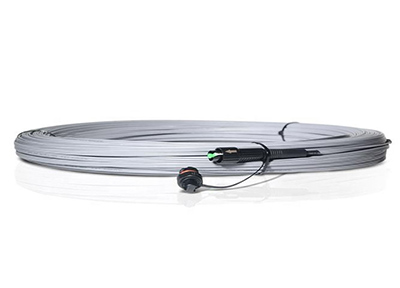

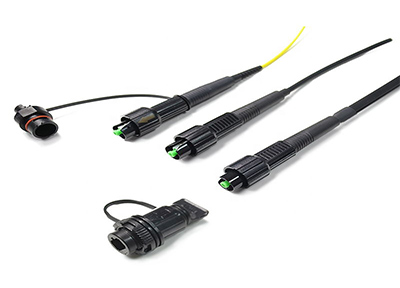

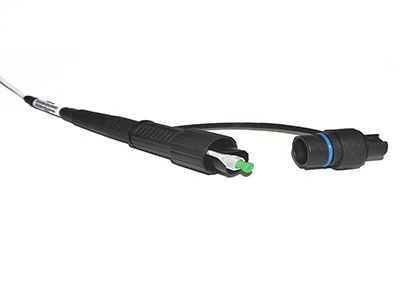

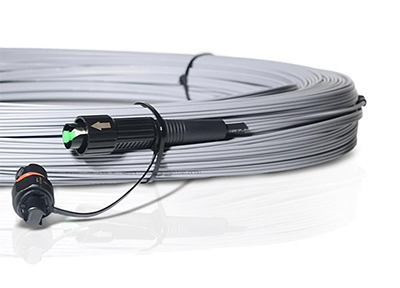

FTTX Outdoor Fiber Optic Patch Cord Mini SC Connector SM MM

UnitekFiber supplies Outdoor Fiber Optic Patch Cord Mini SC connector for Huawei Telefonica. Our patch cables are including standard and OEM compatible Aerial and Direct Burial Flat Drop cables, Indoor/Outdoor drop cables in micro armored and non-armored structures.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of FTTX Outdoor Fiber Optic Patch Cord Mini SC Connector SM MM

Application:


  • FTTX + LAN.

  • Optical fiber CATV.

  • Local Area Networks.

  • Testing Equipment.

  • Fiber Optic Telecommunication.


Features:


  • 100% factory tested

  • Insertion loss UPC Max 0.25 dB  ; Insertion loss APC Max 0.30 dB

  • Return loss UPC Max -55 dB  ; Return Loss APC Max -65 dB

  • Operating temperature -40°C (-40°F) ~ 75°C (167°F)

  • Installation temperature -30°C (-22°F) ~ 60°C (140°F)

  • Storage temperature -40°C (-40°F) ~ 70°C (158°F)

  • Pull strength short term 1335 N

  • Pull strength long term 400 N

  • Mounting thread 5/8"-24 thread UNEF

  • Interferofeet test results available


Complied Standards:


Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.

Packaging & Shipping


FTTX Outdoor Fiber Optic Patch Cord Mini SC Connector SM MM


Production


FTTX Outdoor Fiber Optic Patch Cord Mini SC Connector SM MM


Parameter of FTTX Outdoor Fiber Optic Patch Cord Mini SC Connector SM MM

Type

SM-UPC

SM-APC

MM-UPC

Typical

Max

Typical

Max

Typical

Max

Insertion Loss

≤0.1dB

≤0.3dB

≤0.15dB

≤0.3dB

≤0.05dB

≤0.3dB

Return Loss

≥50dB

≥60dB

≥30dB

Durability

500 mating cycles

Working temperature


-40 - 85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Delbert
Jul 25, 2022

Good service, products came quickly and were exactly what I needed. Thank you!

Verified Purchase
Helpful 0

Video
Contact UnitekFiber
Contact UnitekFiber

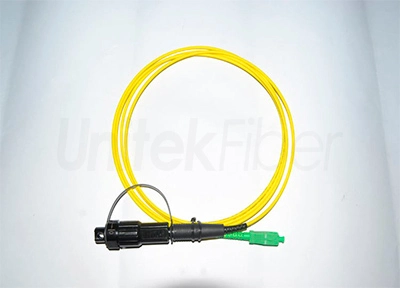

Other FTTA Outdoor Fiber Cabling Assemblies Products
