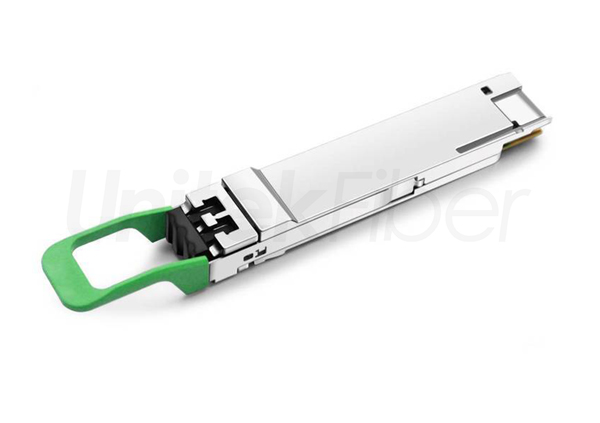

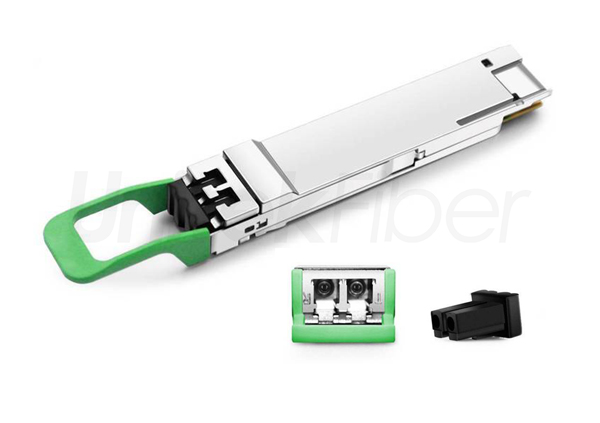

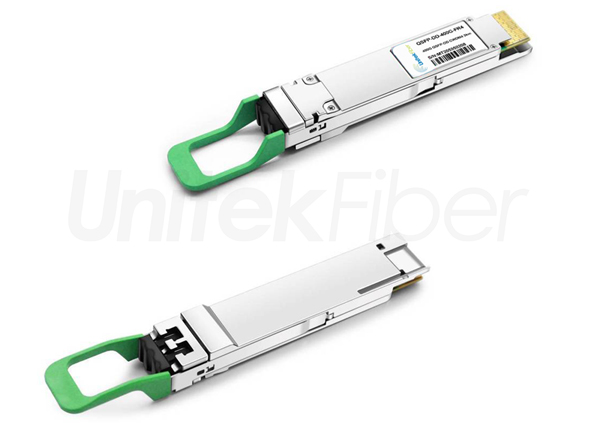

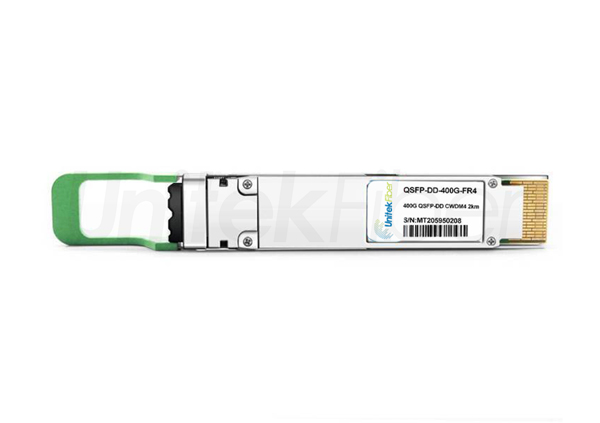

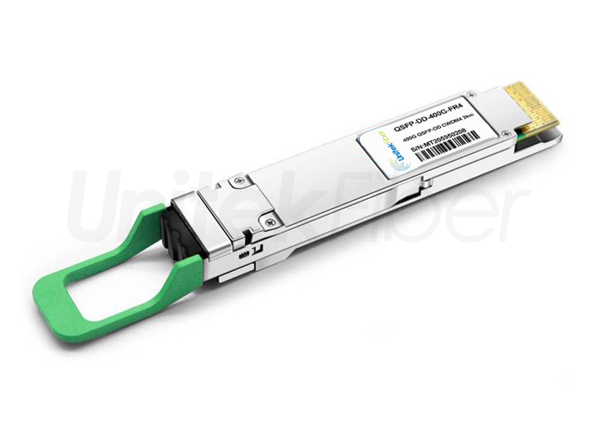

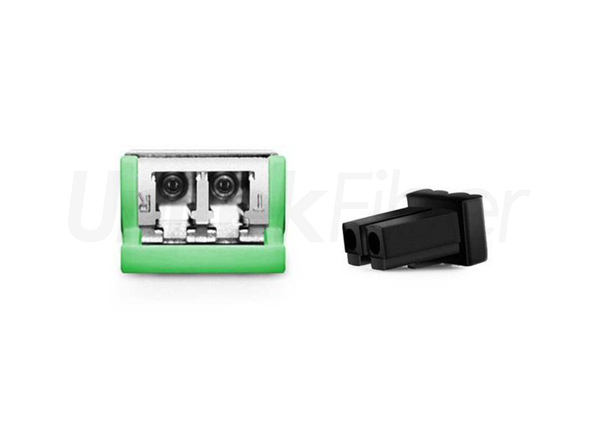

Optical Transceiver Module|400G QSFP-DD FR4 Fiber Transceiver CWDM4 SMF 2KM Duplex LC

The 400G QSFP-DD FR4 transceiver is a 400Gb/s Quad Small Form Factor Pluggable Dual Density (QSFP-DD) optical transceiver that supports transmission distances up to 2KM over duplex LC connectors. The 400G optical transceiver converts eight 53.125Gb/s (PAM4) electrical inputs into four CWDM optical signals and multiplexes them into a single 400Gb/s optical transmission. At the receiving end, the sfp module multiplexes the 400Gb/s optical input photodemultiplexing into four channels of CWDM optical signals and converts them into eight channels of 50Gb/s (PAM4) electrical output data. The wavelength of the 4 CWDM channels are 1271nm, 1291nm, 1311nm, and 1331nm, which are mainly used for data center interconnect and 400G Ethernet.

Products
Description
FAQ
Specification
Reviews
Video

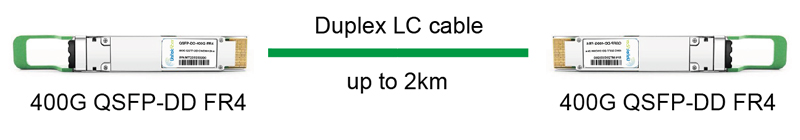

Connection Solution for 400G QSFP-DD FR4 Optical Transceivers

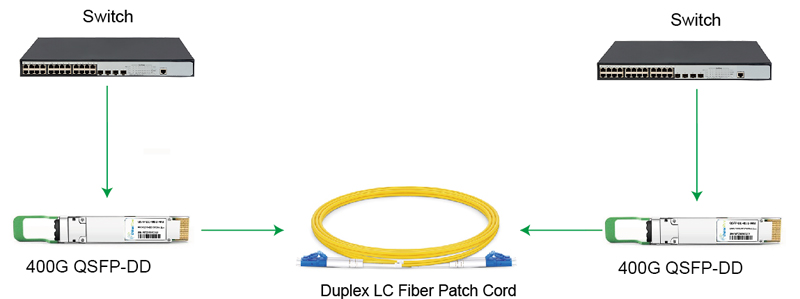

The 400G OSFP-DD FR4 optical module uses four uncooled EML lasers with four CWDM wavelengths, which are more suitable for 400G interconnections. The 400G OSFP-DD FR4 optical transceiver can be connected via LC duplex fiber optic patch cords.


Optical Transceiver Module|400G QSFP-DD FR4 Fiber Transceiver CWDM4 SMF 2KM Duplex LC


Compare with 400G QSFP-DD FR4 transceiver module, 400G QSFP-DD FR8 optical module is a kind of 2*200G QSFP optical module, which use 50G PAM4 modulation technology and has eight built-in circuit channels, which is more suitable for multi-channel data communication. UnitekFiber’s 400G QSFP-DD FR8 fiber transceiver can be connected to 200G QSFP FR4 optical module at the opposite end through 2*LC duplex fiber patch cord.


Optical Transceiver Module|400G QSFP-DD FR4 Fiber Transceiver CWDM4 SMF 2KM Duplex LC


Widely Application of 400G QSFP-DD FR4 Transceiver Module


400G SFP transceiver are primarily used for interconnections within and across data centers. Within data centers, 400G QSFP-DD single mode SFP are used to connect servers and storage devices to support large-scale parallel computing and high-speed data analysis. In the data center room, the 400G fiber transceiveras are used to support high-speed data transmission over long-distance, meeting the communication needs of data centers in different geographic locations. In addition, the 400G single mode SFP can also be used in mobile base stations, passive wavelength division systems, SAN/NAS storage networks.


Optical Transceiver Module|400G QSFP-DD FR4 Fiber Transceiver CWDM4 SMF 2KM Duplex LC


The Advantage of 400G QSFP-DD FR4 Optical Transceiver


UniteFiber’s 400G QSFP-DD FR4 optical module provides 400Gb/s optical transmission. This high-speed transmission capability can meet the demand for high-speed, high-capacity data transmission in the field of modern optical communications. The 400G optical transceiver is designed to meet the harshest external operating conditions, including temperature, humidity and electromagnetic interference. The 400G fiber transceiver utilizes a duplex LC interface, which provides a very high degree of functionality and feature integration, and can be accessed through a two-wire serial interface. This high reliability ensures the stability and reliability of optical communications. The QSFP-DD FR4 optical transceiver uses a low-power design, which reduces energy consumption and conforms to the trend of sustainable development. The low-power design can reduce the operating cost of optical communication system, and is conducive to environmental protection.

What does "FR4" mean?

"FR" refers to 2km transmission distance, and "4" implies there are 4 optical channels.


What type of cable is used for direct connection with the QDD-FR4-400G transceiver?

The QDD-FR4-400G using duplex LC/UPC connector, and single-mode fiber patch cord.

What is the power consumption of 400G QSFP-DD transceiver module?

While there is no direct thermal management mechanism (no integrated heat-sink), the QSFP-DD allows a maximal power consumption of 12 watts (initial spec).

What are the types of interfaces supported by a 400G QSFP-DD optical transceiver?

A 400G QSFP-DD optical transceiver typically supports various types of interfaces, including Ethernet, InfiniBand, and Fibre Channel.

What are the mainly differences between a 400G OSFP and a 400G QSFP-DD transceiver?

400G QSFP-DD utilizes a four-channel small form-factor duplex design and is backward compatible,supporting the insertion of modules or connectors packaged in existing QSFP+/QSFP28/QSFP56 into the QSFP-DD port.
