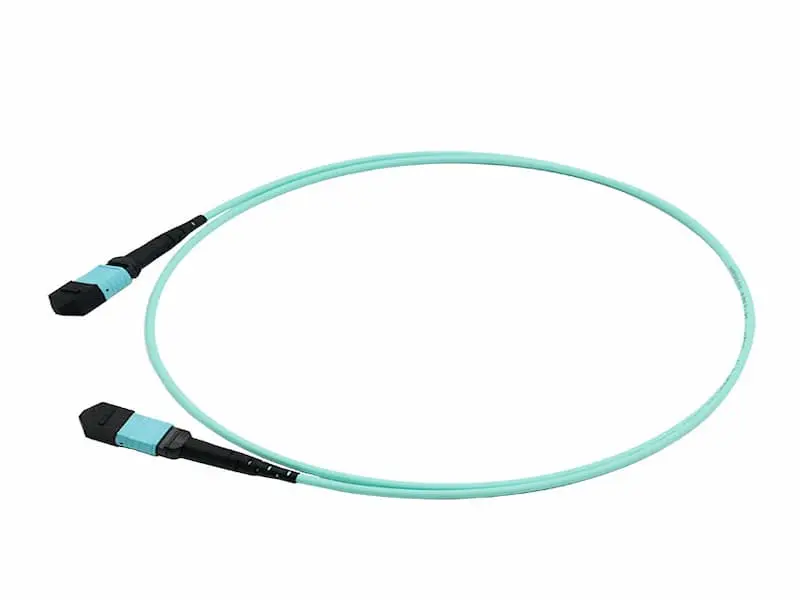

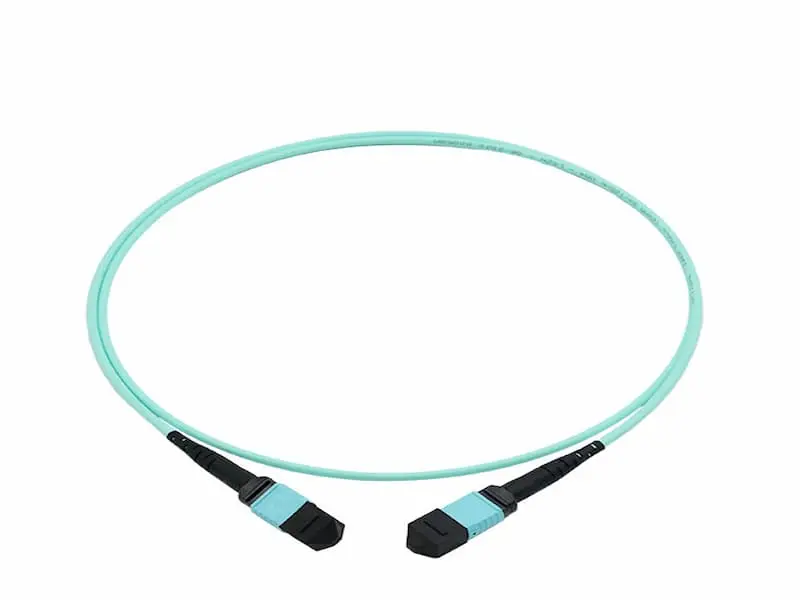

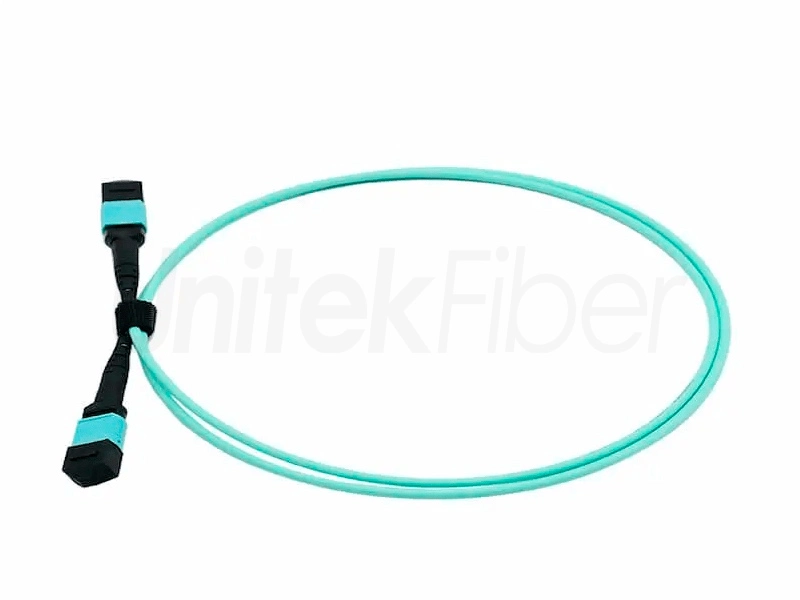

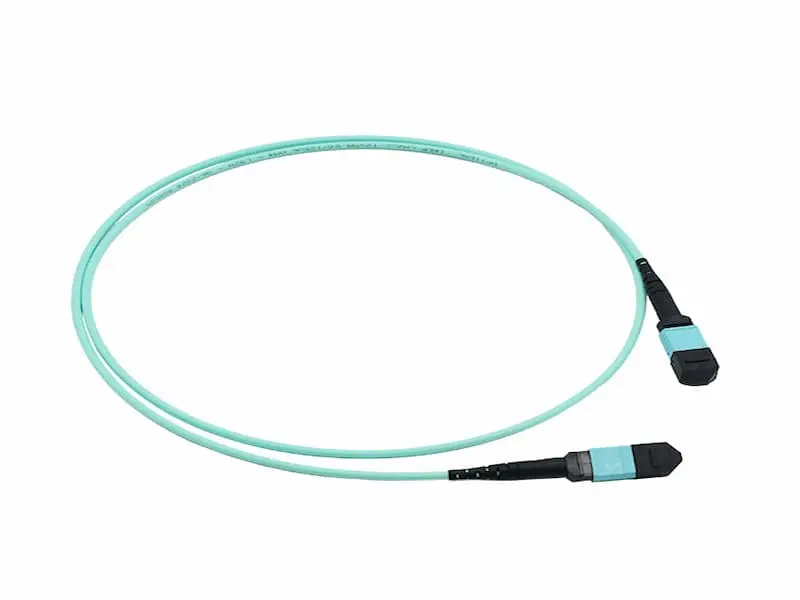

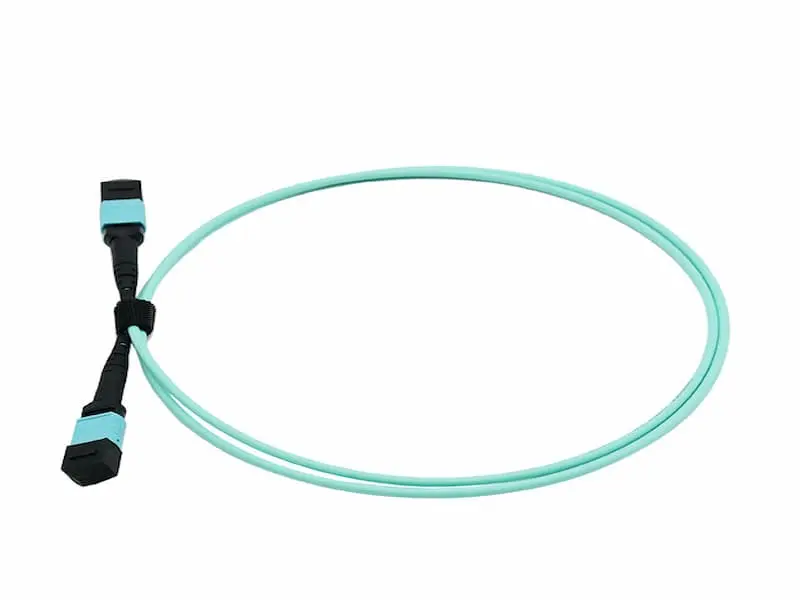

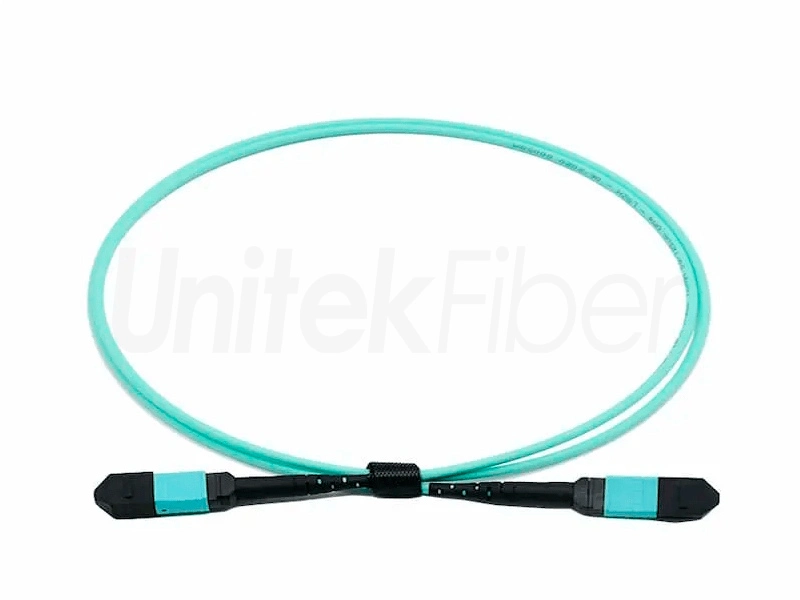

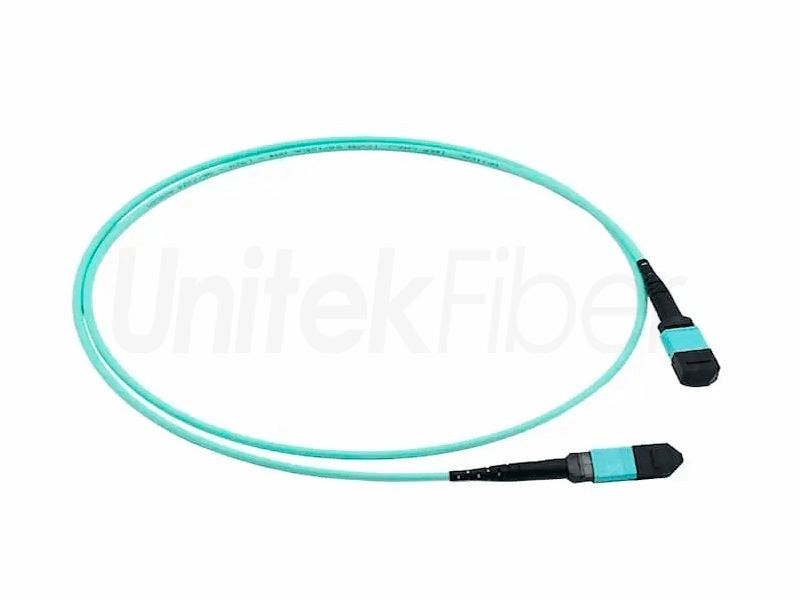

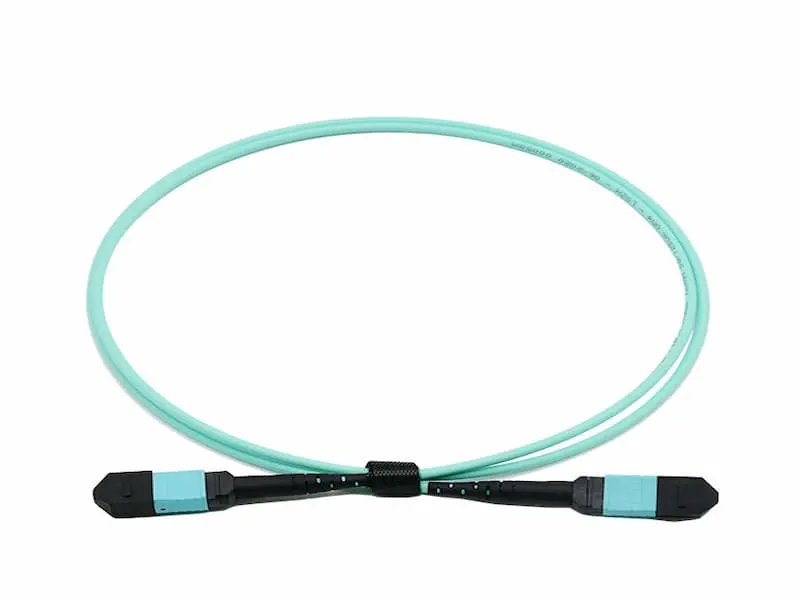

The MPO|MTP fiber optic patch cable are multi-fiber cable using the MPO|MTP connector in fiber counts of 8, 12, 24 or 48. They offer Male and Female MPO|MTP connectors on each end. Available in 8-48 cores versions as well as multi-mode (62.5/125, OM2/ OM3 / OM4) and single-mode (G652D, G657A1 etc.) fiber types.
Both ends of the MTP|MPO trunk cable are MTP|MPO connectors, which can be directly used for the connection between 40G or 100G equipment, and are widely used in the upgrade of 10G to 40G|100G data centers. The default fiber cable diameter is 3.0mm, and the diameter of the branch cable is available in various models such as 0.9mm and 2.0mm, which can meet different fiber wiring needs. MTP|MPO trunk cable have extremely low insertion loss and reflection loss, compact design, and good performance. They are often used in high-density data center environments, fiber to the building (FTTB) and fiber optic equipment internal connectors and other fiber wiring environments.

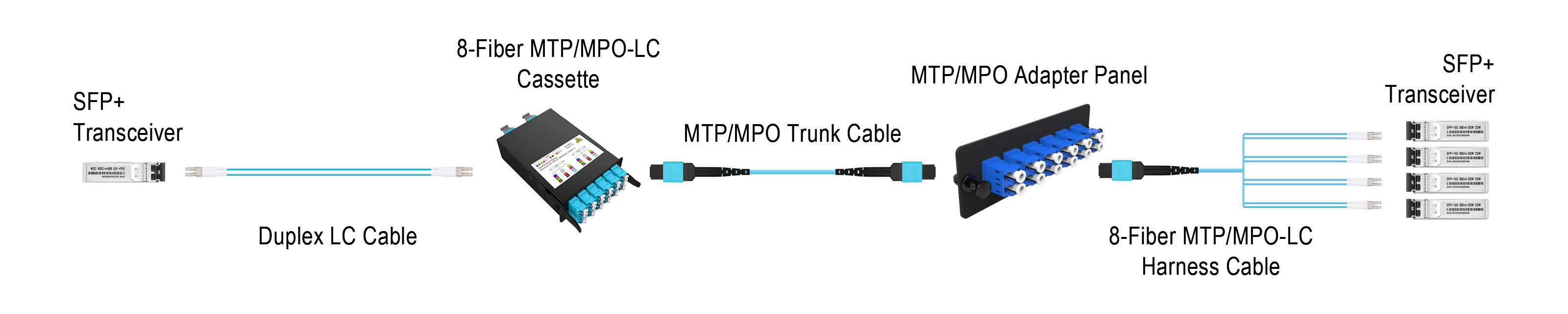

MTP MPO Fiber Patch Cord Cabling Solution
Make MTP/MPO fiber optic patch cable your choice for high density fiber networks. It's specifically designed for fast Ethernet, fiber channel, ATM and gigabit ethernet applications. MTP/MPO patch cable is easier to install,saving time and cost.

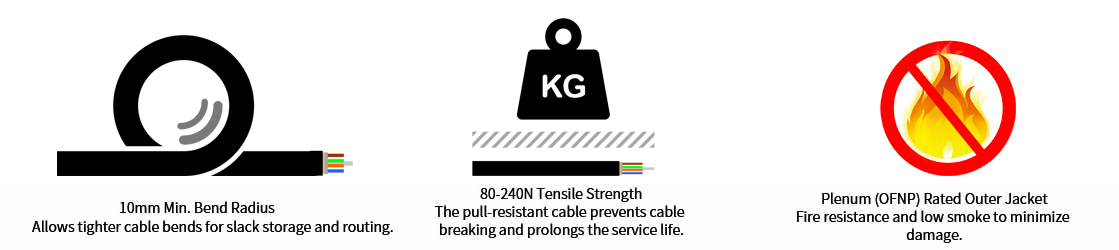

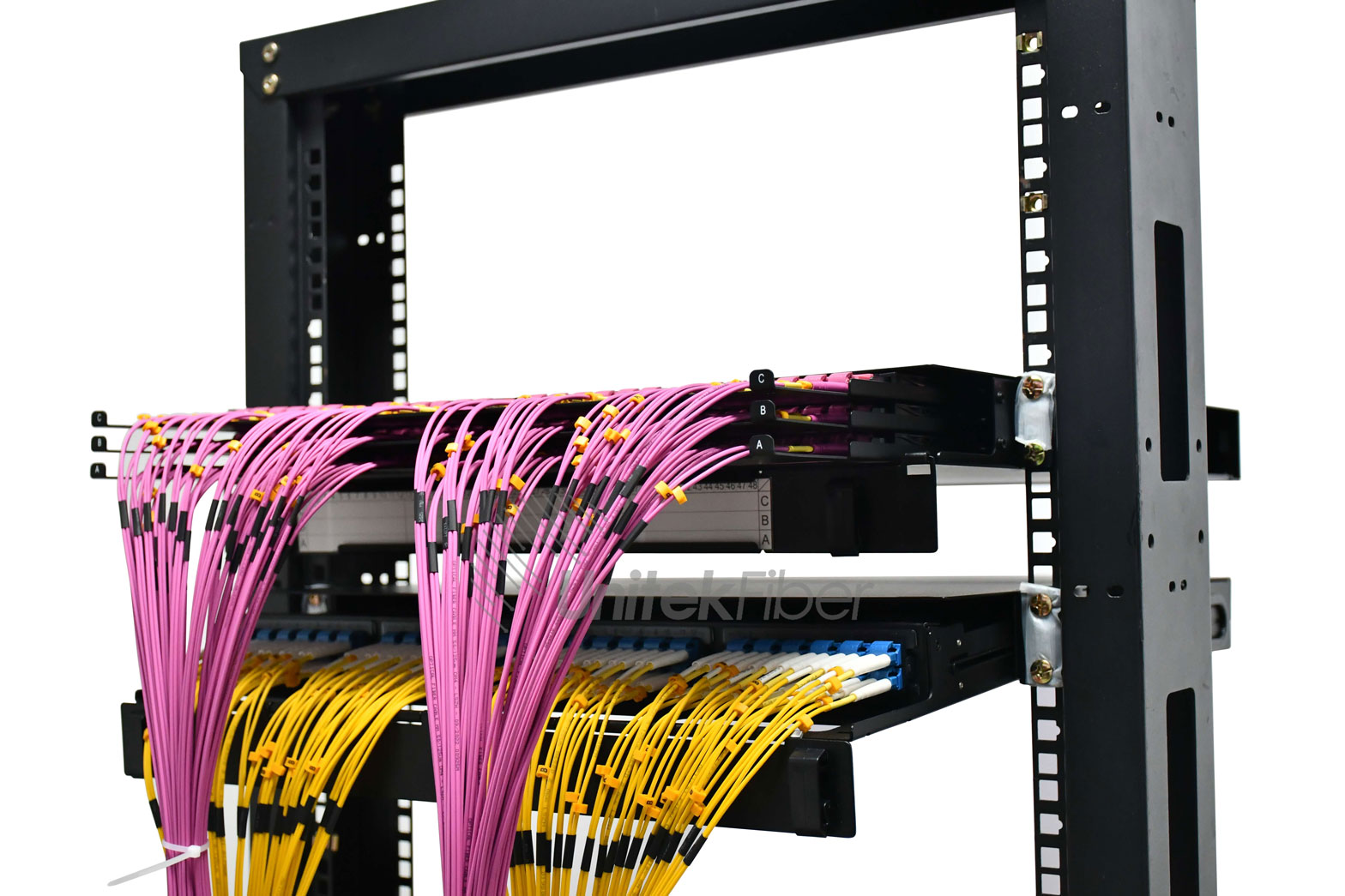

High grade optical fiber has excellent bending resistance and compression resistance, making them ideal choice for high-density cabling.

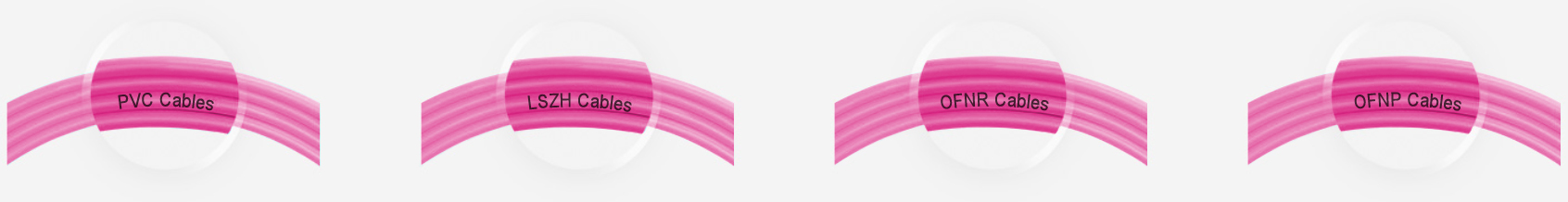

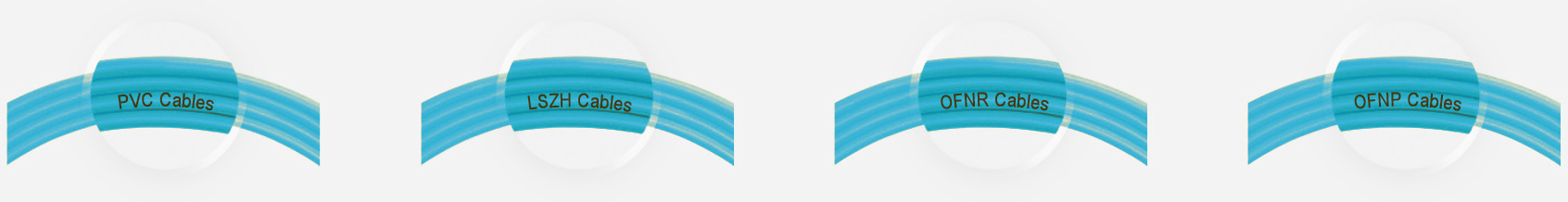

OFNR Riser Rated fiber cable and OFNP Plenum fiber cable can be choose for your network cabling.
Before MTP|MPO fibe patch cable into the market, it typically took two installers a full day to install and test 144 core. With MTP|MPO cable, installers can quickly connect 8 core to 12 core in a fraction of the time, using a pre-terminated plug-and-use cable, reducing a work day to just a few hours. To ensure an accurate connection, factory tested and pre-engineered to fit on the correct length of fiber optic cable. This means easier deployment, and future upgrades, expansions, and changes to structured cabling are greatly simplified. At the time, these advancements with the MTP|MPO connector eventually became the industry standard.
Model | SM | MM | ||
Connector A:MTP | ||||
Connector Fiber Count | 12 Cores | |||
Polish | MTP/APC | MTP/PC | ||
Insertion Loss | Standard | ≤0.70dB | ≤0.70dB | |
Elite Low Loss | ≤0.35dB | ≤0.35dB | ||
Return Loss | ≥60dB | ≥30dB | ||
Durability(500 Matings) | ≤0.2dB | ≤0.2dB | ||
Test Wavelength | 1310nm&1550nm | 850/1300nm | ||
Connector B:MTP | ||||
Polish | MTP/APC | MTP/PC | ||
Insertion Loss | Standard | ≤0.70dB | ≤0.70dB | |
Elite Low Loss | ≤0.35dB | ≤0.35dB | ||
Return Loss | ≤60dB | ≤30dB | ||
Durability(500 Matings) | ≤0.2dB | ≤0.2dB | ||
Test Wavelength | 1310nm&1550nm | 850/1300nm | ||
MTP is a kind of high performance MPO connector with multiple innovative design.
Yes. We supply OEM service. You can send us your drawing.
Our factory has dug in this industry for many years and sold to many countries in the world.
MPO|MTP connectors can either be male or female.
We have professional QC to control quality before shipment.
