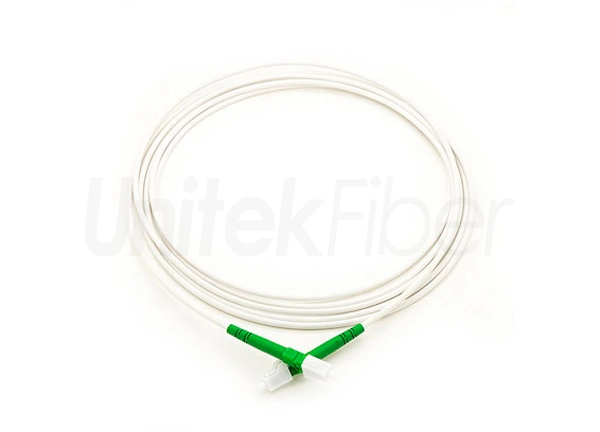

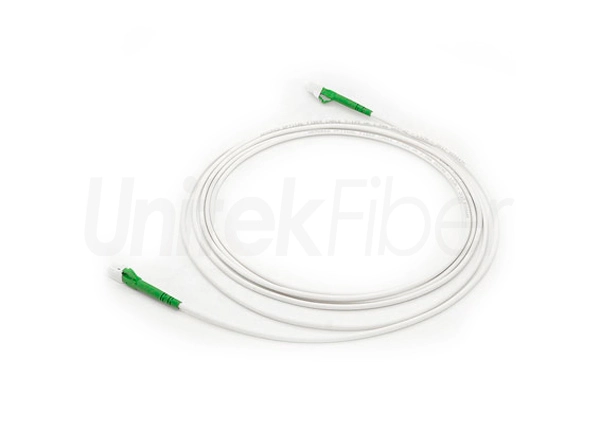

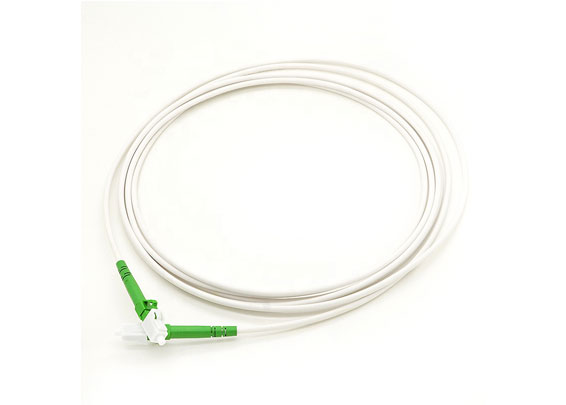

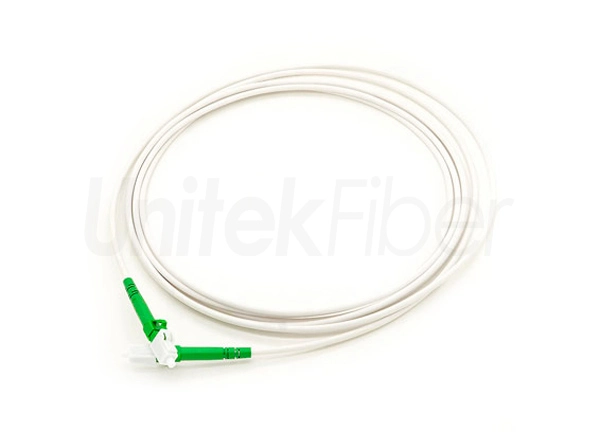

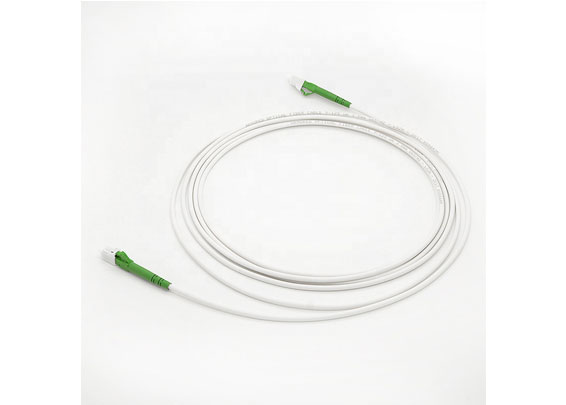

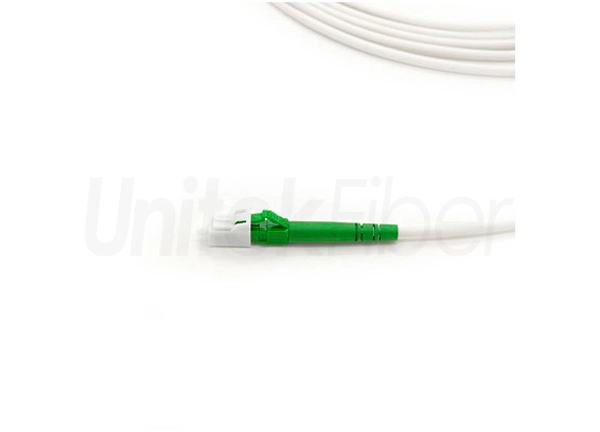

Fiber Optic Jumpers LC/APC-LC/APC Patch Cord LSZH White color with Special Dust Cup

Special Dust Cup LC/APC to LC/APC Fiber patchcord
High-performance fiber pigtails and jumpers are the decisive factors for ensuring the highest performance of any network. UnitekFiber provides a wide range of fiber optic jumpers, which can be used in FTTX, telecommunications, data communications and CATV applications. We can provide fiber jumpers and pigtails of various lengths, colors, and various connector types. Different fiber types and cable diameters are also available on request.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Fiber Optic Jumpers LC/APC-LC/APC Patch Cord LSZH White color with Special Dust Cup

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV


Packaging and Shipping


Fiber Optic Jumpers LC/APC-LC/APC Patch Cord LSZH White color with Special Dust Cup


Production


Fiber Optic Jumpers LC/APC-LC/APC Patch Cord LSZH White color with Special Dust Cup


Parameter of Fiber Optic Jumpers LC/APC-LC/APC Patch Cord LSZH White color with Special Dust Cup

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
