Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

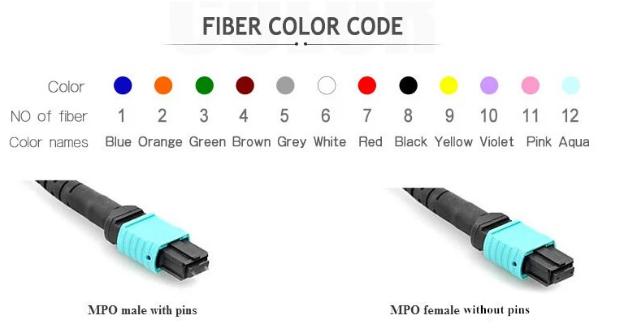

The MTP Trunk cable is assembled with MTP optic fiber connector which contains optical fiber, sheath, coupling components, metal ring, pin, dust cap, etc.. And the pin part is divided into two forms: male and female. The male connector has two PIN pins, while the female connector does not. The connection between MTP connectors is precisely aligned through PIN pins.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

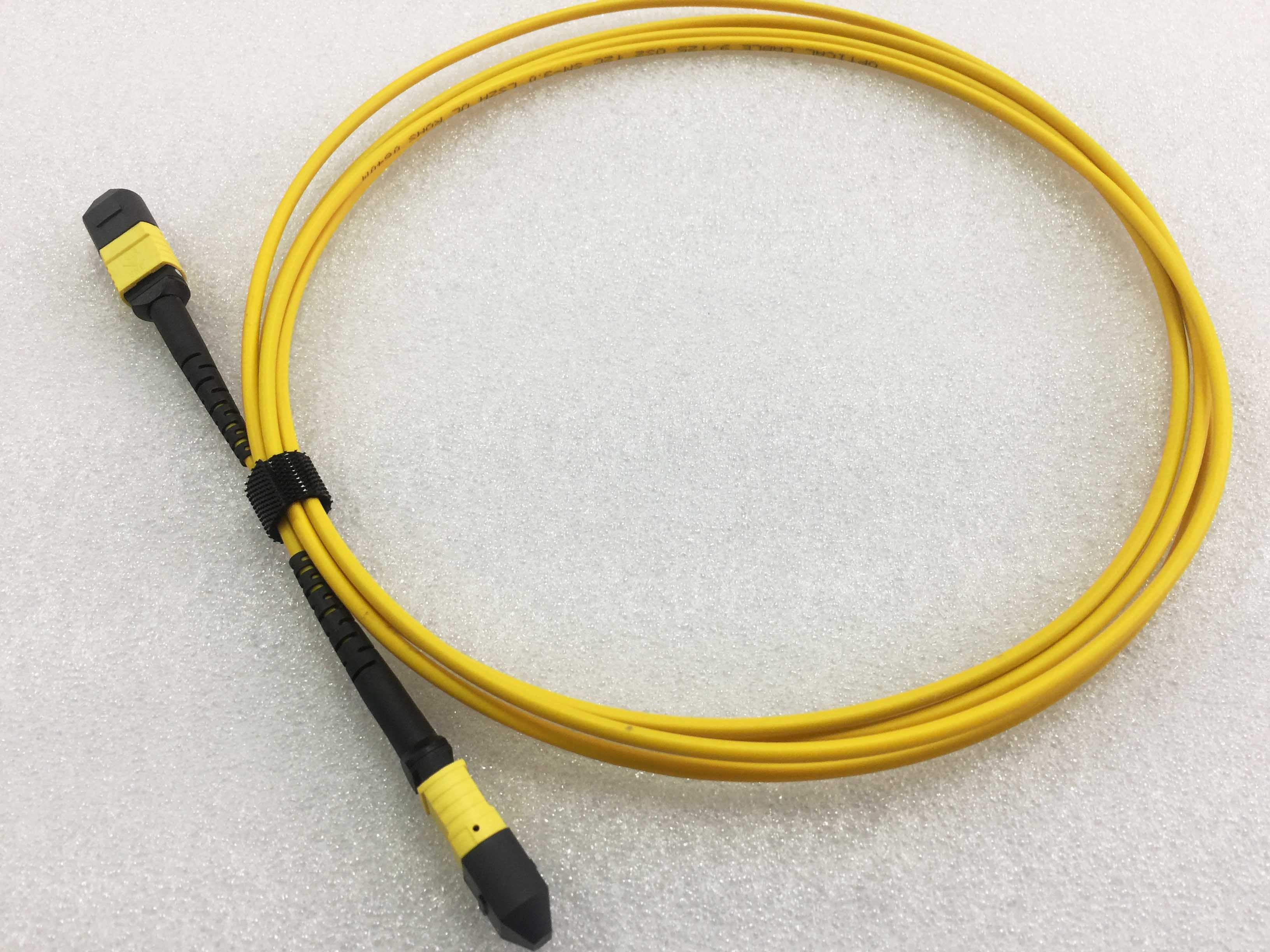

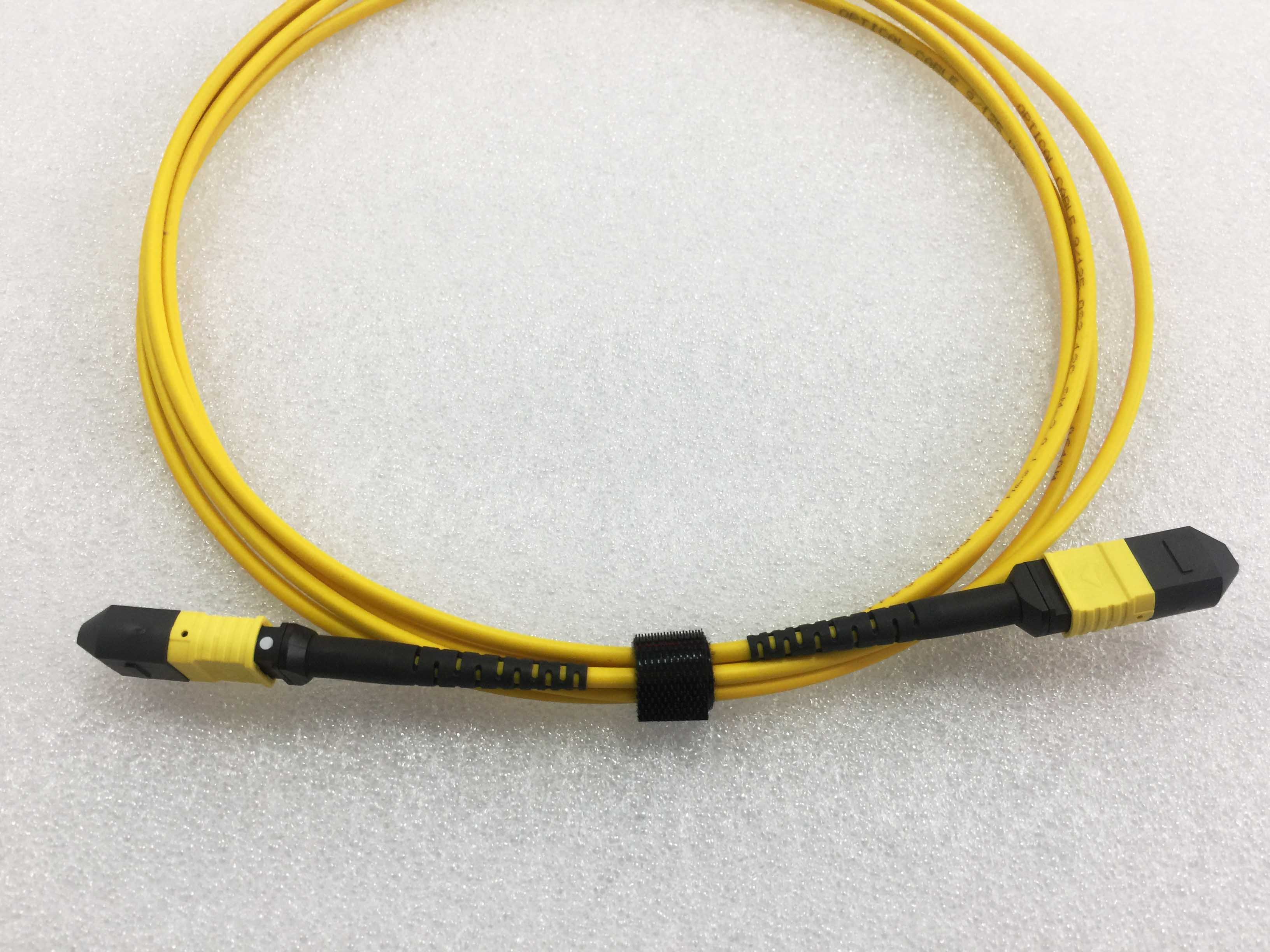

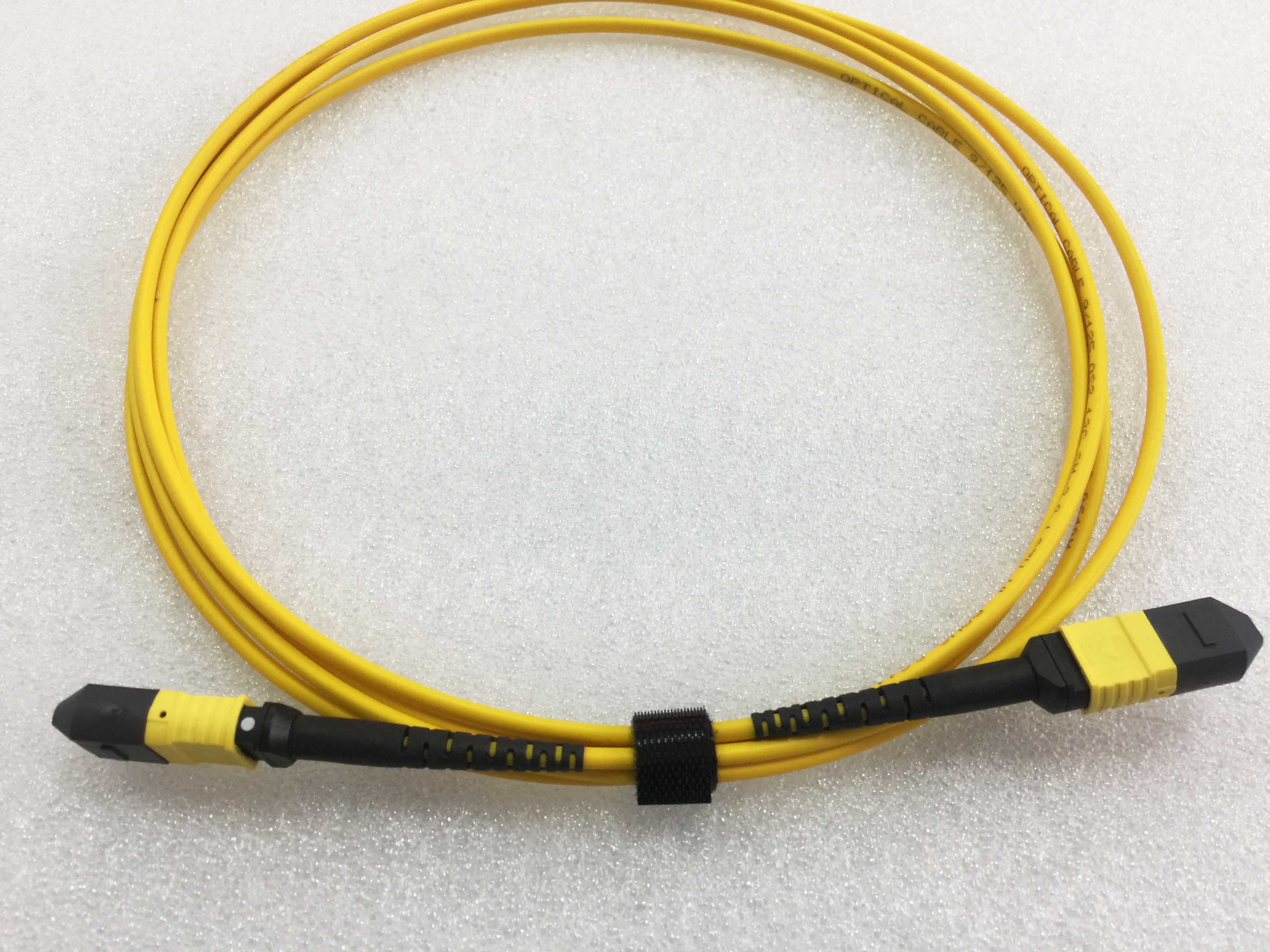

Details of Best Selling MTP MPO Fiber Cable|24 cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

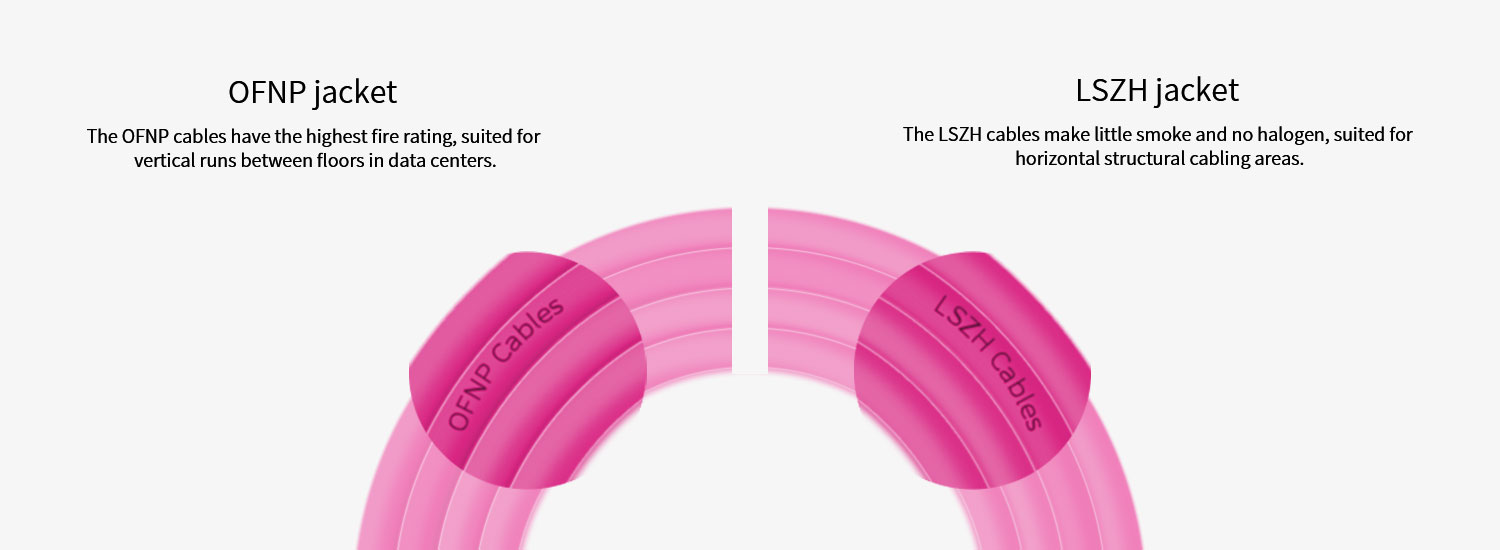

The LSZH jacket MPO/MTP is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.This reduces the amount of harmful toxic and corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal for use where the protection of people and equipment from harmful corrosive gases is absolutely critical.


Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH


Network Connectivity



Base-8 MTP/MPO Cabling for 40G-40G Connection



Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

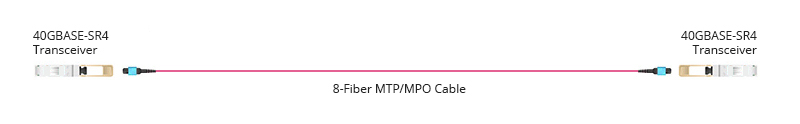

The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-SR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.


Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH


Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

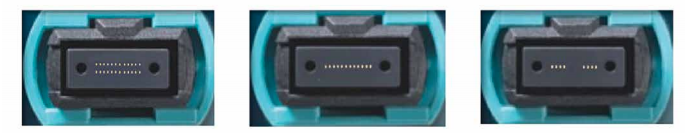

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.

High-density_Fiber_Optical_Patch_cord_24F_OFNP_MPOMTP-_LC_Duplex_MM_Trunk_Jumper_OM3_0.3m_0.5m_1m.png

Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH


Best Selling MTP MPO Fiber Cable|24 Cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

Parameter of Best Selling MTP MPO Fiber Cable|24 cores MTP Connector Trunk Cable OS2 Yellow 3M LSZH

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Allen
Jul 25, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
