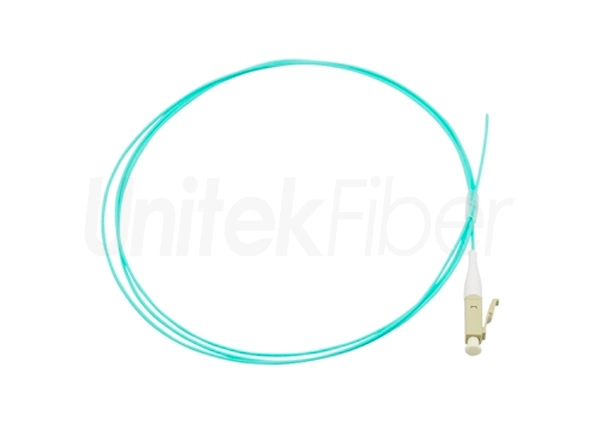

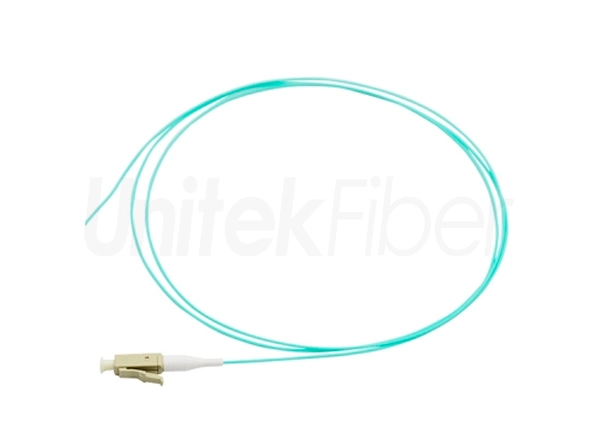

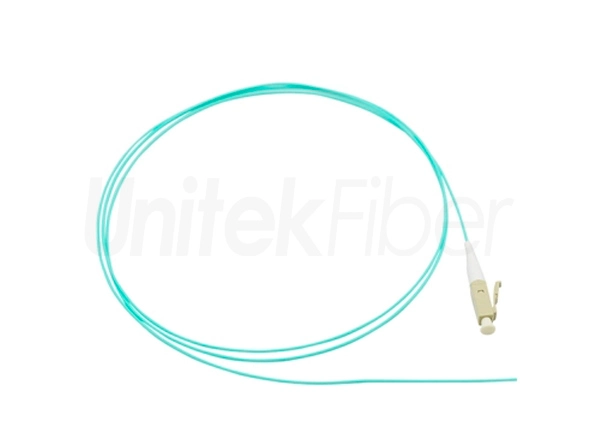

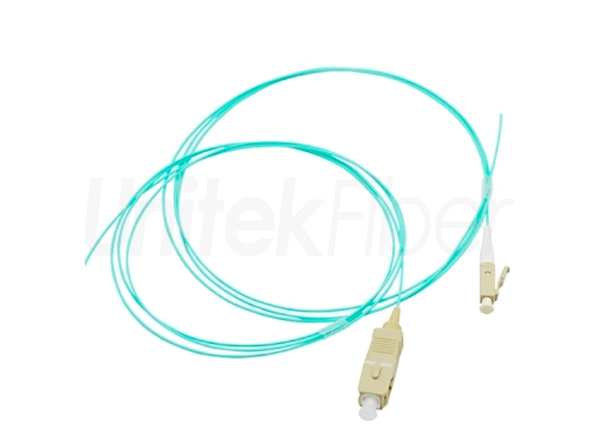

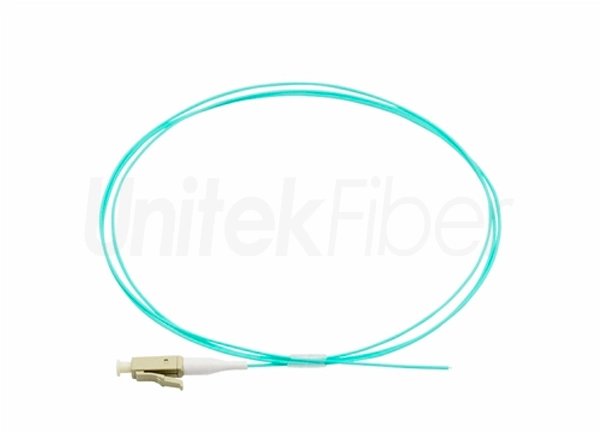

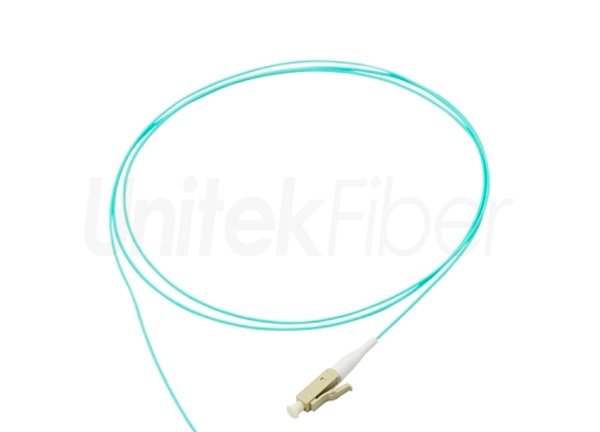

Wholesale Fiber Optic Pigtail MM OM3 OM4 OM5 9/125um 0.9mm SC LC FC ST LSZH

The fiber pigtail is also called ribbon fiber cable. One end of the fiber pigtail has a fiber optic connector, and the other end is the broken end of the fiber optic cable core. The core breaks are fused to achieve minimum insertion loss. The structure of the fiber pigtail and the fiber jumper is very similar. Simply put, the fiber jumper is cut from the middle to form two fiber pigtails. Fiber pigtails have a variety of different connectors, common fiber pigtails are usually 0.9mm in diameter, and are installed inside the ODF unit.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Wholesale Fiber Optic Pigtail MM OM3 OM4 OM5 9/125um 0.9mm SC LC FC ST LSZH

The fiber pigtails have an outer jacket that protects the tightly buffered cable from damage. The outer jacket can be easily stripped where space permits, so that the fiber pigtail has a tighter bend radius and takes up less space.


In addition, fiber pigtails are divided into single-mode fiber pigtails and multimode fiber pigtails, which can be distinguished by color, wavelength and transmission distance. The color of the outer sheath of the multimode fiber pigtail is orange OM1/OM2 and lake blue OM3, the wavelength of the multimode fiber pigtail is 850nm, the transmission distance is 500m, and it is used for short-distance connection; the color of the outer sheath of the single-mode fiber pigtail is yellow , the wavelength is 1310nm or 1550nm, and its transmission distance is longer, up to 10km or 40km.

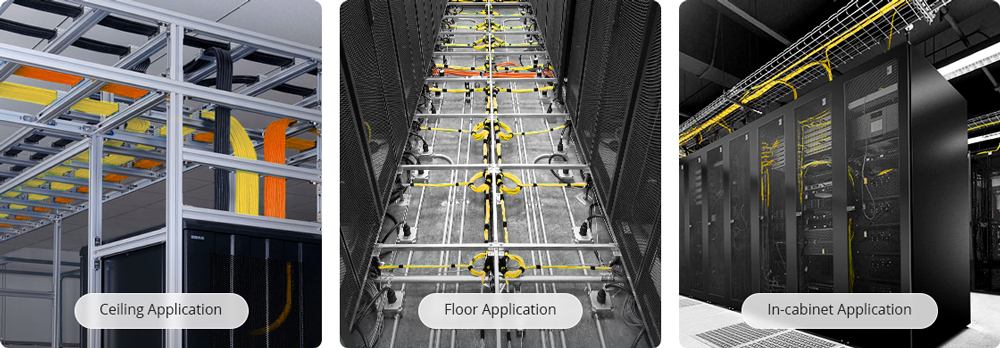

The application of fiber pigtails


One of the main functions of the fiber pigtail is to connect. Optical fiber cable and fiber pigtail connection, the ribbon fiber and fiber pigtail in the optical cable are fused together to form a whole, while the fiber pigtail has a separate optical fiber end, which connects the optical fiber and the twisted pair by connecting with the optical fiber transceiver. Connected to the information socket. In the process of optical fiber fusion, the following main tools are commonly used: optical terminal boxes, optical fiber transceivers, fiber pigtails, fiber optic adapter, special wire strippers, optical fiber cutters, etc.


Wholesale Fiber Optic Pigtail MM OM3 OM4 OM5 9/125um 0.9mm SC LC FC ST LSZH


Characteristics:


lUsing high precision ceramic ferrule

lLow insertion loss and high return loss

lExcellent stability and high repetition

l100% Optic test (Insertion Loss & Return Loss)


Application:


lTelecommunication Network

lFiber Broad Band Network

lCATV system

lLAN and WAN system

lFTTP

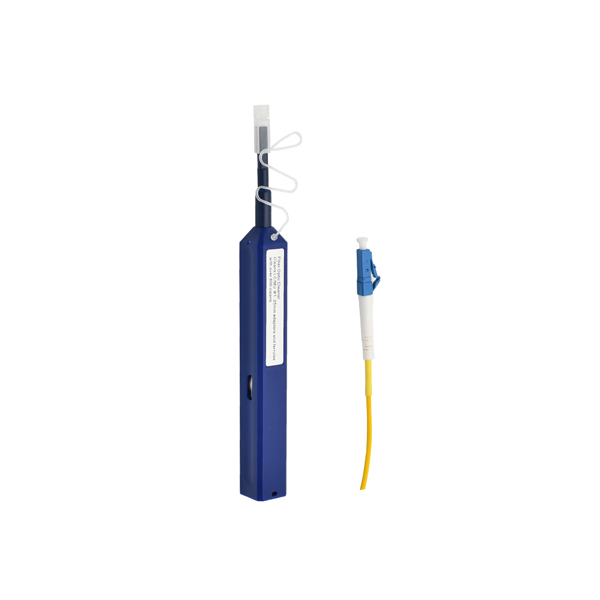

Cleaning Fiber Restores Fiber Performance


Optical fiber end face is an important medium for data transmission. Its surface is easily polluted by dust, shedding fibers and other pollutants. These pollutions will cause attenuation, reflection and scattering of optical signals, thus affecting the quality and stability of optical fiber communication. Therefore, keeping the fiber end face clean is very important to ensure the reliability of fiber optic communication.

Wholesale Fiber Optic Pigtail MM OM3 OM4 OM5 9/125um 0.9mm SC LC FC ST LSZH


Packing & Delivery



Wholesale Fiber Optic Pigtail MM OM3 OM4 OM5 9/125um 0.9mm SC LC FC ST LSZH


Wholesale Fiber Optic Pigtail MM OM3 OM4 OM5 9/125um 0.9mm SC LC FC ST LSZH

Can G652D replace G657A1? What's the difference between them?

Yes, the G657A1 has better bending performance than G652D.

I wonder what's the difference between OFNP and LSZH cable jacket?

OFNP have the highest rated fire retardant where it emits little smoke during combustion, LSZH cable jacket is composed of thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat.

What kind of tools is required if I want to shorten a fiber optic pigtail?

You need a fiber optic cleaver to shorten the pigtail.

Can I take off the connectors of the pigtails and fuse with fast connectors?

Yep, no problem, they can be cut off and you can take the ones you need.

What is the fiber class of the fiber optic pigtail?

The fiber class is G652D default, but we can also offer G657A1 and G657A2 pigtails, which are fully compliant with G652D pigtails.
