High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR ER

100G QSFP28 transceiver modules are designed for use in100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4.

100G QSFP28 SR4 Pluggable Optical Transceiver Module for short-range data communication and interconnect applications. The module has four channels in each direction with 100 Gaps aggregate bandwidth. Each channel operates up to 25Gbps, and up to 70 m using OM3 fiber or 100 m using OM4 fiber.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

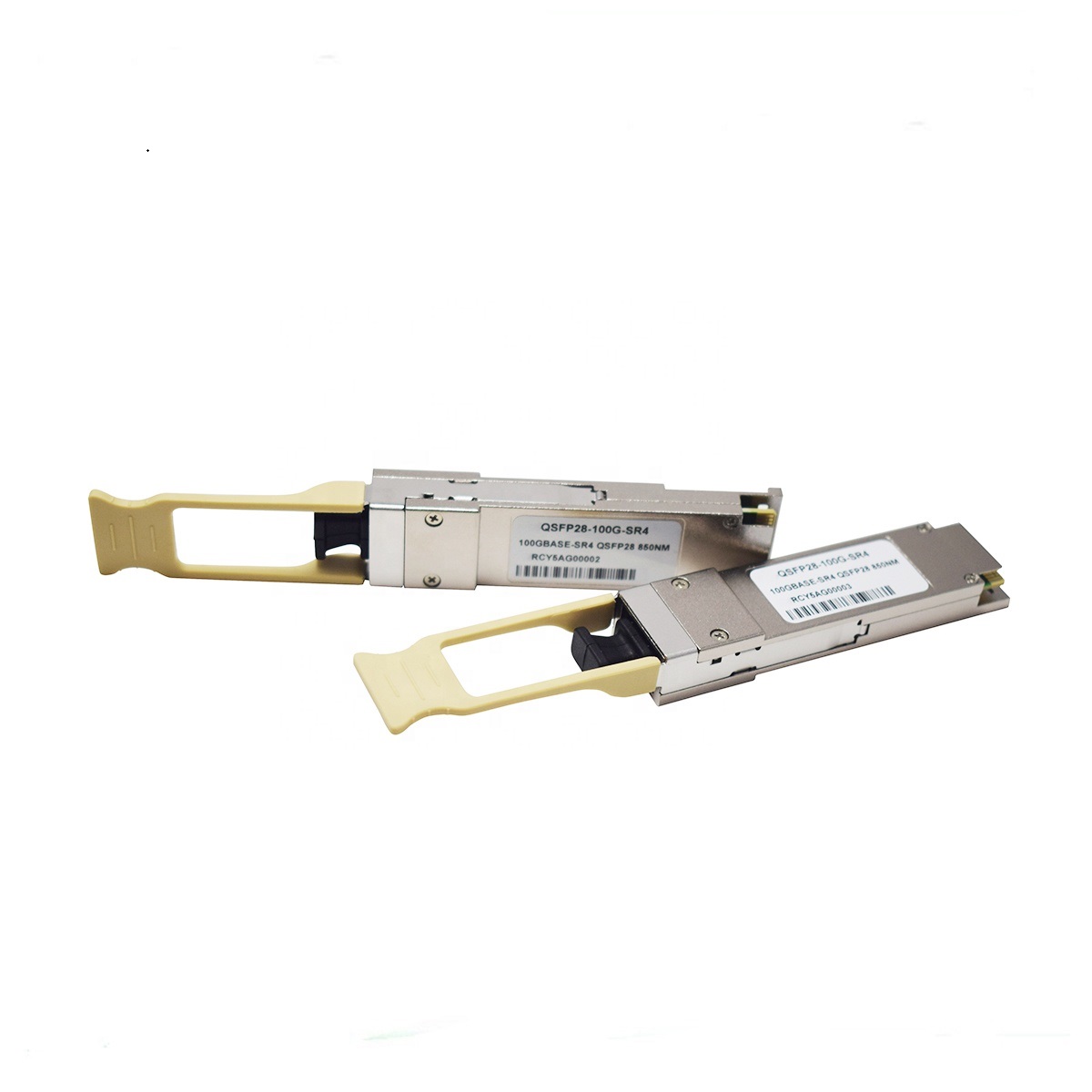

Details of High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR

High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR ER


The Cisco QSFP-100GE-ER4 Compatible QSFP+ Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via MPO connectors. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.


Network Connectivity

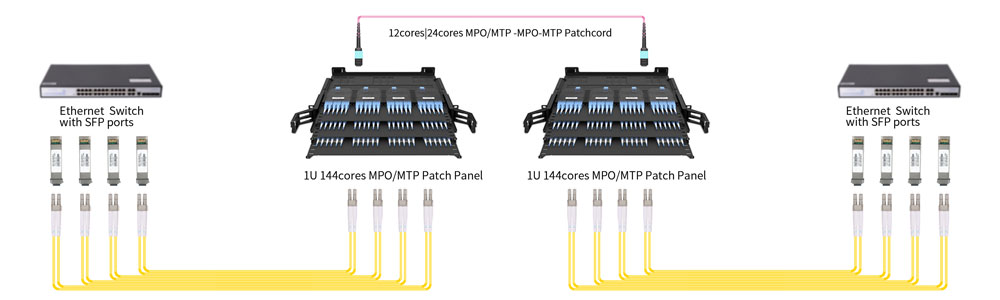

Connection for 100G QSFP+ ER4 Transceivers with Cassettes and Enclosures


High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR ER

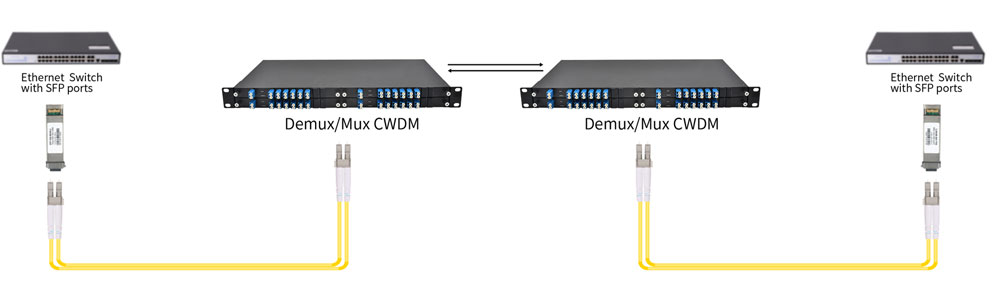

Direct Connection for 100G QSFP+ ER4 Transceivers with FAPs and Enclosures


High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR ER


Product Highlights


100G QSFP Optical Transceivers Connectivity for Data Center



100G QSFP optical transceiver can be connected to MPO/MTP optical fiber connectors for 100G transmission applications. When used together with MPO fiber patch cords, the transmission distance can reach 150m.


High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR ER

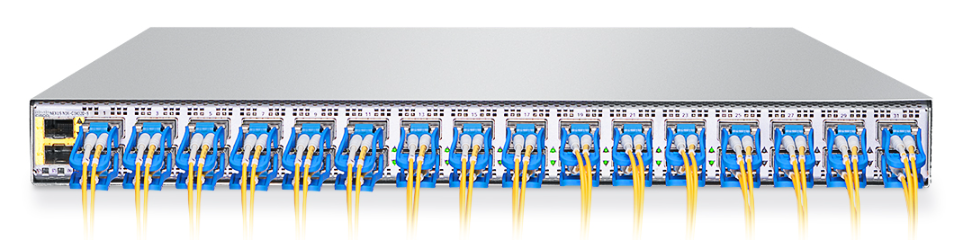

Tested in Host Devices for Proven Interoperability

100G optical transceiver has four data transmission channels, and the transmission rate of each channel is about 10Gbps, and the simultaneous transmission of four channels can achieve a transmission rate of 100Gbps.


High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR IR ER


UnitekFiber provides a variety of cost-effective and practical 100G QSFP+ optical modules, and also provides reliable system solutions to help users build low-cost, high-efficiency, and easy-to-manage network systems.

Parameter of High Speed QSFP28 100G MPO/MTP Optical Transceiver in Backbone Network Solution SR LR I

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UFQP28-100G-SR4

QSFP28

103G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UFQP28-100G-LR4

QSFP28

103G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-LR4-A

QSFP28

112G

1310nm

EML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-LR4-B

QSFP28

112G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-CWDM4

QSFP28

103G

1310nm

DML/PIN

2km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-PSM4

QSFP28

103G

1310nm

DML/PIN

500m

SMF

MPO

0℃~70℃


What is a QSFP28 Optic Transceiver Module?

QSFP28 is a hot-pluggable transceiver module designed for 100G data rate.

What are the main application scenarios of 100G optical modules?

100G connectivity for switches and routers in the data center.

What connection ports do 100G optical modules have?

Usually, QSFP28 100G optical modules have MPO port and LC port.

What is the farthest transmission distance of a 100G optical module?

QSFP28-ZR4 100G optical transceiver module can transmit 80KM.

Which brands of equipment are 100G QSFP28 optical modules compatible with?

Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

Can this 100G QSFP28 module be used in temperatures other than commercial temperature?

Usually, the optical transceiver modules we produce are commercial temperature, suitable for 0-70 degrees.
