10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM

10G SFP+ optical transceiver inherits the hot-swappable characteristics of GBIC and also draws on the advantages of SFF miniaturization. Using LC (SC connector is only suitable for single-fiber bidirectional) optical connector, its volume is only 1/2 of GBIC transceiver, which greatly increases the port density of network equipment (more than double the ports can be configured on the same panel Quantity), adapting to the trend of rapid network development.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of 10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM

10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM


Unitekfiber Compatible SFP+ transceiver supports up to 10km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.



Product Highlights

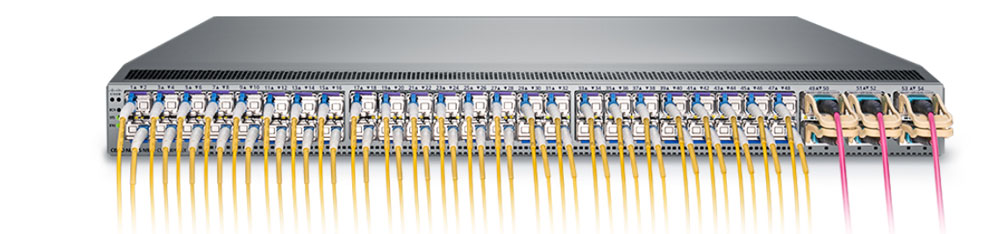

10G Connectivity for Data Center

10G optical modules are used as carriers for transmission between switches and devices, and are more efficient and safer than transceivers. As a photoelectric conversion device, 10G dual fiber optical module is an extremely important part of optical fiber communication.

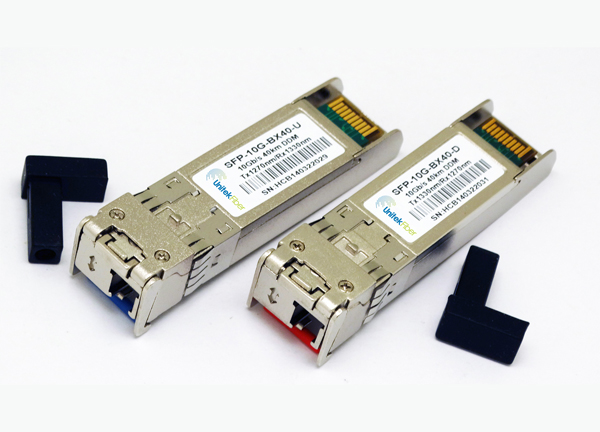

10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM



Tested in Host Devices for Proven Interoperability

Support all brands of equipment to undergo strict quality control and real machine testing before leaving the warehouse to ensure that each 10G transceiver module can be perfectly compatible.


10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM


This SFP+ BiDi transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel 1200-SM-LL-L. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.


10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM

Parameter of 10G BIDI SFP+ Optical Transceiver for Networking Switches Tx1330nm/Rx1270nm 40KM

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UFSPP-10G-B10-23

SFP+

9.95~11.3G

TX1270/RX1330nm

DFB/PIN

10km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B20-32

SFP+

9.95~11.3G

TX1330/RX1270nm

DFB/PIN

20km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B40-23

SFP+

9.95~11.3G

TX1270/RX1330nm

DFB/PIN

40km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B60-32

SFP+

9.95~11.3G

TX1330/RX1270nm

DFB/APD

60km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B80-45

SFP+

9.95~11.3G

TX1490/RX1550nm

EML/APD

80km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B80-54

SFP+

9.95~11.3G

TX1550/RX1490nm

EML/APD

80km

SMF

Simplex LC

0℃~70℃


What is the difference between SFP+ optical module and SFP optical module?

The volume of SFP and SFP+ optical modules is basically the same, and the main difference is the transmission rate. The maximum transmission rate of SFP optical modules is 2.5Gb/s, while that of SFP+ optical modules is 10Gb/s. Due to the different transmission rates, their applications and transmission distances will vary.

Can SFP+ optical modules be used in SFP ports?

Yes. 10G SFP+ optical modules can work when inserted in SFP ports, but the transmission rate is only 1Gbps; however, SFP optical modules cannot be used in SFP+ ports.

What is the longest transmission distance supported by SFP+ optical modules?

Depending on the type of fiber used, the transmission distance is also different. The transmission distance is 300 meters when used with OM1 multi-mode fiber, and the longest distance, when used with OS2 single-mode fiber, is currently 120 kilometers.

Can SFP+ optical modules be used with SFP+/QSFP high-speed cables?

Can't. The SFP+/QSFP high-speed cable can be directly inserted into the SFP+/QSFP port of the switch to connect the switches at both ends without using optical modules.

Will SFP+ optics automatically configure between 1GbE and 10GbE?

Auto configuration is not supported between 10GE and 1GE rates.
