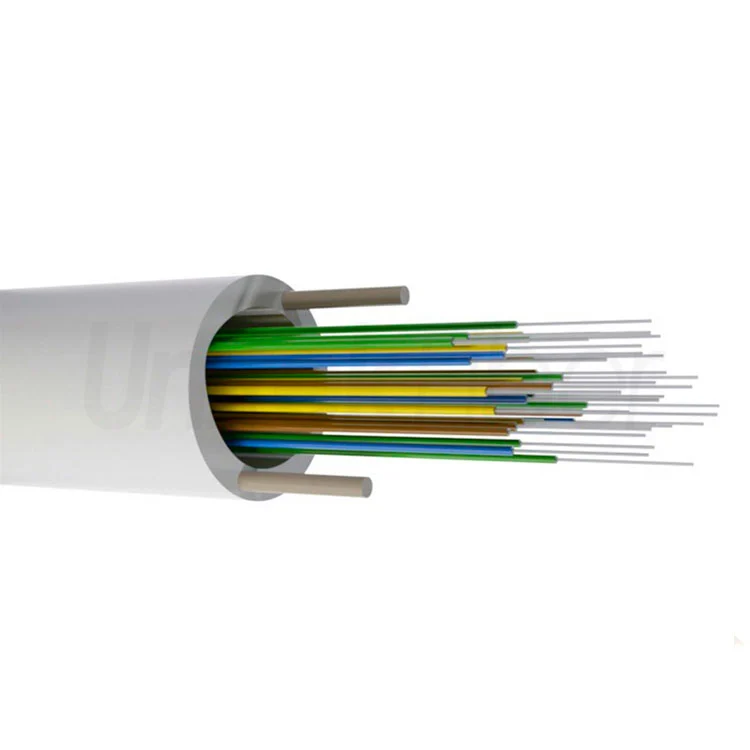

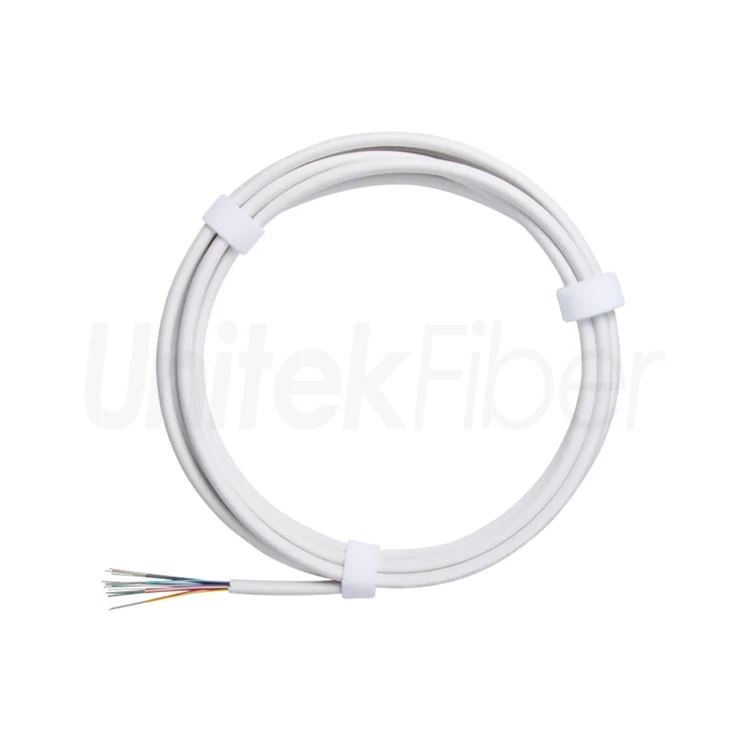

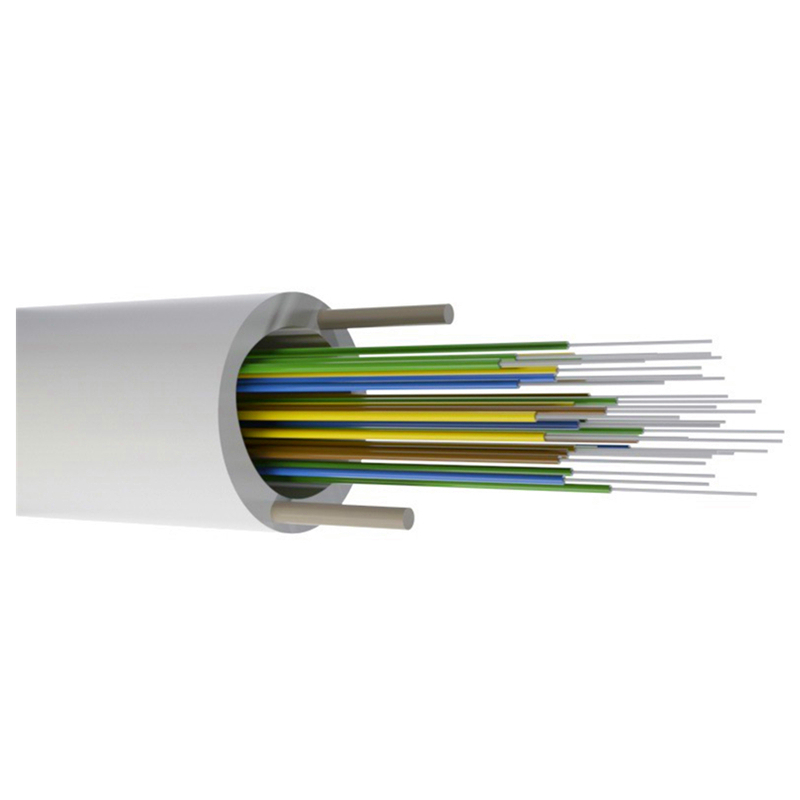

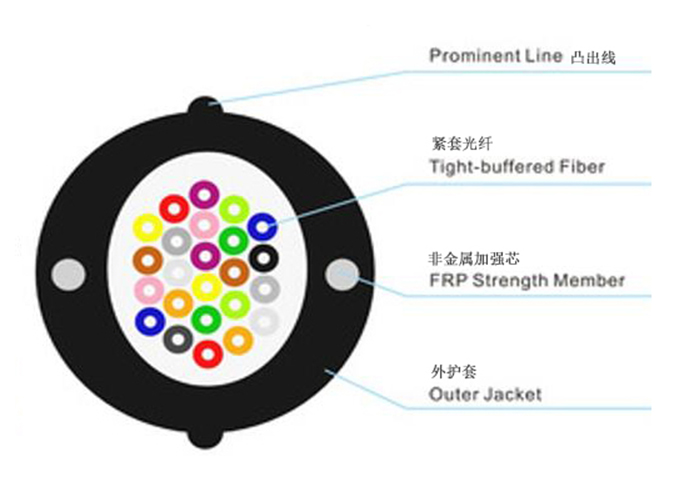

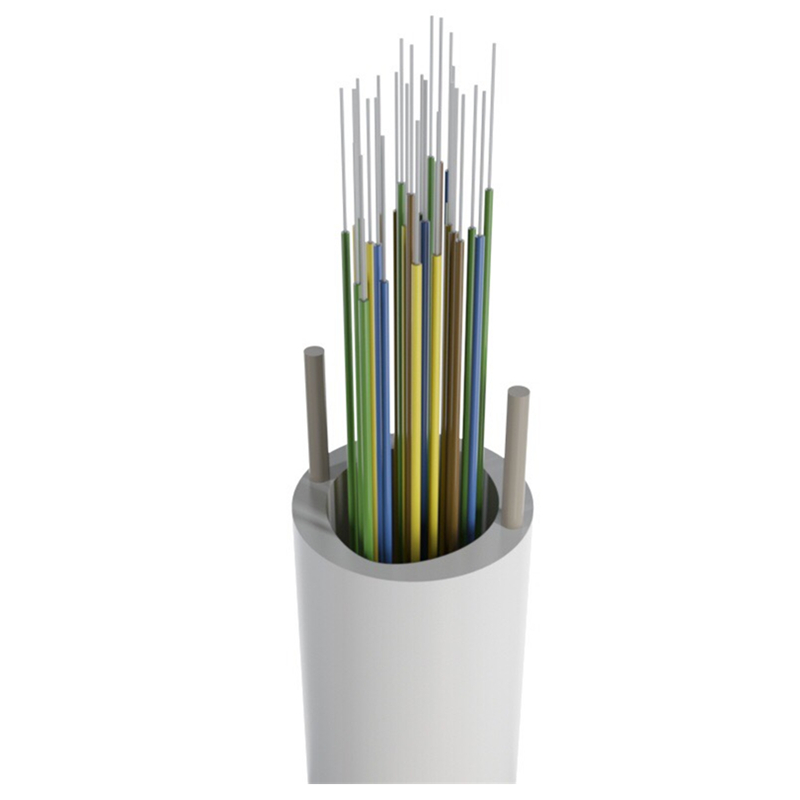

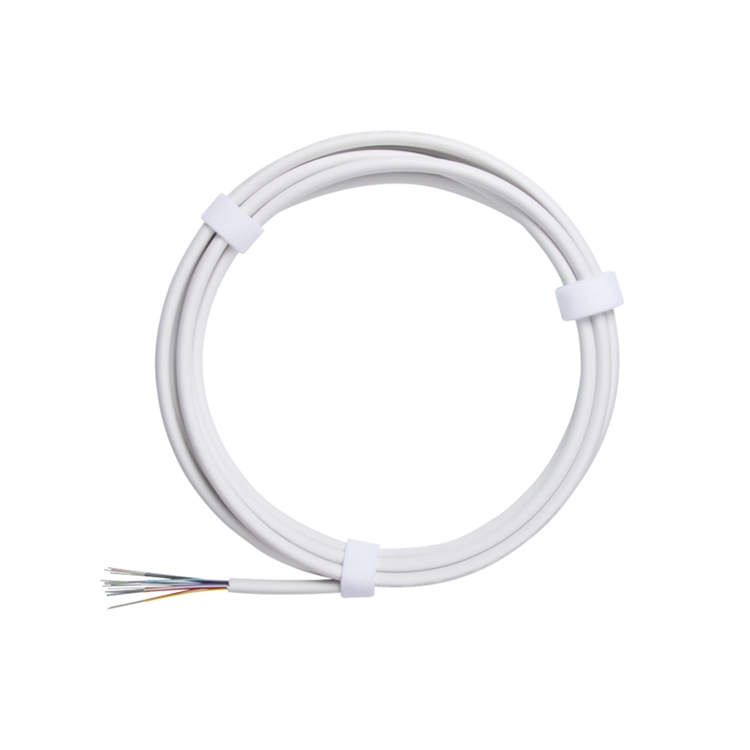

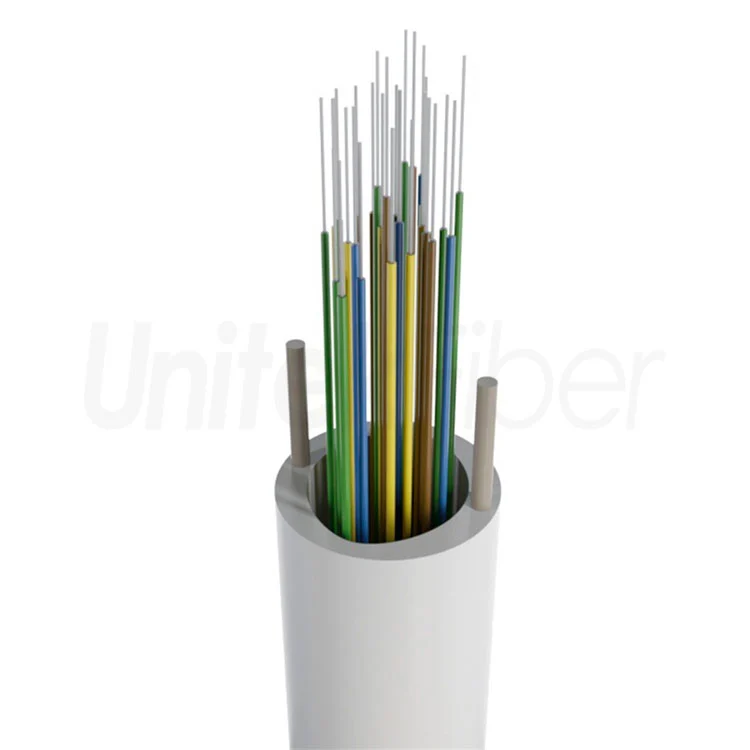

FTTB Indoor|Outdoor Fiber optic drop Cable is a popular fiber cable in the market. The fiber drop cable uses multiple 900um flame-retardant tight buffer fibers as optical communication medium, two parallel Fiber Reinforced Plastic (FRP) are placed at the two sides as strength member, then the cable is completed with a flame-retardant LSZH (low smoke, zero halogen, flame-retardant) jacket.
Micro Tube Indoor Outdoor Drop Fiber optic Cable is a popular fiber cable in the market. The drop fiber cable uses multiple 900um flame-retardant tight buffer fibers as optical communication medium, two parallel Fiber Reinforced Plastic (FRP) are placed at the two sides as strength member, then the fiber cable is completed with a flame-retardant LSZH (low smoke, zero halogen, flame-retardant) jacket.
The Fiber Cores of GJPFXJH Fiber Cable is from 2 cores to 288 cores

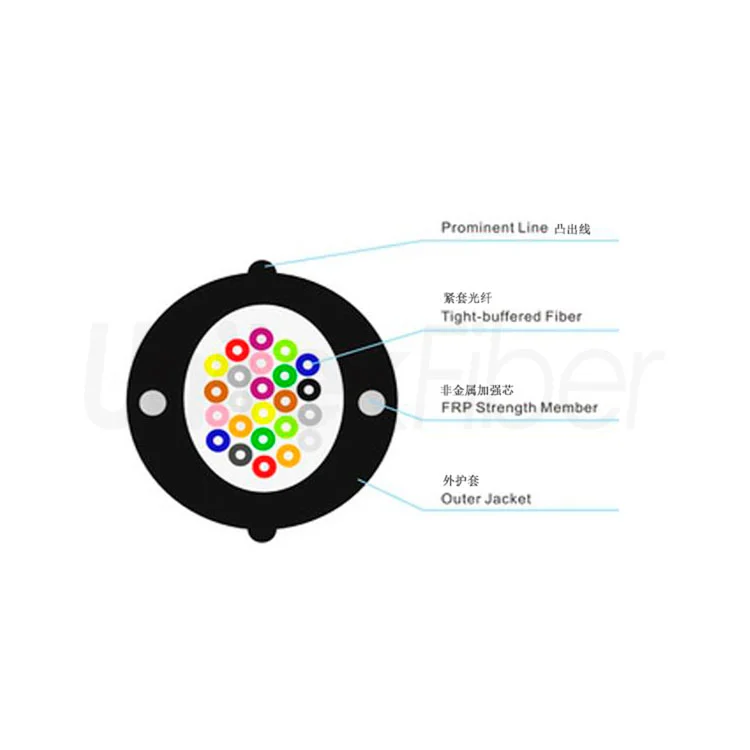

GJPFXJH Fiber Cable is a indoor and outdoor fiber optic cable with small diameter, light weight, convenient installation and maintenance. Fiber Cable has excellent mechanical and environmental performance. The characteristics of the all-dielectric and dry core structure of the optical cable can improve deployment efficiency and cleanliness. The FRP strength members of the GJPFXJH optic cable have the advantages of stretching and bending resistance.

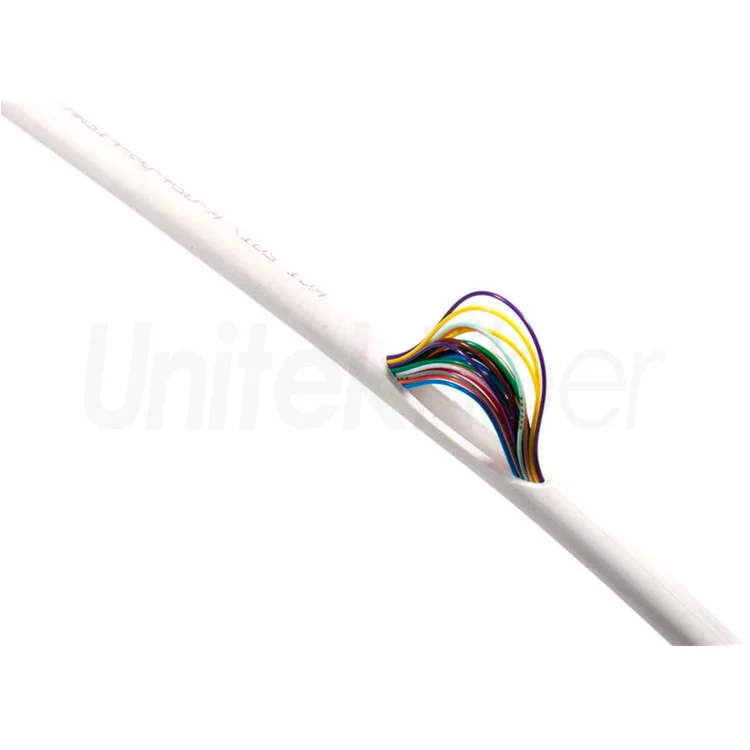

GJPFXJH indoor drop cable is mainly used for vertical and horizontal wiring of buildings. This cable fully reflects the the fibre core is peeling easily and branching easily. At the corresponding floor, only the corresponding optical fiber is used to take out the corresponding optical fiber for construction, and it is not necessary to disconnect the entire optical fiber cable, thereby greatly saving construction process. It is now widely used in telecommunications, mobile communication buildings and inter-office communications.
Transmission Characteristics: G657A2
Characteristics | Conditions | Specified Values | Units |
Geometrical characteristics | |||
Cladding diameter | 125.0±0.7 | µm | |
Cladding non-circularity | ≤0.7 | % | |
Coating diameter | 242±5 | µm | |
Coating/cladding concentricity error | <12 | µm | |
Core/cladding concentricity error | ≤0.5 | µm | |
Curl | ≥4 | m | |
Optical characteristics | |||
Attenuation | 1310nm | ≤0.4 | dB/km |
1383nm | ≤0.4 | dB/km | |
1490nm | ≤0.3 | dB/km | |
1550nm | ≤0.3 | dB/km | |
1625nm | ≤0.3 | dB/km | |
Attenuation vs. Wavelength | 1285~1330nm | ≤0.03 | MHz*km |
1525~1575nm | ≤0.02 | MHz*km | |
Dispersion coefficient | 1550nm | ≤18 | ps/(nm*km) |
1625nm | ≤22 | ps/(nm*km) | |
Zero dispersion wavelength | 1304~1324 | nm | |
Zero dispersion slope | ≤0.092 | ps/(nm2*km) | |
Polarization mode dispersion | |||
PMD maximum individual fibre | ≤0.1 | ps/km1/2 | |
PMD design link value | ≤0.04 | ps/km1/2 | |
Cable cut off wavelength | ≤1260 | nm | |
Mode field diameter | 1310nm | 8.8~9.6 | µm |
1550nm | 9.9~10.9 | µm | |
Group index of refraction | 1310nm | 1.4691 | |
1550nm | 1.4696 | ||
Environmental characteristics | 1310nm、1550nm&1625nm | ||
Temperature cycling | -60℃ to +85℃ | ≤0.05 | dB/km |
Temperature-humidity cycling | -10℃ to +85℃ 4% to 98% RH | ≤0.05 | dB/km |
Water immersion | 23℃, 30 days | ≤0.05 | dB/km |
Dry heat | 85℃, 30 days | ≤0.05 | dB/km |
Damp heat | 85℃, 85%RH, 30 days | ≤0.05 | dB/km |
Mechanical specification | |||
Proof test | ≥100 | kpsi | |
Macro bending induced loss | |||
1Turns @10mm Radius | 1550nm | ≤0.5 | dB |
1Turns @10mm Radius | 1625nm | ≤1.5 | dB |
10Turns @15mm Radius | 1550nm | ≤0.05 | dB |
10Turns @15mm Radius | 1625nm | ≤0.30 | dB |
100Turns @25mm Radius | 1310&1550&1625 nm | ≤0.01 | dB |
Dynamic stress corrosion susceptibility parameter | 20 |
Fibre Colours
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.
Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.
Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.
The main application for FTTH drop cable is Fiber to The Home project.
Yes, it is suitable for outdoor application with 70meters pole span.
The strength member for FTTH drop cable can be FRP or steel wire.
FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
