High Density MPO MTP Fiber Optical Distribution Frame 1U 96 Fibers

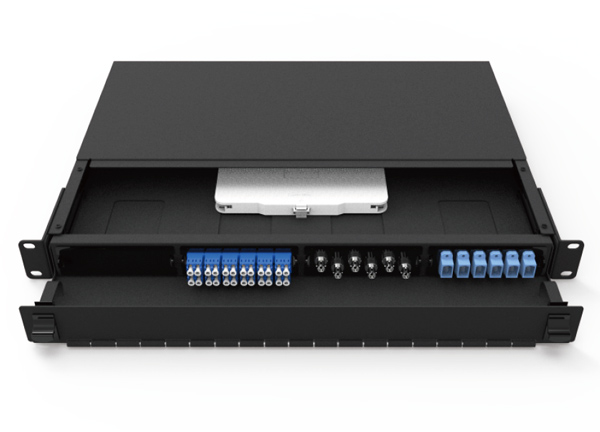

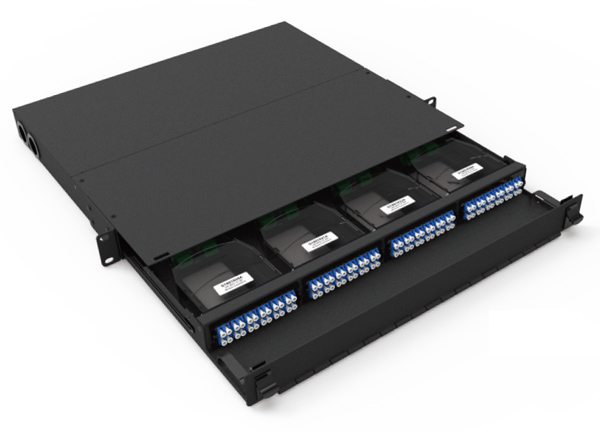

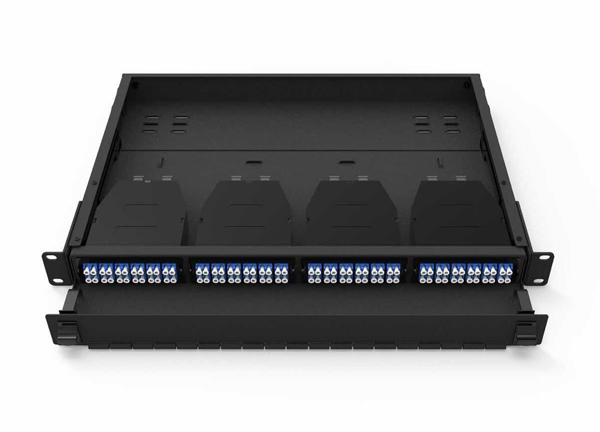

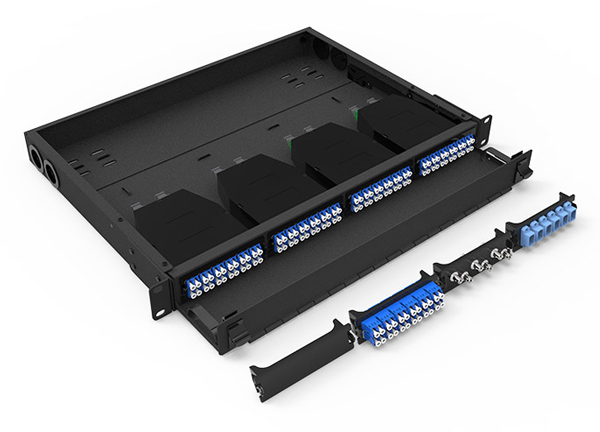

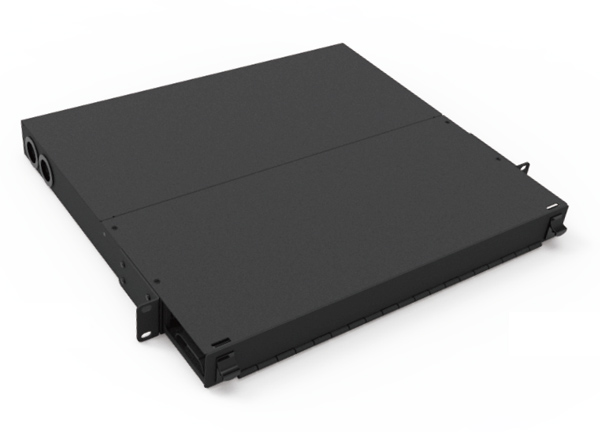

This MPO/MTP panel is a 19-inch standard type, with pull-out tray, two ABS rails on both sides of the panel box and front flaps at the front of the box. There are two kinds of fiber cable distribution methods : MPO/MTP module cassettes and melting fiber cables. MPO/MTP module splitting can be achieved by installing the MPO module cassettes. And the splice fiber splitting will be achieved by mountng LC, SC, ST and FC adapter plates and splice trays in the panel box. Our sliding type MPO/MTP optical panel apply in high-density telecommunication constructions and fusible fiber splitting cabling systems. At present, the mass production model is only 1U height, and it can accommodate up to 96 cores. It can be developed 2U, 3U and 4U products according to customer needs.


Fiber Optic
Details
Parameter

Details of High Density MPO MTP Fiber Optical Distribution Frame 1U 96 fibers

Features:


  • High density wiring application condition

  • Standard 19''

  • High-density, 1U 96 fibers

  • ABS sliding drawer, easily installed

  • Can be loaded ABS MPO module box or LC/SC/FC/ST adapters

  • Sprayed surface treatment process

  • Customizable color and LOGO


Applications:


  • Applied in the computer center and computer room

  • Suitable for high density date center and base station cabling construction.

  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV

Network Cabling Solution



Delivery:


High Density MPO MTP Fiber Optical Distribution Frame 1U 96 Fibers


Production:


High Density MPO MTP Fiber Optical Distribution Frame 1U 96 Fibers


Parameter of High Density MPO MTP Fiber Optical Distribution Frame 1U 96 fibers

Packing information:

Model

Product Size

(cm)

Max.Fiber

 Inner CTN (cm)

Outer CTN(cm)

Color

UF-SM96

48.26*42.3*4.4

96

51*45.5*5

52*47*28

Black(RAL9005)
Beige(RAL1001)
