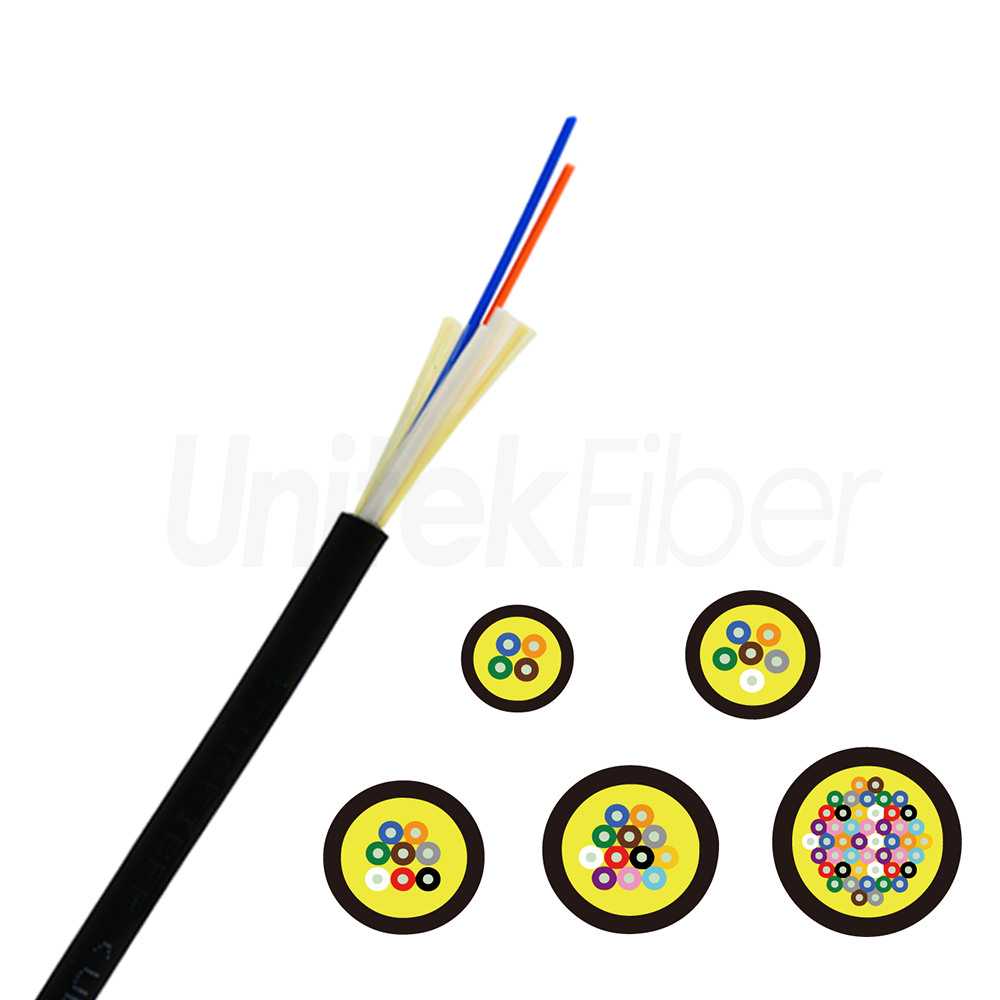

Breakout Indoor Outdoor Drop Cable use 900um tight buffer fiber as the optical communication medium, the tight buffer fiber wrapped with a layer of Aramid yarn as strength member units. And the fiber optic drop cable is completed with a PVC, LSZH, PVC-OFNR or PVC-OFNP outer sheath. When integrated with Corning G.657.A1 singlemode OS2 fibers, the drop cable has a minimum bend radius of 10mm, a key advantage for routing in tight spaces and around sharp corners. This non-metallic breakout fiber optic drop cable boasts a compact design, complemented by outstanding flame-retardent LSZH jacket, enhanced tensile strength, and bended sensitive fiber glass for superior bend performance. Ideally suited for use as a backbone distribution cable for buildings, or using as multi-fiber patch cord or pigtail.

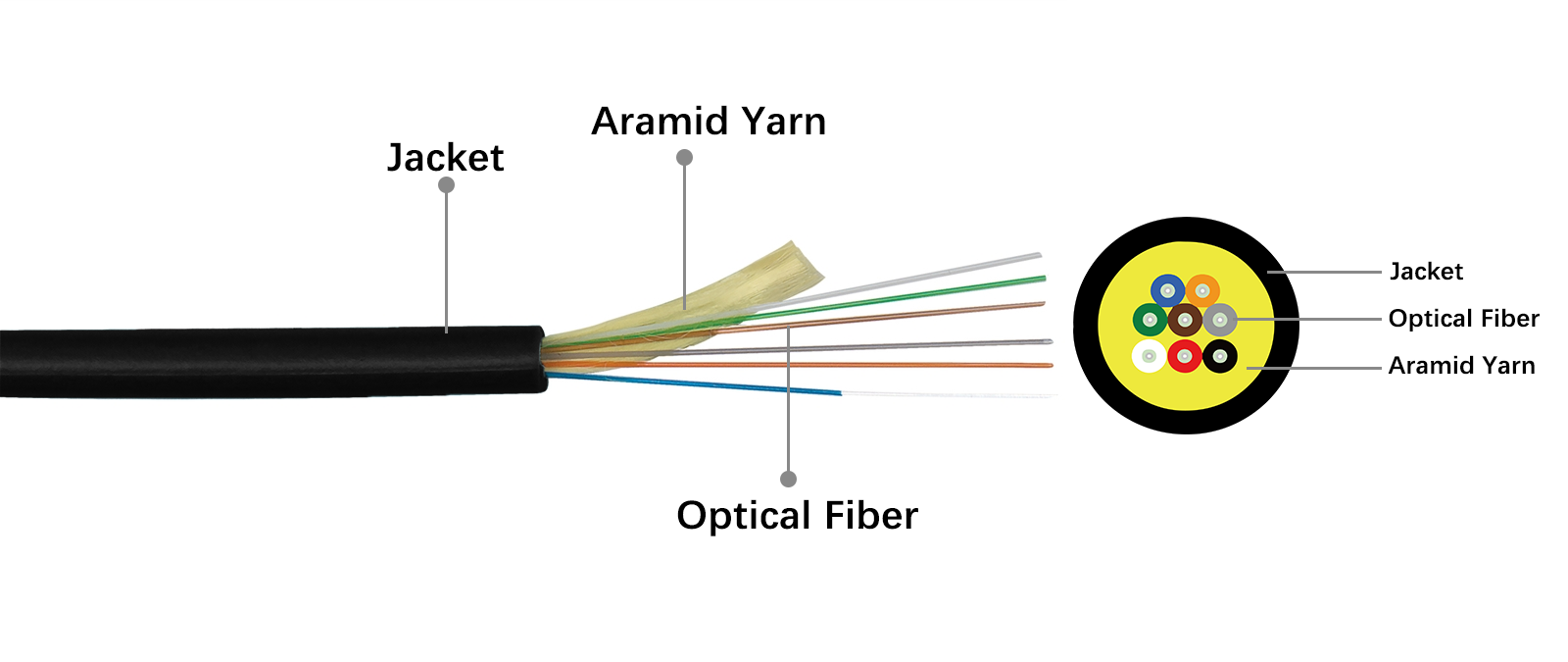

The 0.9mm tight buffer bulk fiber drop cable has a compact, rugged structure ideal for high density indoor and outdoor cabling. Its singlemode or multimode fiber core is wrapped in a 0.9mm tight buffer layer, which protects against bending and crushing while ensuring stable signal transmission. Integrated aramid yarn increase tensile strength for easy installation, and the drop cable is finished with a durable outer jacket, available in LSZH, OFNP, OFNR or ect.

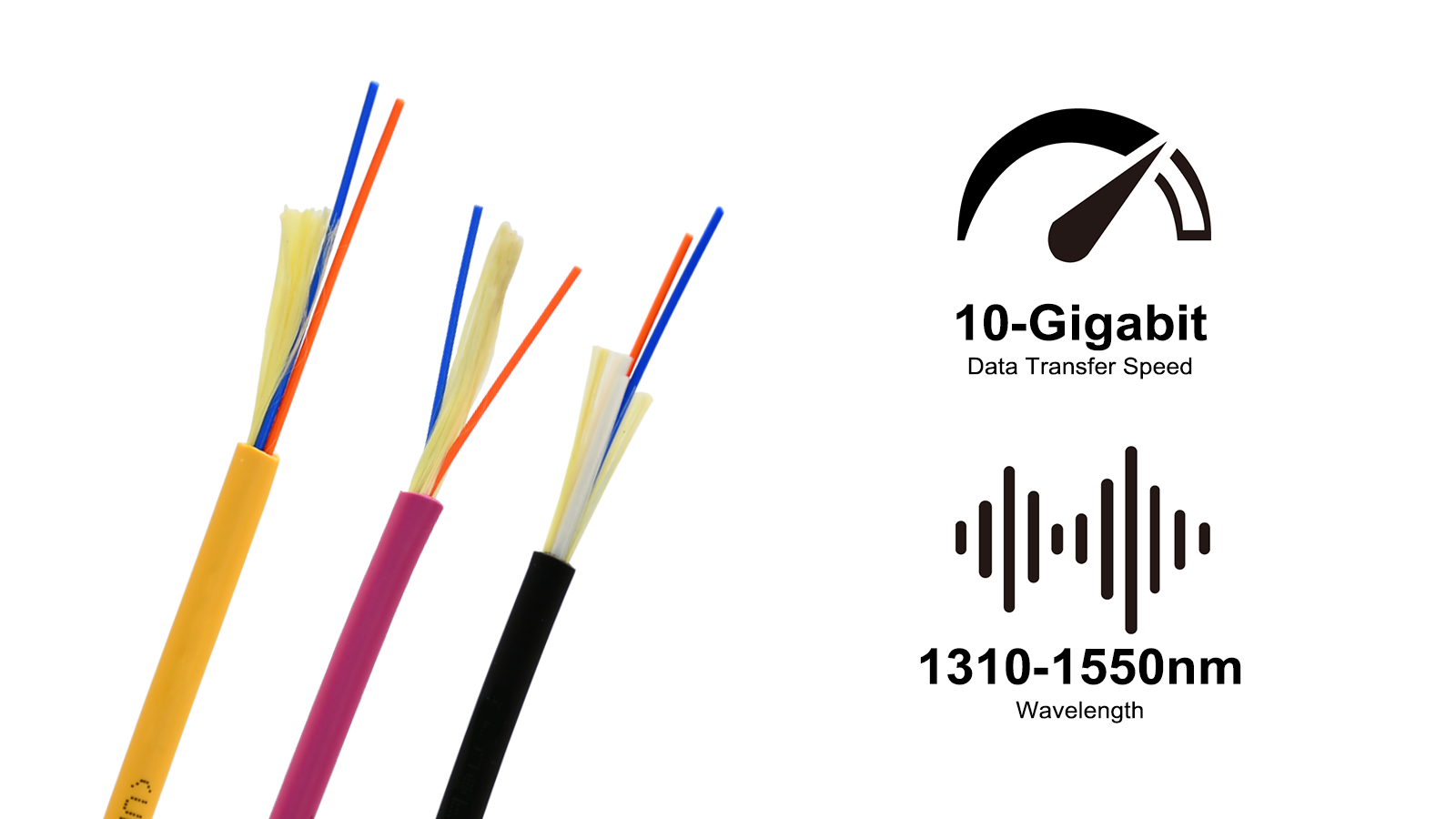

This fiber optic drop cable engineered with Corning® fiber glass singlemode OS2 fiber, this drop cable supports 1 Gigabit speeds up to 10,000 meters and 10 Gigabit speeds up to 5,000 meters at 1310nm and 1550nm wavelengths. Optimized for ultra low signal loss, the optical loss budget will be easier to preserve while delivering rapid, stable, and high capacity networking in critical data applications. Meanwhile, Corning fiber glass is bended sensitive, which mean the fiber drop cable can easily adapt to wiring in tight spaces such as corners and pipe bends, without worrying about signal attenuation or damage caused by excessive bending.

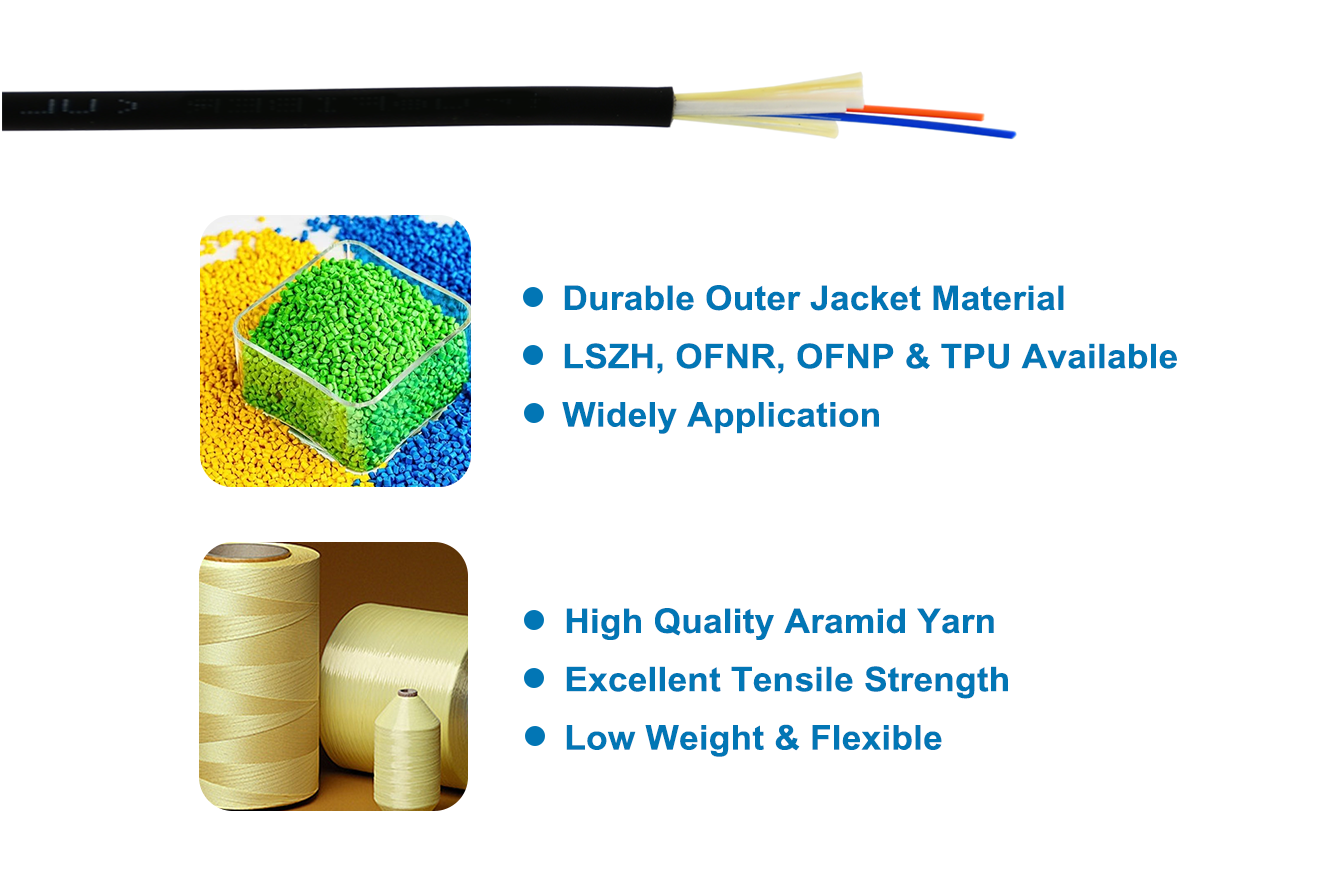

Built to withstand abrasion, impact, and frequent handling, the tough flame-retardent LSZH jacket and Kevlar® aramid yarn reinforcement helps avoid costly damage, even in the most challenging installations. High strength aramid yarn is used as a reinforcing component, with a tensile strength of up to 300N (short term) / 150N (long term), effectively resisting tensile damage during construction. Other sheath materials, like UL listed OFNR, OFNP and TPU, are available on request.
Breakout fiber optic drop cables are widely applied solutions for diverse optical communication scenarios, with main applications as follows:
Core network infrastructure: Fiber optic telecommunications networks, broadband networks, and CATV systems or etc
High density data transmission setups: Data centers, MPO|MTP high density wiring systems
Indoor connectivity applications: Interconnect lines for fiber pigtails and fiber patch cords in equipment connections
Optical linkages in optical communication rooms and on optical distribution frames
Yes, it is suitable for enterprise network applications, as well as home networks, data centers, and Fiber to The Home (FTTH) applications.
Yes, it has excellent high temperature performance, allowing it to withstand high-temperature conditions.
Yes, we also produces indoor fiber drop cables, duct fiber cable, figure 8 fiber cable, direct buried fiber optic cables, fiber optic patchcords, SFP optical transceivers, and other fiber optic products for data centers.
The available sizes are 0.9mm and 0.6mm (corresponding to 900um and 600um). It depends on the fiber core you required.
Aramid yarn is used as the strength member unit. Also, the glass yarn are also available.
Selected this after comparing multiple suppliers for corporate campus wiring. Its flame-retardant performance is excellent, with the OFNP jacket performing exceptionally in tests. It also offers great UV resistance and waterproofing, making it suitable for both outdoor-to-indoor transitions.
As a procurement specialist, this cable’s versatility stands out. For intra-building backbones or telecom room routing, it performs reliably. Worth every penny.
Purchased 12core drop cable for our company’s branch offices. Installation is quick and easy, and the cable’s compact design saves space in cable ducts. Transmission speed is consistent, and we’ve had zero maintenance issues so far.
We purchase the drop cable to produce the bulk fiber pigtial and breakout fiber patchcord. And the quality is so great.
This distributio fiber drop cable has simplified our building to building connectivity. The 24core capacity handles large data volumes effortlessly, and the low bend radius allows for neat wiring in tight spaces. UnitekFiber’s quality control is top grade.
