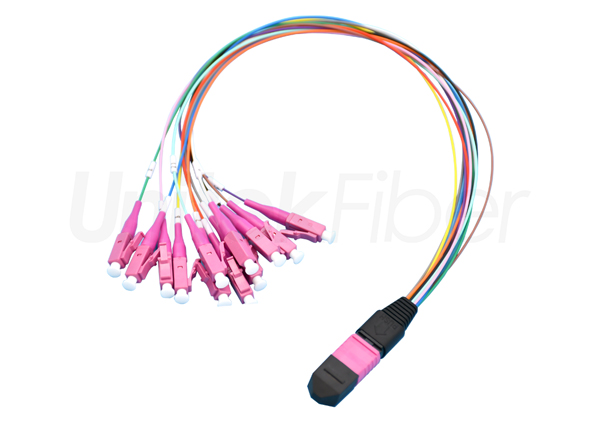

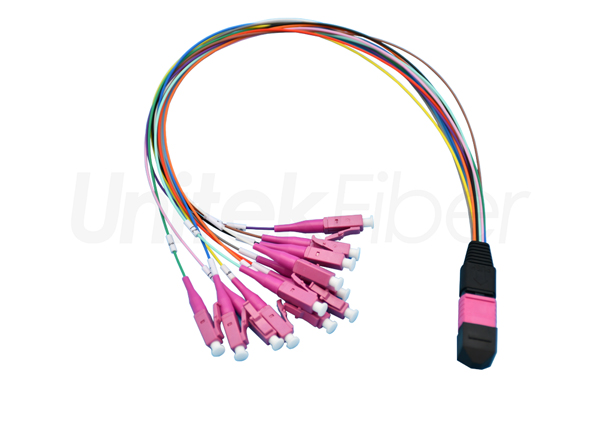

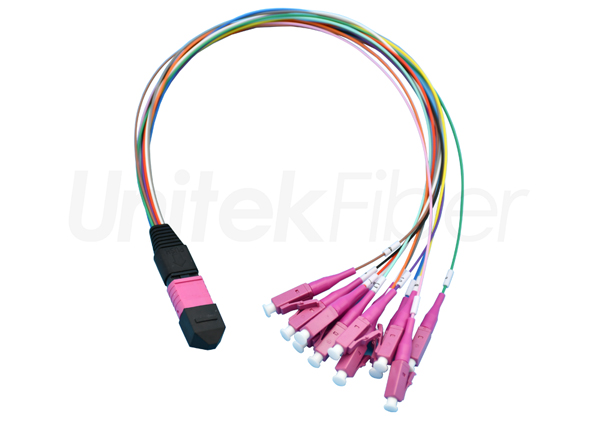

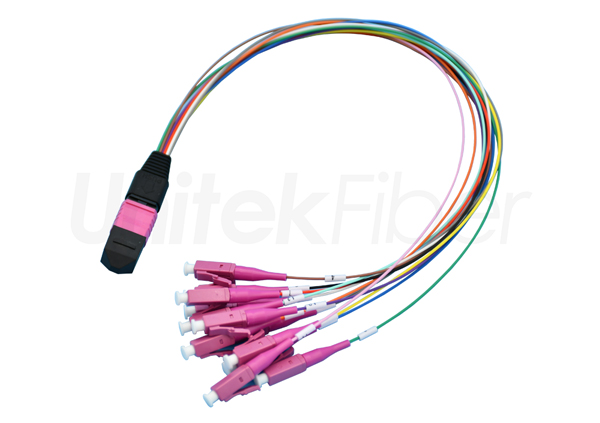

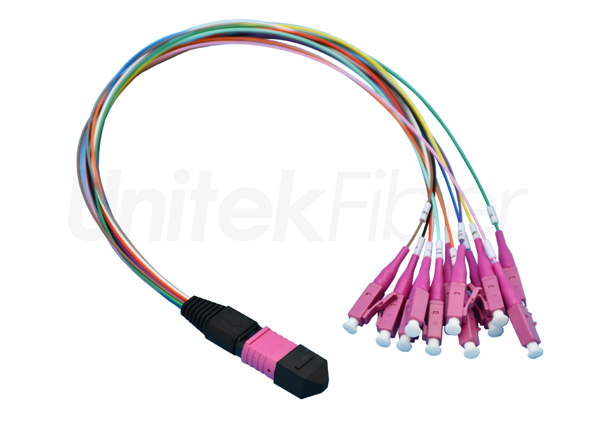

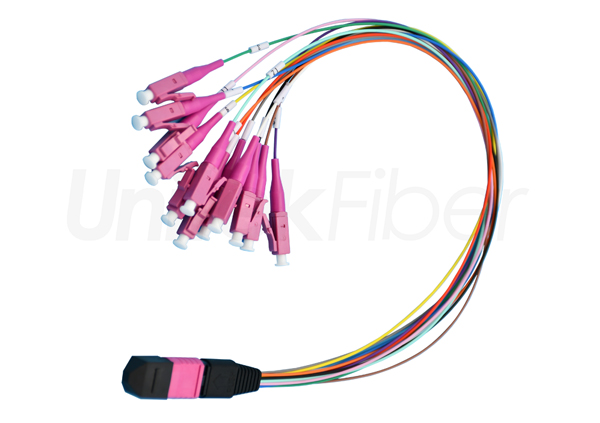

The 12 cores LC-MPO fiber optic patch cables, one end is MPO/MTP connector, and the other end can be matched with various connectors, such as LC, SC, FC, ST connectors. Through the pre-terminated technology, the transmission rate can be divided equally among the interfaces, so as to realize the high-speed MTP/MPO fiber cable solution. The Breakout MPO/MTP fiber cable is often used in MPO/MTP fiber optic cassette module. The breakout 12 cores LC-MPO/MTP fiber optic patch cord redistribute a variety of fibers to individual devices without the need for additional network equipment. 12 cores LC-MPO fiber cables reduce the overall cost and installation time of complex in high-density network environments. This series of multi-mode OM4 fiber optic patch cord features with LSZH, PVC to simplify short distance data transmission even in harsh operating environments.
In the high-density data center, there are so many fiber optic distribution frame. Using in the fiber cassette module, the breakout 12C MPO/MTP connector on one end, and LC connectors on the other end, the fiber optic patch cable are simplifies cable management by minimizing the number of individual fiber optic patch cords required. The 12 cores breakout OM4 MPO/MTP fiber optic patch cord plays an crucial role when using high-density fiber optic patch panel, because it is establishing reliable and high-performance connections between network components. The MPO/MTP fiber optical jumper make the large number of fibers transfer the data simultaneously, keeping the greatest network capacity. It could be reduce the risk of optical patch cable congestion and makes it easier to trace and troubleshoot connections when necessary.

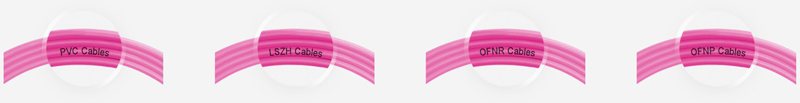

The patch cord supports 8/12/24-fiber ferrule MPO/MTP connectors on one end, either Male or Female options. The other end supports connectors such as LC, ST, FC, and SC, offering adaptability to various network configurations. Users can choose MPO/MTP fiber patch cord polarity from type A(straight-through), type B(Cross), or type C(Cross Pair). When looking at the construction of any fiber optic patch cable, the cable jacket is the first line of defense against physical damage from chemicals, water, burning and other potentially damaging effects that would compromise the viability of the cable. UnitekFiber’s MPO/MTP fiber cable jacket materials including PVC, OFNP/OFNR or LSZH catering to different environmental requirements.

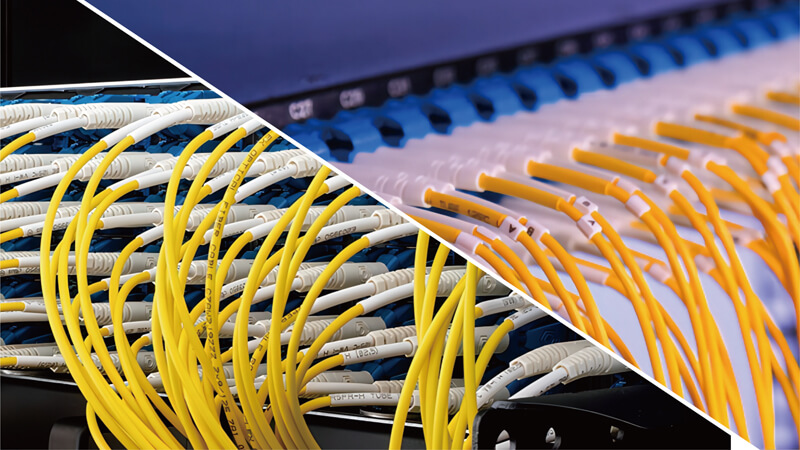

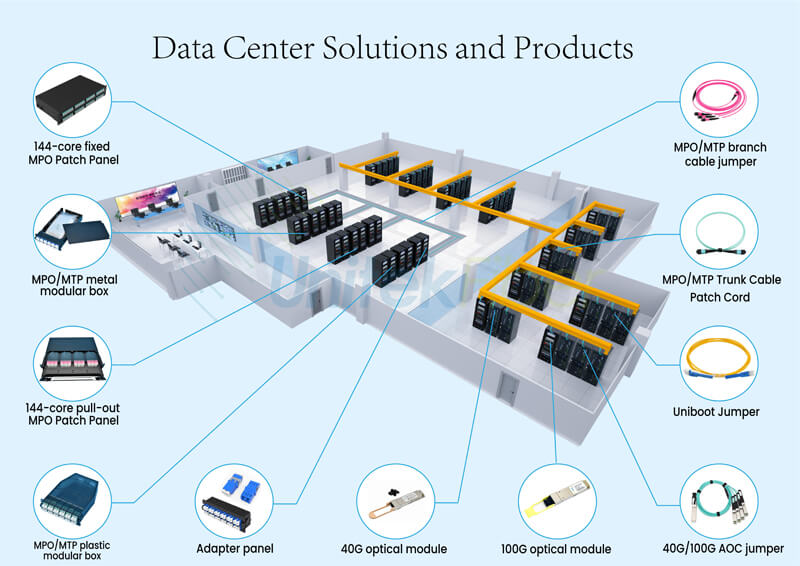

MTP/MPO fiber optic patch cords are suitable for optical fiber communication applications, such as data centers and 5G mobile communications, which can realize fast and flexible interconnection between optical fibers, reduce plugging loss and dust-proof problems, improve fiber utilization and network capacity. MPO/MTP fiber optic jumper are an ideal cabling solution for data centers, providing high-density, plug-and-play connectivity with scalability and efficient optical cable management. The MPO/MTP fiber cable enable rapid deployment, supporting high-bandwidth applications and accommodating future growth. With MPO/MTP fiber optic jumper, data center operators can optimize space utilization, ensure seamless connectivity between network devices, and streamline maintenance and troubleshooting activities.
The Breakout MPO to LC fiber optic patch cord is available in various lengths. You can also customize the length you want.
The MTP connectors are fully compliant with the MPO standards, compared to generic MPO connectors, the MPO connector could achieved higher performance levels.

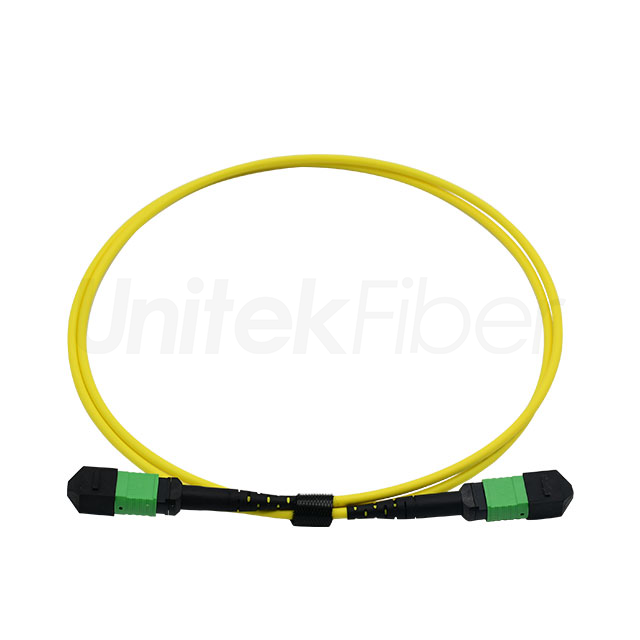

Yellow jacket shows that cable has a Single-Mode, and Beige, Aqua, Pink, Green jacket shows that cable has a Multi-mode. Jacket Color Table shows most used equipment cable category and corresponding color.
Type A MPO adapters all have a key up on one side and the mating connector key down on the other side. Type B trunk cable uses key up connector on both ends. This type of array mating results in an inversion, which means the fiber positions are reversed at each end.
The MTP/MPO system has proven to be an effective solution for cable congestion in data centers and businesses due to its scalability, dependability, and flexibility.
Connector Technical Parameter
Model | MM | |||
Connector A : MPO/MTP | ||||
Insertion Loss | Standard | ≤0.70dB | ||
Elite Low Loss | ≤0.35dB | |||
Return Loss | PC≥25dB | |||
Test Wavelength | 850nm&1300nm | |||
Connector B: LC | ||||
Insertion Loss | Standard | ≤0.30dB | ||
Return Loss | PC≥35dB | |||
Test Wavelength | 850nm&1300nm | |||
Cable Dimensions and Constructions
Items | Descriptions | |
Optical Fiber | Fiber count | 12 |
Color | Optical Fiber Chromatography | |
Sheath | Material | LSZH/OFNR/OFNP |
Color | Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Purple、Pink、Aqua | |
Diameter | 0.9±0.05mm | |
Mechanical and Environmental Characteristics
Items | Descriptions | |
Tensile | short-term | 6N |
long-term | 2N | |
Min.Bend Radius（Dynamic） | mm | 50 |
Min.Bend Radius（Static） | mm | 30 |
Operating Temperature | - 2 0 ℃-+ 6 0 ℃ | |
Temperature Range | - 2 0 ℃-+ 6 0 ℃ | |
This product do a well work on the data center, absolutely save the space, save the installation time and could be manage the cable better than before. Highly recommended.
This distribution MPO/MTP fiber optic patch cord has greatly improved our network efficiency.
Our data center was in dire need of a more efficient cabling solution, and the MPO/MTP fiber optic jumpers delivered exactly that.
Seems to be well constructed , works perfectly as expected.
The MPO/MTP fiber optic patch cords have simplified our cable management and reduced the time required for installation and maintenance.
