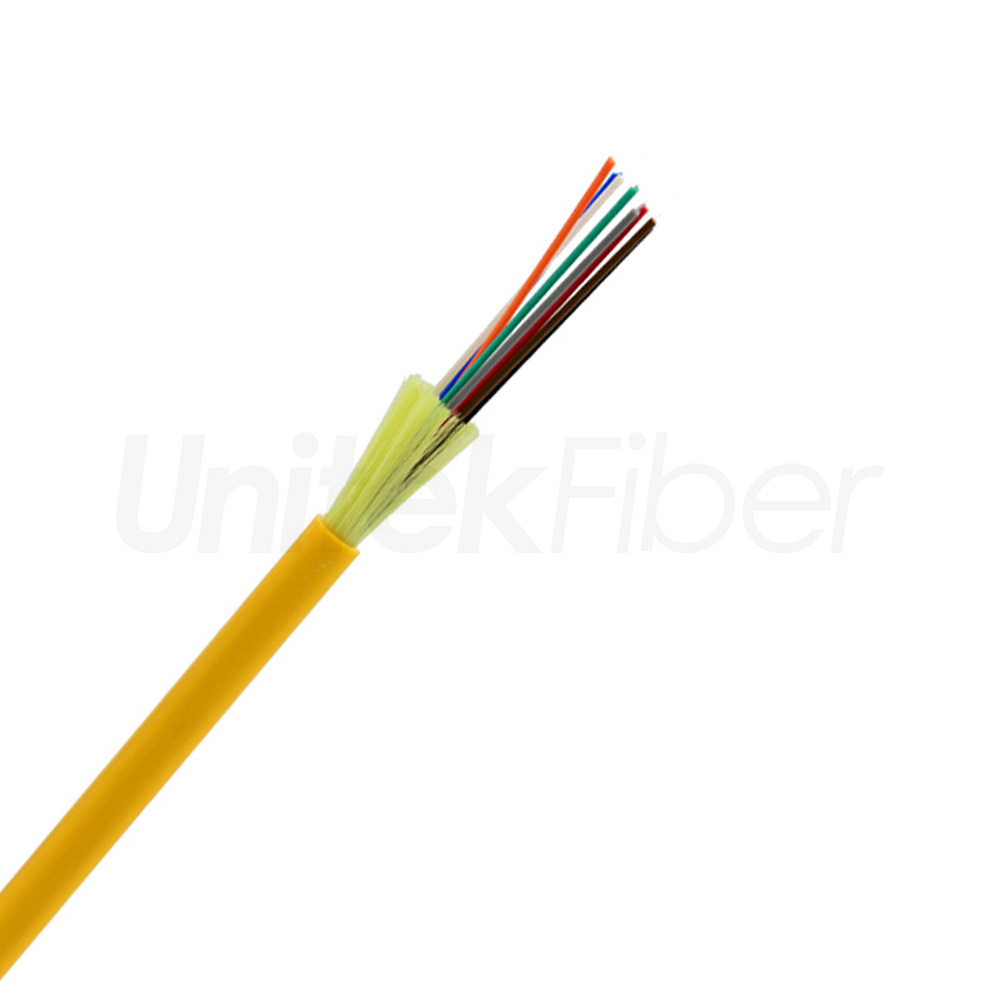

UnitekFiber 5.2mm round indoor outdoor drop cable equipped with singlemode G657A1 fiber, supports long distance and low loss signal transmission. The 6 fiber bundle design, consisting of 900μm tight buffered fibers, provides reliable multi-channel data transmission. And the indoor outdoor drop cable is protected by aramid yarns for strength and wrapped with a UL listed PVC-OFNP jacket. Suitable for connecting individual buildings or homes to a larger fiber network, or both indoor and outdoor installations in tight spaces like ducts or wall grooves. Its key applications include FTTH and data center general high speed data transmission.

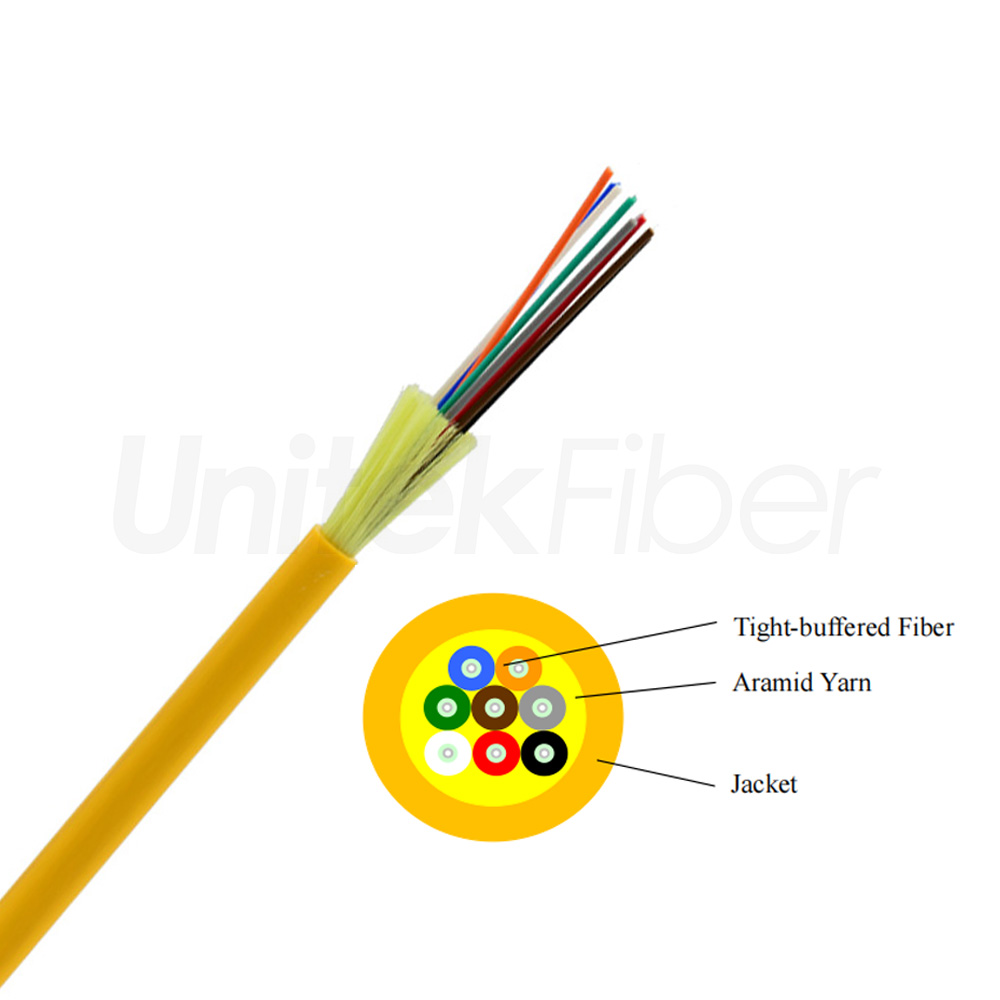

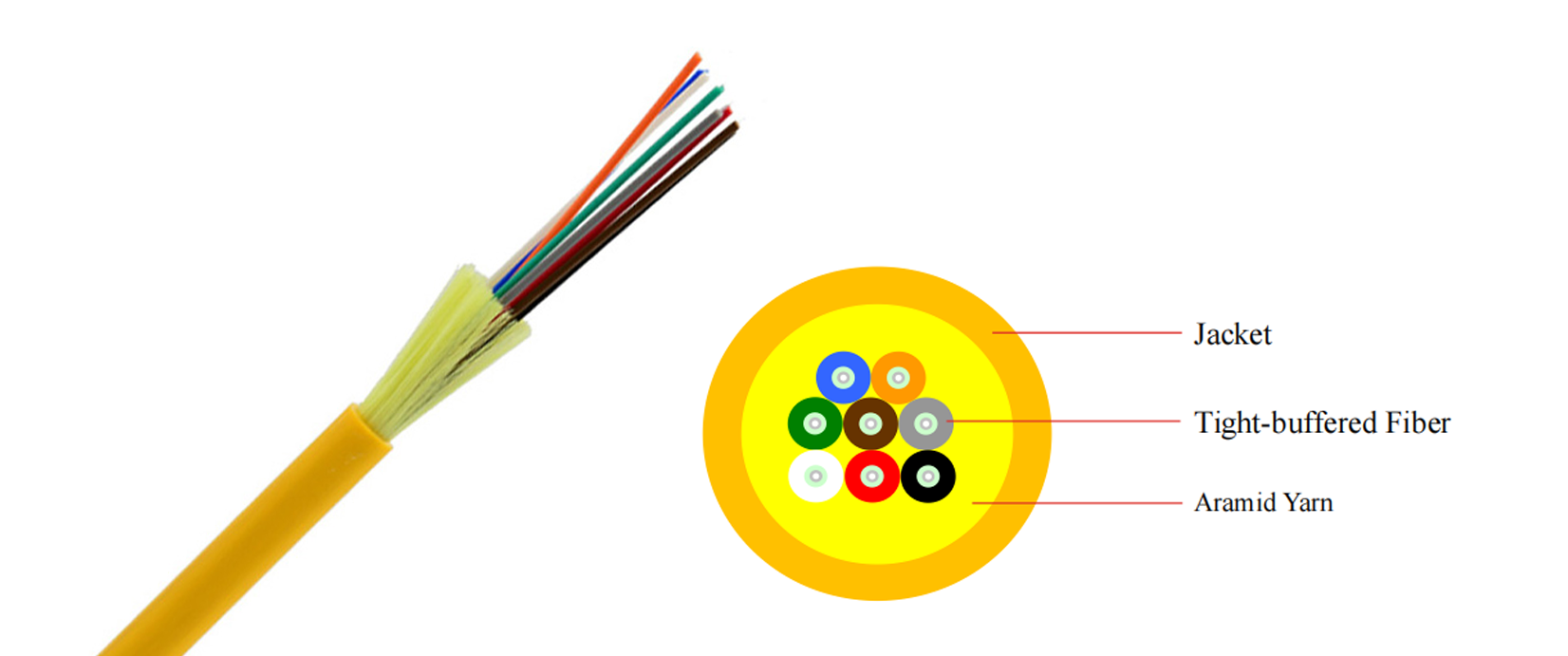

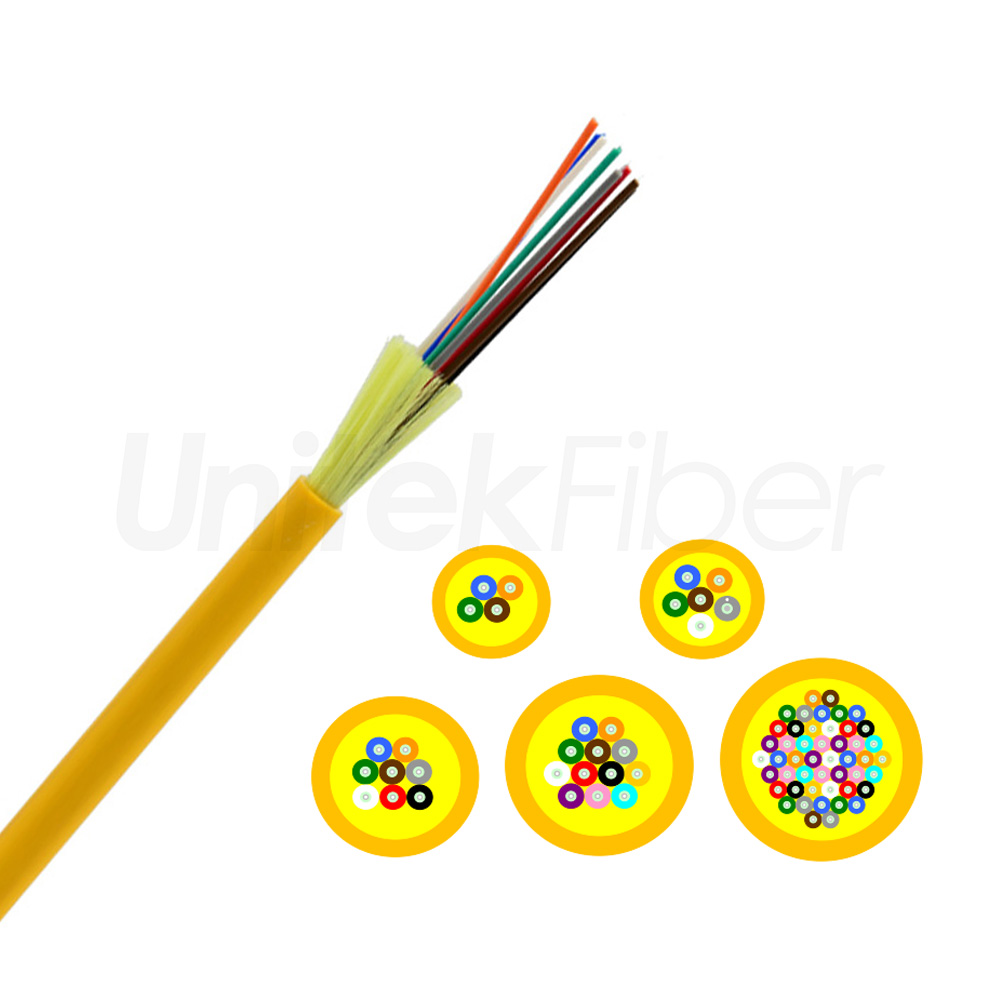

UnitekFiber’s 900um tight buffer 4.0mm/5.2mm/6.2mm fiber drop cable features a compact, lightweight and soft design with excellent tensile strength and durability, making it ideal for use in Fiber to the Home (FTTH) applications. The structure of fiber drop cable generally includes bended insensitive optical fiber (1-24cores) with a aramid yarn as a strength member and protected by a robust UL Listed PVC-OFNP outer jacket, which is suitable for plenum area of data center.
UnitekFiber's indoor outdoor fiber drop cable come with multiple key advantages. As its 5.2mm with 6fibers, the fiber drop cable is compact and lightweight, which enables easy installation, particularly in tight spaces or existing ducts. The indoor outdoor drop cable add aramid yarn as a strengthen member to deliver excellent resistance to bending, crushing, and high tensile strength(150N for short term, for 300N long term), ensuring reliable performance across various environments. And by using singlemode G657A1 fiber, fiber drop cable offers high bandwidth, fast data transmission speeds, and low signal attenuation over long distances. 0.9mm tight buffer design is compatible with standard tooling and connectors, simplifying the installation process.
6cores 0.9mm tight buffer fiber drop cable is primarily used in indoor cabling applications where durability, flexibility, and easy termination are required. Its design makes it highly suitable for connecting different parts of a building's network infrastructure, such as inner building backbone cabling, local area Networks (LANs), data center and FTTH internal wiring.
This fiber drop cable are compatible with most standard fiber optic connectors, including SC, LC, ST, and FC connectors. These connectors are widely used in fiber optic networks and can be easily terminated onto the 0.9mm tight buffer fibers using standard termination tools and procedures, ensuring compatibility with existing network infrastructure.
Yes, it can operate within a wide temperature range. This indoor outdoor drop cables can withstand temperatures from approximately -40°C to +70°C. This makes it suitable for use in various climatic conditions, including cold winters and hot summers, without compromising performance.
Yes, we offer customized service, such as fiber core, fiber type, jacket type or ect. Please share us your details required via sales@unitekfiber.com
Yes, we could add glass yarn as an anti-rodent strengthen member.
No, this drop cable is not designed for direct burial.
Our team recently used this 6-core fiber drop cable for a big business network upgrade project, and I was impressed by how easy it was to handle. 5.2mm diameter is just right and easliy to wiring the cable.
We order singlemode G657A1 and multimode OM4 drop cable, and we used it for a 300m outdoor link, there are work great, giving us plenty of bandwidth for future expansion. No dropouts or interference issues, solid performance all around.
Unitekfiber offer UL listed OFNP Rating drop cable, which is top priority for our commercial project. Knowing it meets fire safety standards for plenum spaces meant we didn’t have to worry about code violations. The cable feels durable, and the jacket holds up well against minor abrasions during installation.
We needed a drop cable that could run from our server room through an exterior wall to a rooftop AP, and this drop cable delivered. It transitions seamlessly between indoor and outdoor environments without needing extra protection. The PE jacket resists UV rays and moisture, so we’re confident it’ll last in harsh weather conditions.
We order this 6cores indoor outdoor since we need to produce pigtails. Terminating fiber can be tricky, but the 900um tight buffer on this drop cable made it straightforward. The fibers are easy to strip and prepare, and we had zero issues with connector termination.
