5G Fronthaul has emerged as a key focal point in the construction of next generation networks. To meet stringent requirements, such as low latency, high bandwidth, and high density connectivity, high performance optical transceivers are critical for ensuring the robustness and future readiness of fronthaul architectures.

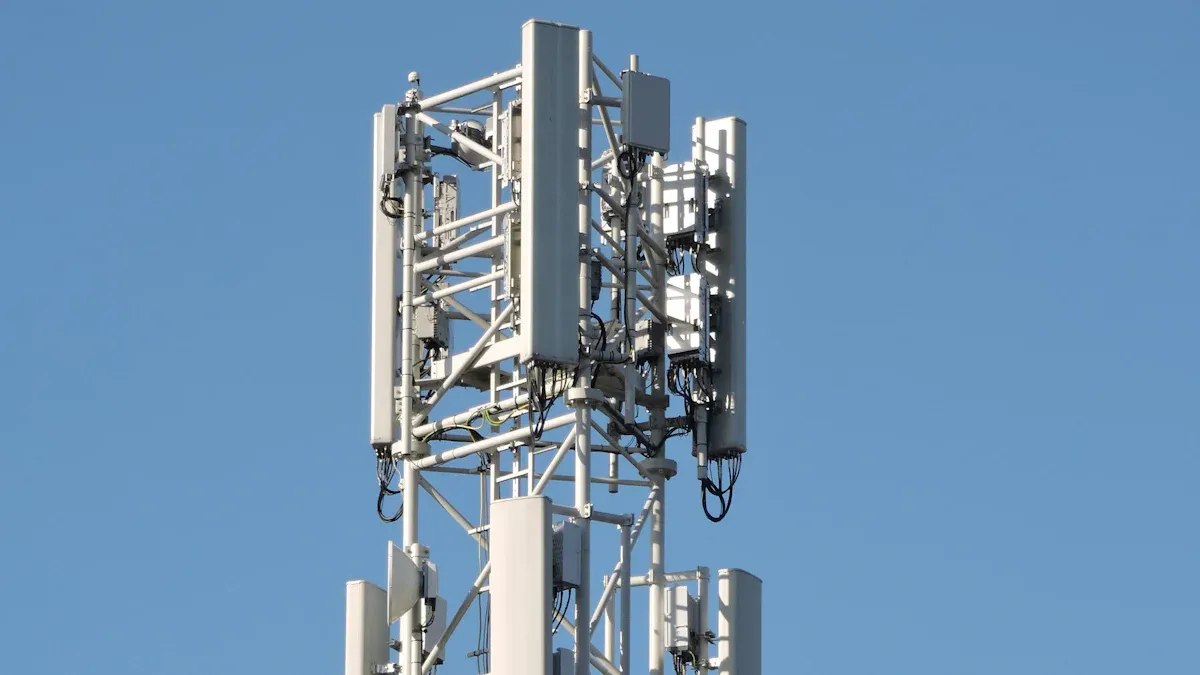

5G networks are typically divided into fronthaul, midhaul, and backhaul. 5G Fronthaul connects the Active Antenna Unit (AAU) and the Distributed Unit (DU), forming the first leg of the transport network. It handles real time data traffic with high precision. Compared to 4G, 5G fronthaul and future 6G fronthaul demands significantly higher speed, tighter synchronization, and wider bandwidth, making fiber optical products the preferred transmission medium.
Both 5G and 6G networks require high transmission speeds, ultra low network latency, and massive device connectivity capabilities, all of requirements that rely heavily on optical transceiver. These compact optical transceiver are responsible for converting electrical signals into optical signals and performing the reverse conversion, thereby forming the high speed backbone connecting 5G radio units, baseband units, and the core network.
To meet the diverse needs of 5G/6G fronthaul, several types of optical transceiver are used to deliver reliable, low latency connections as below:

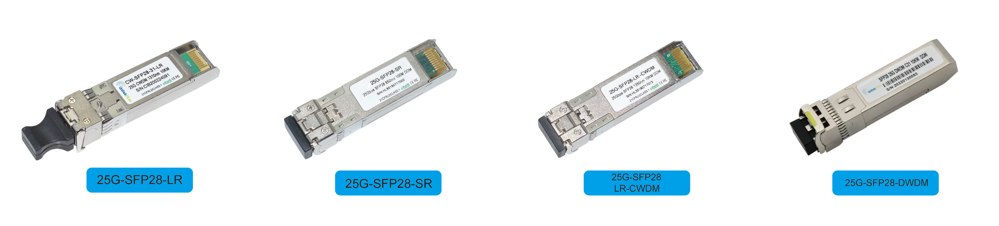

As the prevailing solution for current 5G&6G fronthaul networks, 25G SFP28 optical transceiver delivers exceptional performance within a compact form factor. Accounting for the majority of current installations, 25G SFP28 modules address the core needs of 5G’s initial rollout, supporting both CPRI (24.33Gbps) and eCPRI (25.78Gbps) protocols. They enable long distance transmission over singlemode fiber while maintaining low power consumption.
Meanwhile, 25G SFP28 optical transceivers is offering a variety of model options, including 25G SFP28 BiDi optical transceiver and 25G SFP28 CWDM optical transceiver. 25G optical transceiver can reduce fiber usage by up to 50%, which represents a critical advantage for deployments in dense urban areas where fiber resources are scarce.
Furthermore, industrial grade 25G SFP28 optical transceivers are specifically engineered to operate across a wide temperature range of -40°C to +85°C. Industrial grade optical transceiver are capable of withstanding the rigorous demands of outdoor base stations, ensuring stable and reliable operation in even the most extreme conditions whether in cold or high temperature.
UnitekFiber offers a comprehensive and diverse portfolio of 25G fiber transceiver, providing full support for various application, including transmission distances of 10 km, 20 km, and 40 km, thereby enabling flexible deployment across a wide range of fronthaul environments.
UnitekFiber offers a comprehensive and diverse portfolio of 25G optical transceiver, fully supporting application scenarios spanning 10km, 20km, and 40km, thereby facilitating flexible deployment across various fronthaul environments.
As 5G networks densify and 5G-A services (such as enhanced mobile broadband and ultra-reliable low-latency communication) gain traction, 50Gbps optical transceiver are emerging as the next-generation solution. Built on PAM4 (Pulse Amplitude Modulation 4) technology, 50G SFP56 optical transceiver double the bit rate of 25G modules while maintaining the same form factor and eliminating the need for costly infrastructure upgrades.
50G SFP56 optical modules support a transmission rate of 50Gbps and are compatible with both 53.1G eCPRI and 50.1G CPRI protocols. They are capable of efficiently carrying the explosive data traffic arising in 5G-A deployments due to Massive MIMO (32TR/64TR antennas) and broadband spectrums reaching up to 6GHz. By doubling the bit rate, 50G SFP56 modules reduce the number of required ports by 50%, effectively lowering hardware investment and simplifying network operations and maintenance. Moreover, 50G SFP56 modules support CWDM/DWDM technologies, facilitating multi-AAU fiber sharing and maximizing the utilization of fiber resources, a factor of significant importance for operators seeking to reduce their Total Cost of Ownership (TCO).

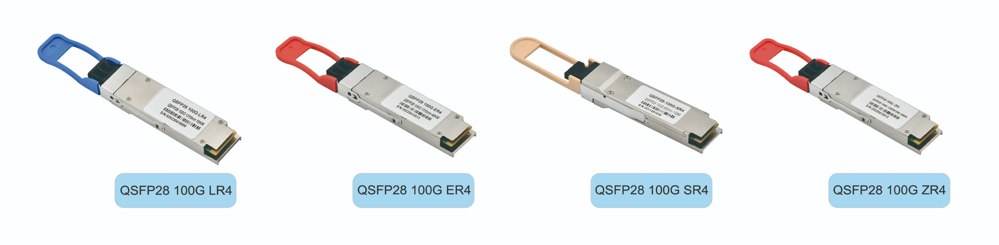

With 6G network development, 100Gbps QSFP28 and higher speed optical transceiver, such as 200G QSFP56 and 400G QSFP-DD optical transceiver, are becoming indispensable core components in high end fronthaul and midhaul scenarios. As 5G Advanced evolves toward the 10GHz and millimeter-wave frequency bands, coupled with the deepening research into 6G technologies, network demand for ultra-high bandwidth will continue to soar. Optical transceiver operating at speeds exceeding 100G not only satisfy the requirements for massive bandwidth and high volume data transmission demanded by next generation applications, such as holographic communication, autonomous driving, and edge AI, but also enable the deep integration of Data Center Interconnect (DCI) and computing power networks.

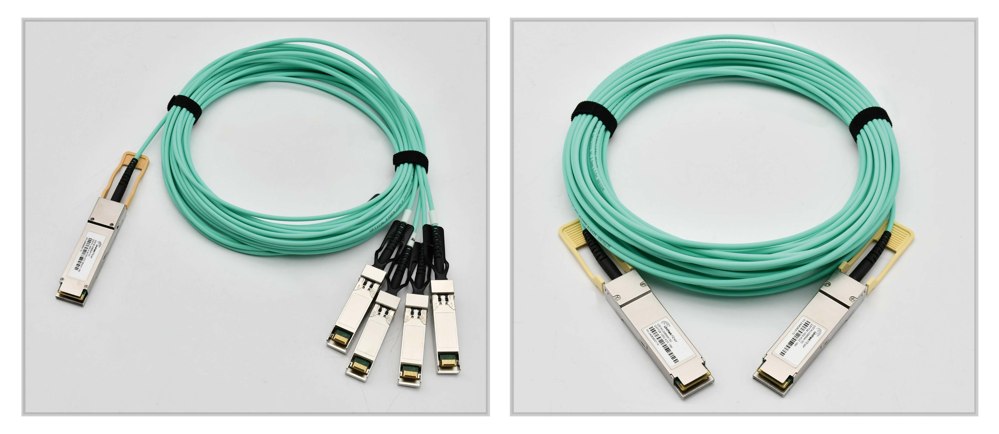

Within baseband units and fronthaul aggregation points, Active Optical Cables (AOCs) and Direct Attach Copper (DACs) cables deliver reliable, high speed connectivity. AOC cables are the ideal choice for long distance transmission (up to 100 meters), while DAC cables, characterized by ultra-low latency, offer a cost-effective solution for short distance connections. UnitekFiber provides customized AOC and DAC cable assemblies supporting data rates ranging from 10G to 400G, designed to optimize interconnections both within racks and between devices.
Explore more about the difference between AOC Cable and DAC Cable, Applications of AOC and DAC Cables in Data Centers
Leveraging over a decade of deep expertise in the design and manufacturing of optical modules, UnitekFiber is dedicated to providing reliable and cost-effective solutions for 5G and 6G fronthaul applications. Guided by principles of precision engineering, rigorous quality control, and responsive service, we have established ourselves as a trusted partner in 5G infrastructure projects worldwide.
Whether you require customized CWDM channels, industrial-grade optical modules, or pre-terminated AOC cables, we can precisely tailor a wide range of fiber optic products to perfectly align with the specific requirements of your 5G and 6G fronthaul applications.
