Why Are MMC & MDC Cable Redefining High Density Cabling？

MMC and MDC fiber patchcords have redefined high-density cabling standards through their compact size, exceptional ease of use, stable high-speed performance, and flexible scalability. By addressing pain points associated with traditional cabling such as space constraints, handling difficulties, and limited bandwidth upgradeability,MDC fiber optic patchcords set a new benchmark for high-density interconnects in AI and hyperscale data centers. Today, let’s take a closer look at MMC and MDC fiber patch cords.



What Are VSFF Connectors?

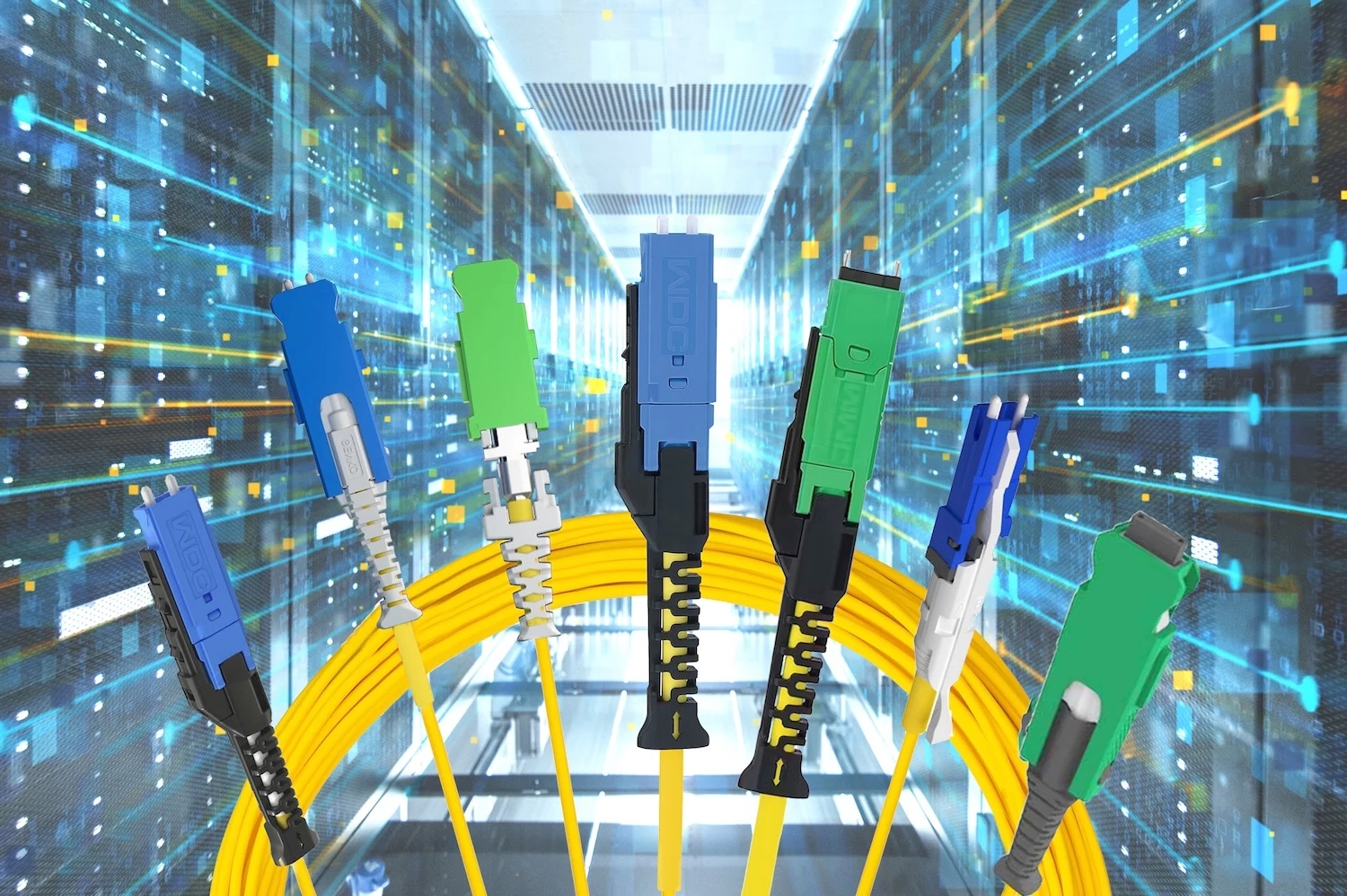

VSFF (Very Small Form Factor) connectors are a new type of fiber patchcord connector designed to maximize fiber density while minimizing physical footprint. The goal of VSFF technology is to enable more connections per unit of rack space without compromising optical performance, reliability, or ease of use.



Smaller in size than traditional LC and MPO fiber patch cords connectors, they are designed to meet the exploding demand for connectivity in hyperscale data centers, cloud infrastructure, and 5G networks. In addition, many VSFF solutions feature a “push-pull” ferrule design that supports tool-free operation; when combined with dust-shield technology, they offer safety, cleanliness, and environmental benefits by reducing the need for disposable dust caps.





The two main types of VSFF connectors include:

MDC (Mini Duplex Connector)

The MDC fiber patchcord is with VSFF (Very Small Form Factor) connector designed to directly replace LC connectors in duplex applications. With its compact size, the MDC fiber optic patchcord triples connector density compared to LC connectors while maintaining reliable performance. Featuring a push-pull sleeve design, the connector of MDC fiber patchcord supports tool-free installation and facilitates field operations,making it highly valuable in hyperscale data centers and telecommunications environments.

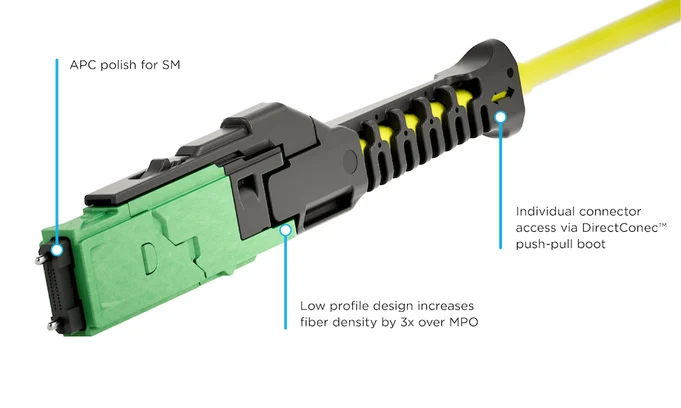

MMC (Mini Multi-fiber Connector)

MMC fiber patchcord is with new-generation multi-fiber connector based on MPO technology, but with a significantly reduced footprint. It enables higher port density in transceiver modules, cassette,and patch panels,supporting 16-fiber and future 32-fiber designs. As bandwidth demands continue to grow, MMC fiber patch cords  ensure the scalability of the system.

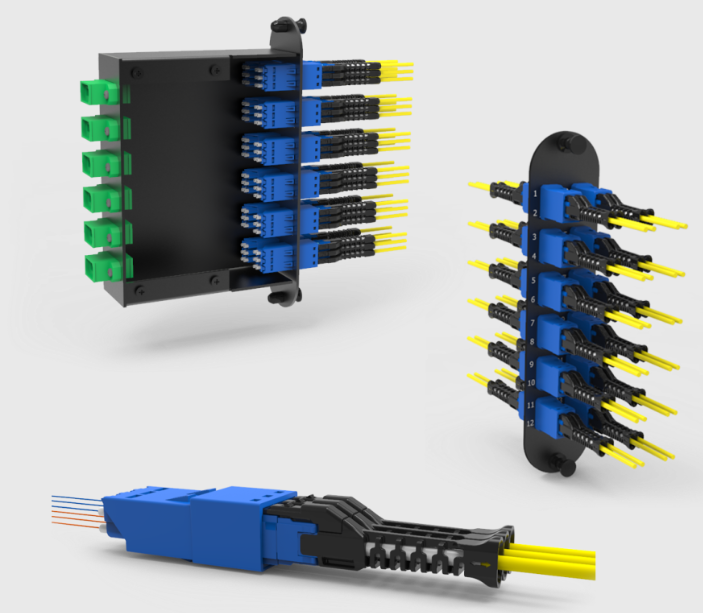

Density Advantages of MDC and MMC in 1U Panels

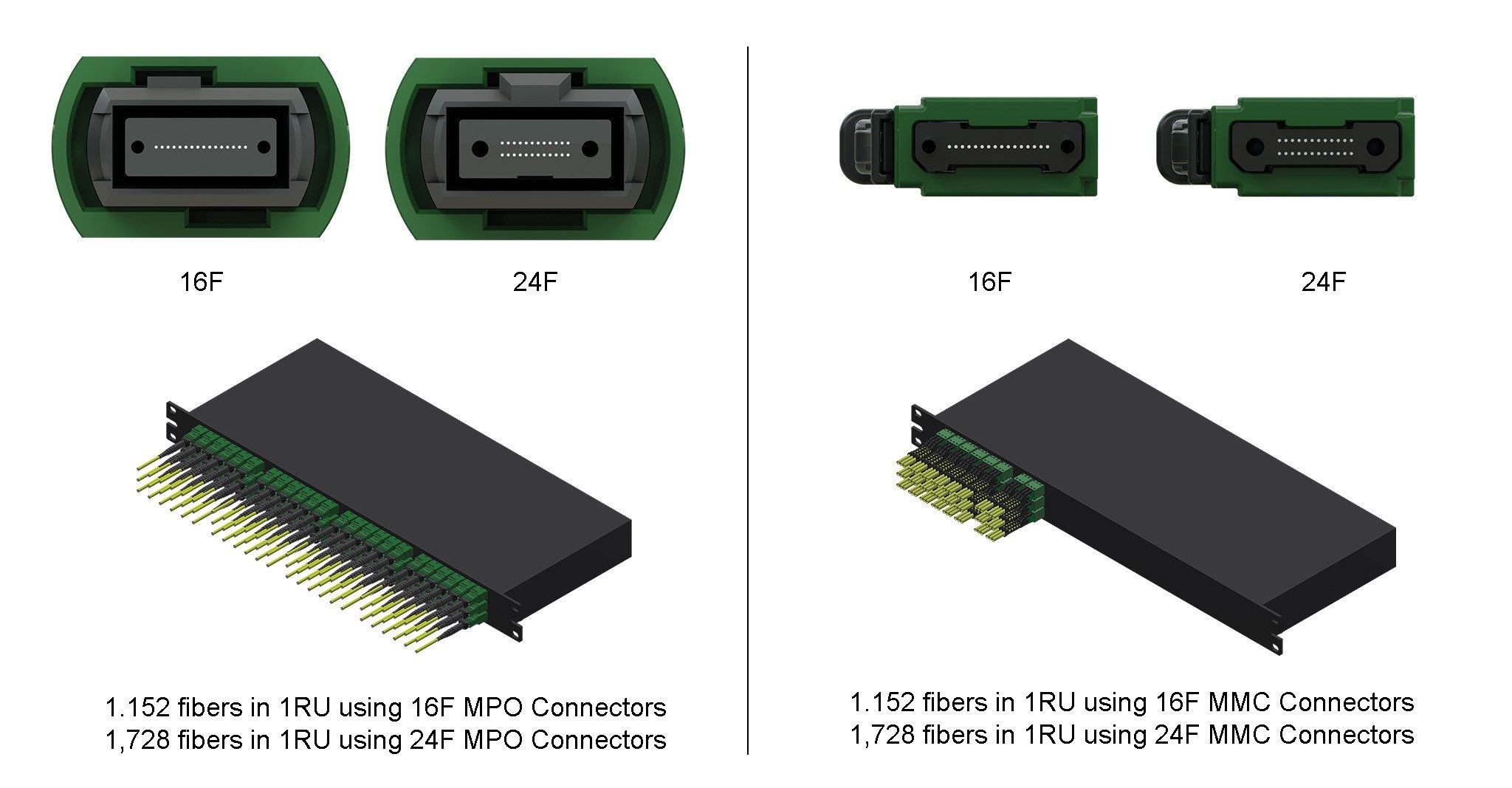

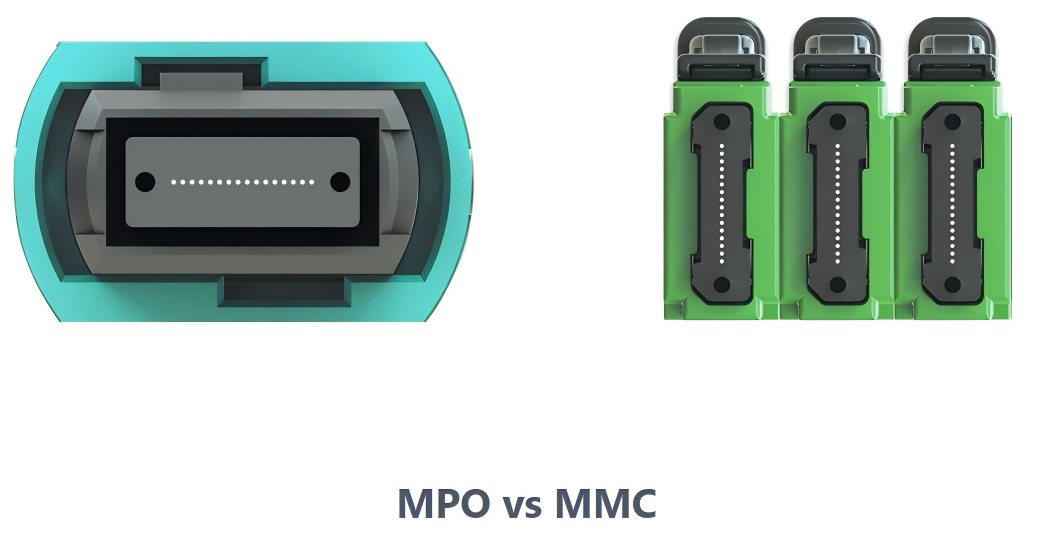

The Comparison of MPO and MMC in 1U Panels

When comparing panel capacity, the practical advantages of MMC fiber patch cable are clear. A 1U patch panel with MPO fiber optic connectors typically accommodates 72 connections.While the same 1U patch panel with MMC fiber optic connectors can accommodate 264 connections.This represents a 3.7times increase in density, enabling service providers to expand bandwidth while reducing rack space, simplifying cabling, and lowering overall infrastructure costs.For facilities facing a surge in fiber counts due to support for hyperscale data centers, 5G backhaul, and terabit-scale architectures, MMC fiber optic patchcord is not only an upgrade but it is a necessity.

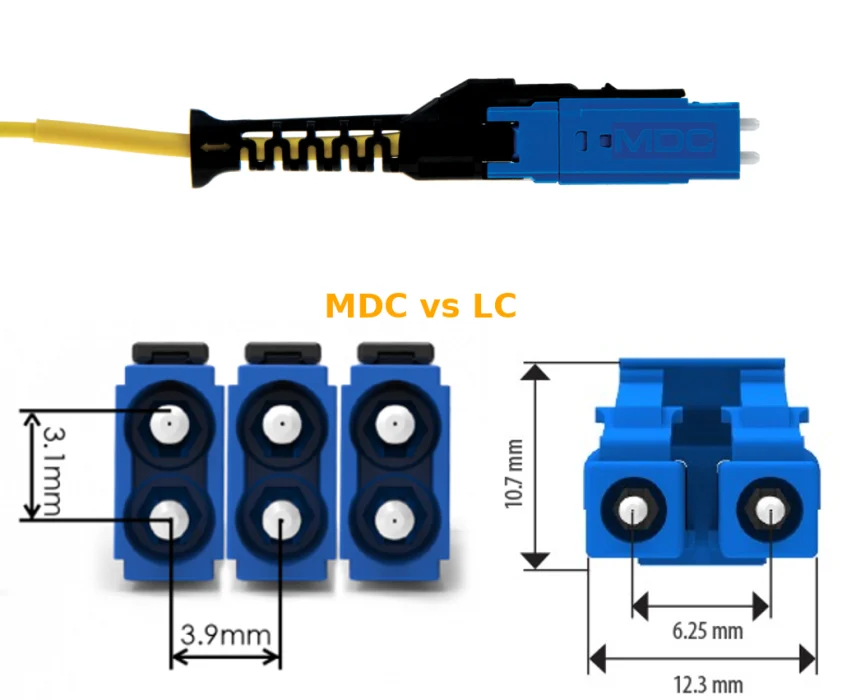

The Comparison of LC and MDC in 1U Panels

LC and MDC fiber patchcords differ sharply when used on 1U fiber panels, mainly in port density and practical operation. A standard 1U panel only holds up to 96 LC duplex ports, while MDC triples this capacity to 288 ports thanks to its miniature VSFF design,tripling 3times cabling density. Thick LC fiber optic jumpers crowd the panel and block rack airflow, but slim MDC fiber optic patch cords reserve space for heat dissipation. LC lacks convenient pull tabs and is hard to operate in dense layouts, while MDC’s push-pull boots enable easy plugging and tool-free polarity adjustment. Both support high-speed optical transmission, but MDC fiber patch cords deliver more stable low-loss performance via factory pre-termination. LC fiber patchcords fits low-density traditional wiring, while MDC fiber patchcords become the optimal solution for high-capacity 1U panels in modern AI and hyperscale data centers.



Conclusion

As the industry transitions into the stage of VSFFconnectivity, MDC and MMC fiber patchcords are becoming the new benchmarks for efficiency and scalability. The ability to achieve 3.7x the density in 1U panels is a game changer for hyperscale and telecom applications. UnitekFiber is a leading fiber optic patchcords supplier offering high quality fiber optic jumpers, including LC/SC/ST/FC,MPO/MTP and VSFF fiber patch cords etc. All products undergo strict testing before shipment to ensure long term stable performance. If you need any support, pls feel free to contact us at sales@unitekfiber.com.
