The Best DB for Optical Fiber

The Best DB for Optical Fiber

Optic fiber are widely used in telecommunication and data transmission systems due to their high-bandwidth capabilities and ability to transmit over long distances. However, the quality of the signal over the fiber can be impacted by factors such as attenuation and distortion, which can cause signal loss. One way to measure signal loss in fiber optics is through decibels (dB).

What is the attenuation of fiber optical?

Attenuation refers to the loss of signal strength over distance in a fiber optic cable. The attenuation rate is generally measured in dB per kilometer (dB/km). The lower the dB/km value, the better the fiber optic cable. The best dB/km value for single-mode fiber is typically around 0.2 dB/km. Multi-mode fiber has a higher attenuation rate, with the best dB/km value being around 3 dB/km.

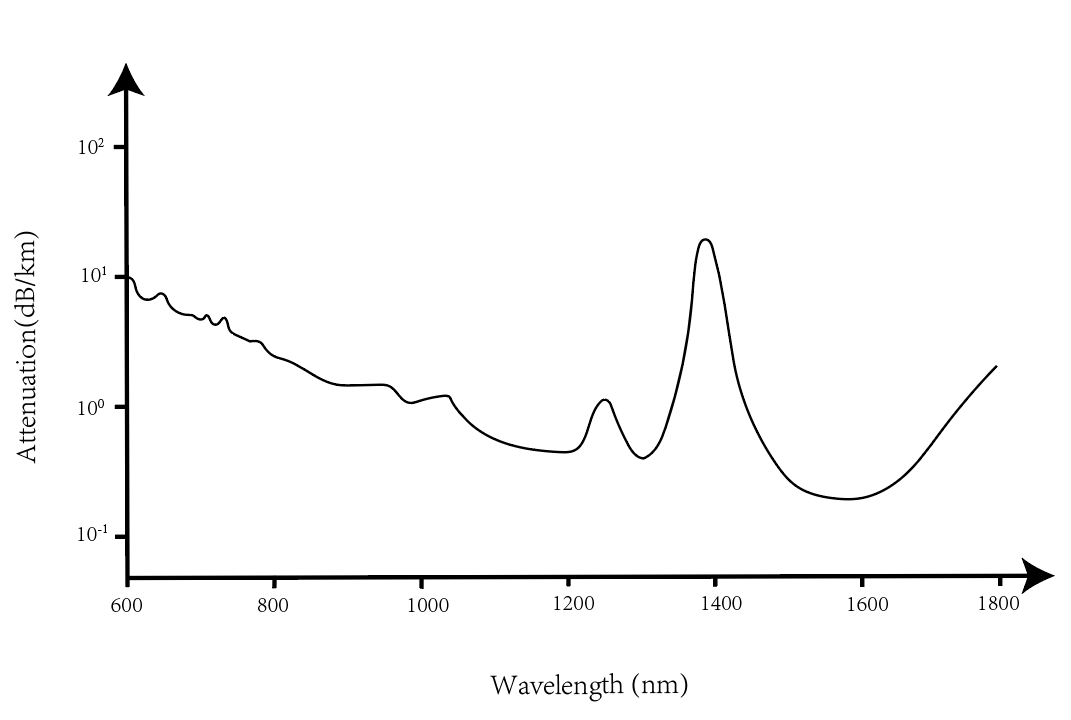

Attenuation of Fiber Optical

What is the insertion loss of fiber optical?

Insertion loss is a measure of the signal loss when light is inserted into or extracted from the fiber optic cable. It is usually expressed in dB and is defined as the ratio of the input power to the output power. In general, the lower the insertion loss, the better the fiber optic cable. The best dB values for insertion loss vary depending on the specific application, but a typical range is between 0.1 and 0.5 dB.

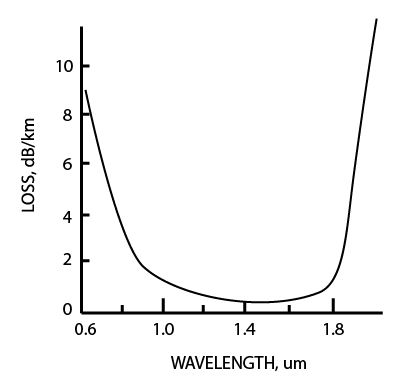

Loss of Fiber Optical


What is the return loss of fiber optical?

Return loss is a measure of the amount of light reflected back towards the source due to imperfections in the fiber optic connector or splice. A high return loss is desirable as it indicates that very little light is being reflected back towards the source. The best dB values for return loss vary depending on the specific application, but a typical range is between 45 and 60 dB.


Conclusion

When it comes to optic fiber, the best dB values for attenuation, insertion loss, and return loss vary depending on the specific application. However, in general, lower dB values are better as they indicate less signal loss and better signal quality. To ensure optimal performance, it's important to choose a fiber optical cable with the appropriate dB values for your specific application. By doing so, you can ensure reliable, high-quality data transmission over long distances without any signal loss or interference.
