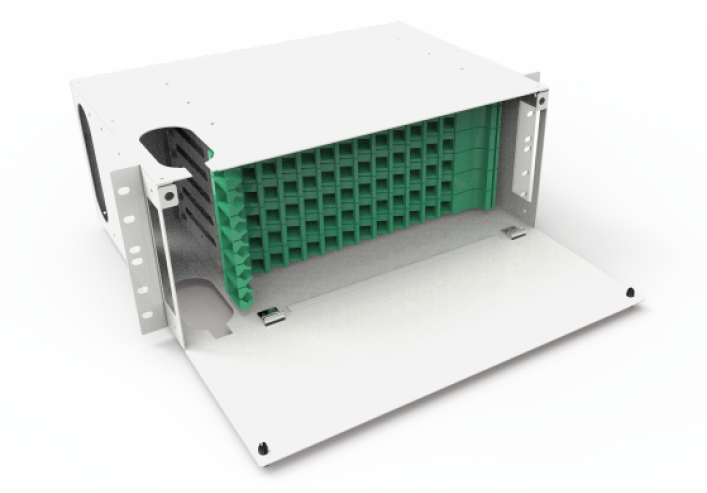

ODF optical distribution frame is a high-density, high-capacity design product. It also known as fiber optic patch panel, is a critical device used in optical communication for managing and distributing optical fibers, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. ODF optical fiber distribution frames has the characteristics of beautiful appearance, reasonable distribution, easy search, easy management, convenient installation, and good operability.
ODF optical distribution frame is an important supporting equipment in the optical transmission system. It is mainly used for optical fiber splicing, installation of optical connectors, adjustment of optical paths, storage of redundant pigtails, and protection of optical cable. The safe operation and flexible use of communication networks play an important role. Its key roles are as follows:
Optical distribution frame provides a stable space for fusion splicing between incoming backbone optical cables and internal pigtails, and supports fixed installation of optical connectors (SC/LC/FC/ST), realizing reliable connection of optical.
Organizes and fixes optical fibers and pigtails neatly, avoiding bending or stress damage. It also stores excess fiber lengths to facilitate later maintenance and expansion.
Distributes signals from the backbone optical cable to multiple distribution ports, enabling flexible cross-connection, scheduling and switching of optical paths between transmission equipment, optical cables and terminal devices.
ODF optical distribution frame provides a closed, dust-proof and anti-collision environment to protect fragile optical fibers and fusion splices from external damage, ensuring stable transmission performance.
Supports modular and port extensible design, making it easy to add optical paths, replace modules or troubleshoot without interrupting existing services.
As a transfer hub between optical cables and active communication equipment (such as switches, OLT, optical transceivers), it standardizes interfaces and improves the stability and reliability of the entire optical network.
Optical distribution frames (ODF) come in various designs to suit different cabling environments and installation needs. The main types are as follows:

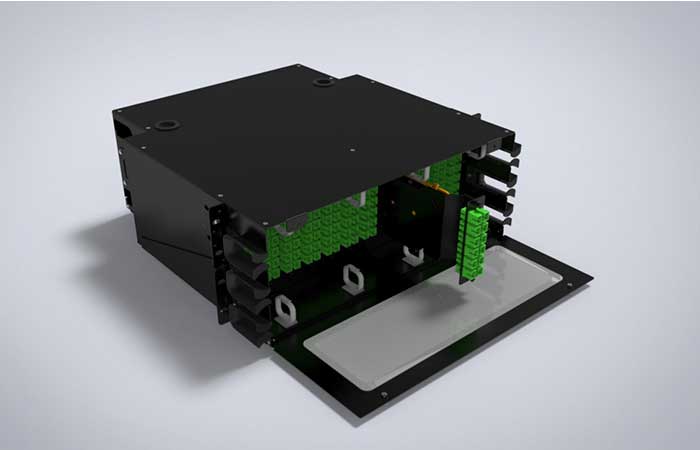

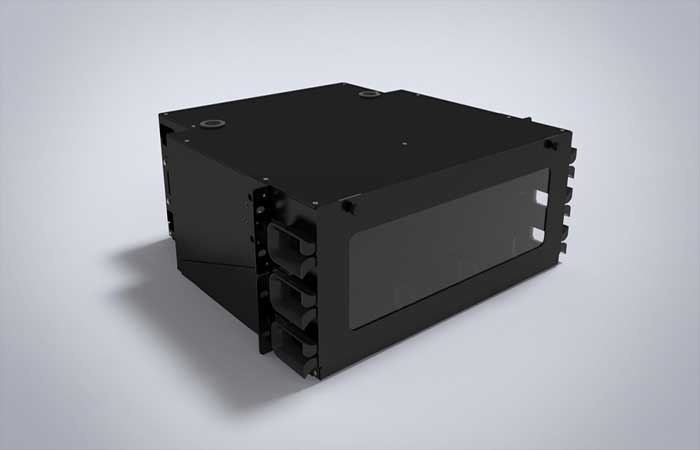

MPO/MTP ODF fiber optic patch panel can be equipped with pre-terminated MPO/MTP cassette modules, which use MPO-LC fanout fiber patch cords inside the cassettes to establish data connections. They can also be fitted with splice trays and fiber adapter panels. In addition, they can be equipped with splice-type cassette modules.
MPO/MTP ODF fiber patch panel optimizes cable routing and protects fiber bending radius, making it ideal for high density 40G/100G cabling scenarios in data centers.

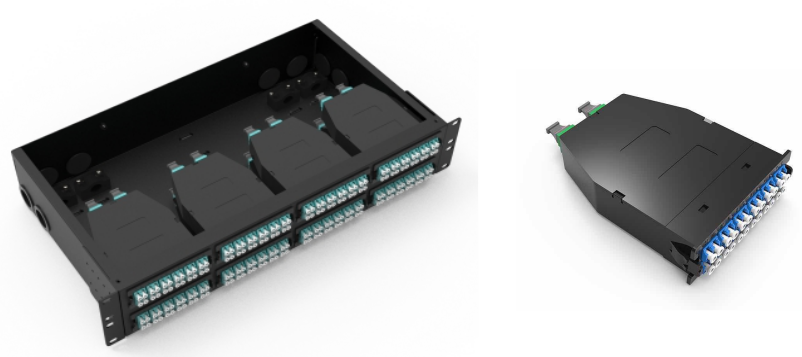

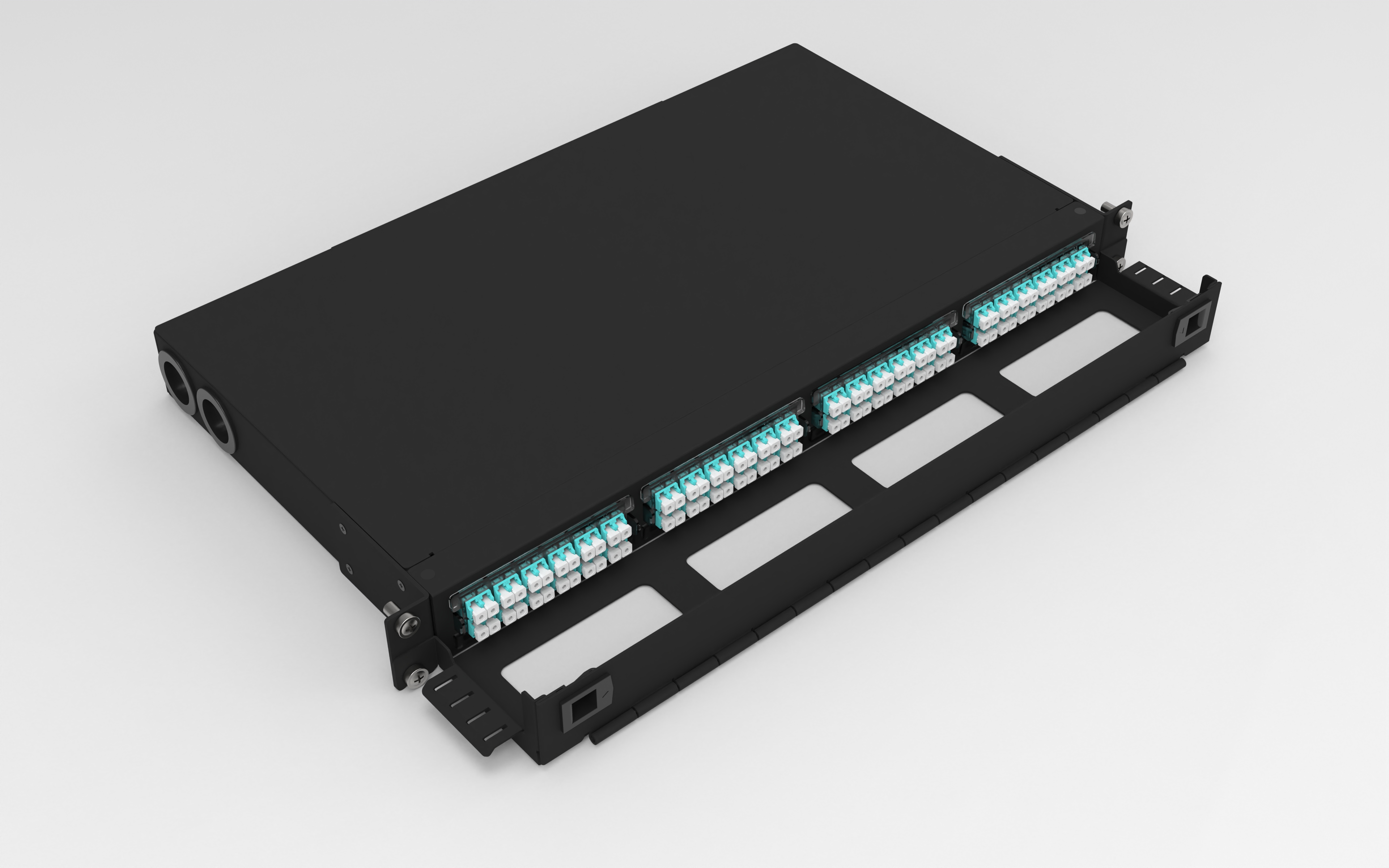

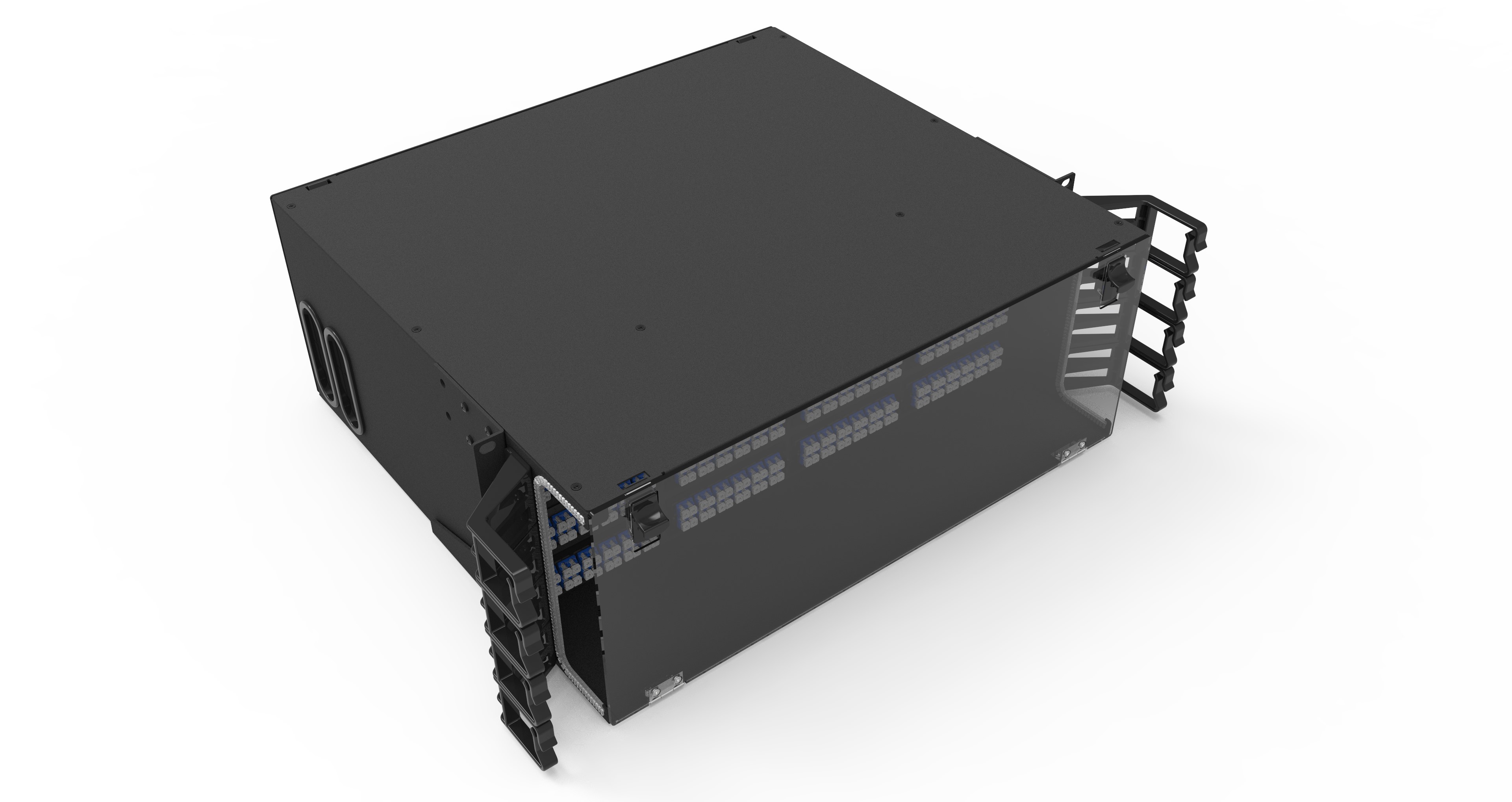

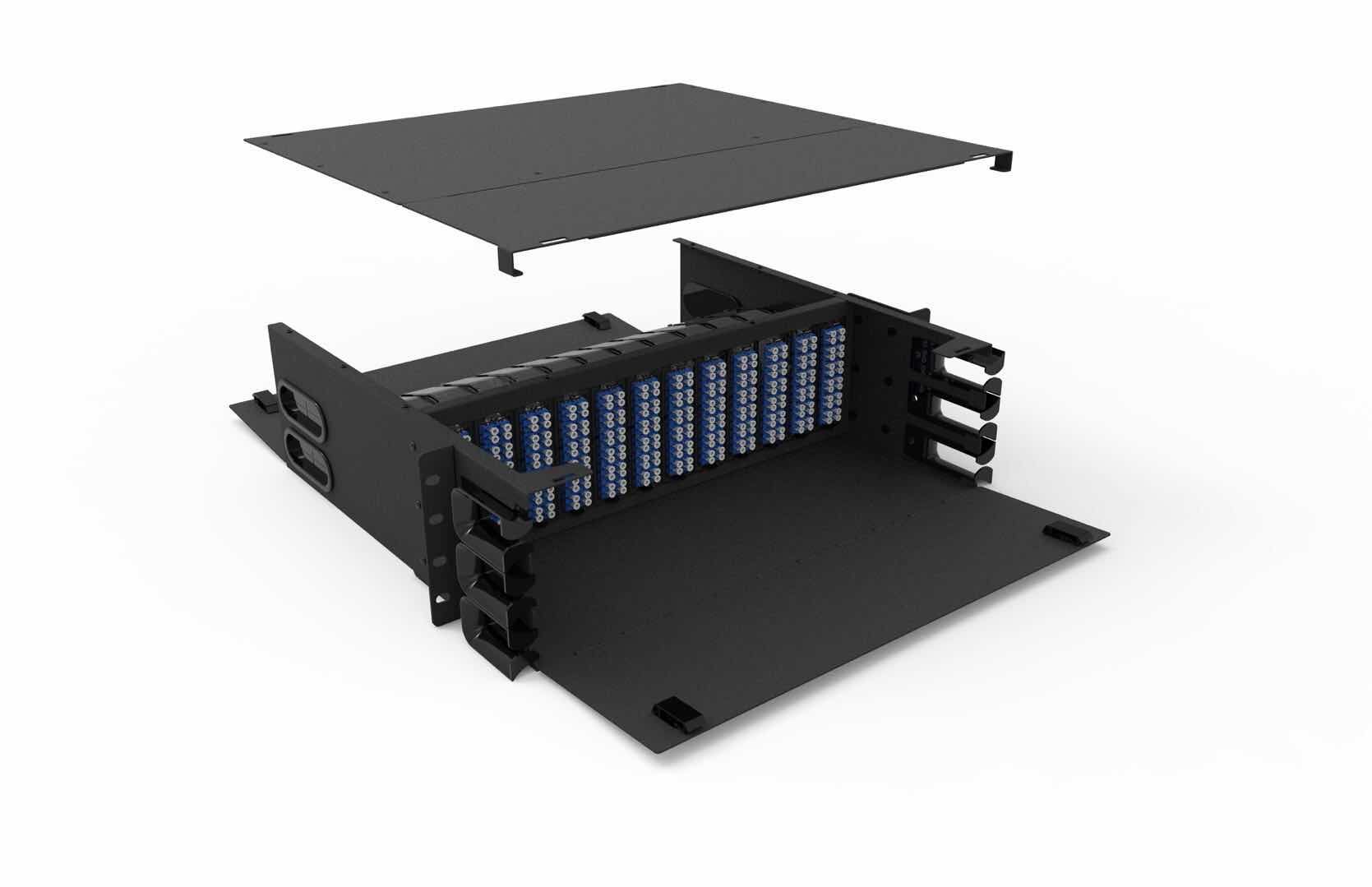

UnitekFiber provides high density MPO/MTP fiber optic patch panels in 1U 96cores, 2U 192cores, 3U 288cores and 4U 384cores. They are ideal for high density deployments in telecommunications networks and data centers. Meanwhile, as a ODF manufacturer, we can provide the customized ODFs according to the customers' requirement. The following is types of MPO/MTP ODF Fiber Optic Patch Panel:

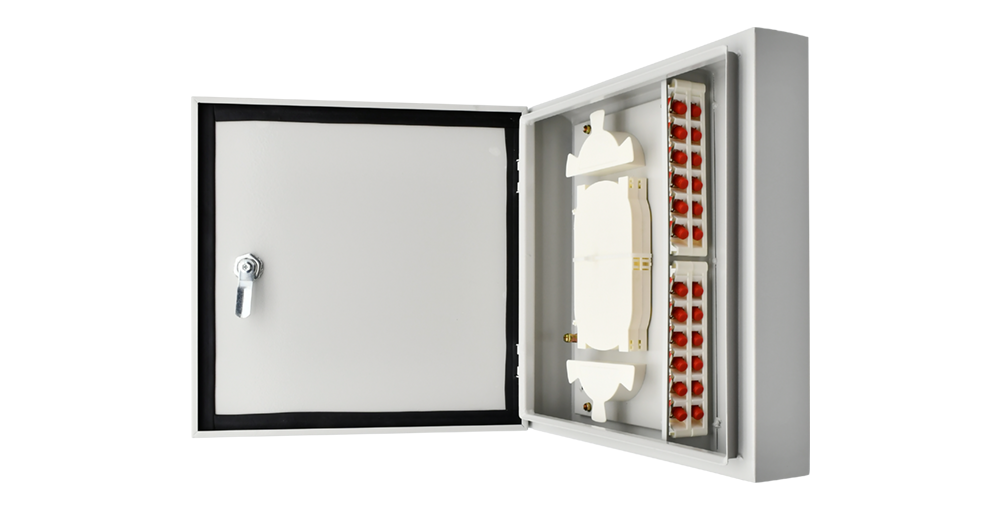

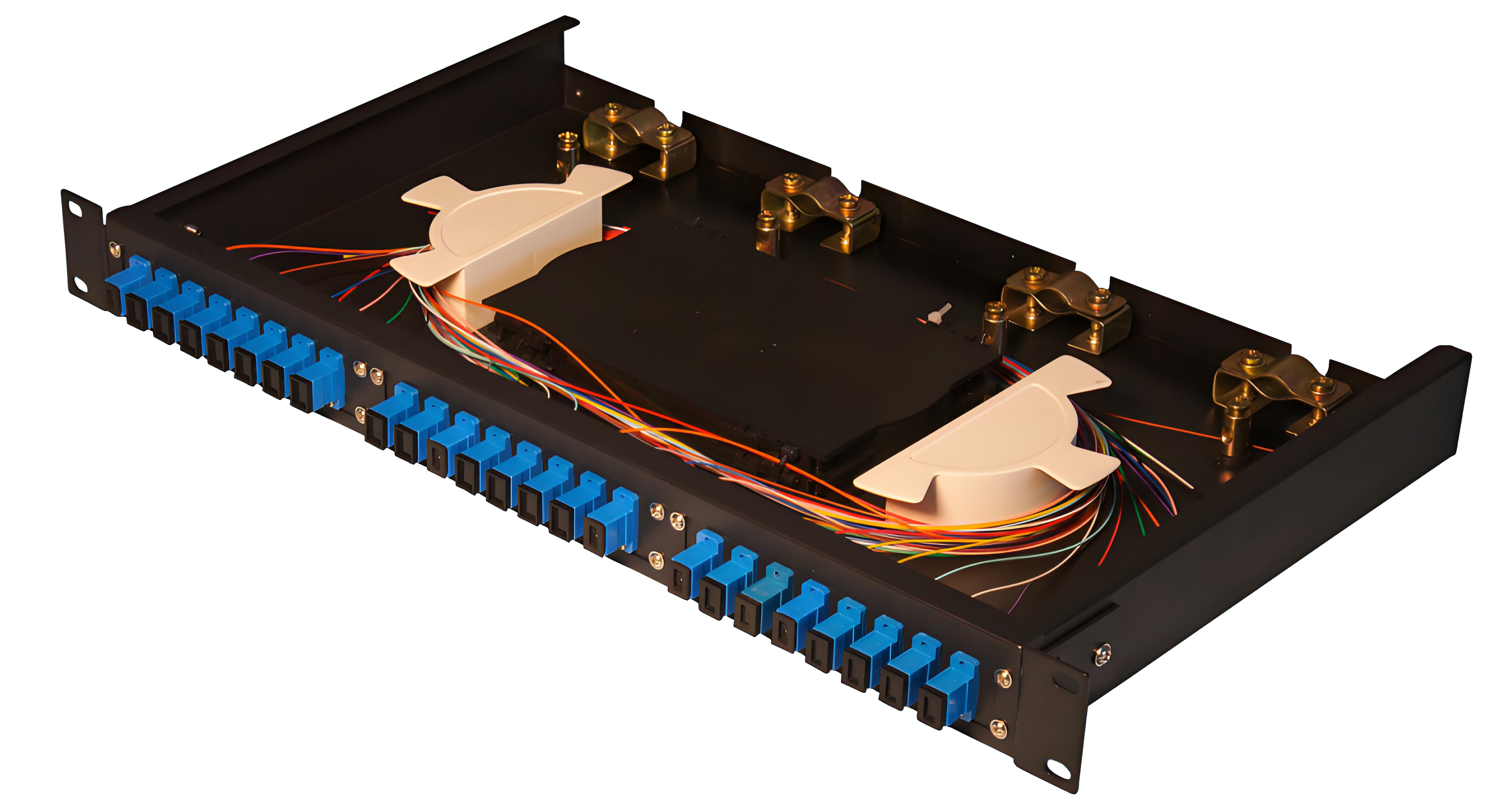

Optical Distribution Frames (ODFs) equipped with SC, LC, FC, and ST adaptors are classified into several mainstream types to meet different deployment scenarios. Common categories include rack-mounted ODFs, wall-mounted ODFs, fixed-type ODFs, sliding type ODFs. Rack-mounted ODF models follow the standard 19-inch cabinet specification and are widely used in data centers and telecommunication rooms. Wall-mounted ODF types are compact and suitable for small wiring closets and outdoor cabinets. Fixed and sliding ODF structures provide flexible operation and maintenance options, while LC-based panels deliver higher port density for modern high-speed networks. Each type supports interchangeable SC, LC, FC, and ST adaptors, enabling compatibility with various optical interfaces and fulfilling the needs of fiber splicing, patching, routing, and protection in different optical communication systems.

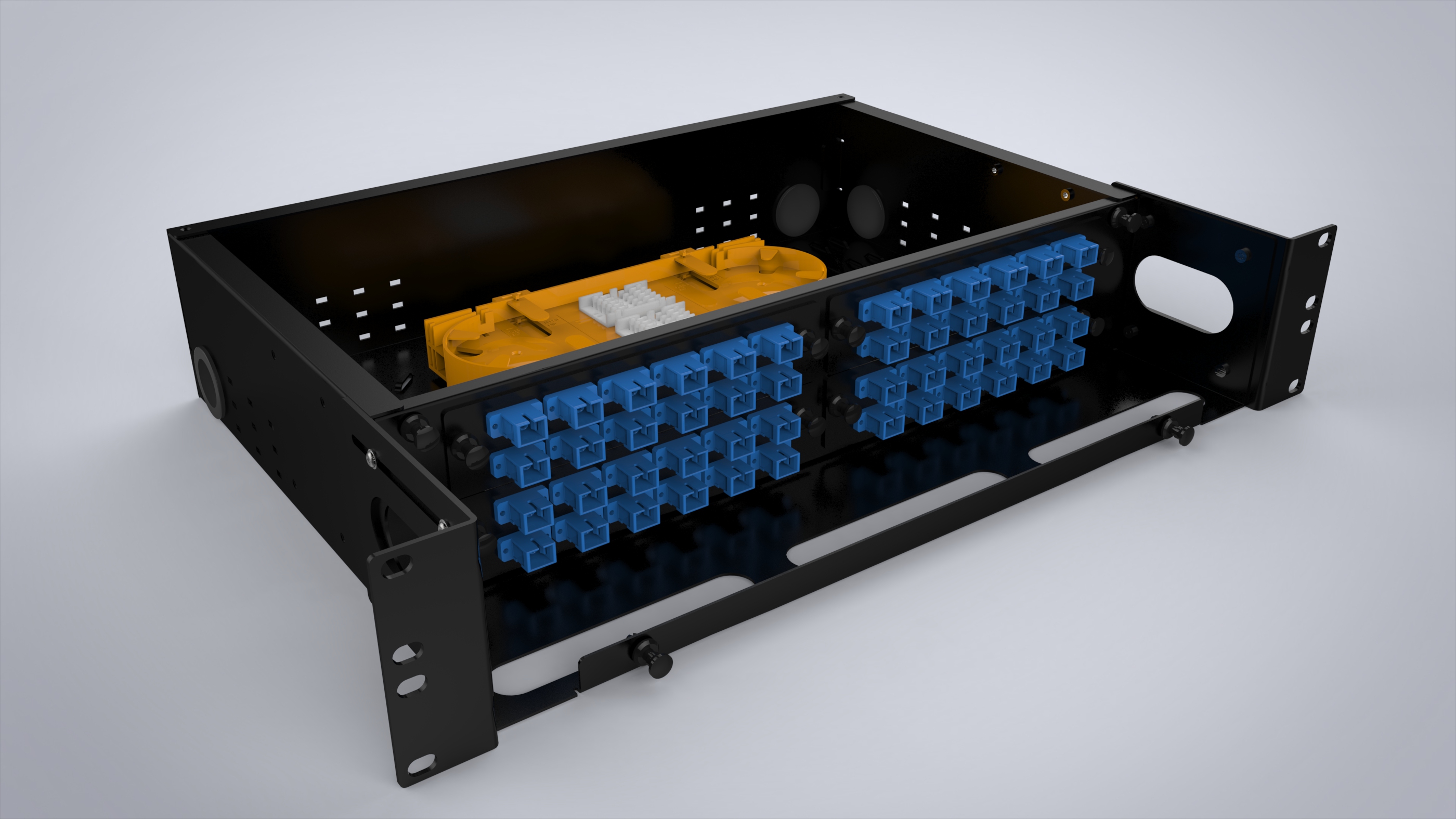

2U 96Cores Rack Mounted ODF Optical Distribution Frame

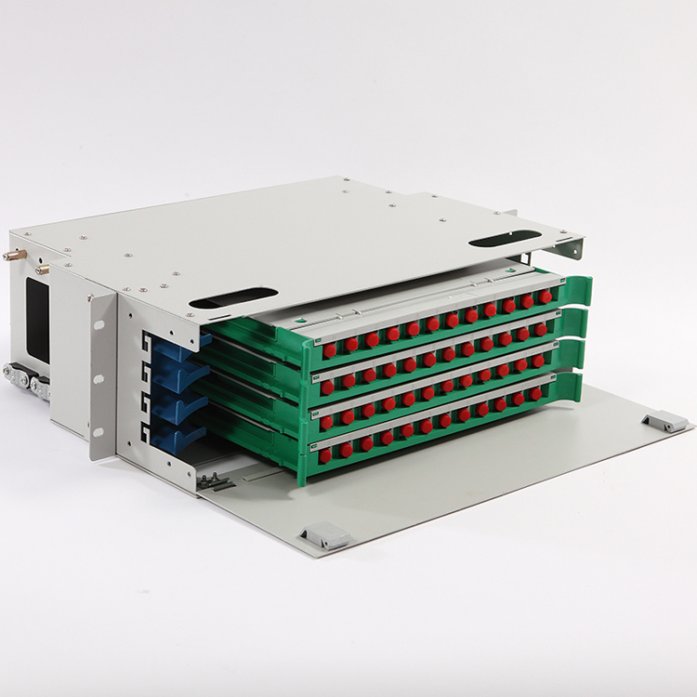

3U 144Cores Rack Mounted ODF Optical Distribution Frame
Rack-mounted ODF units represent an older design since their extremely bulky size, so they have been largely phased out.
Consider both your current fiber core requirements and future expansion plans. Higher density designs (e.g., 1U 96 cores) save space in data centers, while lower density units are suitable for smaller wiring closets.
Ensure the adapters (LC, SC, MTP/MPO) on the optical distribution frame match your existing connectors.
Choose between 19" rack mount or wall mount ODF based on your installation space. Rack mount optical distribution frames are sized in rack units (1U, 2U, 3U, etc.).

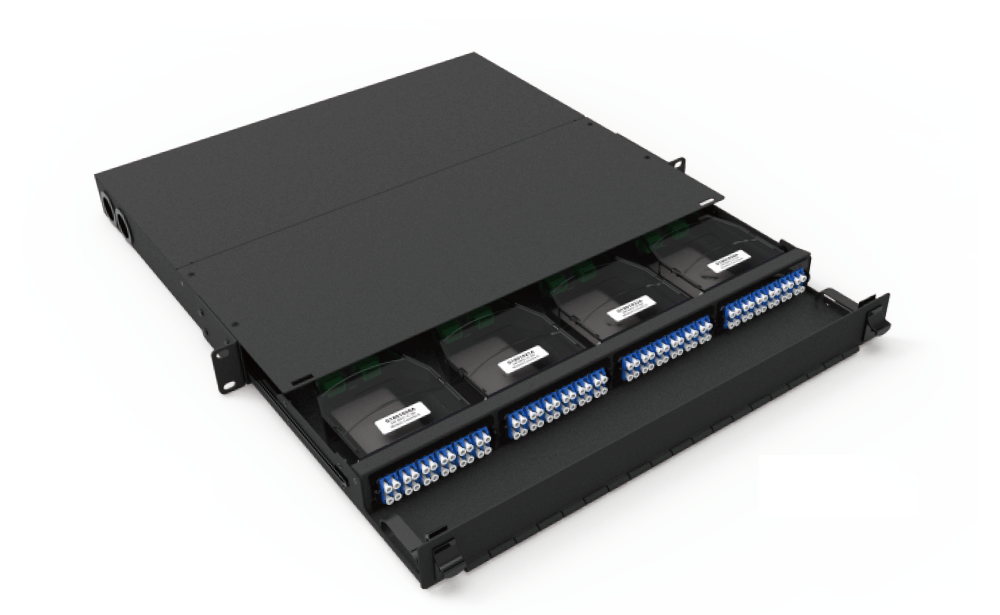

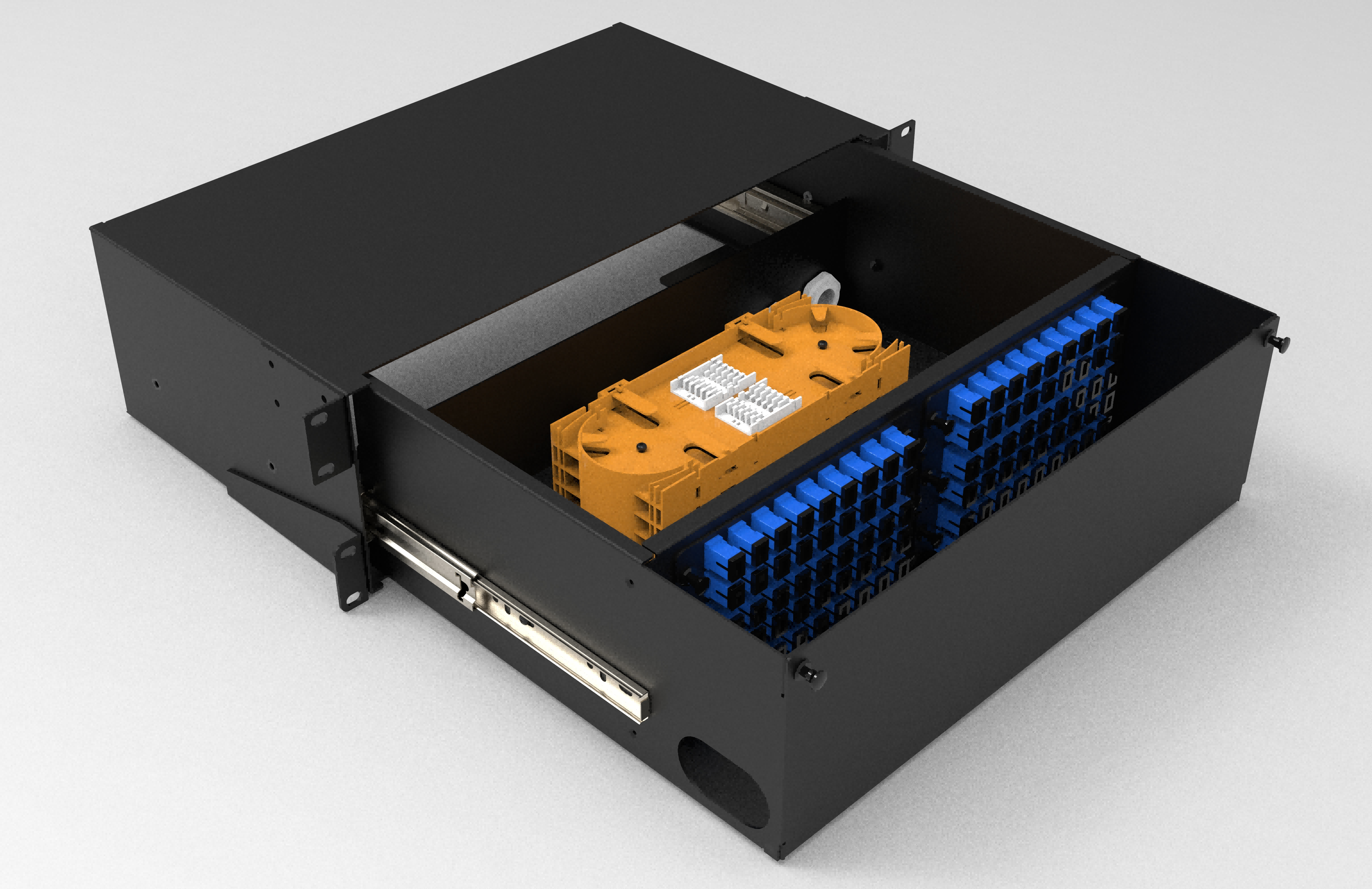

Select sliding type optical distribution frames with a reasonable internal structure to simplify fiber cable maintenance and operation.
Choose optical distribution frames with solid, high quality, corrosion resistant, and durable metal construction to protect internal fiber optics.
As a professional ODF fiber distribution frame supplier, UnitekFiber offers a comprehensive series of optical distribution frame, please don't hesitate to contact us sales@unitekfiber.com, we will try our best to support you.
