Faced with the high-speed, high-density, low-cost, and low-power requirements of short-distance data centers in optical interconnection products, AOC cable (active optical cable) cables provide an excellent solution.

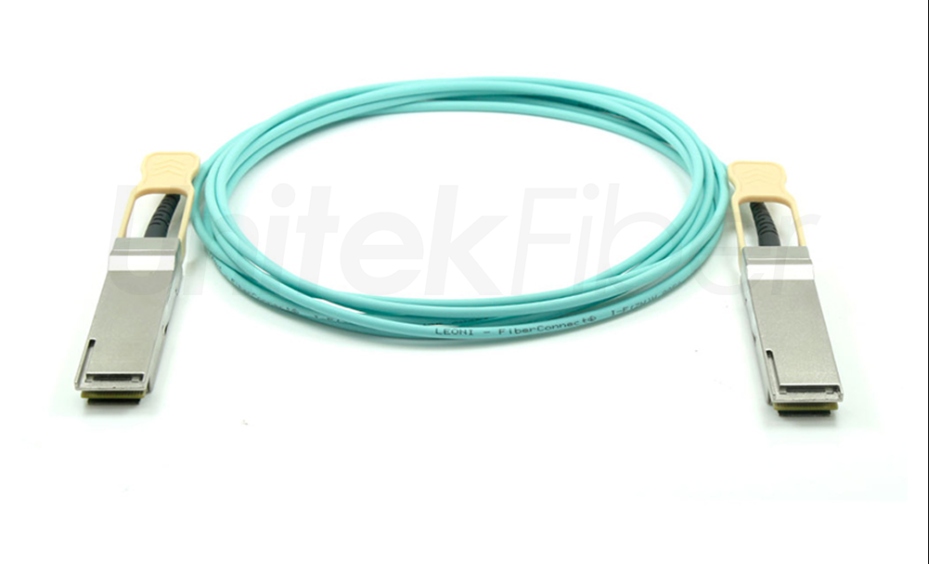

200G AOC Cable: 200G QSFP-DD AOC cable and 200G QSFP56 AOC cable, both with a wavelength of 850nm, 200G QSFP56 package has four transmit and receive ports, but each channel has a transmission rate of up to 56Gbps, and the modulation mode is PAM4. 200G QSFP-DD package has eight transmit and receive ports, each channel has a transmission rate of 28Gbps, and the modulation mode is NRZ. 200G AOC cable is used for 200G Ethernet with a transmission distance of 1-100 meters.

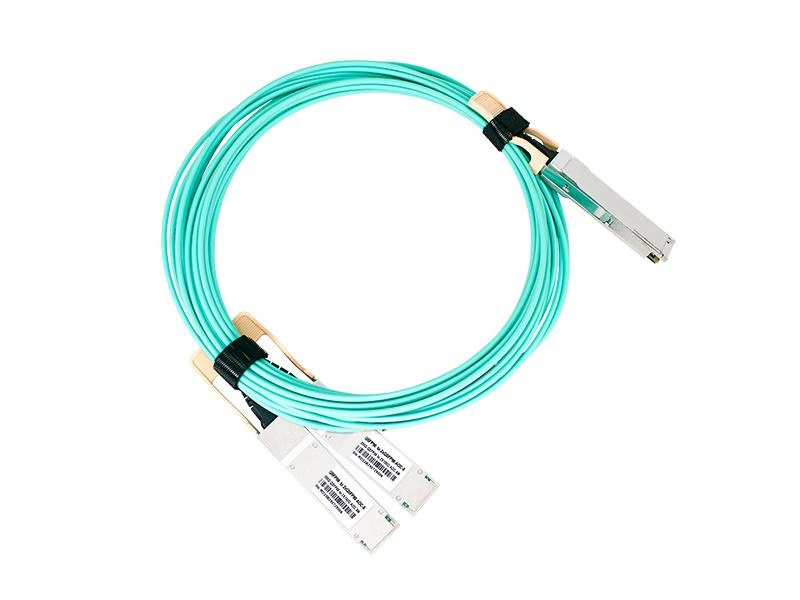

200G to 2*100G AOC Breakout Cable: one end is connected to 1*200G optical module, and the other end is connected to 2*100G optical modules, with a maximum transmission rate of 212.5Gbps. The power consumption of 200G optical module is less than 4W, and the power consumption of 100G optical module is less than 2.5W. It is mainly used in 200G to 2-way 100G Ethernet branch links in data centers.

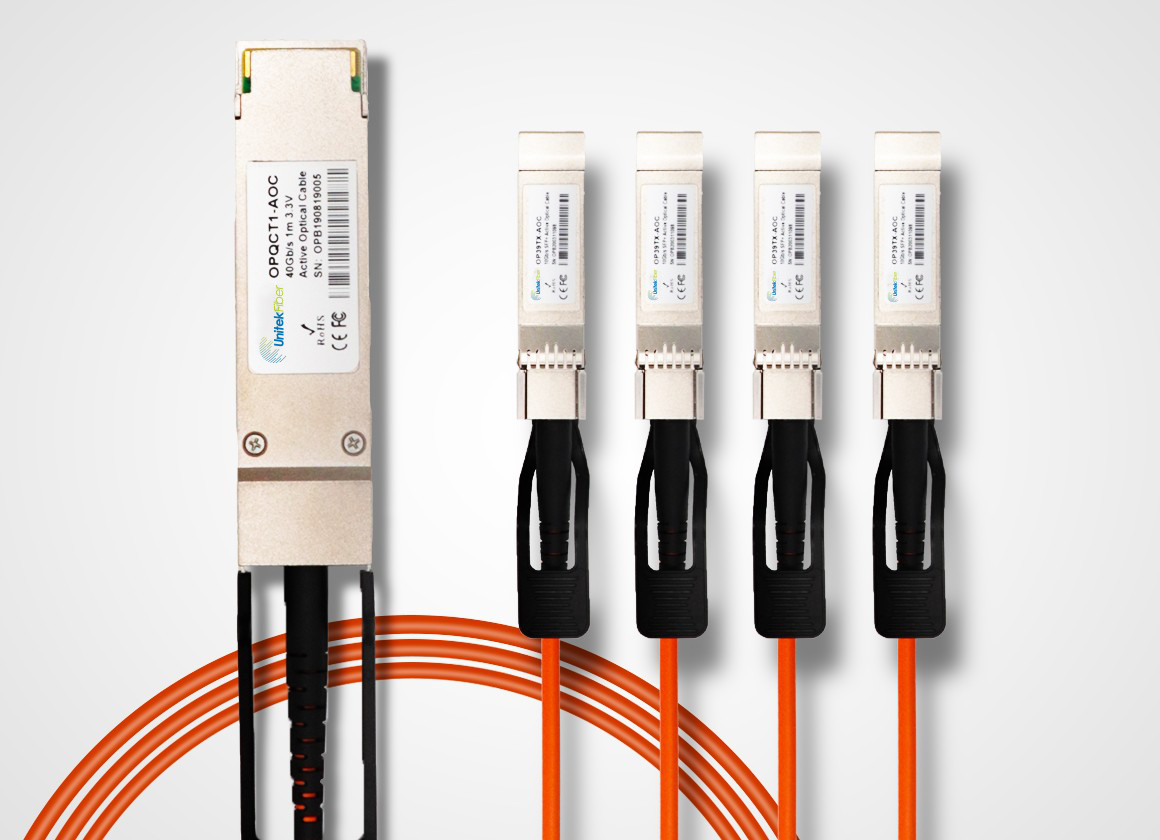

200G to 4*50G AOC Breakout Cable: It uses an 8-channel full-duplex active optical cable, with one end connected to a 200G optical module and one end connected to four 50G fiber modules, with a maximum rate of up to 206.25Gbps. The 200G power consumption is less than 4W, and the maximum power consumption of each 50G module is less than 1.5W. It is mainly used in 200G to 4-way 50G Ethernet branch links in data centers.
200G AOC optical cables are widely used and are suitable for various applications in data centers, high-performance computing (HPC), and cloud computing environments.

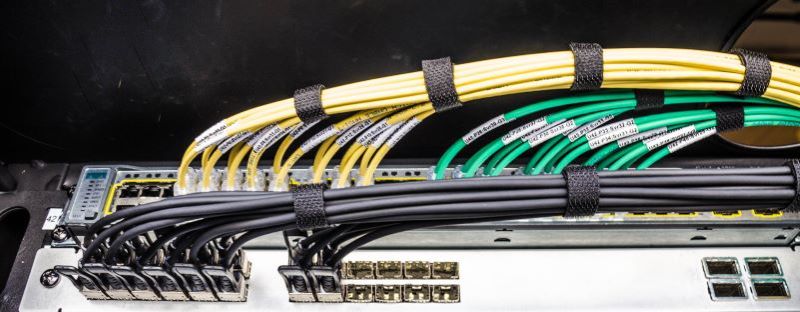

Data Center: 200G AOC cable can be used for high-speed interconnection in data centers to achieve high-bandwidth and low-latency data transmission.
High-performance Computing: 200G AOC can be used in the field of high-performance computing to achieve high-speed and low-latency data transmission and improve computing performance.
Video surveillance: 200G AOC can be used in the field of video surveillance to achieve high-speed and stable video signal transmission.
Cloud computing: 200G AOC can be used for high-speed interconnection in cloud computing to achieve high-bandwidth and low-latency data transmission and improve cloud computing performance.
As a reliable supplier, UnitekFiber provides a range of high-quality 200G AOC cables that you can always rely on, such as 200G QSFP-DD|QSFP56 AOC cables, 200G AOC breakout cables, 200G HDR InfiniBand AOC cables, and other customizable options. UnitekFiber's 200G AOC cables support long-distance data transmission, extremely low signal loss, and anti-electromagnetic interference capabilities. They have been rigorously tested with target devices to ensure perfect compatibility and seamless interoperability, making them ideal for data centers. Contact us to reduce your deployment costs.
