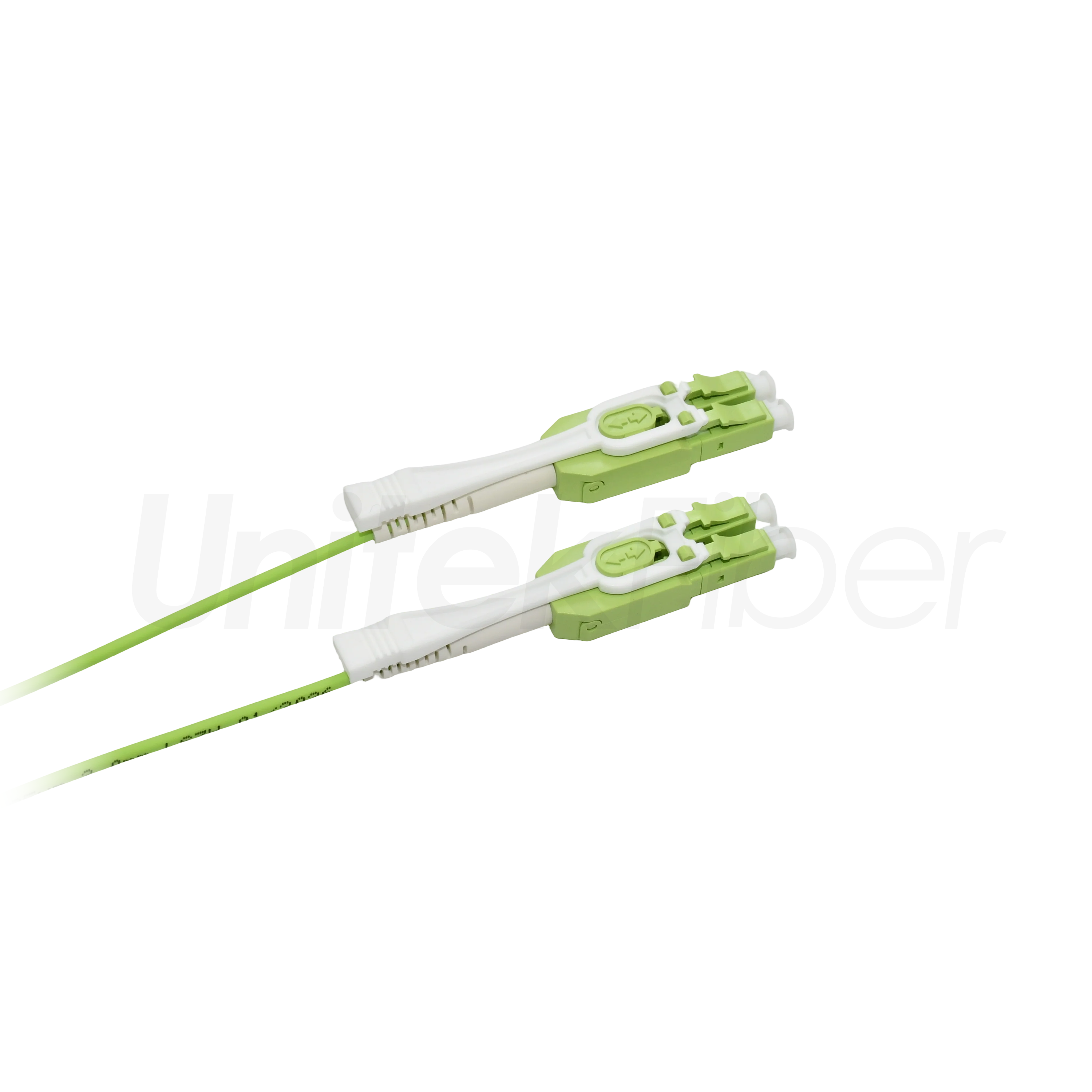

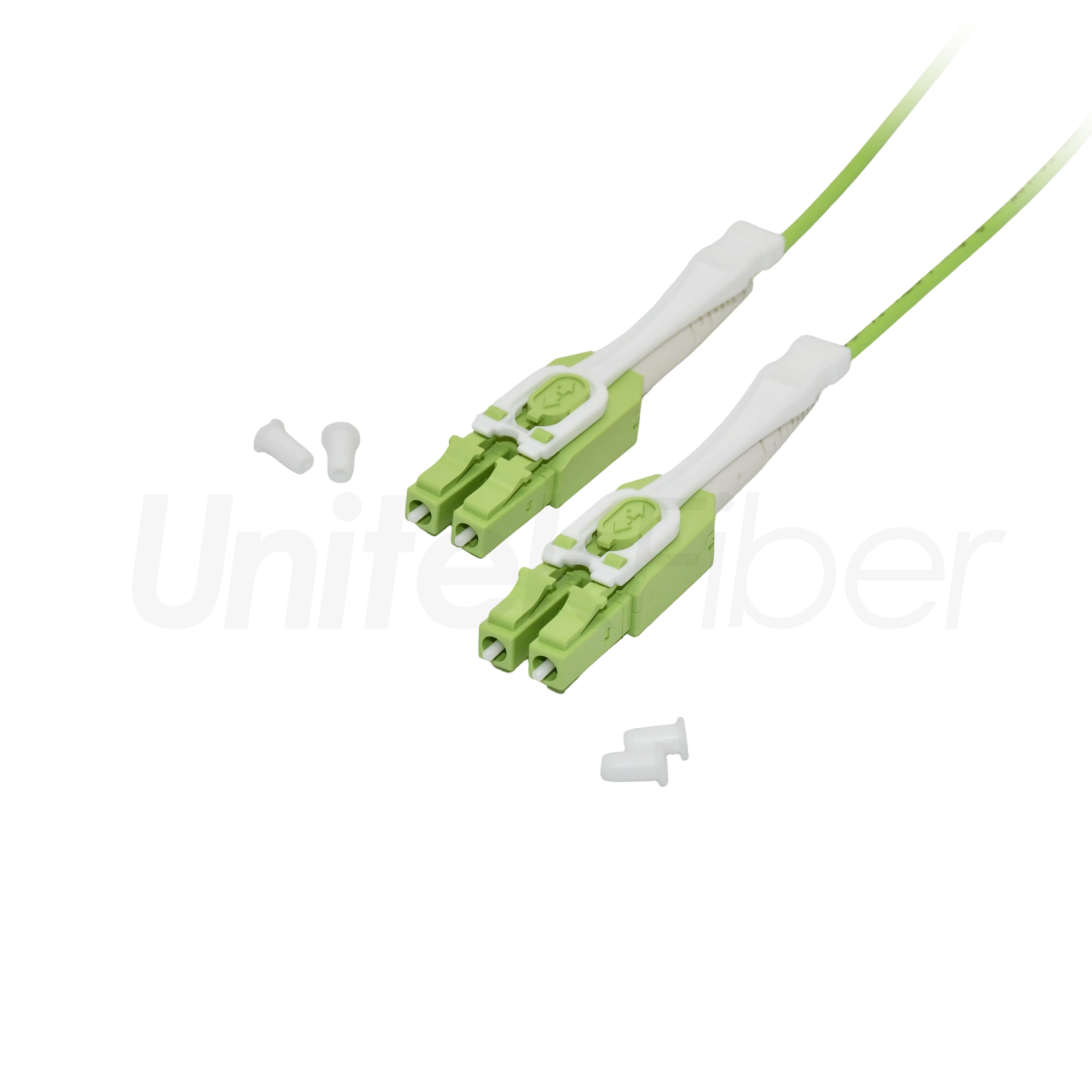

UnitekFiber's Uniboot LC/PC-Uniboot LC/PC fiber patch cord is a high performance connectivity solution designed for modern high speed networks, built with multimode OM5 wideband fiber that supports SWDM4 technology and 850-953nm wavelength operation, enabling 40G/100G transmission up to 150m and 400G up to 100m while maintaining backward compatibility with OM3/OM4 systems. Come with compact uniboot design, the uniboot LC fiber patch cord integrates two fibers in a single housing to save up to 50% of panel space compared to traditional duplex cables while enhancing heat dissipation in high density environments like data centers. The Uniboot LC fiber patch cord features tool-free polarity conversion that allows easy switching polarity without exposing fibers or using extra tools, simplifying on-site adjustments and reducing wiring errors.

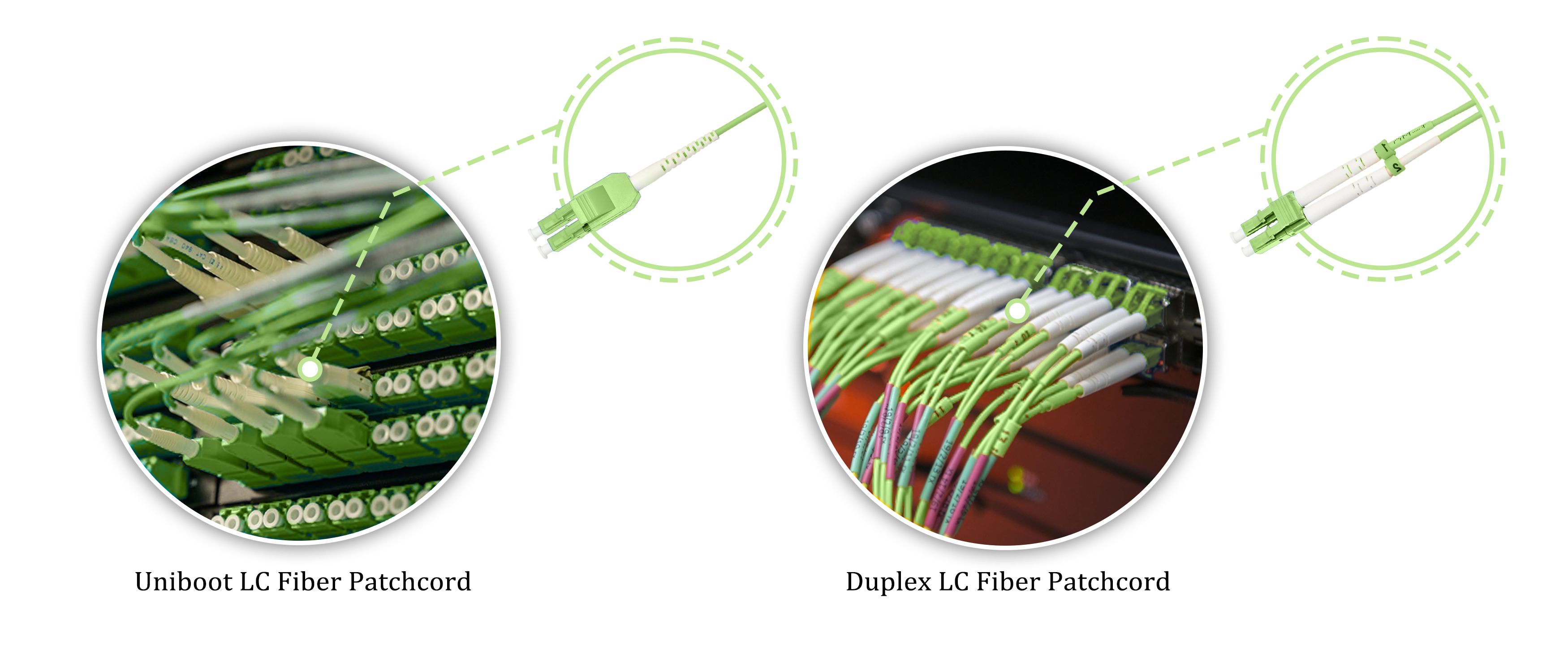

Adopting an innovative Uniboot design, this Uniboot LC fiber patch cord integrates duplex transmission into a compact structure, significantly reducing space occupation compared to traditional duplex LC fiber patch cord. The streamlined design of Uniboot LC fiber patch cord simplifies cable management in high density environments, such as data centers, improving airflow and equipment visibility while minimizing clutter. Equipped with a user friendly push pull mechanism, Uniboot LC fiber patch cord enables effortless insertion and removal with minimal force, enhancing installation efficiency and reducing operational hassle for network technicians. Also, Fully compatible with LC interfaces, Uniboot LC fiber patchcord ensures seamless integration into existing network infrastructures.

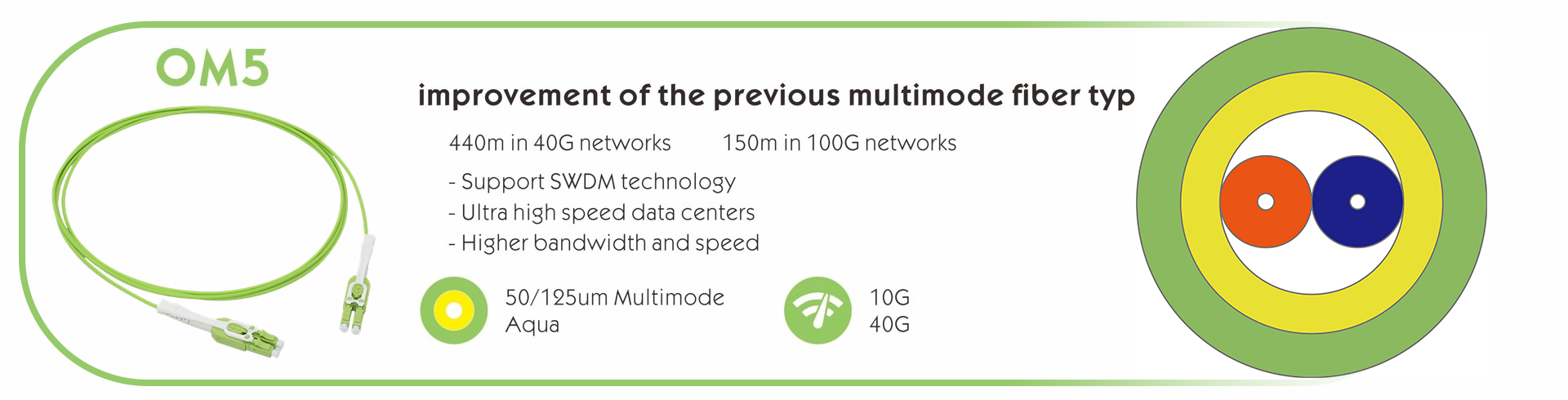

Constructed with 50/125um OM5 multimode fiber glass, this Uniboot LC patchcord supports short wavelength division multiplexing (SWDM) technology, enabling simultaneous transmission of multiple wavelengths in the 850nm to 953nm band. OM5 Uniboot LC patchcord delivers exceptional bandwidth performance, up to 4700 MHz.km at 850nm and 2470 MHz.km at 953nm, fully supporting 100G, 200G, 400G, and future higher speed network deployments (such as 100G SR4, 400G SR4.2). With superior bend insensitive performance, Uniboot LC patchcord maintains stable signal transmission even in small bending radius environments, making it ideal for tight cable routing in data centers and server rooms. It also backwardly compatible with OM3/OM4 systems, ensuring investment protection and flexible network upgrades.
The uniboot LC fiber patchcord is enclosed with LSZH jacket that meets international safety standards. In the event of fire, the uniboot LC fiber patchcord with LSZH jacket could emit minimal smoke and no toxic halogen gases, protecting human life and preventing corrosion to sensitive electronic equipment. Suitable for use in public buildings, data centers, and transportation hubs where safety are critical. It also offers excellent mechanical durability and resistance to aging, ensuring long term reliable performance. As a perfessional fiber patchcord supplier, Unitekfiber also offer different jacket material to choose, such us PVC, UL listed OFNR, OFNP or ect.
Uniboot LC fiber optic cable serves a wide range of critical applications, with data centers as its most common use case, where it is ideal for connecting servers, storage, and switches within racks and cabinets, especially in high density environments where streamlined cable management is crucial. Uniboot LC fiber optic cable also supports high speed backbone connections across enterprise and campus networks, delivers reliable performance in telecommunications scenarios such as central offices and other high-port-density areas, and facilitates seamless connectivity between patch panels and active equipment in network closets.
.png "Uniboot_LC_fiber_patchcord(1).png")

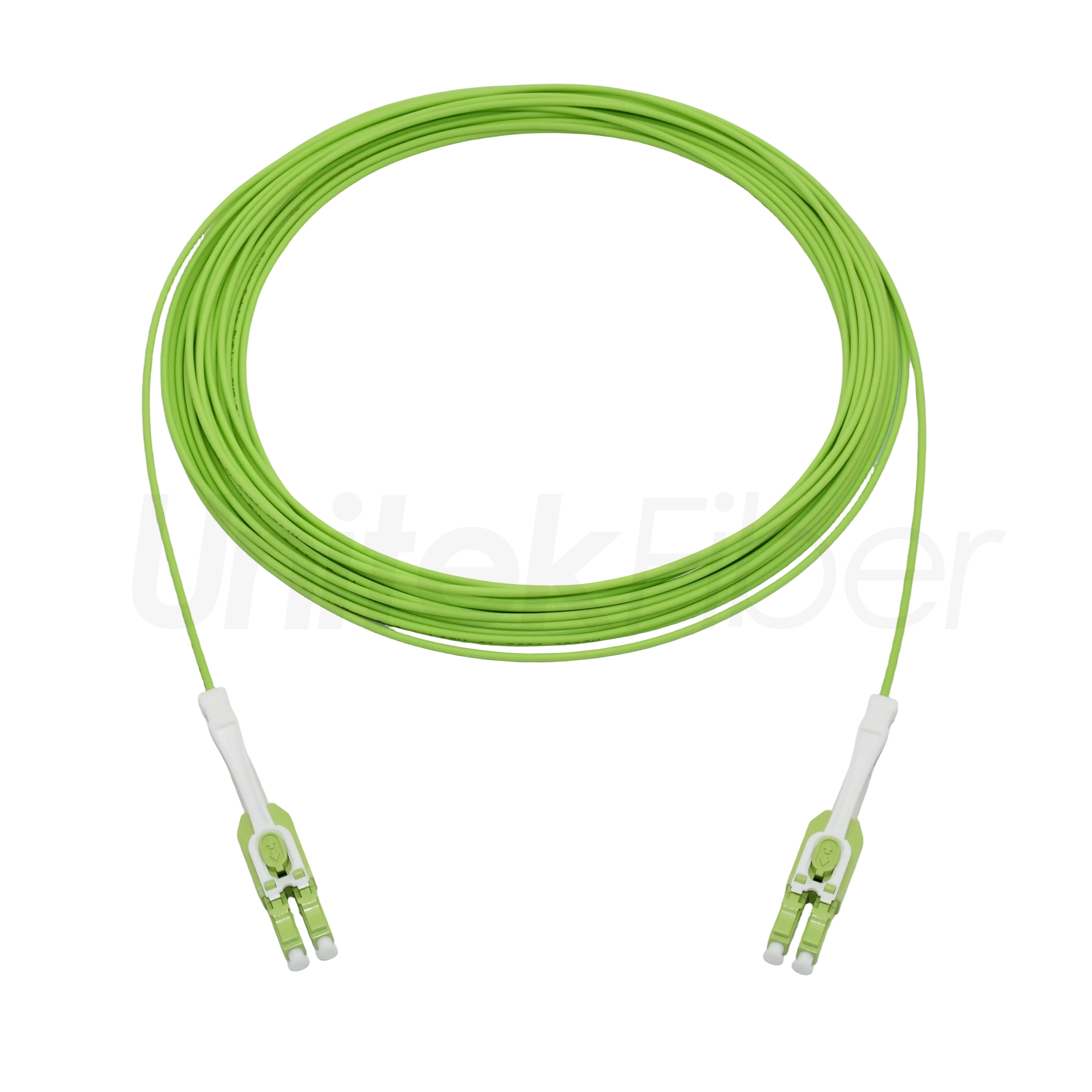

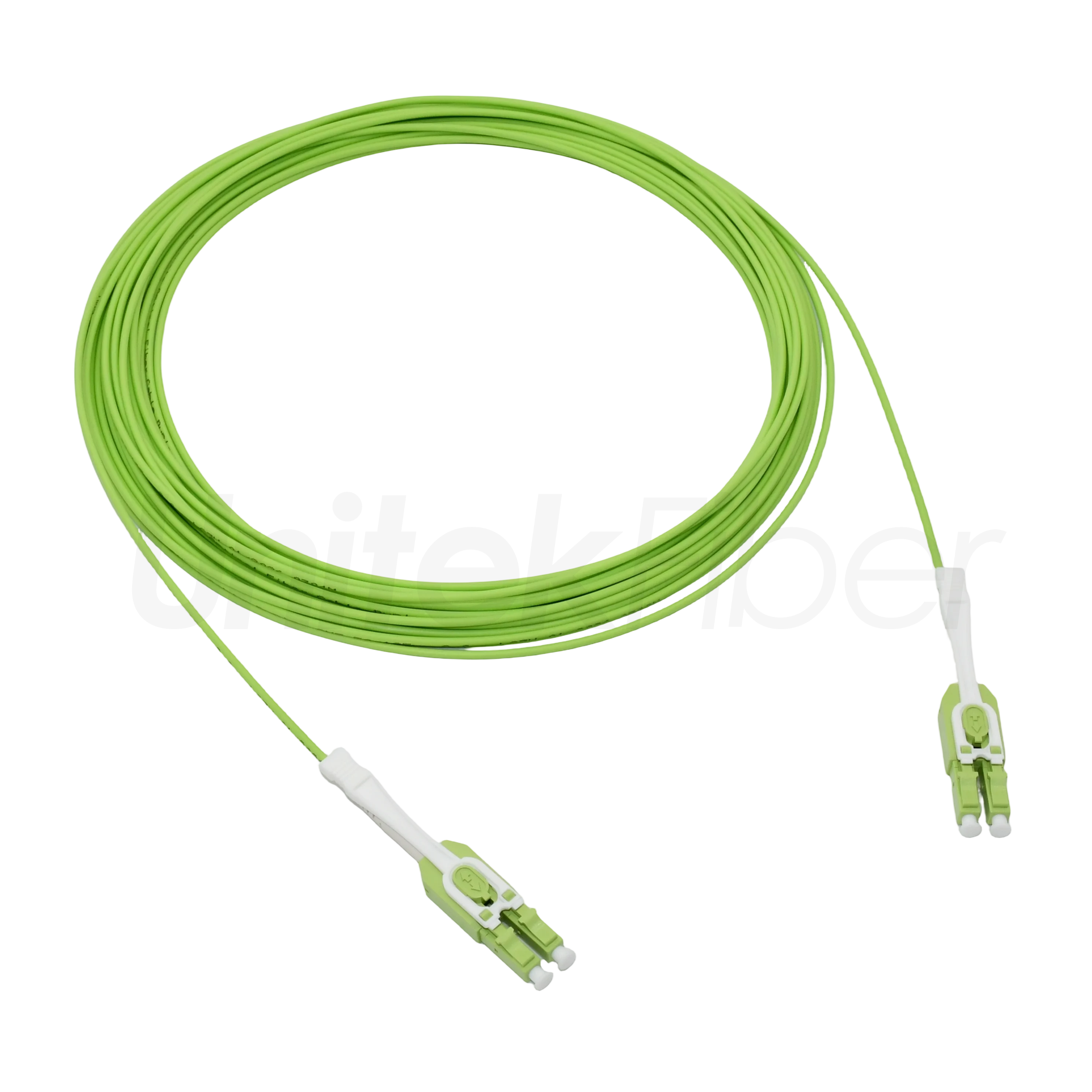

It is a Uniboot LC/PC-Uniboot LC/PC multimode patch cord, adopting OM5 wideband fiber with LSZH jacket. It supports tool-free polarity conversion and is compatible with high-speed networks up to 400G.
It enables 40G/100G transmission up to 150m and 400G transmission up to 100m. It also maintains backward compatibility with OM3/OM4 systems, ensuring flexible network upgrades.
Yes, You can insert or remove it with minimal force, enhancing installation efficiency and reducing operational hassle for technicians.
Yes, it is fully compatible with standard LC interfaces, ensuring seamless integration into your existing network infrastructure without additional upgrades.
Yes, the LSZH jacket complies with international safety standards, ensuring it is safe for indoor use in public buildings, data centers, and transportation hubs.
Ordered the fiber patch lead varying lengths between 1 and 10 meters. All arrived undamaged and have had no issues since connecting them.
We upgraded our data center racks with UnitekFiber's Uniboot LC patch cords, and the space-saving effect is remarkable. Integrating two fibers in one housing cuts panel space by nearly 50%, ideal for crowded cabinets.
LSZH jacket Uniboot LC fiber patch cord was a non-negotiable for us, as our office buildings require fire safety compliance. We’ve tested 40G transmissions between buildings (80m distance) with zero latency issues.
The compact Uniboot LC design kept our patch panels organized, eliminating the tangled mess of traditional duplex LC fiber patchcord.
With OM5 fiber, we enjoy stable 100G transmissions at 120m, plus backward compatibility with OM4 systems. Highly recommended for efficient, scalable data centers.
