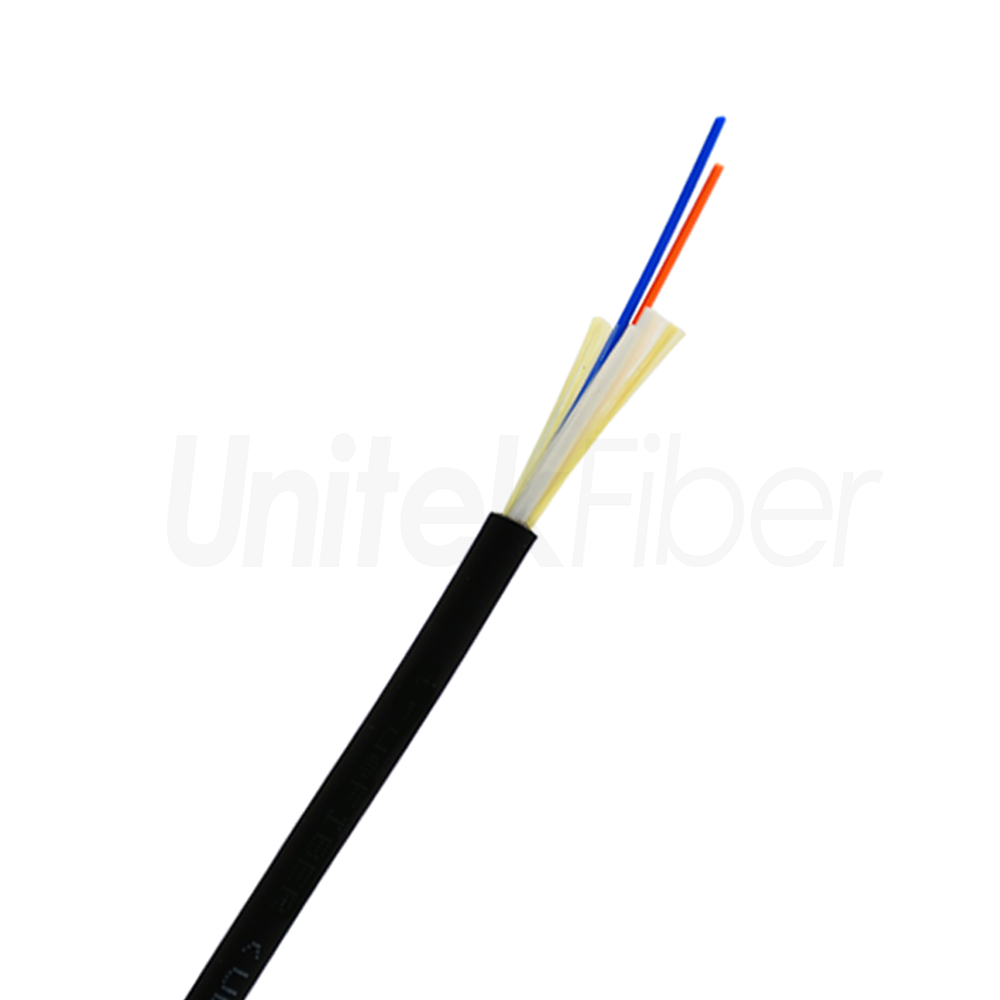

8F bulk fiber drop cable is a high quality designed to provide reliable and efficient data transmission for various applications. With a fber type of G.657A2, this fiber drop cable ensures excellent performance and durability. With a tight buffer diameter of 0.9mm, 8cores fiber drop cable provides enhanced protection for the fiber optic strands, ensuring they remain safe from external factors such as dust, moisture, and physical damage, making it resistant to environmental factors that could compromise its performance. Equipped with a PVC-OFNP black jacket, the fiber drop cable is specially designed for UV resistance, ensuring long term durability under sunlight exposure. Whether used in indoor or outdoor installations, fiber drop cable is designed to withstand various environmental challenges and provide reliable connectivity for your networking needs.

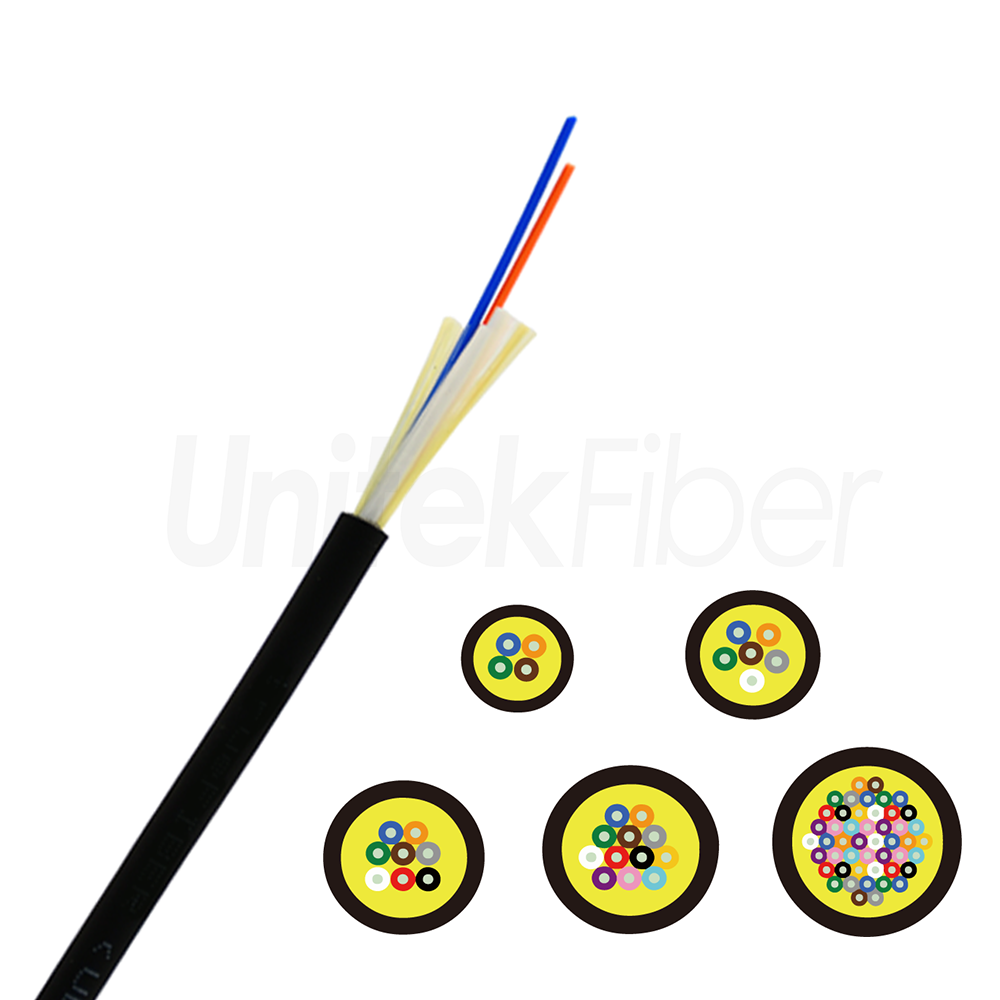

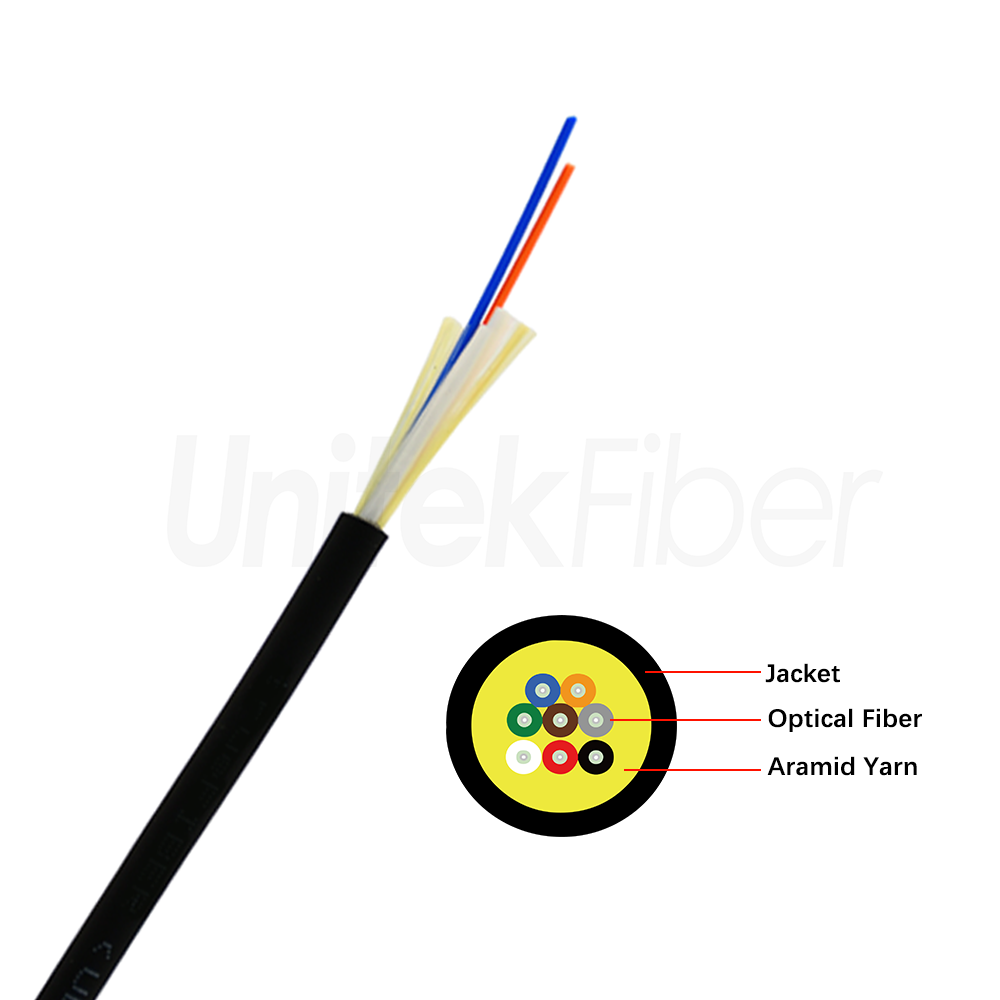

The 0.9mm tight buffer bulk fiber drop cable features a compact, robust structure optimized for high density indoor and outdoor cabling applications. At its core come with singlemode or multimode optical fibers, which are tightly buffered with a 0.9mm PVC layer, this fiber drop cable’s tight buffer design enhances fiber protection against bending and crushing while ensuring consistent signal transmission. With aramid yarn reinforcements added to boost tensile strength for easy pulling during installation. Finally, the bulk fiber drop cable is encased in a durable outer jacket (available in LSZH, OFNP, OFNR, or TPU materials) to specific cabling environments, from plenum spaces to vertical risers or more.
UnitekFiber provides a comprehensive range of jacket material options for bulk fiber drop cables, including LSZH, OFNP, OFNR, TPU or etc. Each type is engineered to meet the specific safety and performance requirements of distinct cabling locations.
OFNP jackets suit air ducts and ceiling cavities, with superior fire resistance to stop flame spread in enclosed spaces, ideal for commercial buildings and data centers with strict fire codes. OFNR is optimized for inter-floor vertical shafts, offering reliable flame retardancy as a cost-effective backbone cabling solution. LSZH jacket emits little smoke and no toxic gas when burned, making it perfect for crowded indoor areas like offices, subway stations and industrial control rooms.

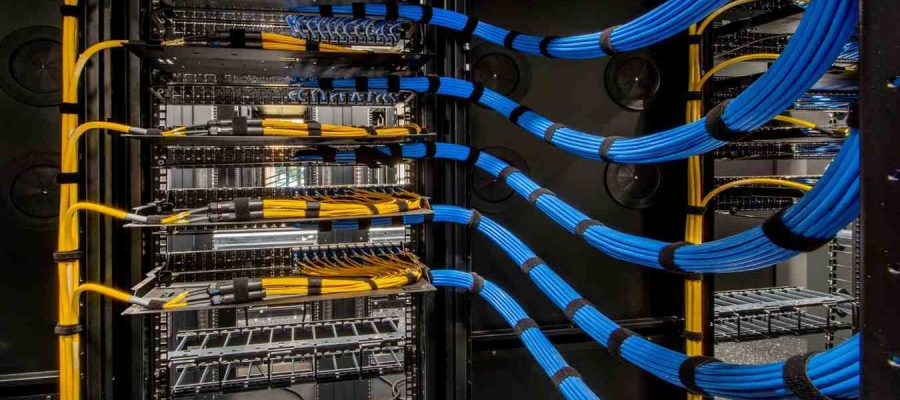

Bulk fiber drop cables are ideally suited for fast deployment and easy termination in both outdoor and indoor using. Designed specifically to support high performance network cabling, its high capacity fiber optic cores, such as 2/4/6/8/12 cores, offers significant space saving advantages. For indoor setups, bulk fiber drop cables are commonly routed to fiber optic patch panels or communication closets, where they connected with relevant equipment to enable seamless data transmission across distinct office spaces. Additionally, bulk fiber drop cables serve as an importance solution for inner building connectivity needs where the fiber drop cable form the backbone of intra-building networks, and support reliable data connections in riser and plenum environments requiring high density deployment.

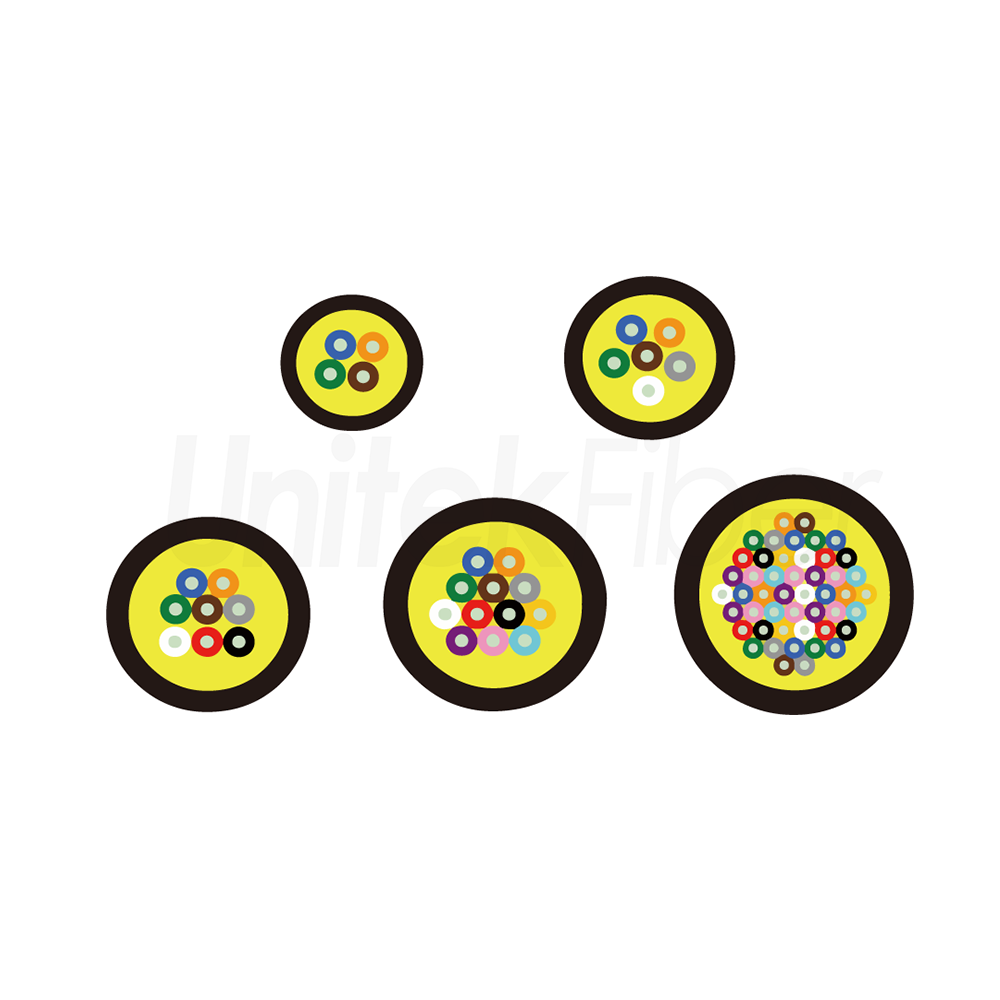

The available sizes are 0.9mm and 0.6mm (corresponding to 900um and 600um). It depends on the fiber core you required.
The optional sheath materials are LSZH, PVC, PVC-OFNR, and PVC-OFNP, TPU or ect.
LSZH has the characteristics of low smoke, low toxicity, low corrosion, and high flame retardancy. Suitable for indoor and outdoor application.
PVC-OFNP jacket is suitable for environments requiring high fire resistance, and it can extinguish itself within 5 meters of flame spread when a fan forces the flame to blow.
Aramid yarn is used as the strength member unit. Also, the glass yarn are also available.
As a data center purchaser, this drop cable has exceeded expectations! The fiber cores offer stable transmission, and the 24fiber fully meets the high density connectivity needs of our server room. It bends flexibly during installation without affecting signal quality, extremely reliable.
Having sourced numerous fiber cables, UnitekFiber’s offering is a pleasant surprise! The LSZH jacket is complying with our corporate campus safety standards. The outer protection is robust, with strong corrosion resistance, and there’s been no loss after long term use.
Purchased this as the backbone cable for an office building, opting for the 12cores. The wiring process was seamless! The tight buffered fiber design plus aramid yarn reinforcement delivers excellent tensile strength, no issues even with pulling during construction.
The drop cable is perfectly sized for easy termination, and the aramid yarn reinforcement keeps the cable stable in complex wiring environments. Clients have given rave feedback.
Sourced this cable for data center expansion. The flexible 2-24 core options align perfectly with our needs. The UL listed OFNP jacket emits low smoke and low toxicity when burned, passing fire safety inspections, and transmission loss is extremely low, fully meeting high-speed network requirements.
