How to Reverse Polarity of Push-pull Tab LC Uniboot Fiber Patch Cord

How to Reverse Polarity of Push-pull Tab LC Uniboot Fiber Patch Cord

Standard LC fiber jumpers have great limitations in order to achieve polarity conversion. Not only need tools to operate, but also need to pay attention to the direction of polarity conversion, which can easily lead to failed terminations. Uniboot patch cable are now used as the fiber optic patch cord of choice for high-density connections in data centers. The LC Uniboot patch cord feature reverse polarity design LC connectors that eliminate the need for double cable and reduce overall wiring by 50%. Therefore, understanding how the Uniboot fiber optic patch achieves polarity reversal will give you a deeper understanding of its use. You can learn how in this article.


How to Reverse Polarity of Push-pull Tab LC Uniboot Fiber Patch Cord

STEP1: Launch the Outer Frame Cover

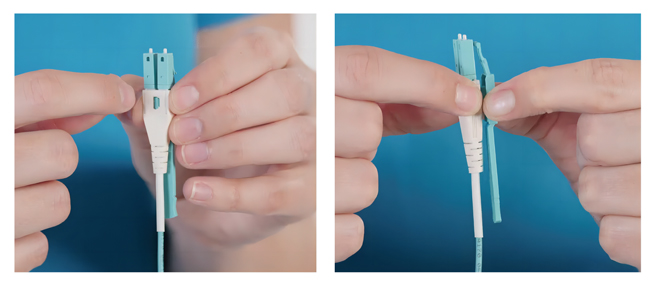

Hold the outer frame of the LC Uniboot patch cord connector, being careful not to touch the end face of the ferrule; And then push the lock out the Uniboot jumper connector's cover. Hold the outer frame, and grab the outer frame shrapnel.


Launch the Outer Frame Cover


STEP2: Reverse the Polarity

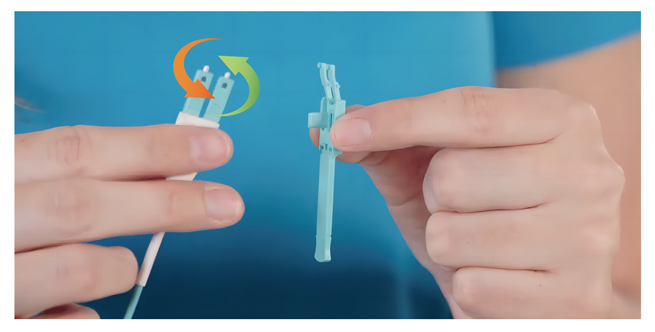

When the shrapnel opens outward, rotate LC Uniboot connector housing, and switch the polarities of A and B.


Reverse the Polarity


STEP3: Push in the Outer Frame Cover

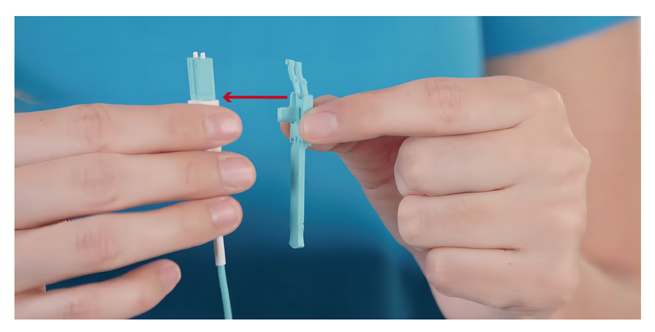

After the polarity conversion is completed, install the outer frame in sequence.


Push in the Outer Frame Cover

Conclusion

As the highly efficient and space-saving, Uniboot fiber patch cords have become an important part of data centers and other environments with high-density fiber connections. LC uni-tube dual-core switchable polarity fiber optic jumper has the characteristics of easy polarity conversion and low insertion loss. It is a product born for high-density wiring. UnitekFiber not only provide switchable polarity LC Uniboot optical fiber jumpers, but also provide bend-insensitive jumpers with ultra-low insertion loss. It is also a high-density wiring application. If you need any support, please contact us sales@unitekfiber.com at any time.
