Application of MTP/MPO Fiber Cables in Data Center

Application of MTP/MPO Fiber Cables in Data Center

MTP/MPO fiber cables are widely used in data centers. In recent years, the demand for bandwidth of data center optical fiber transmission systems has shown a trend of high growth. Therefore, the use of a new generation of optical fibers and optic transceiver modules can continue to explore the potential of optical fiber network bandwidth growth. Because multi mode MTP/MPO fiber cable has great advantages in cost, there are absolute advantages in data center applications.

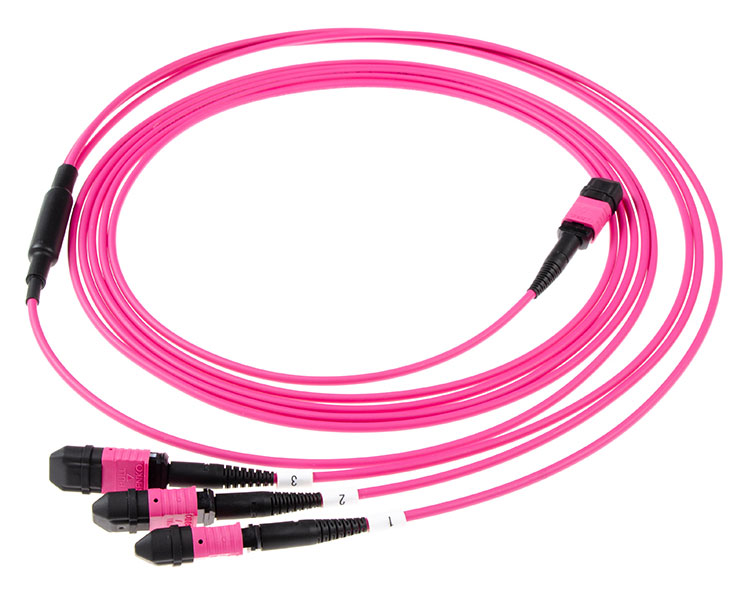

Application of MTP/MPO Fiber Cables in Data Center


Driven by the continuous application and promotion of network media in the cloud computing environment, multi mode MTP/MPO fiber cable is also constantly developing. From OM1 to OM2, and from OM3 to OM4, the VCSEL laser optimization technology used, and bandwidth requirements continue to grow. The introduction of the new category OM4 multimode MTP/MPO fiber cable standard EIA/TIA492AAAD provides a better transmission method for the wide application of multi mode fiber in the future. This article will provide an ideal communication solution for your data center, server, network switch, telecommunication switching center and many other embedded application systems that require high-speed data transmission.

In 40G/100G data transmission applications, transmission port connection equipment, such as QSFP optical transceiver modules, will be directly connected through MTP/MPO fiber cable regardless of the fiber connections used by the fiber channel, and regardless of the type of fiber connection. Because the 40G/100G data transmission application device and the channel connection between the device need to form a special mode, so that the channel of the transmitting end and the receiving end of the device correspond to each other, which requires the MTP/MPO fiber cable to complete the connection.



Application of MTP/MPO Fiber Cables in Data Center


MTP/MPO fiber cables can provide various applications for all networks and devices that require 100G modules. They adopt the MT series casing design of the high-density multimode fiber optic connector system industry. MTP/MPO fiber cables use UPC and APC polished end faces, and support both multi-mode and single-mode applications. With VCSEL laser and LED light source, 10G OM3/OM4 MTP/MPO fiber cables can provide 10Gbps data transmission rate in high bandwidth applications. They are 5 times faster than standard 50um fiber optic patch cords.

At the same time, multimode MTP/MPO fiber cables are also a more economical choice for most of the most common fiber optic communication systems. Single mode MPO/MTP fiber optic patch cords are mainly used in long-distance data transmission systems. MPO/MTP backbone fiber cables are specially designed for data center applications. Generally, single mode and multimode MTP/MPO fiber cables are designed as round cables with an outer diameter of 3mm or 4.5mm.

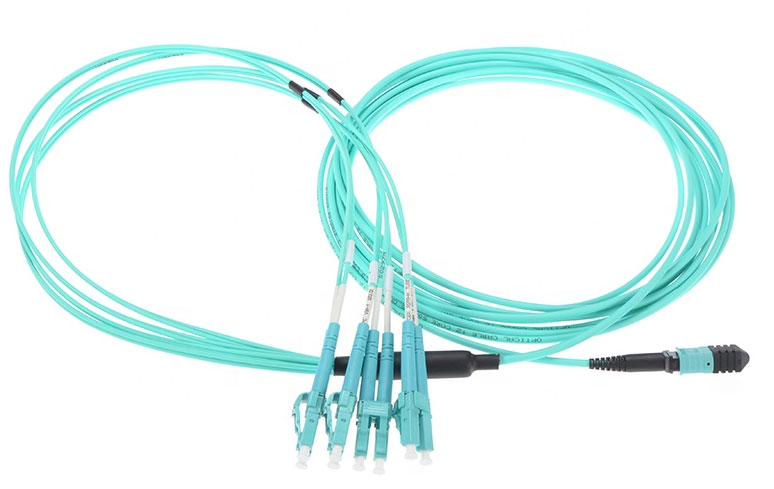

Application of MTP/MPO Fiber Cables in Data Center


At present, MPO/MTP high-density fiber cables are mainly used in three aspects: high-density cabling data centers, fiber to the home, and connection applications with optical splitters, 40G/100G QSFP+, SFP+ and other optical transceiver modules. Today, there are already a series of high-density parallel optical interconnection products that can adapt to the optical fiber transmission of modern data centers, such as custom MTP/MPO fiber cables, multi-mode fiber loop backs and QSFP+ high-speed cable.

The development of server virtualization and cloud computing, as well as the development trend of network integration, has brought about the development of faster and more efficient data center networks. At present, the 10G switch composed of 48 10G channels is mainly limited to use SFP+ transceiver modules to realize the connection. In order to meet higher bandwidth requirements, users can use high-density QSFP+ high-speed cables to complete the connection, and increase the data transmission rate of each channel and increase the port density to meet the customer's high bandwidth requirements.
